Home » AXIS AXIS M5526-E 4 Megapixel Indoor/Outdoor Network Camera - Color - Dome - White - 02769-001

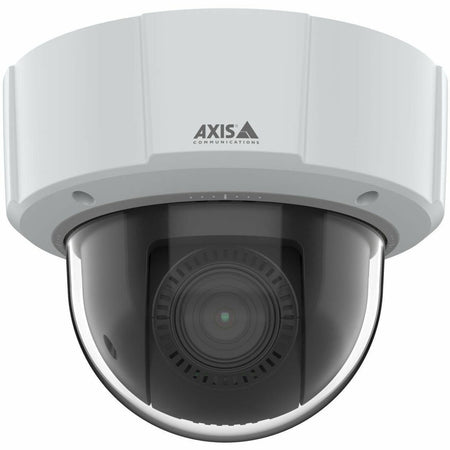

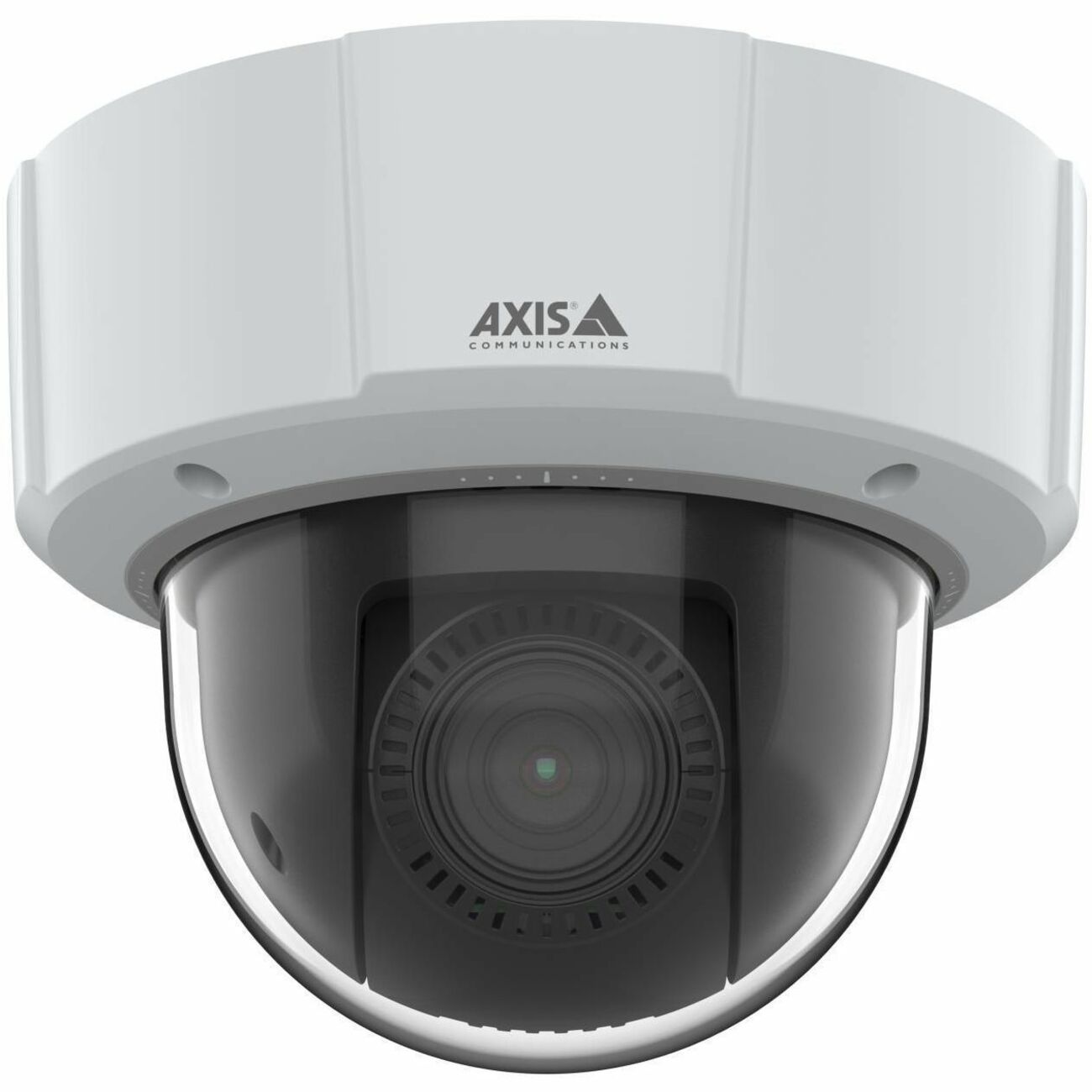

AXIS AXIS M5526-E 4 Megapixel Indoor/Outdoor Network Camera - Color - Dome - White - 02769-001
AXIS AXIS M5526-E 4 Megapixel Indoor/Outdoor Network Camera - Color - Dome - White - 02769-001

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Axis Communications

AXIS AXIS M5526-E 4 Megapixel Indoor/Outdoor Network Camera - Color - Dome - White - 02769-001

Chat for Availability
SKU: 9128797
$1,128.01
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Click here for Additional pdf1
Click here for Manufacturer Brochure
Click here for User Manual

AXIS AXIS M5526-E 4 Megapixel Indoor/Outdoor Network Camera - Color - Dome - White

  • UPC: 7331021083394
    • General Information
    • Manufacturer: Axis Communications
    • Manufacturer Part Number: 02769001
    • Manufacturer Website Address: http://www.axis.com
    • Brand Name: AXIS
    • Product Series: M55
    • Product Model: AXIS M5526-E
    • Product Name: M5526-E PTZ Camera Indoor and outdoor 4 MP with 10x zoom and focus recall
    • Product Type: Network Camera
    Technical Information
    • HD Recording: Yes
    • Camera Iris:
      • P-iris
      • Auto
    Display & Graphics
    • Image Sensor Type: RGB CMOS
    • Image Sensor Size: 1/3"
    • Color Supported: Color
    • Field of View: Horizontal field of view: 59.1°-6.5°, Vertical field of view: 35°-3.67°
    • Effective Camera Resolution: 4 Megapixel
    Video
    • Video Formats:
      • H.264
      • H.265
      • Motion JPEG
      • Zipstream
      • H.264B (MPEG-4 Part 10/AVC)
      • H.264H (MPEG-4 Part 10/AVC)
      • H.264M (MPEG-4 Part 10/AVC)
      • H.265 (MPEG-H Part 2/HEVC) Main Profile
    • Maximum Video Resolution: 2688 x 1512
    • Maximum Frame Rate: 60 fps
    Lens
    • Lens Type: Varifocal
    • Minimum Focal Length: 4.70 mm
    • Maximum Focal Length: 47 mm
    • Lens Included: Yes
    • Minimum Aperture: f/3
    • Maximum Aperture: f/1.6
    • Optical Zoom: 10x
    Exposure
    • Shortest Shutter Speed: 1/27000 Second
    • Longest Shutter Speed: 0.2 Second
    Network & Communication
    • Connectivity Technology: Wired
    • Remote Management: Yes
    • Ethernet Technology: Fast Ethernet
    • Protocols:
      • IPv4
      • IPv6 USGv6
      • ICMPv4/ICMPv6
      • HTTP
      • HTTPS
      • HTTP/2
      • TLS
      • DiffServ (QoS)
      • FTP
      • SFTP
      • CIFS/SMB
      • SMTP
      • UPnP
      • SNMPv1/v2c/v3 (MIB2)
      • DNS/DNSv6
      • DDNS
      • NTP
      • NTS
      • RTCP
      • RTSP
      • RTP
      • SRTP/RTSPS
      • TCP
      • UDP
      • IGMPv1/v2/v3
      • ICMP
      • DHCPv4/v6
      • ARP
      • SSH
      • LLDP
      • CDP
      • MQTT
      • MQTT v3.1.1
      • Syslog
      • ZeroConf
      • IEEE 802.1AR
      • IEEE 802.1X (EAP-TLS)
      • ONVIF
    Storage
    • Storage Type: Memory Card
    Interfaces/Ports
    • Network (RJ-45): Yes
    Power Description
    • Maximum Power Consumption: 12.95 W
    • Input Voltage:
      • 20 V DC
      • 28 V DC
    • Power Source Type:
      • DC
      • PoE
    Physical Characteristics
    • Color Family: White
    • Product Color: White
    • Form Factor: Dome
    • Weight (Approximate): 2.20 lb
    Environmental Conditions
    • Minimum Operating Temperature: -4°F (-20°C)
    • Maximum Operating Temperature: 122°F (50°C)
    • Maximum Operating Humidity: 100%
    Miscellaneous
    • Features:
      • Day/Night
      • Ingress Protection
      • Motion Detection
      • Vehicle Detection
      • Human Detection
      • HTTPS Encryption
      • Password Protection
      • Privacy Masking
      • Wide Dynamic Range
      • White Balance
    • Indoor/Outdoor: Indoor/Outdoor
    • Package Contents:
      • 1 x M5526-E PTZ Camera Indoor and outdoor 4 MP with 10x zoom and focus recall
      • 1 x Installation Guide
      • 1 x Bayonet Adapter
      • 1 x Terminal Bloc
    • Impact Protection Rating: IK09
    • Ingress Protection Rating: IP66
    • Country of Origin: Cambodia
    • Environmentally Friendly: Yes
    • Environmental Compliance:
      • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
      • Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 5 Year
