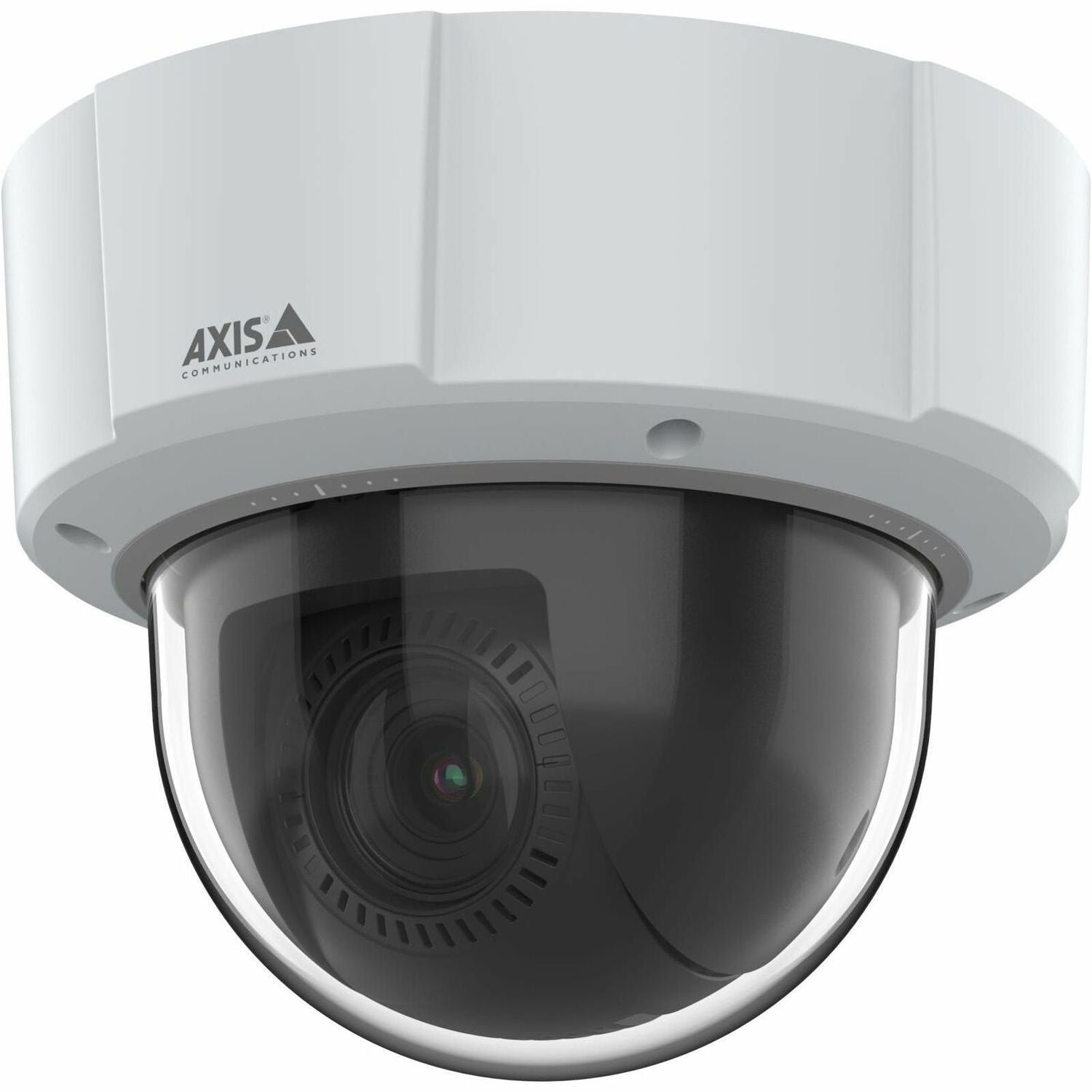

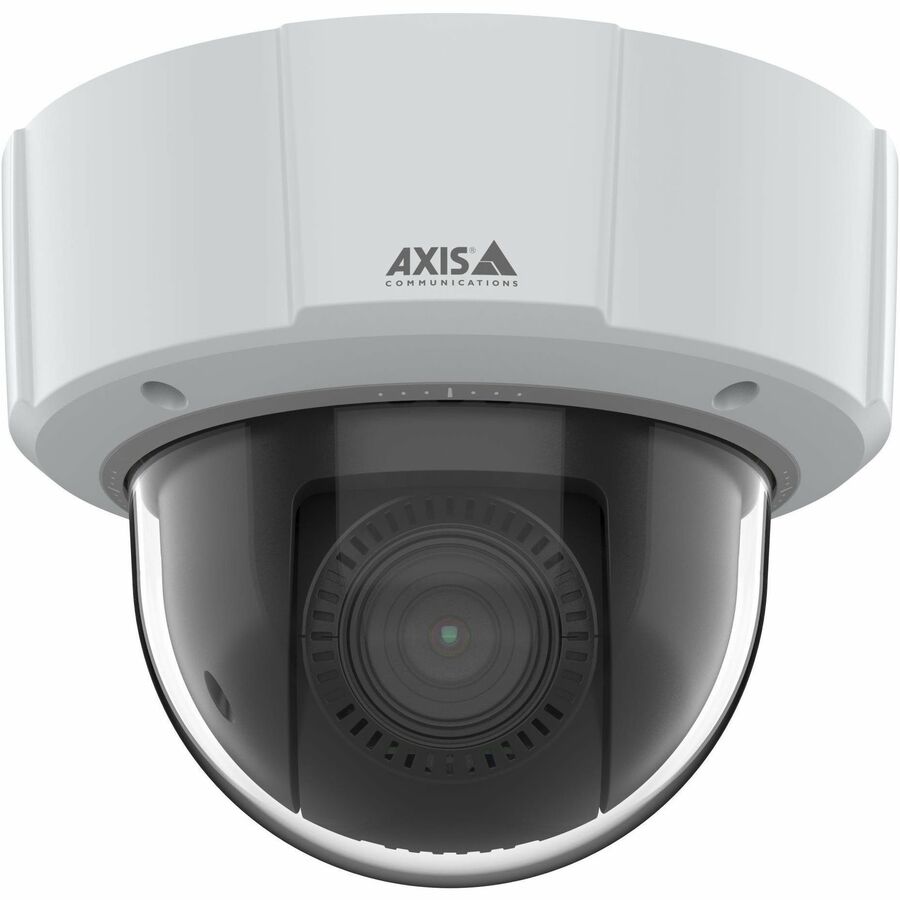

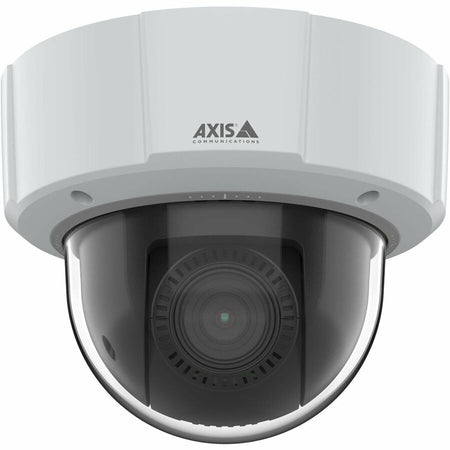

AXIS AXIS M5526-E 4 Megapixel Indoor/Outdoor Network Camera - Color - Dome - White - 02769-021
Regular price
$5,023.79
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Manufacturer Brochure
Click here for User Manual
UPC: 7331021088399
General Information
Click here for User Manual
AXIS AXIS M5526-E 4 Megapixel Indoor/Outdoor Network Camera - Color - Dome - White
- Manufacturer: Axis Communications
- Manufacturer Part Number: 02769-021
- Manufacturer Website Address: http://www.axis.com
- Brand Name: AXIS
- Product Series: M55
- Product Model: AXIS M5526-E
- Product Name: M5526-E PTZ Camera Indoor and Outdoor 4 MP With 10x Zoom and Focus Recall
- Product Type: Network Camera
- HD Recording: Yes
- Camera Iris:
- P-iris
- Auto
- Wide Dynamic Range Detail: 120 dB
- AI-powered: Yes
- Infrared (IR) Cut-off Filter: Yes
- Languages Support:
- English
- German
- French
- Spanish
- Italian
- Russian
- Simplified Chinese
- Japanese
- Korean
- Polish
- Portuguese
- Traditional Chinese
- Dutch
- Czech
- Swedish
- Finnish
- Turkish
- Thai
- Vietnamese
- Image Sensor Type: RGB CMOS
- Image Sensor Size: 1/3"
- Color Supported: Color
- Field of View: Horizontal field of view: 59.1°-6.5°, Vertical field of view: 35°-3.67°
- Effective Camera Resolution: 4 Megapixel
- Video Formats:
- H.264
- H.265
- Motion JPEG
- Zipstream
- H.264B (MPEG-4 Part 10/AVC)
- H.264H (MPEG-4 Part 10/AVC)
- H.264M (MPEG-4 Part 10/AVC)
- H.265 (MPEG-H Part 2/HEVC) Main Profile
- Maximum Video Resolution: 2688 x 1512
- Maximum Frame Rate: 60 fps
- Audio Support: Yes
- Lens Type: Varifocal
- Minimum Focal Length: 4.70 mm
- Maximum Focal Length: 47 mm
- Lens Included: Yes
- Minimum Aperture: f/3
- Maximum Aperture: f/1.6
- Optical Zoom: 10x
- Shortest Shutter Speed: 1/27000 Second
- Longest Shutter Speed: 0.2 Second
- Connectivity Technology: Wired
- Remote Management: Yes
- Ethernet Technology: Fast Ethernet
- Protocols:
- IPv4
- IPv6 USGv6
- ICMPv4/ICMPv6
- HTTP
- HTTPS
- HTTP/2
- TLS
- DiffServ (QoS)
- FTP
- SFTP
- CIFS/SMB
- SMTP
- UPnP
- SNMPv1/v2c/v3 (MIB2)
- DNS/DNSv6
- DDNS
- NTP
- NTS
- RTCP
- RTSP
- RTP
- SRTP/RTSPS
- TCP
- UDP
- IGMPv1/v2/v3
- ICMP
- DHCPv4/v6
- ARP
- SSH
- LLDP
- CDP
- MQTT
- MQTT v3.1.1
- Syslog
- ZeroConf
- IEEE 802.1AR
- IEEE 802.1X (EAP-TLS)
- ONVIF
- Storage Type: Memory Card
- Internal Memory: 1 GB
- Network (RJ-45): Yes
- Maximum Power Consumption: 12.95 W
- Input Voltage:
- 20 V DC
- 28 V DC
- Power Source Type:
- DC
- PoE
- Color Family: White
- Product Color: White
- Product Material: Polycarbonate
- Form Factor: Dome
- Weight (Approximate): 2.20 lb
- Minimum Operating Temperature: -4°F (-20°C)
- Maximum Operating Temperature: 122°F (50°C)
- Minimum Storage Temperature: -40°F (-40°C)
- Maximum Storage Temperature: 149°F (65°C)
- Maximum Operating Humidity (Condensing): 100%
- Minimum Storage Humidity (Non-condensing): 5%
- Maximum Storage Humidity (Non-condensing): 95%
- Features:
- Day/Night
- Ingress Protection
- Motion Detection
- Vehicle Detection
- Human Detection
- HTTPS Encryption
- Password Protection
- Privacy Masking
- Wide Dynamic Range
- White Balance
- Indoor/Outdoor: Indoor/Outdoor
- Package Contents:
- M5526-E PTZ Camera Indoor and outdoor 4 MP with 10x zoom and focus recall
- Installation Guide
- Bayonet Adapter
- Terminal Block Connectors
- Connector Guard
- Owner Authentication Key
- Impact Protection Rating: IK09
- Ingress Protection Rating: IP66
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Limited Warranty: 5 Year
