Home » 19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 12U, 600mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth for - 713863

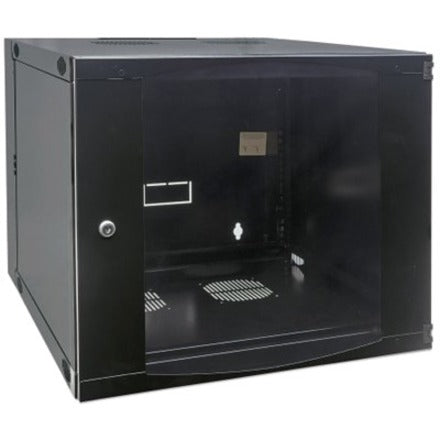

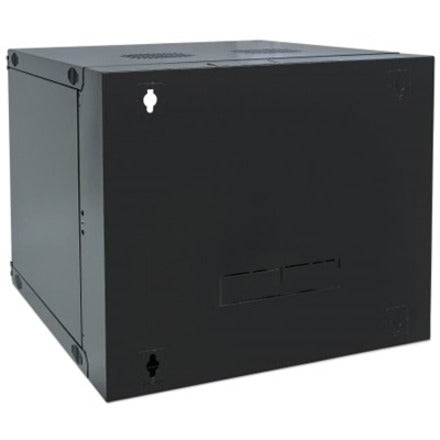

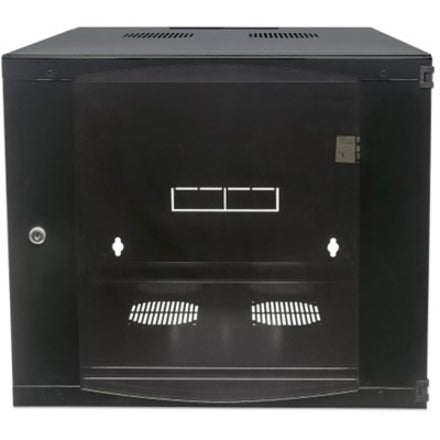

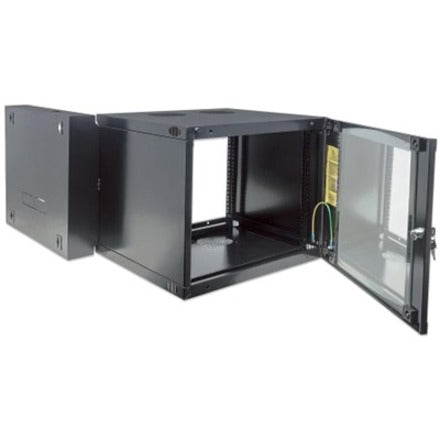

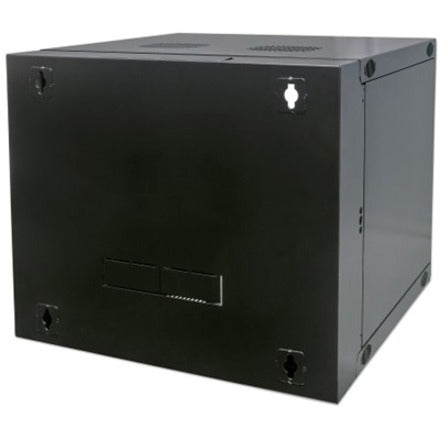

19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 12U, 600mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 385mm, Parts for wall installation not included - 713863
19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 12U, 600mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 385mm, Parts for wall installation not included - 713863

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

IC INTRACOM

19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 12U, 600mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth for - 713863

Chat for Availability
SKU: 4888612
$409.66
-13% $469.99 $409.66
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2

19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 12U, 600mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 385mm, Parts for wall installation not included

  • UPC: 766623713863
    • General Information
    • Manufacturer: IC INTRACOM
    • Manufacturer Part Number: 713863
    • Manufacturer Website Address: http://www.icintracom.com
    • Brand Name: Intellinet
    • Product Name: 19" Double Section Wallmount Cabinet, 12U, 600 mm (23.6 in.) Depth, Black
    • Product Type: Rack Cabinet
    Technical Information
    • Application/Usage:
      • LAN Switch
      • Patch Panel
    • Features:
      • Reversible Front Door
      • Rear Door
    Physical Characteristics
    • Form Factor: Wall Mountable
    • Color Family: Black
    • Product Color: Black
    • Product Material:
      • Cold Rolled Steel
      • SPCC
      • Toughened Glass
    • Static/Stationary Weight Capacity: 66.14 lb
    • Height: 23.3"
    • Width: 21.3"
    • Depth: 23.6"
    • Rack Height: 12U
    • Rack Width: 19"
    • Weight (Approximate): 57.98 lb
    Miscellaneous
    • Package Contents:
      • 2 x Rail frames
      • Top, Bottom, Front, Back & Side Panels
      • Installation Hardware Including 10 x M6 Sets and 4 x Keys
    • Assembly Required: Yes
    Warranty
    • Limited Warranty: 3 Year
