19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 9U, 600mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, 19" , Usable Depth 385mm, Parts for wall installation not included - 713849
19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 9U, 600mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, 19" , Usable Depth 385mm, Parts for wall installation not included - 713849

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

IC INTRACOM

19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 9U, 600mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, 19" , Usable Depth for - 713849

Chat for Availability
SKU: 4888610
$354.09
-13% $406.99 $354.09
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Additional pdf4

19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 9U, 600mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, 19" , Usable Depth 385mm, Parts for wall installation not included

  • UPC: 766623713849
    • General Information
    • Manufacturer: IC INTRACOM
    • Manufacturer Part Number: 713849
    • Manufacturer Website Address: http://www.icintracom.com
    • Brand Name: Intellinet
    • Product Name: 19" Double Section Wallmount Cabinet, 9U, 600 mm (23.6 in.) Depth, Black
    • Product Type: Rack Cabinet
    Technical Information
    • Rack Type: Enclosed Cabinet
    • Application/Usage:
      • LAN Switch
      • Patch Panel
    Physical Characteristics
    • Form Factor: Wall Mountable
    • Color Family: Black
    • Product Color: Black Gray
    • Product Material:
      • Toughened Glass
      • Cold Rolled Steel
      • SPCC
    • Maximum Weight Capacity: 66.14 lb
    • Static/Stationary Weight Capacity: 66.14 lb
    • Height: 18.1"
    • Width: 21.3"
    • Depth: 23.6"
    • Rack Height: 9U
    • Rack Width: 19"
    • Rack Depth: 14.13"
    • Weight (Approximate): 44.09 lb
    Miscellaneous

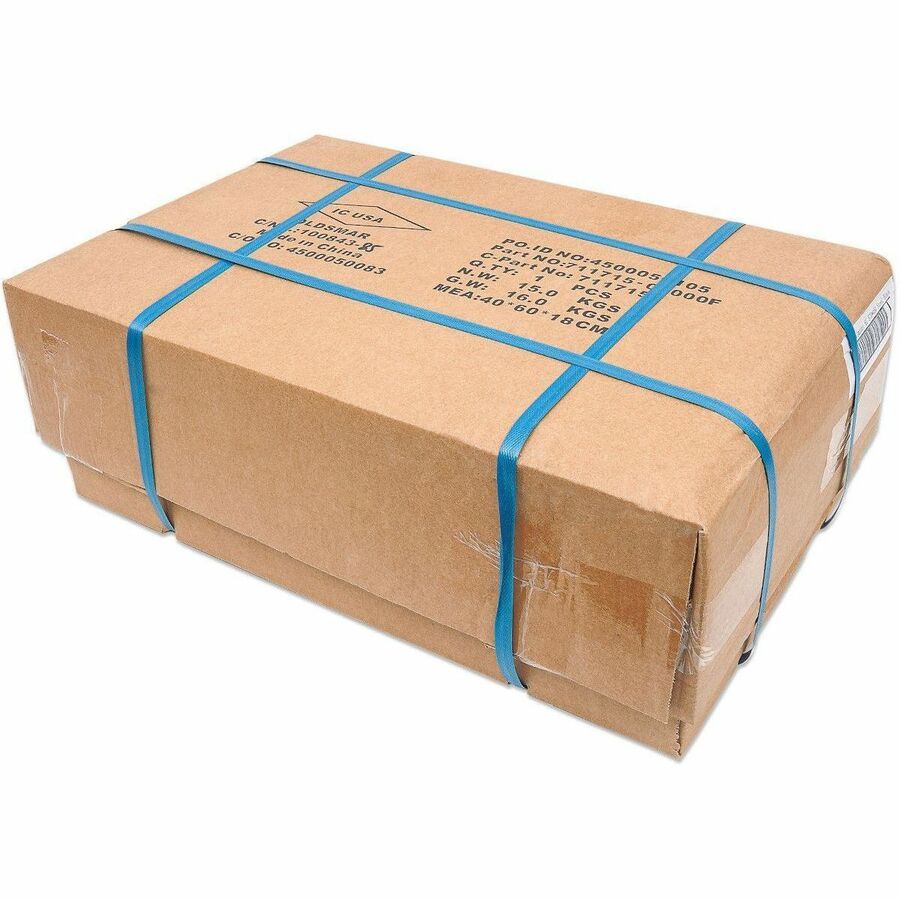

    • Package Contents:
      • 2 Rail frames
      • Top, Bottom
      • Front, Back & Side Panels
      • Installation hardware including 10x M6 Sets and 2 x Keys
    • Assembly Required: Yes
    Warranty
    • Limited Warranty: 3 Year
