Home » Intellinet 2-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, PoE Power Budget 60 W, Two PSE Ports with 30 W Output Each, IEEE 802.3bt/at/af Compliant, Metal Housing - 561600
Intellinet 2-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, PoE Power Budget 60 W, Two PSE Ports with 30 W Output Each, IEEE 802.3bt/at/af Compliant, Metal Housing - 561600
Intellinet 2-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, PoE Power Budget 60 W, Two PSE Ports with 30 W Output Each, IEEE 802.3bt/at/af Compliant, Metal Housing - 561600

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

IC INTRACOM

Intellinet 2-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, PoE Power Budget 60 W, Two PSE Ports with 30 W Output Each, IEEE 802.3bt/at/af Compliant, Metal Housing - 561600

46 in stock
SKU: 5991114
$102.29
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.

Intellinet 2-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, PoE Power Budget 60 W, Two PSE Ports with 30 W Output Each, IEEE 802.3bt/at/af Compliant, Metal Housing

  • UPC: 766623561600
    • General Information
    • Manufacturer: IC INTRACOM
    • Manufacturer Part Number: 561600
    • Manufacturer Website Address: http://www.icintracom.com
    • Brand Name: Intellinet
    • Product Name: 2-Port Gigabit Ultra PoE Extender
    • Package Type: Retail
    • Product Type: Network Extender
    Technical Information
    • Maximum Extended Range: 656.17 ft
    • Maximum Data Transfer Rate: 125 MB/s
    Interfaces/Ports
    • Network (RJ-45): Yes
    • Number of Network (RJ-45) Ports: 3
    Physical Characteristics
    • Color Family: Black
    • Product Color: Black
    • Product Material: Metal
    • Height: 1.1"
    • Width: 5.1"
    • Depth: 3.4"
    Miscellaneous
    • Additional Information:

      Standards

      • IEEE 802.3af (Power over Ethernet)
      • IEEE 802.3at (High-Power PoE+ Power over Ethernet)
      • IEEE 802.3bt (Ultra PoE++/4PPoE Power over Ethernet)
      • IEEE 802.3 (10Base-T Ethernet)
      • IEEE 802.3ab (Gigabit Ethernet)
      • IEEE 802.3x (Full duplex and flow control)
      • IEEE 802.3u (100Base-TX Fast Ethernet)


      General

      • Media support:
      • - 10Base-T Cat5e UTP/STP RJ45, 8 pin
      • - 100Base-TX Cat5e UTP/STP RJ45, 8 pin
      • - 1000Base-T Cat5e UTP/STP RJ45, 8 pin
      • Ports:
      • - One RJ45 10/100/1000 Mbps input port
      • - Two RJ45 10/100/1000 Mbps PoE output ports
      • MAC address table: 2048 entries
      • Buffer memory: 256 kB
      • Backplane speed: 6 Gbps
      • Switch architecture: store and forward
      • Certifications: FCC Class A, CE, RoHS, UKCA, NDAA


      LEDs

      • PoE
      • Link/activity


      PoE Pinout

      • - Pin 1: DC (+)
      • - Pin 2: DC (+)
      • - Pin 3: DC (-)
      • - Pin 6: DC (-)


      Power

      • Max PD output power: 30 W per port, 44 - 57 VDC
      • Input power: IEEE 802.3bt/at/af compliant PSE, 60 W max., 50 - 57 VDC


      Environmental

      • Metal housing

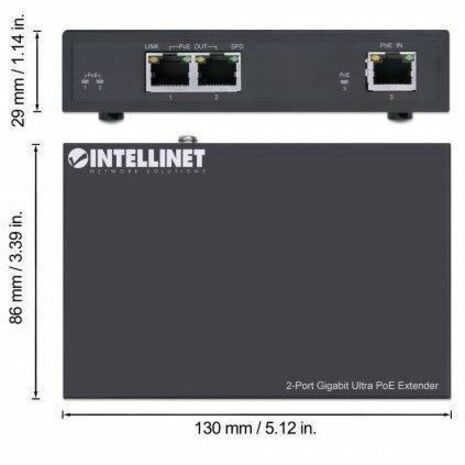

      • Dimensions: 130 x 86 x 29 mm (5.12 x 3.39 x 1.14 in.)
      • Weight: 331 g (0.73 lbs.)
      • Operating temperature: 0 - 40°C (32 - 104°F)
      • Storage temperature: -10 - 70°C (14 - 158°F)
      • Operating humidity: 20 - 85% RH, non-condensing
