Eaton 5PX Gen2 UPS - 5PX3000IRT2UG2
Regular price
$1,143.46
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Manufacturer Brochure
Click here for User Manual
UPC: 743172104809
General Information
Click here for Additional pdf2
Click here for Manufacturer Brochure
Click here for User Manual

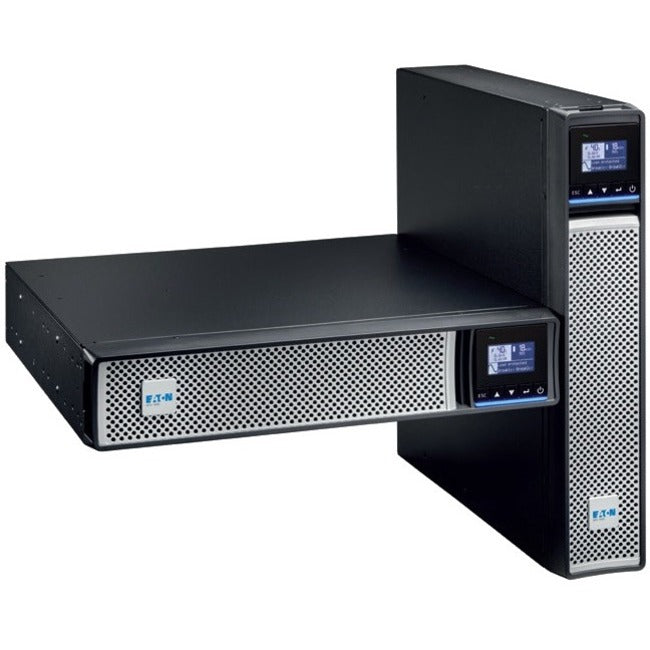

Eaton 5PX Gen2 UPS
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: 5PX3000IRT2UG2
- Manufacturer Website Address: http://www.eaton.com
- Brand Name: Eaton
- Product Series: 5PX
- Product Name: 5PX Gen2 UPS
- Product Type: Line-interactive UPS
- Receptacle Type:
- IEC 60320 C13 (10A)
- IEC 60320 C19 (16A)
- Receptacle Detail:
- 8 x IEC 60320 C13 (10A)
- 2 x IEC 60320 C19 (16A)
- Phase: Single Phase
- Application/Usage:
- Network
- Server
- IT System
- Virtual Platform
- Switch
- Router
- Storage Device
- Cloud Orchestration Tool
- Load Capacity (VA): 3000 VA
- Load Capacity (Watt): 3000 W
- Input Voltage: 230 V AC
- Input Voltage Range: 160 V - 294 V
- Output Voltage:
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency: 70 Hz
- Output Frequency: 60 Hz
- Waveform Type: Pure Sine Wave
- Serial Port: Yes
- USB (HID Compliant) Port: Yes
- Hot Swappable: Yes
- Replaceable Battery: Yes
- Maximum Operating Temperature: 104°F (40°C)
- Height: 3.4"
- Width: 17.2"
- Depth: 23.7"
- Rack Height: 2U
- Form Factor: Rack/Tower
- Weight (Approximate): 69.89 lb
- Energy Star: Yes
