Wasp WDI4700 Industrial 2D Barcode Scanner w/USB cable - 633809007149
Wasp WDI4700 Industrial 2D Barcode Scanner w/USB cable - 633809007149

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Wasp Barcode Technologies

Wasp WDI4700 Industrial 2D Barcode Scanner w/USB cable - 633809007149

1 in stock
SKU: 5823827
$299.04
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Manufacturer Brochure
Click here for User Manual

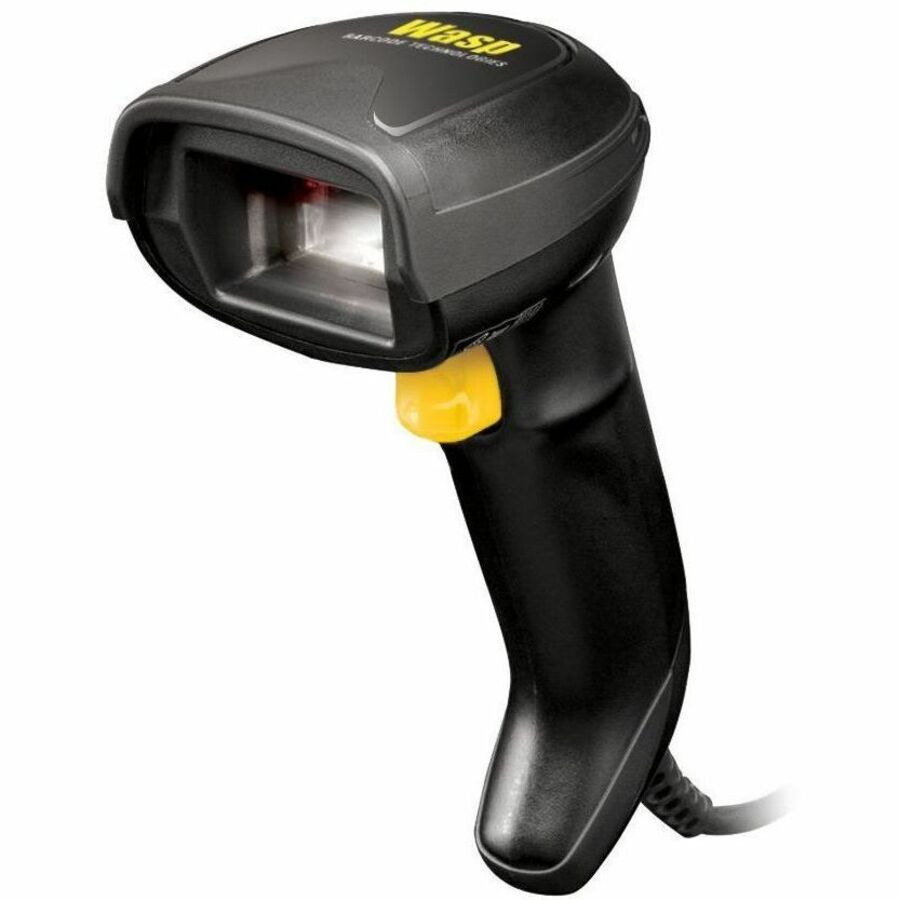

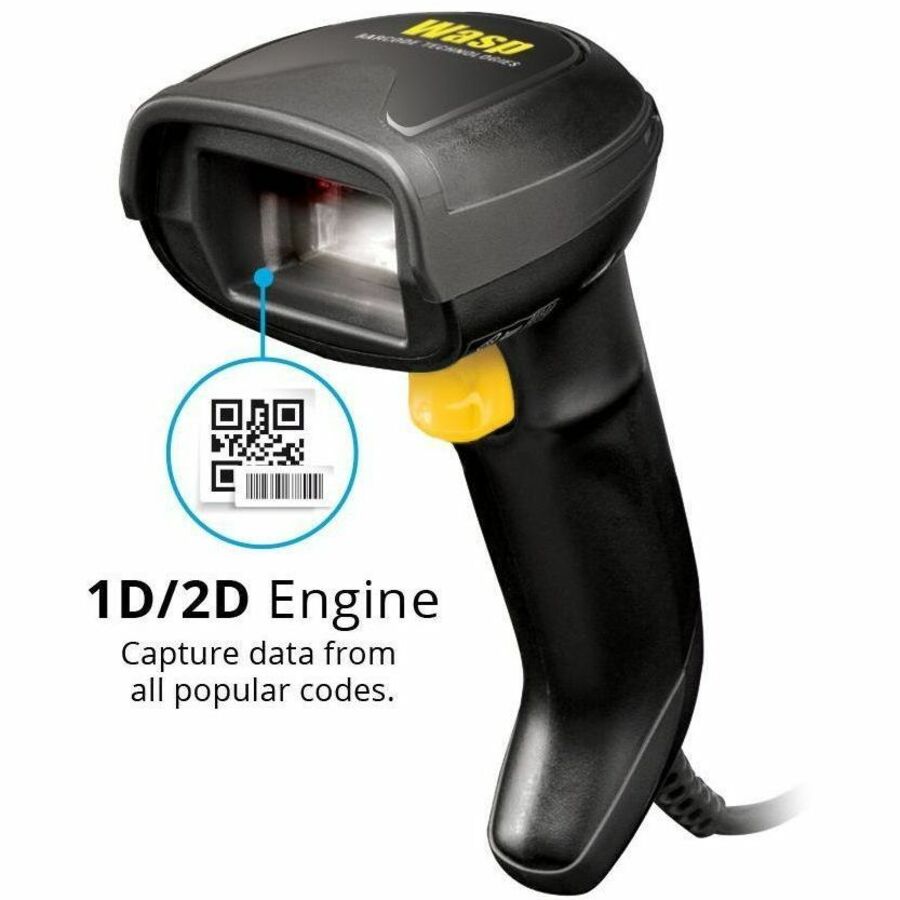

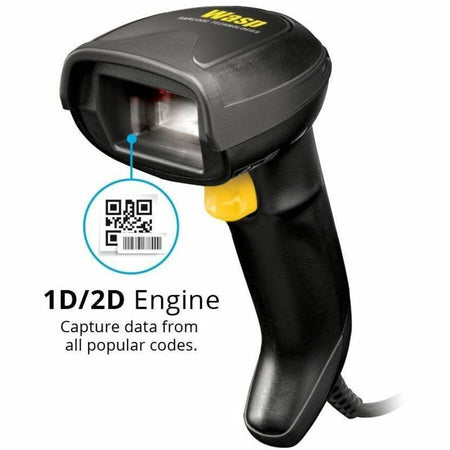

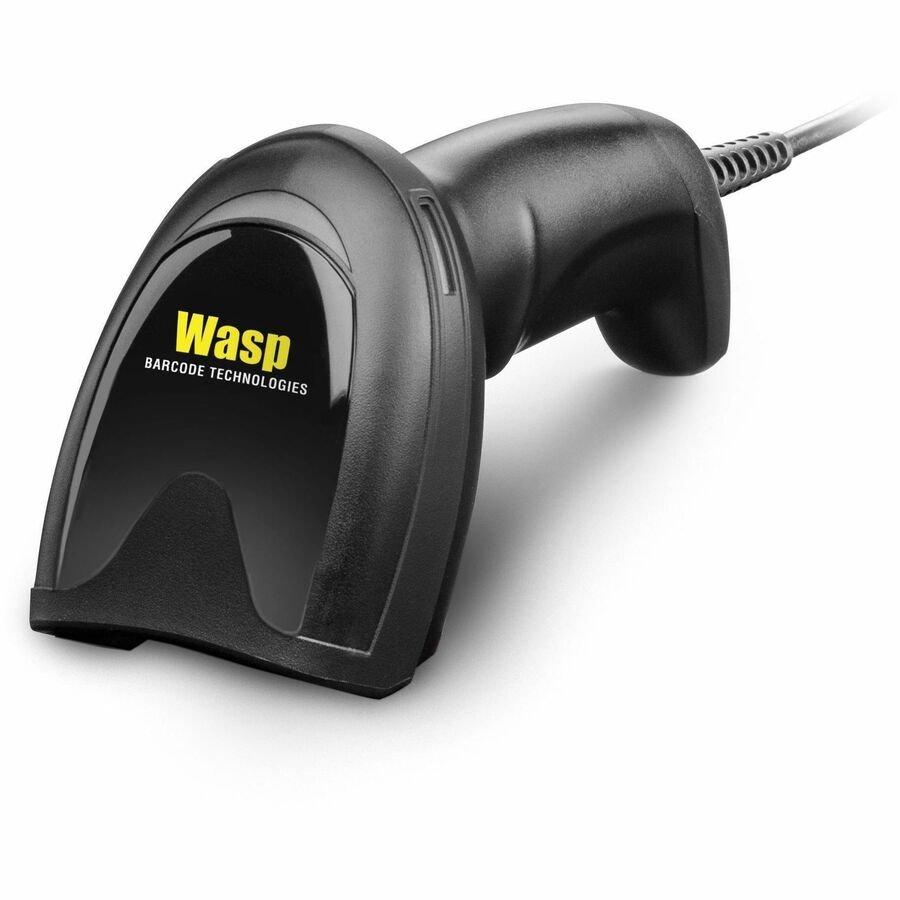

Wasp WDI4700 Industrial 2D Barcode Scanner w/USB cable

  • UPC: 633809007149
    • General Information
    • Manufacturer: Wasp Barcode Technologies
    • Manufacturer Part Number: 633809007149
    • Manufacturer Website Address: http://www.waspbarcode.com
    • Brand Name: Wasp
    • Product Model: WDI4700
    • Product Name: WDI4700 2D Barcode Scanner
    • Product Type: Barcode Scanner
    Technical Information
    • Connectivity Technology: Cable
    • Scanning Capability:
      • 1D
      • 2D
    • Barcode Symbology Supported: 1D codes:
      • GS1 DataBar™ linear codes.
      • Aztec Code
      • China Han Xin Code
      • Data Matrix
      • MaxiCode
      • Micro QR Code
      • QR Code
      • Australian Post
      • British Post
      • China Post
      • IMB
      • Japanese Post
      • KIX Post
      • Planet Code
      • Planet Code
      • Postnet
      • Royal Mail Code (RM4SCC) EAN/JAN Composites
      • GS1 DataBar Composites
      • GS1 DataBar Expanded Stacked
      • GS1 DataBar Stacked
      • GS1 DataBar Stacked Omnidirectional
      • MacroPDF
      • MicroPDF417
      • PDF417
      • UPC A/E Composites
      • Digimarc Barcodes
    • Light Source: Laser
    • Image Sensor Type: Imager
    • Scan Mode: Trigger
    • Scan Pattern: Omni-directional
    • Scanning Distance: 27.90"
    • Cable Type Included: USB
    • Reading Angle (Skew): 65°
    • Reading Angle (Pitch): 65°
    • Reading Angle (Roll): 360°
    • Maximum Ambient Light: 100000 lux
    • Drop Specification:

      6.0 ft. (1.8 m)

    • Minimum Print Contrast: 15%
    • Minimum Element Resolution (Code 39): 5 mil
    • Maximum Element Resolution (Code 39): 10 mil
    • Minimum Element Resolution (DataMatrix): 7.5 mil
    • Maximum Element Resolution (DataMatrix): 15 mil
    • Minimum Element Resolution (PDF417): 5 mil
    • Maximum Element Resolution (PDF417): 10 mil
    • Image Sensor Resolution: 1280 x 800
    • Illumination Type: LED
    • Illumination Color: White
    • Features:
      • Scan Button
      • Notification LED
      • 3GL
      • Beep
      • Ergonomic Design
    Interfaces/Ports
    • Host Interface: USB
    Environmental Conditions
    • Operating Temperature: 32°F (0°C) to 122°F (50°C)
    • Storage Temperature: -40°F (-40°C) to 158°F (70°C)
    • Humidity (Non-condensing): 0% to 95%
    Physical Characteristics
    • Form Factor: Handheld
    • Color Family: Dual Color
    • Product Color:
      • Black
      • Yellow
    • Durability: Drop Resistant
    • Weight (Approximate): 5.68 oz
    Miscellaneous
    • Package Contents:
      • WDI4700 2D Barcode Scanner
      • 6' USB cable
      • Scanner programming guide
      • 2-year warranty (Optional WaspProtect warranty available)
    • Ingress Protection (IP) Rating: IP52
    • Application/Usage:
      • Industrial
      • Ticketing
      • Retail
      • Light/Clean Manufacturing
      • Healthcare
      • Transportation
      • Entertainment
      • Commercial Service
      • Hospitality
    • Country of Origin: Vietnam
    • Environmental Compliance:
      • China Restriction of Hazardous Substances (China RoHS)
      • Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 2 Year
