Wasp WDI9600 USB Laser Barcode Scanner - 633809009013
Wasp WDI9600 USB Laser Barcode Scanner - 633809009013

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Wasp Barcode Technologies

Wasp WDI9600 USB Laser Barcode Scanner - 633809009013

1 in stock
SKU: 6347902
$235.97
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Manufacturer Brochure
Click here for User Manual

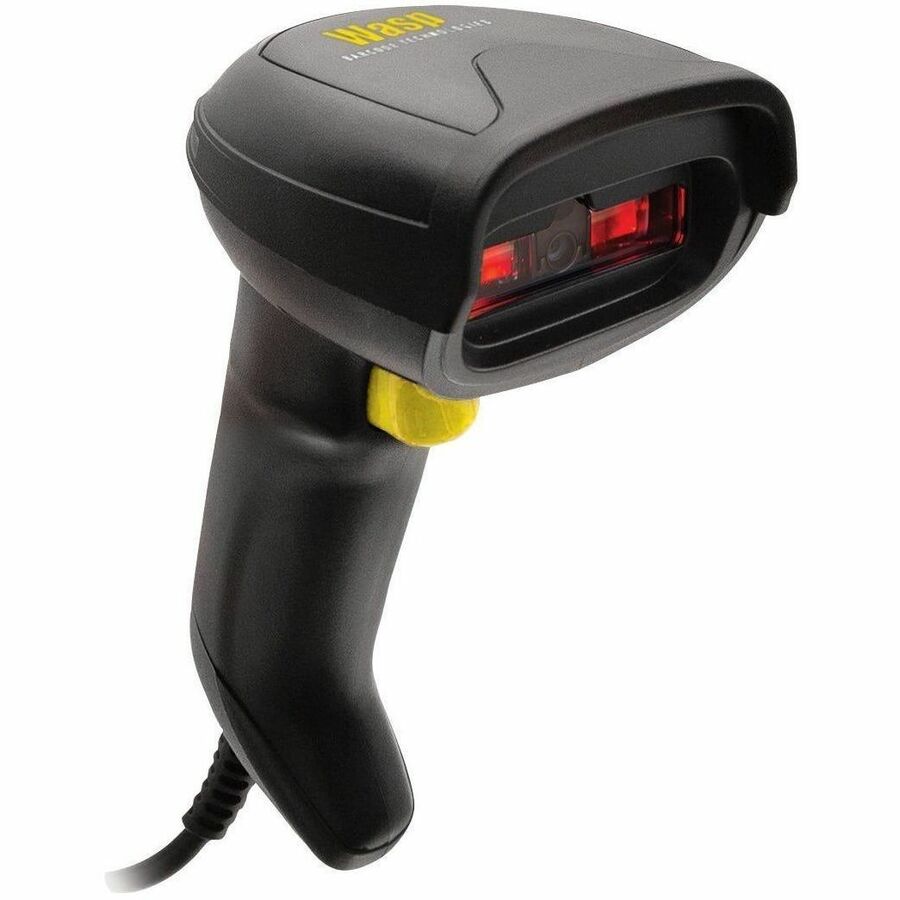

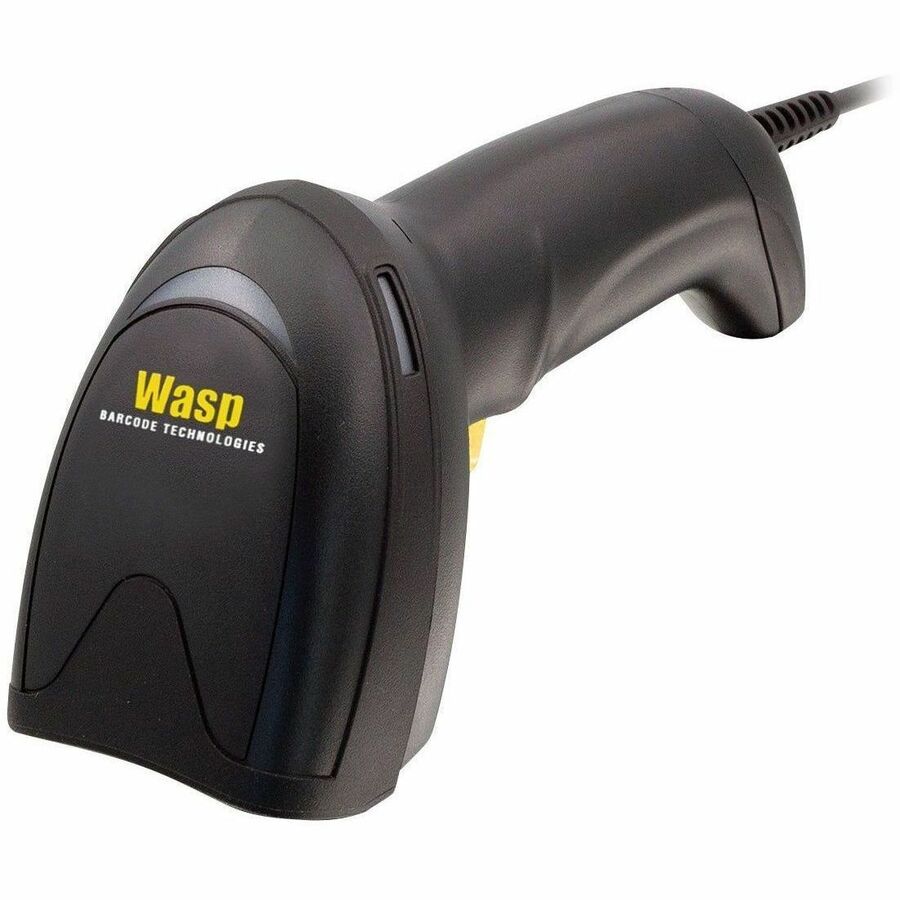

Wasp WDI9600 USB Laser Barcode Scanner

  • UPC: 633809009013
    • General Information
    • Manufacturer: Wasp Barcode Technologies
    • Manufacturer Part Number: 633809009013
    • Manufacturer Website Address: http://www.waspbarcode.com
    • Brand Name: Wasp
    • Product Model: WDI9600
    • Product Name: WDI9600 USB Laser Barcode Scanner
    • Product Type: Barcode Scanner Kit
    Technical Information
    • Connectivity Technology: Cable
    • Scanning Capability: 1D
    • Barcode Symbology Supported:

      1D/Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes

    • Light Source: Laser
    • Image Sensor Type: CCD
    • Scan Rate: 400 scan/s
    • Scan Mode: Trigger
    • Scan Pattern: Linear
    • Scanning Distance: 57.87"
    • Cable Type Included: USB
    • Reading Angle (Skew): 65°
    • Reading Angle (Pitch): 65°
    • Reading Angle (Roll): 45°
    • Maximum Ambient Light: 130000 lux
    • Drop Specification:

      Withstands repeated drops from 6.0 ft (1.8 m) onto a concrete surface.

    • Minimum Print Contrast: 15%
    • Minimum Element Resolution (Code 39): 5 mil
    • Maximum Element Resolution (Code 39): 20 mil
    • Illumination Type: LED
    • Features:
      • Notification LED
      • Beep
      • 3GL
      • Scan Button
    Interfaces/Ports
    • Host Interface: USB
    Power Description
    • Input Current: 350 mA
    • Standby Current: 60 mA
    Environmental Conditions
    • Operating Temperature: 32°F (0°C) to 122°F (50°C)
    • Storage Temperature: -40°F (-40°C) to 158°F (70°C)
    • Humidity (Non-condensing): 0% to 95%
    Physical Characteristics
    • Form Factor: Handheld
    • Color Family: Dual Color
    • Product Color:
      • Black
      • Yellow
    • Durability: Chemical Resistant
    • Width: 6.5"
    • Depth: 2.7"
    • Length: 4.3"
    • Weight (Approximate): 5.75 oz
    Miscellaneous
    • Package Contents:
      • WDI9600 USB Laser Barcode Scanner
      • 6' USB cable
      • Scanner programming guide
      • 2-year warranty
    • Ingress Protection (IP) Rating: IP52
    • Application/Usage:
      • Retail
      • Light/Clean Manufacturing
      • Healthcare
      • Laboratory
      • Pharmacy
      • Ticketing
      • Entertainment
      • Commercial Service
    • Platform Supported: Smartphone
    • Environmental Compliance:
      • China Restriction of Hazardous Substances (China RoHS)
      • Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 2 Year
