Home » Planar PM16-S 16" Class WUXGA LCD Monitor - 16:10 - 998-4077-00

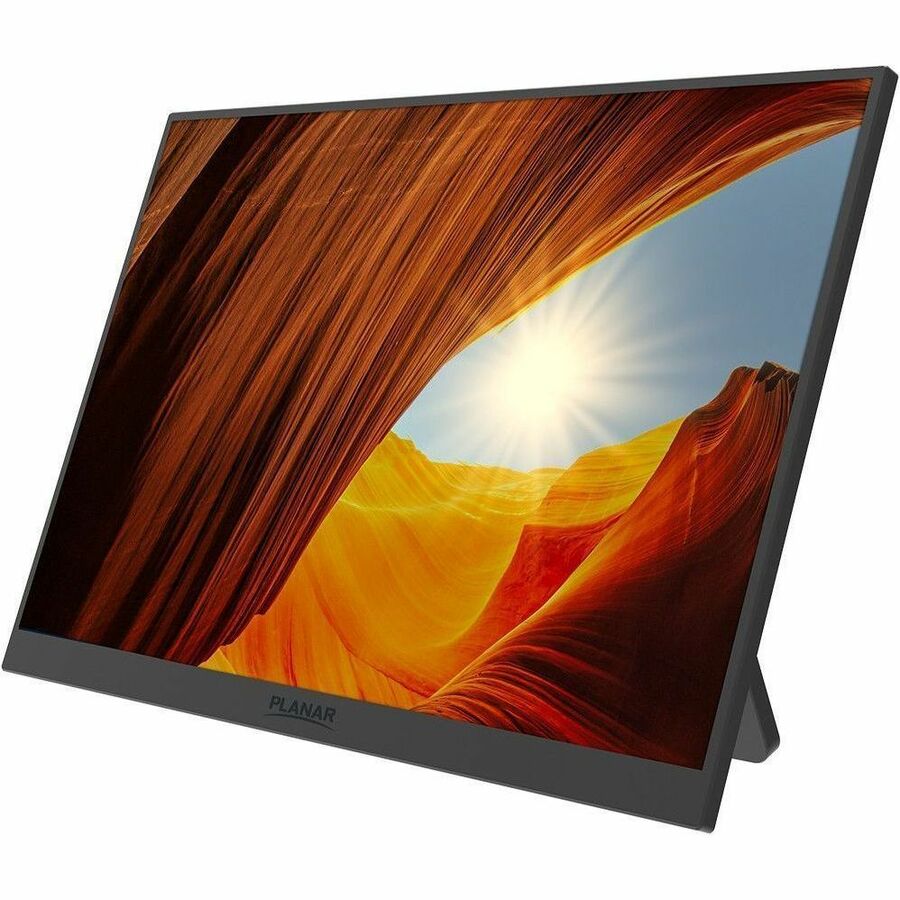

Planar PM16-S 16" Class WUXGA LCD Monitor - 16:10 - 998-4077-00
Planar PM16-S 16" Class WUXGA LCD Monitor - 16:10 - 998-4077-00

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Leyard

Planar PM16-S 16" Class WUXGA LCD Monitor - 16:10 - 998-4077-00

1 in stock
SKU: 14469031
$236.59
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for User Manual

Planar PM16-S 16" Class WUXGA LCD Monitor - 16:10

  • UPC: 810069811741
    • General Information
    • Manufacturer: Leyard
    • Manufacturer Part Number: 998-4077-00
    • Manufacturer Website Address: http://www.planar.com
    • Brand Name: Planar
    • Product Model: PM16-S
    • Product Name: PM16-S 16" Portable Desktop Monitor
    • Product Type: LCD Monitor
    Technical Information
    • Number of Screens: 1
    • Screen Size Class: 16"
    • Viewable Screen Size: 16"
    • Screen Mode: WUXGA
    • Panel Technology: In-plane Switching (IPS) Technology
    • Response Time: 3 ms
    • Response Time Details: 3 ms GTG
    • Aspect Ratio: 16:10
    • Pixel Pitch: 0.17950 mm x 0.17950 mm
    • Horizontal Viewing Angle: 178°
    • Vertical Viewing Angle: 178°
    • Mount Type: Desk Mountable
    • HDCP Supported: Yes
    • Features:
      • Blue Light Reduction
      • On-screen Display (OSD)
      • Wide Viewing Angle
      • Anti-glare
      • Bezel-less Design
    • Stand Adjustments: Tilt
    Video
    • Maximum Resolution: 1920 x 1200
    • Standard Refresh Rate: 60 Hz
    • Color Supported: 16.7 Million Colors
    • Native Contrast Ratio: 1,500:1
    • Brightness: 400 Nit
    • Color Gamut: 100% DCI-P3
    Audio
    • Number of Speakers: 2
    • Speakers: Yes
    Interfaces/Ports
    • Mini HDMI: Yes
    • USB: Yes
    • USB Type-C: Yes
    • Total Number of Mini HDMI Ports: 1
    • Number of USB Ports: 2
    • Total Number of USB Type-C Ports: 2
    Environmental Conditions
    • Operating Temperature Range: 32°F (0°C) to 104°F (40°C)
    • Operating Humidity Range: 10% to 90% (Non-condensing)
    Power Description
    • Maximum Power Consumption: 6 W
    Physical Characteristics
    • VESA Mount Compatible: Yes
    • Height: 9.3"
    • Width: 14"
    • Depth: 0.7"
    • Weight (Approximate): 1.76 lb
    Miscellaneous
    • Package Contents:
      • PM16-S 16" Portable Desktop Monitor
      • USB-C Cable
      • Mini HDMI-HDMI Cable
      • Adapter
      • Carrying Case
      • User's Guide
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 3 Year
