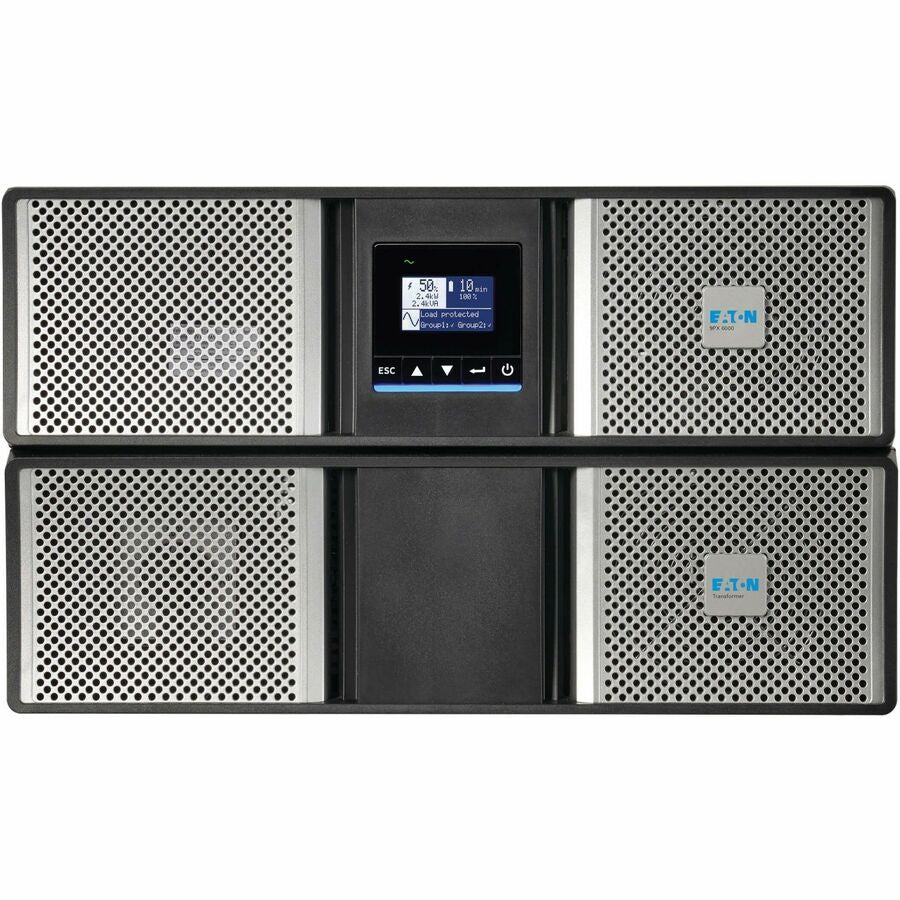

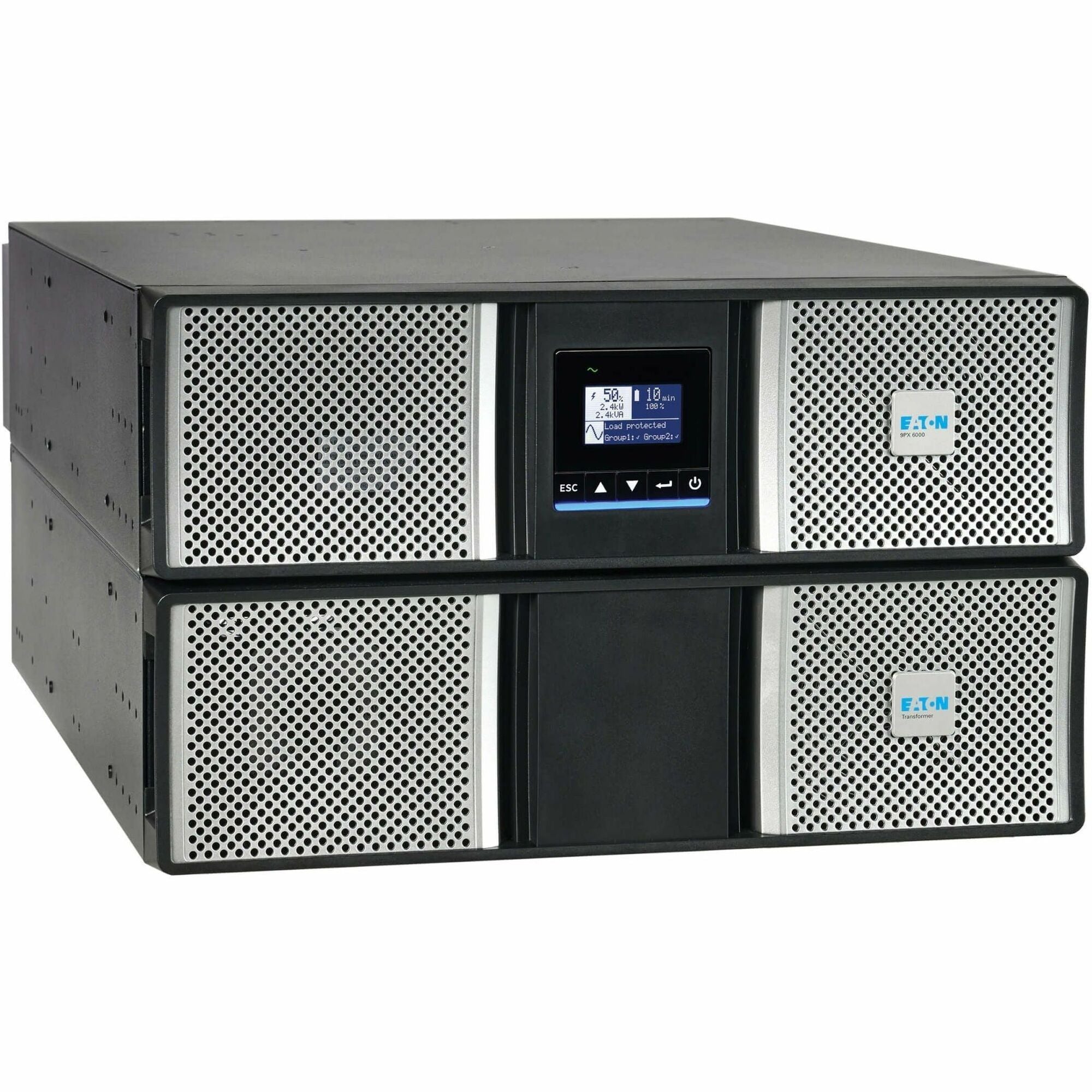

Eaton 9PX G2 5000VA 5000W 208/120V Online Double-Conversion UPS - L6-30P Input, 6x 5-20R, 1x L6-30R, 1x L14-30R, Cybersecure Network Card, Extended Run, 6U Rack/Tower - 9PX5KP1G2
Eaton 9PX G2 5000VA 5000W 208/120V Online Double-Conversion UPS - L6-30P Input, 6x 5-20R, 1x L6-30R, 1x L14-30R, Cybersecure Network Card, Extended Run, 6U Rack/Tower - 9PX5KP1G2
Regular price
$6,123.67
Regular price
-44%
$10,869.00
Sale price
$6,123.67
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Additional pdf1
UPC: 037332294272
General Information
Eaton 9PX G2 5000VA 5000W 208/120V Online Double-Conversion UPS - L6-30P Input, 6x 5-20R, 1x L6-30R, 1x L14-30R, Cybersecure Network Card, Extended Run, 6U Rack/Tower
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: 9PX5KP1G2
- Manufacturer Website Address: http://www.eaton.com
- Brand Name: Eaton
- Product Series: 9PX G2
- Product Model: 9PX5KP1G2
- Product Name: 9PX G2 9PX5KP1G2 5000VA Rack/tower UPS
- Product Type: Double Conversion Online UPS

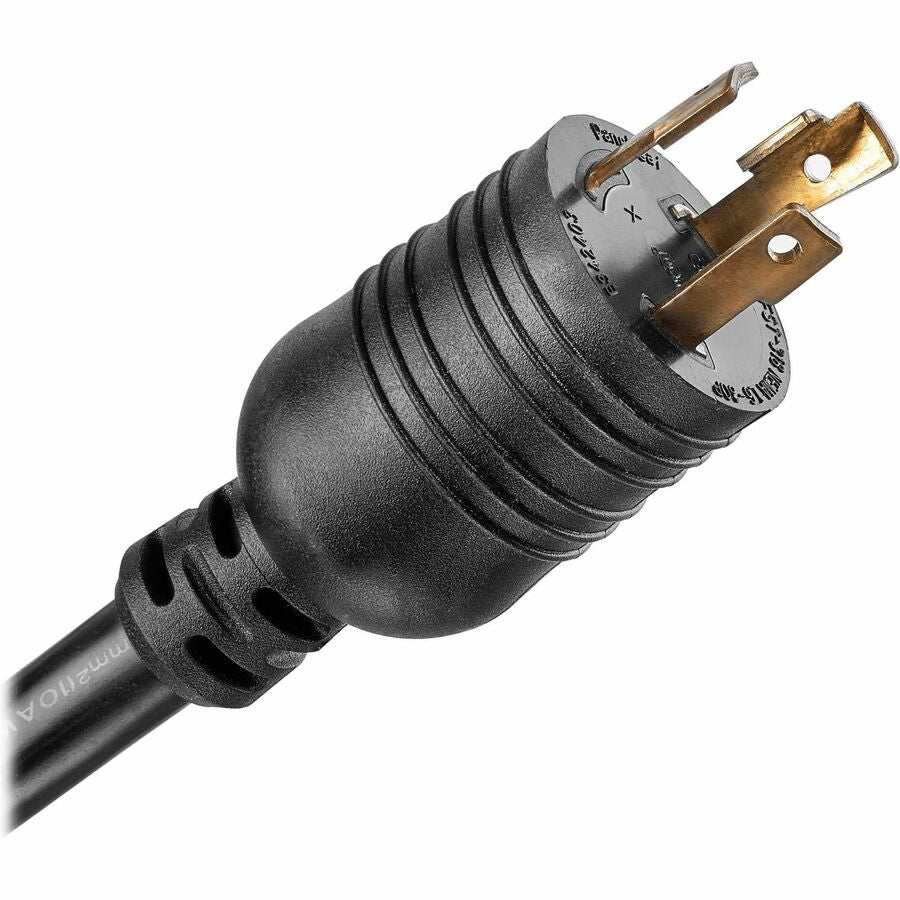

- Plug/Connector Type: NEMA L6-30P

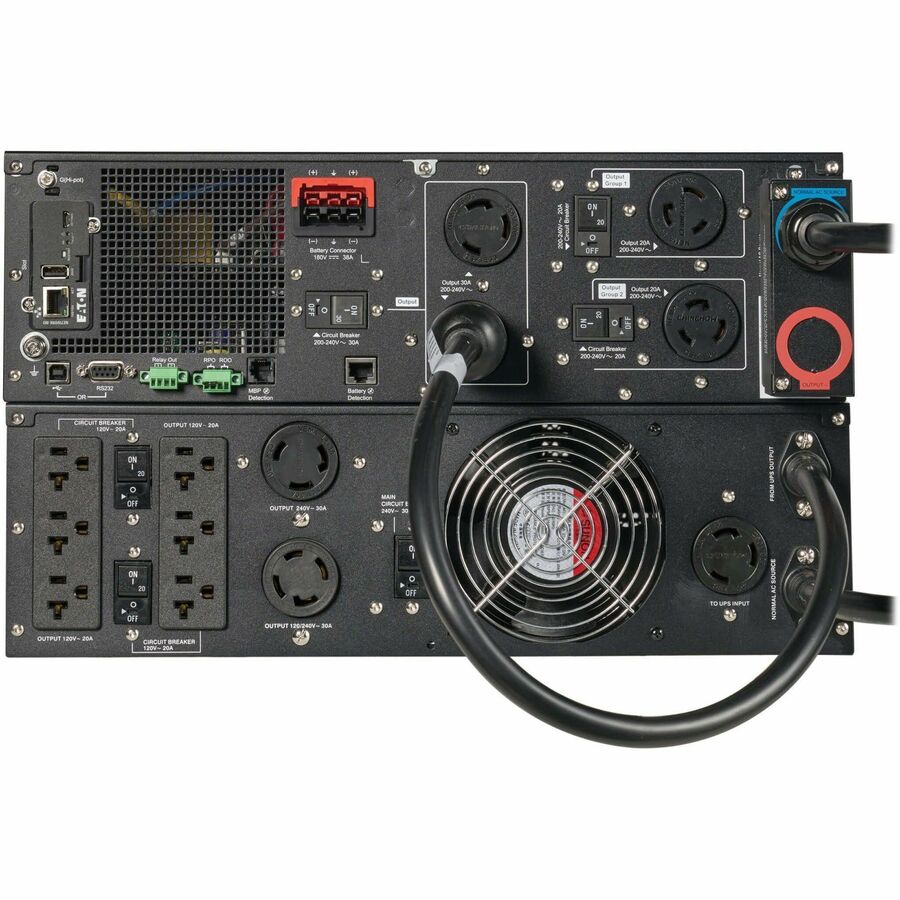

- Receptacle Type:
- NEMA 5-20R
- NEMA L6-30R
- NEMA L14-30R
- Receptacle Detail:
- 6 x NEMA 5-20R
- 1 x NEMA L6-30R
- 1 x NEMA L14-30R
- Cord Length: 10 ft
- EMI/RFI Noise Filter: Yes
- Phase: Single Phase
- Efficiency Detail:
- 98.9% (Eco Mode)
- 96.3% (AC Mode)
- Application/Usage:
- Mission Critical Equipment
- Network
- IT Equipment
- Data Center
- Electronic
- Edge Computing
- Education
- Government
- Healthcare
- Retail
- Server
- Switch
- Network Equipment
- Surge Suppression: Yes
- Features:
- Built-in Bypass Switch
- Audible Alarm
- Advanced Battery Management (ABM+)
- Load Capacity (VA): 5000 VA
- Load Capacity (Watt): 5000 W
- Input Voltage: 230 V AC
- Input Current: 24.40 A
- Output Voltage:
- 240 V AC
- 230 V AC
- 220 V AC
- 208 V AC
- 200 V AC
- 100 V AC
- 110 V AC
- 120 V AC
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type: Pure Sine Wave
- Output Power Factor: 1

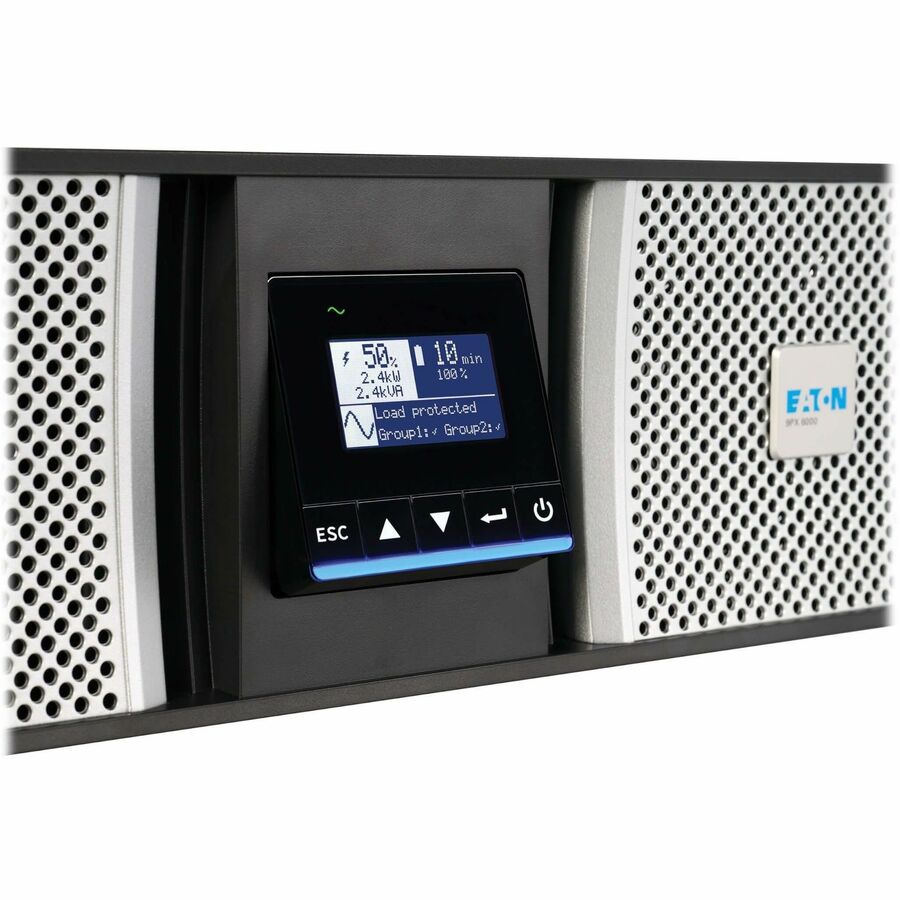

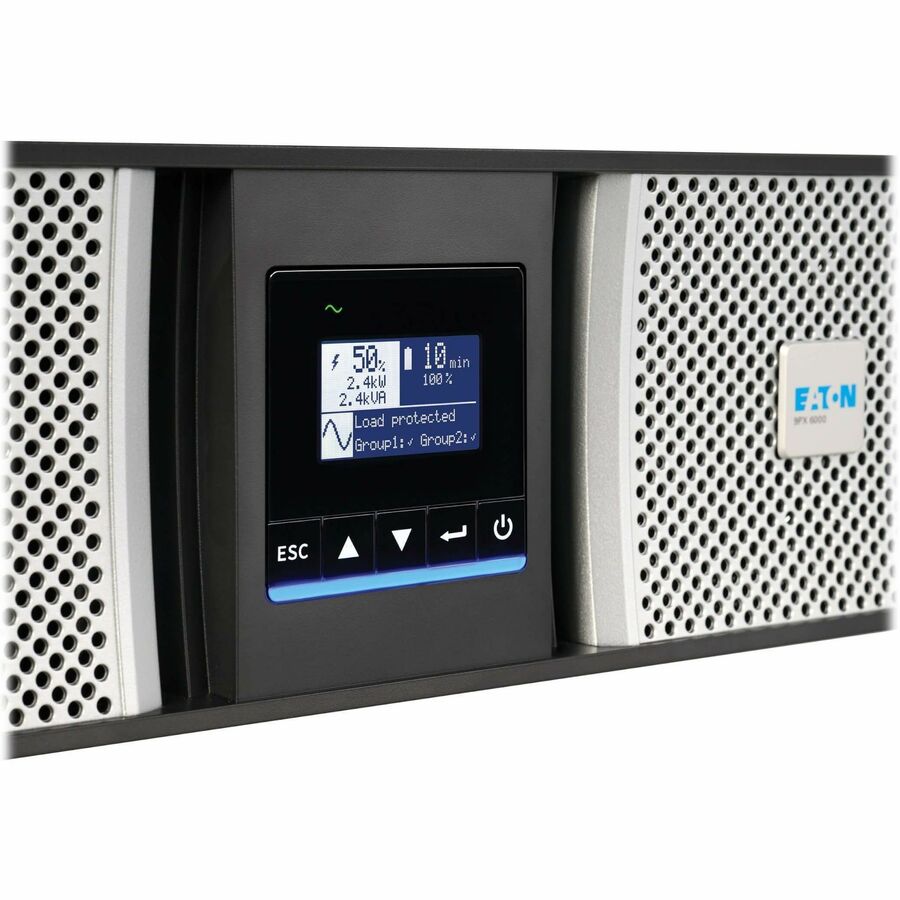

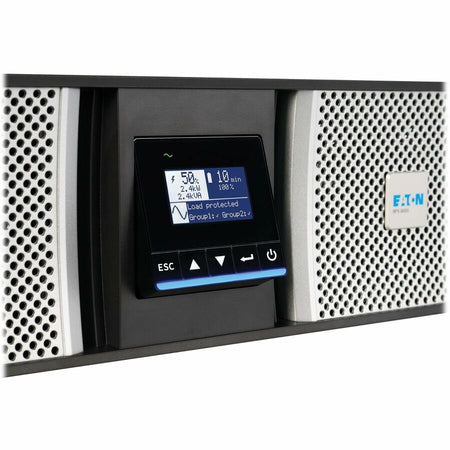

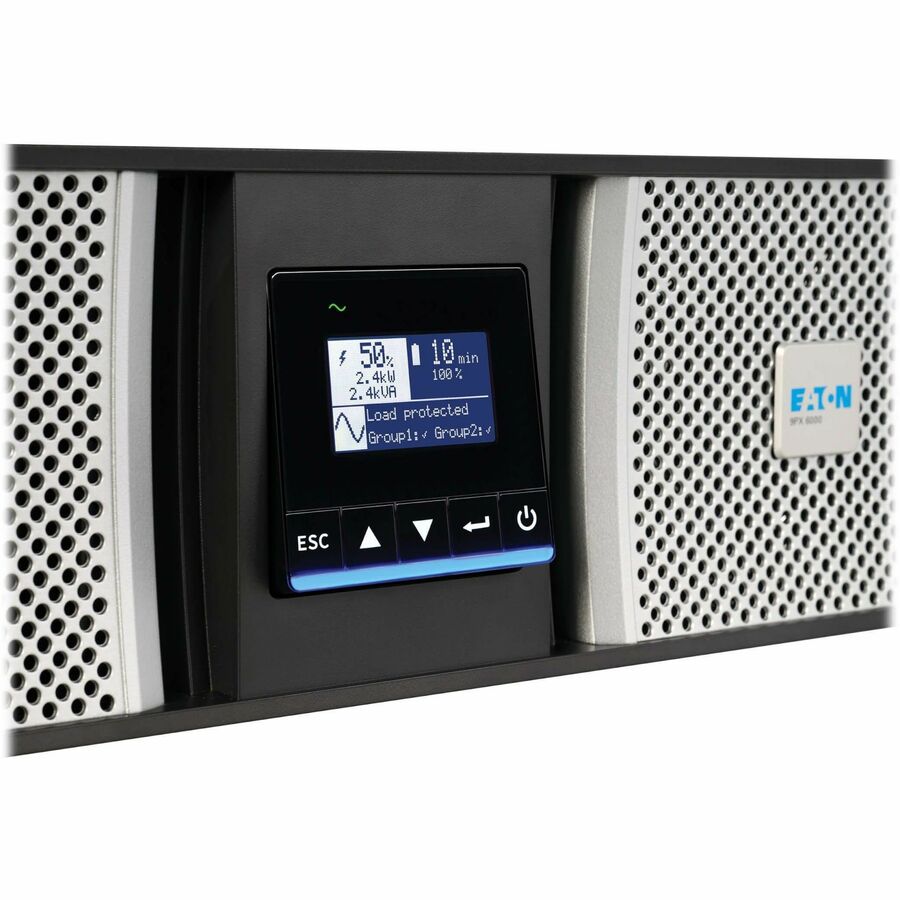

- Display: LCD
- Network Management:
- Network-M3 Card
- INDGW-M2 Card
- Relay-MS Card
- Alarm:
- Utility Power Failure
- Low Battery
- Overload
- UPS Fault
- Battery Fault
- Remote Shutdown
- Status Indicators:
LED Indicators
- Serial Port: Yes
- USB: Yes
- EPO Port: Yes
- DC System Voltage: 180 V DC
- Battery Characteristics: Valve-regulated
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 3.50 Minute
- Backup/Run Time (Half Load): 9.40 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Thermal Dissipation: 274.02 W
- Height: 10.2"
- Width: 17.3"
- Depth: 27"
- Rack Height: 6U
- Form Factor: Rack/Tower
- Weight (Approximate): 203 lb
- Package Contents:
- 9PX G2 9PX5KP1G2 5000VA Rack/tower UPS
- 9PXPPDM1G2 PowerPass Distribution Module with Maintenance Bypass
- NETWORK-M3 Gigabit Network Card
- USB Cable
- RS-232 Cable
- Rack-mounting Hardware
- Tower Support Stands
- Quick Start Guide
- Energy Star: Yes
- Country of Origin: Philippines
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Limited Warranty: 3 Year
