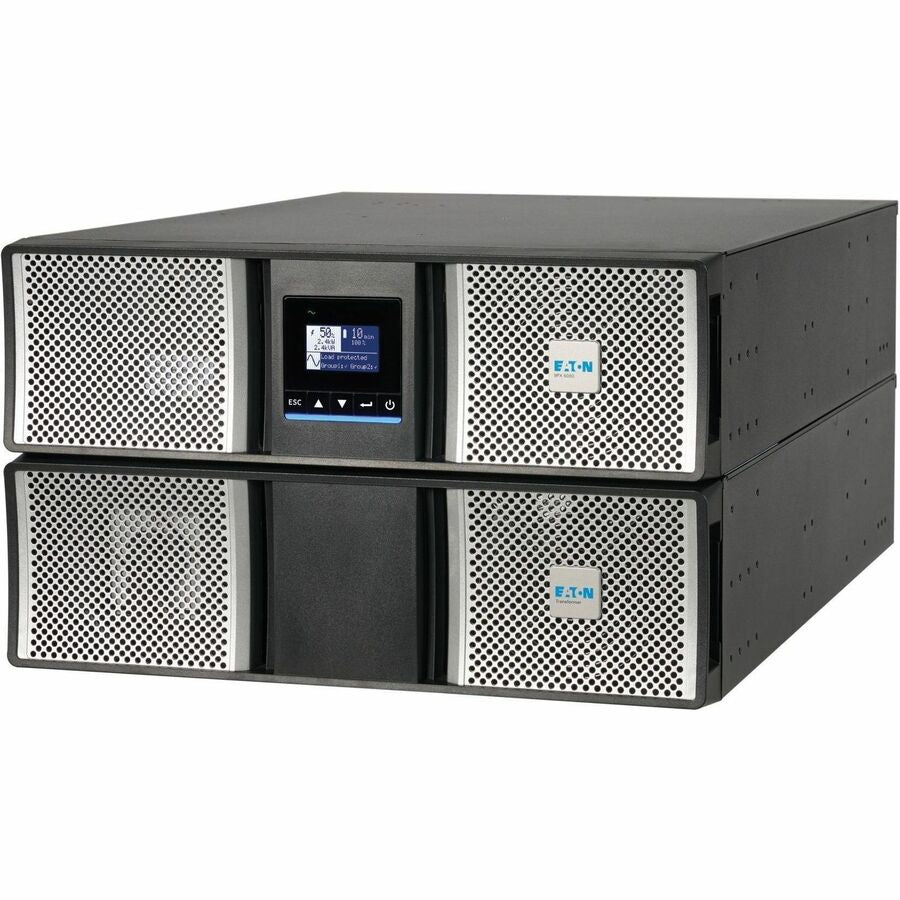

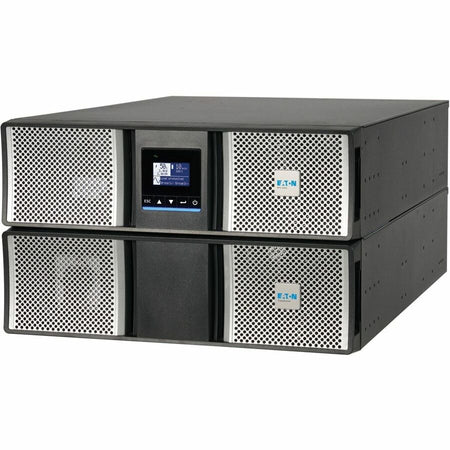

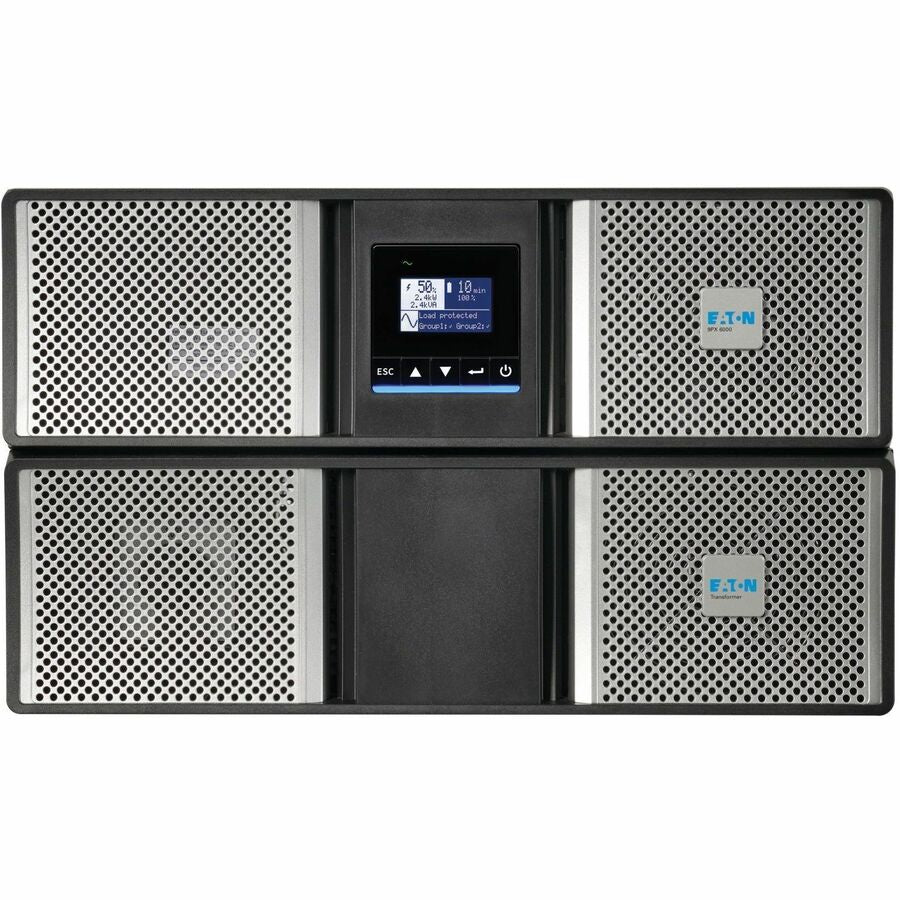

Eaton 9PX G2 5000VA 5000W 208/120V Online Double-Conversion UPS - L6-30P or Hardwired Input, 18x 5-20R, 2x L6-20R, 1x L6-30R, Cybersecure Network Card, Extended Run, 6U Rack/Tower - 9PX5KTF5G2
Eaton 9PX G2 5000VA 5000W 208/120V Online Double-Conversion UPS - L6-30P or Hardwired Input, 18x 5-20R, 2x L6-20R, 1x L6-30R, Cybersecure Network Card, Extended Run, 6U Rack/Tower - 9PX5KTF5G2
Regular price
$6,269.68
Regular price
-40%
$10,420.00
Sale price
$6,269.68
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Manufacturer Brochure
UPC: 037332294296
General Information
Click here for Additional pdf2
Click here for Manufacturer Brochure

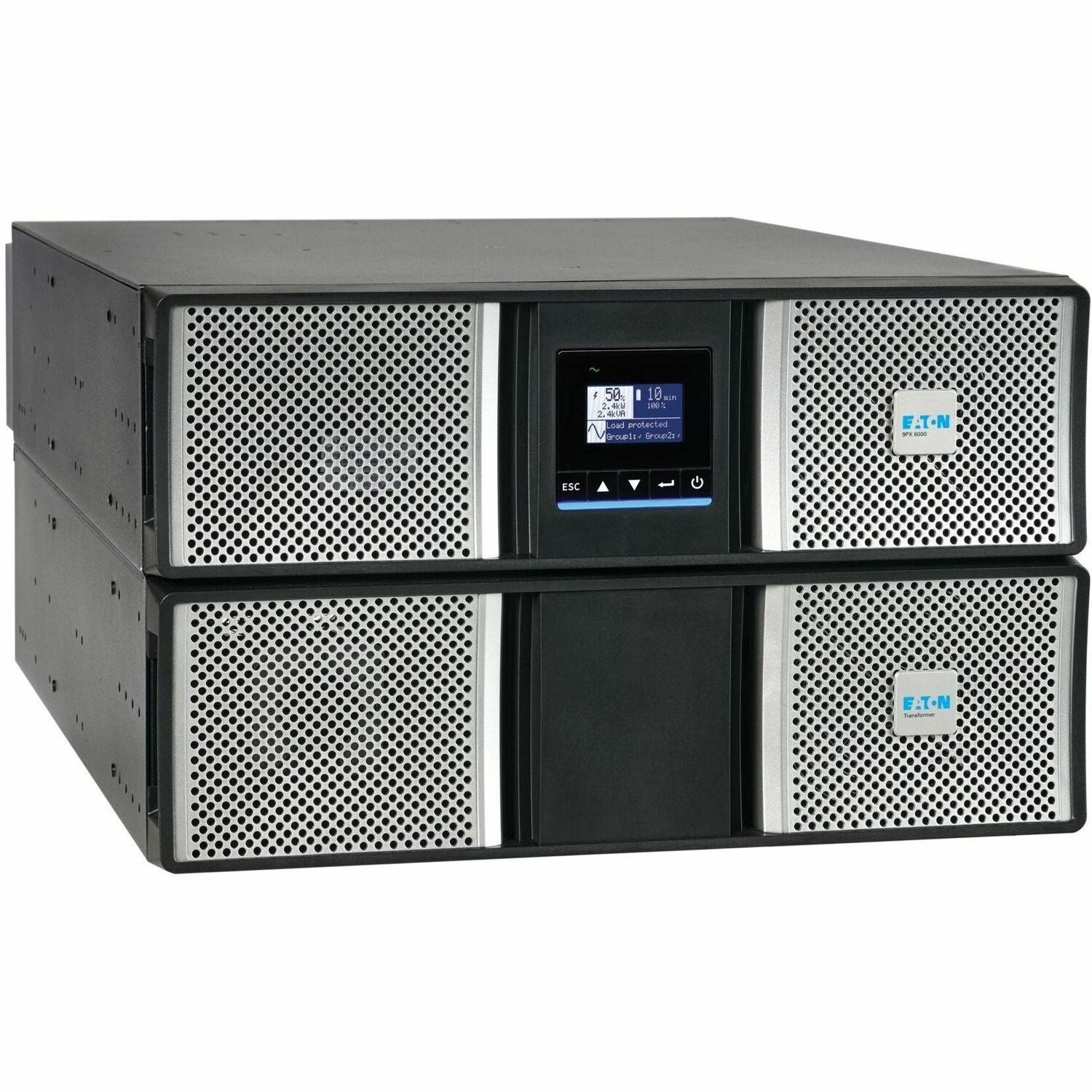

Eaton 9PX G2 5000VA 5000W 208/120V Online Double-Conversion UPS - L6-30P or Hardwired Input, 18x 5-20R, 2x L6-20R, 1x L6-30R, Cybersecure Network Card, Extended Run, 6U Rack/Tower
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: 9PX5KTF5G2
- Manufacturer Website Address: http://www.eaton.com
- Brand Name: Eaton
- Product Series: 9PX G2
- Product Model: 9PX5KTF5G2
- Product Name: 9PX G2 9PX5KTF5G2 5000VA Rack/tower UPS
- Product Type: Double Conversion Online UPS
- Plug/Connector Type:

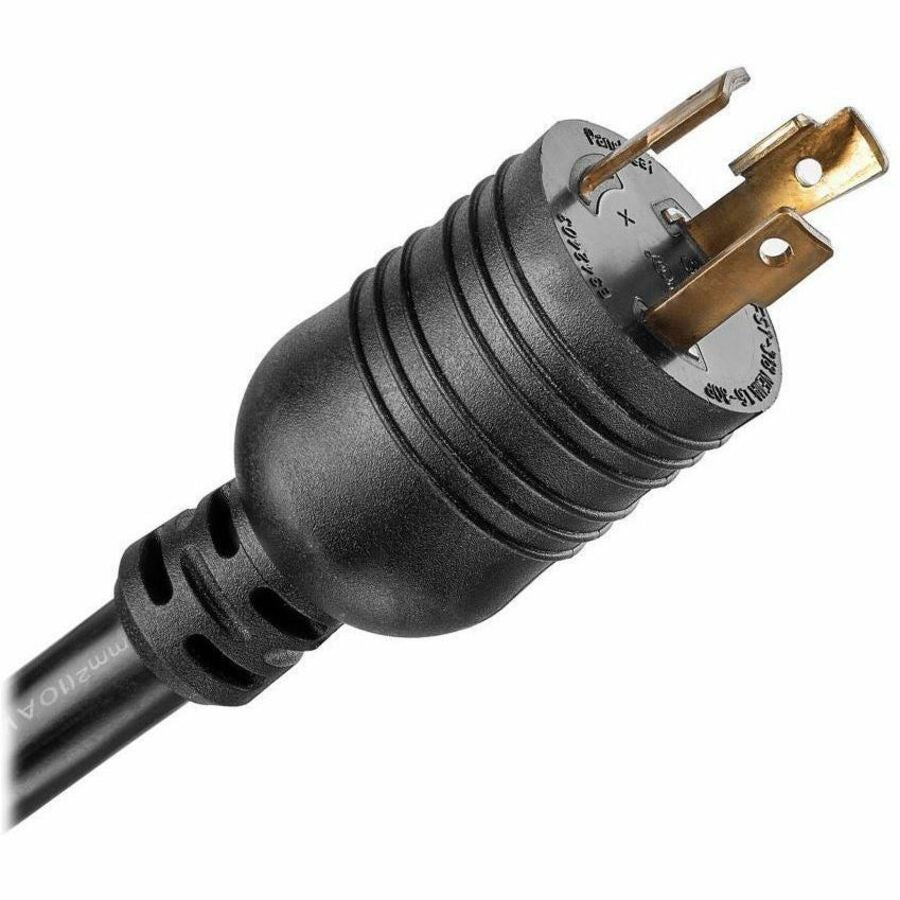

- NEMA L6-30P
- Hardwired

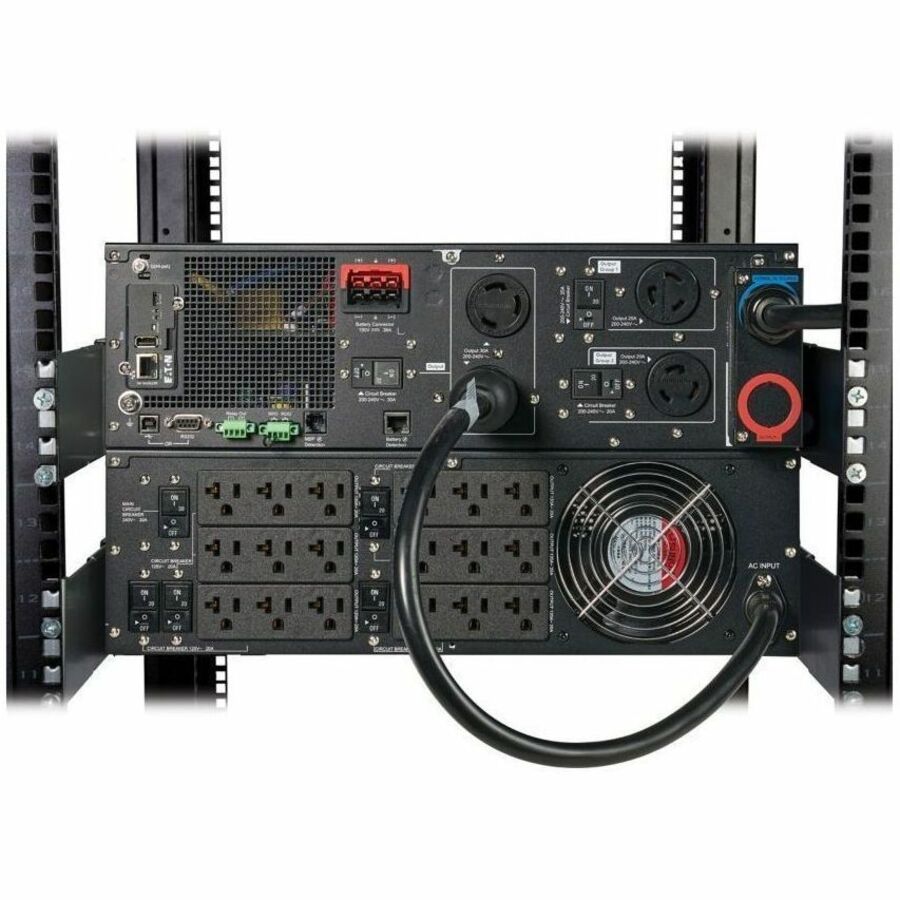

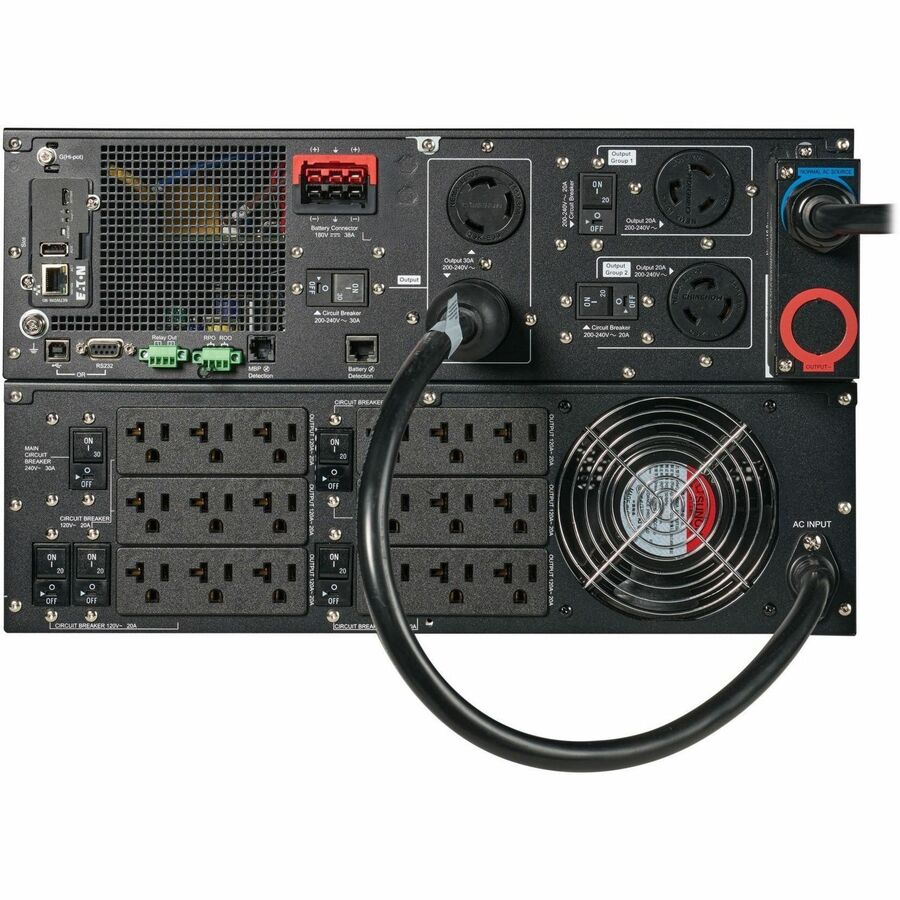

- Receptacle Type:
- NEMA 5-20R
- NEMA L6-20R
- NEMA L6-30R
- Hardwired
- Receptacle Detail:
- 18 x NEMA 5-20R
- 2 x NEMA L6-20R
- 1 x NEMA L6-30R
- 1 x Hardwired
- Cord Length: 10 ft
- EMI/RFI Noise Filter: Yes
- Phase: Single Phase
- Efficiency Detail:
- 96.3% (AC Mode)
- 98.9% (Eco Mode)
- Application/Usage:
- Mission Critical Equipment
- Network
- IT Equipment
- Data Center
- Electronic
- Edge Computing
- Education
- Government
- Healthcare
- Retail
- Server
- Switch
- Network Equipment
- Surge Suppression: Yes
- Features:
- Audible Alarm
- Advanced Battery Management (ABM+)
- Load Capacity (VA): 5000 VA
- Load Capacity (Watt): 5000 W
- Input Voltage: 230 V AC
- Input Current: 24.40 A
- Output Voltage:
- 240 V AC
- 230 V AC
- 220 V AC
- 208 V AC
- 200 V AC
- 100 V AC
- 110 V AC
- 120 V AC
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type: Pure Sine Wave
- Output Power Factor: 1

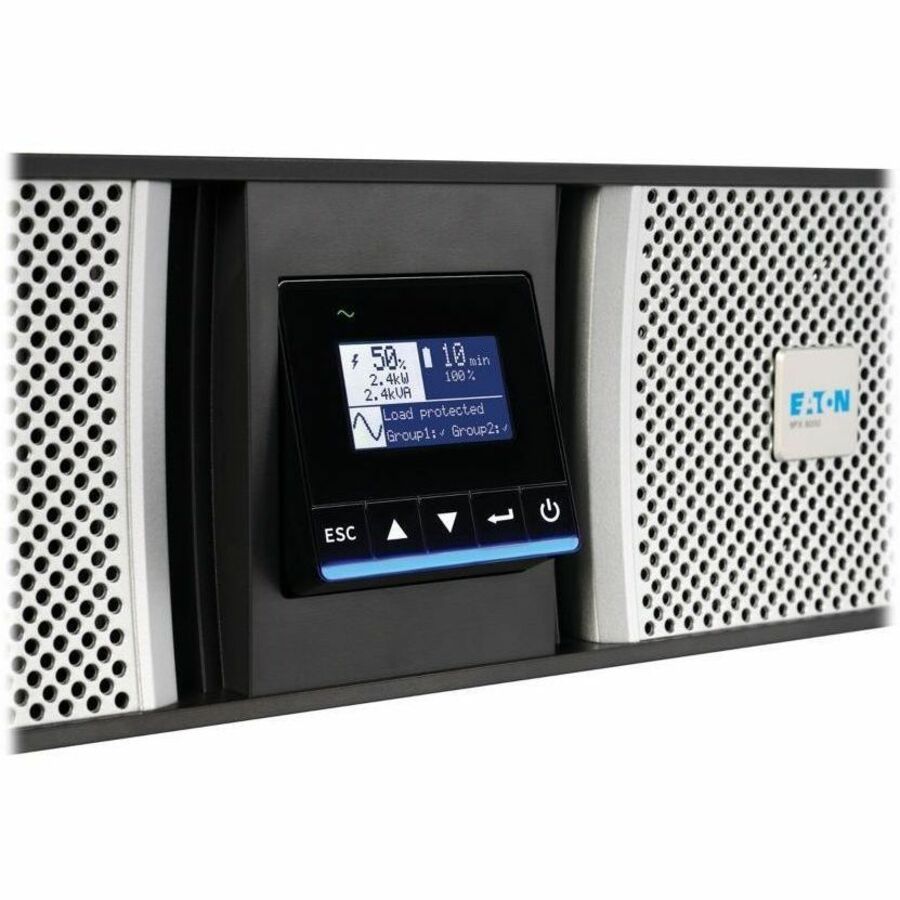

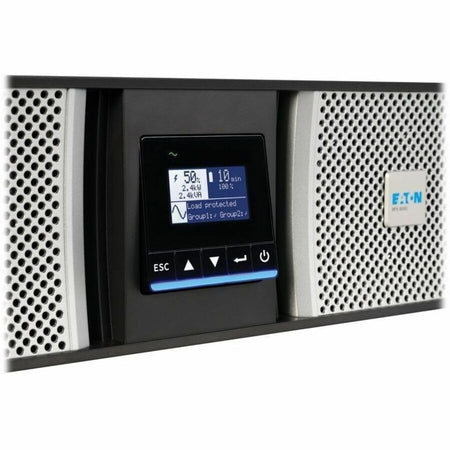

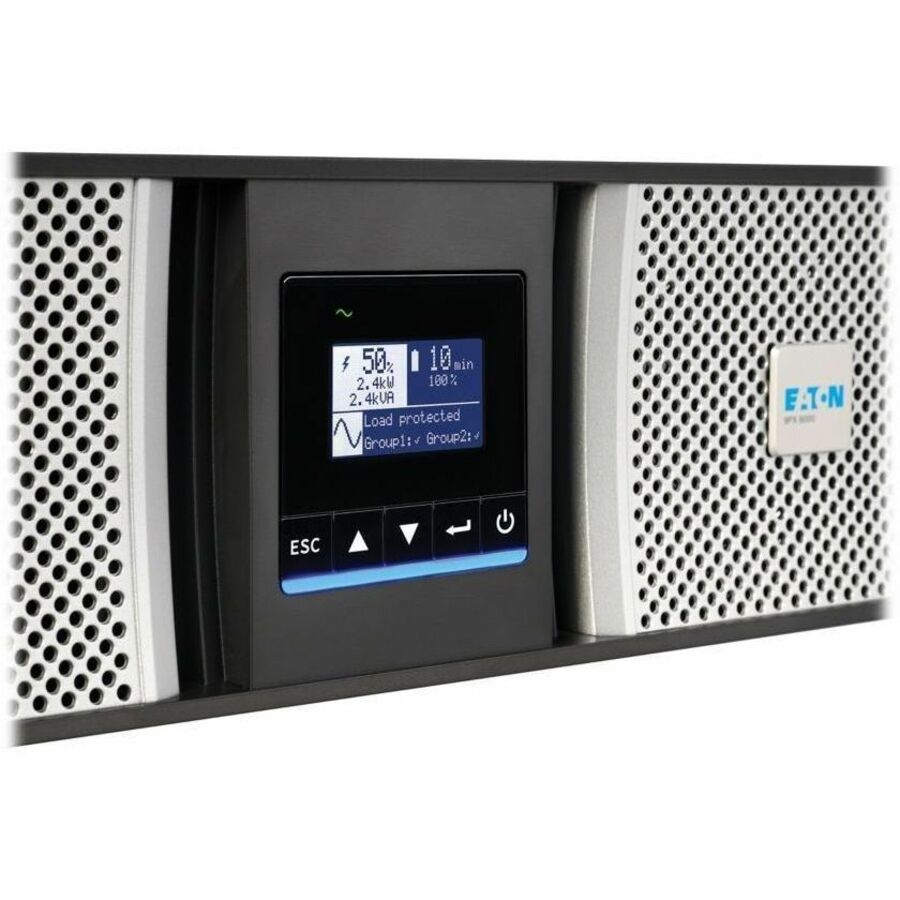

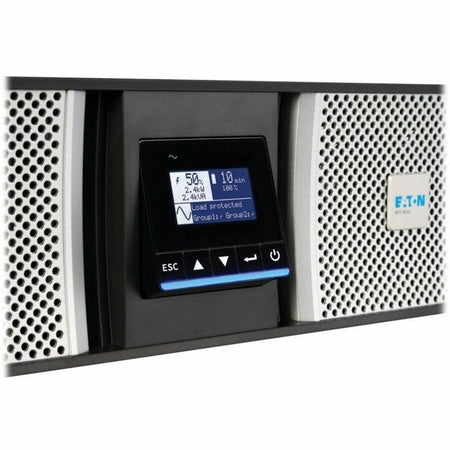

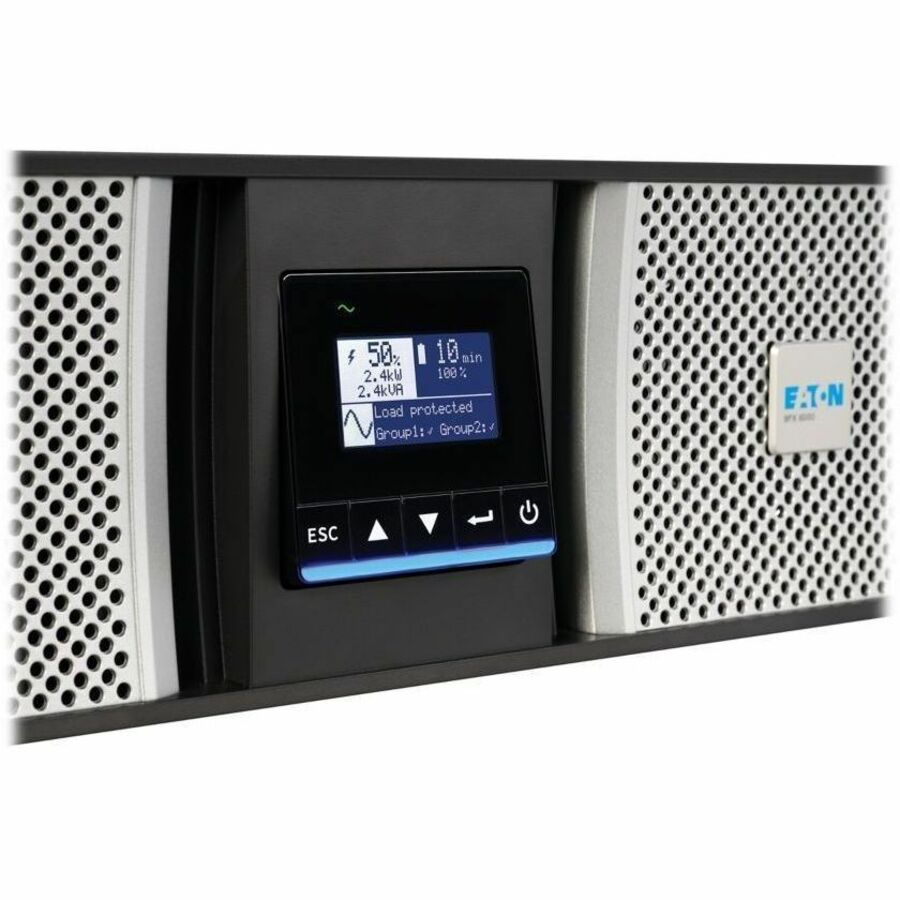

- Display: LCD
- Network Management:
- Network-M3 Card
- INDGW-M2 Card
- Relay-MS Card
- Alarm:
- Utility Power Failure
- Low Battery
- Overload
- UPS Fault
- Battery Fault
- Remote Shutdown
- Status Indicators:
LED Indicators
- Serial Port: Yes
- USB: Yes
- EPO Port: Yes
- DC System Voltage: 180 V DC
- Battery Characteristics: Valve-regulated
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 3.50 Minute
- Backup/Run Time (Half Load): 9.40 Minute

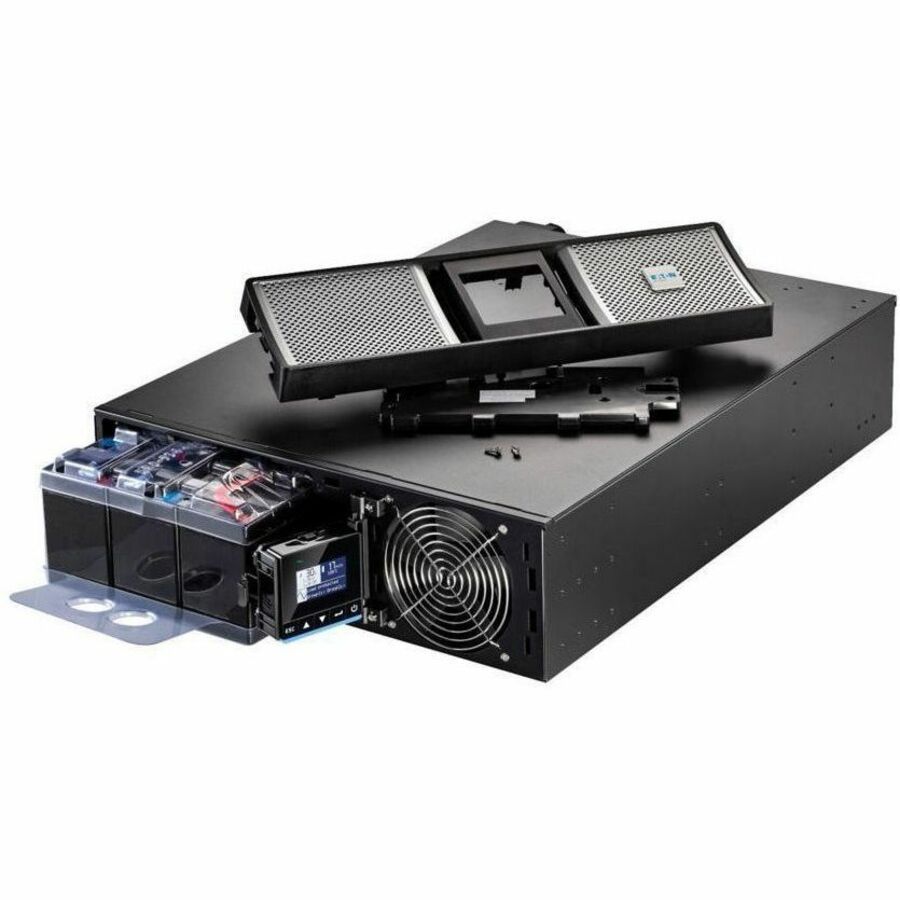

- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Thermal Dissipation: 274.02 W
- Height: 10.2"
- Width: 17.3"
- Depth: 27"
- Rack Height: 6U
- Form Factor: Rack/Tower
- Weight (Approximate): 203 lb
- Package Contents:
- 9PX G2 9PX5KTF5G2 5000VA Rack/tower UPS
- 9PXTFMR5G2 120V Step-down Transformer
- NETWORK-M3 Gigabit Network Card
- USB Cable
- RS-232 Cable
- Cable Gland for Hardwire Connection
- Rack-mounting Hardware
- Tower Support Stands
- Quick Start Guide
- Energy Star: Yes
- Country of Origin: Philippines
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Limited Warranty: 3 Year
