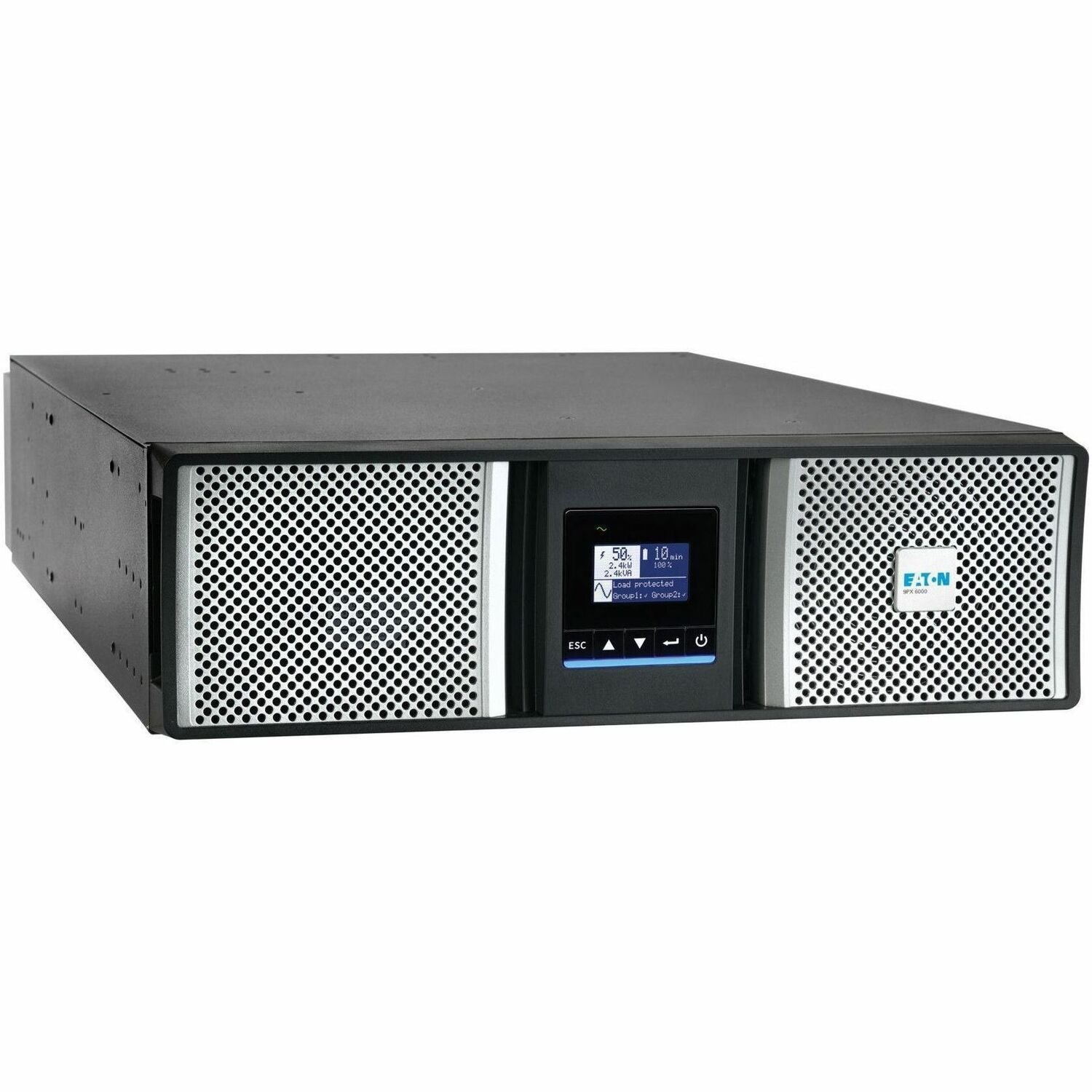

Eaton 9PX G2 6000VA 5400W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower - 9PX6KG2
Eaton 9PX G2 6000VA 5400W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower - 9PX6KG2

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Eaton Corporation

Eaton 9PX G2 6000VA 5400W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower - 9PX6KG2

57 in stock
SKU: 14634454
$5,693.85
-40% $9,463.00 $5,693.85
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3

Eaton 9PX G2 6000VA 5400W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower

  • UPC: 786689860066
    • General Information
    • Manufacturer: Eaton Corporation
    • Manufacturer Part Number: 9PX6KG2
    • Manufacturer Website Address: http://www.eaton.com
    • Brand Name: Eaton
    • Product Series: 9PX G2
    • Product Model: 9PX6KG2
    • Product Name: 9PX G2 9PX6KG2 6000VA Rack/Tower UPS
    • Product Type: Double Conversion Online UPS
    Technical Information
    • Plug/Connector Type:
      • Hardwired

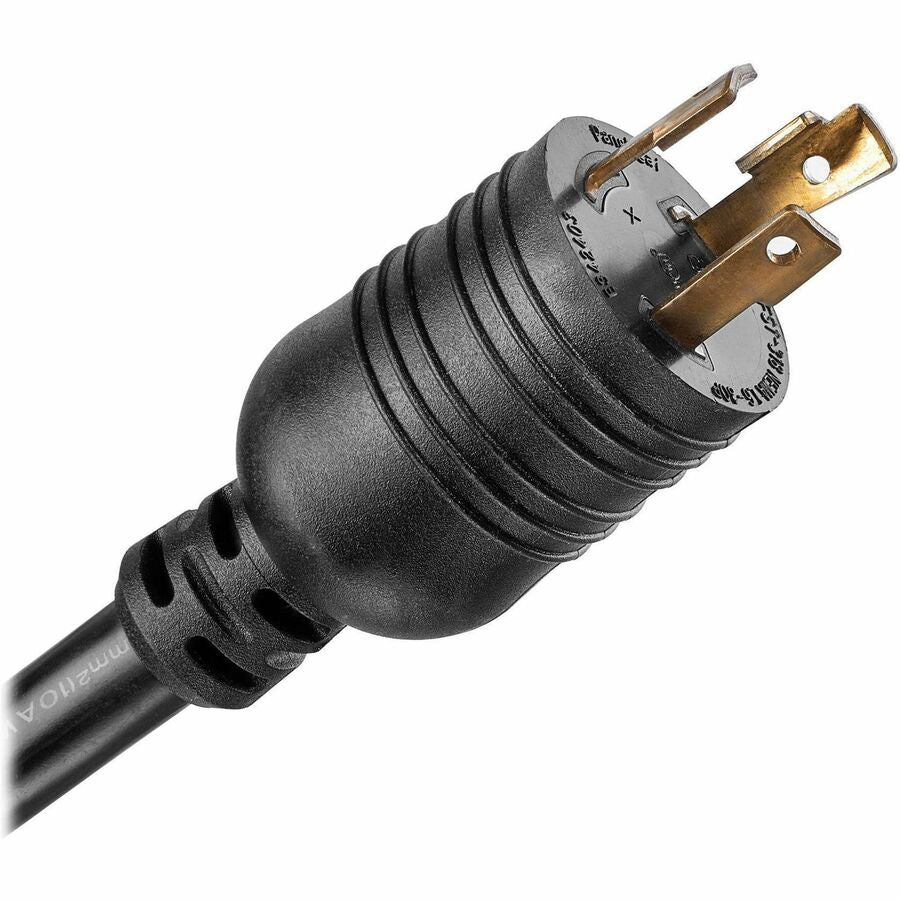

      • NEMA L6-30P

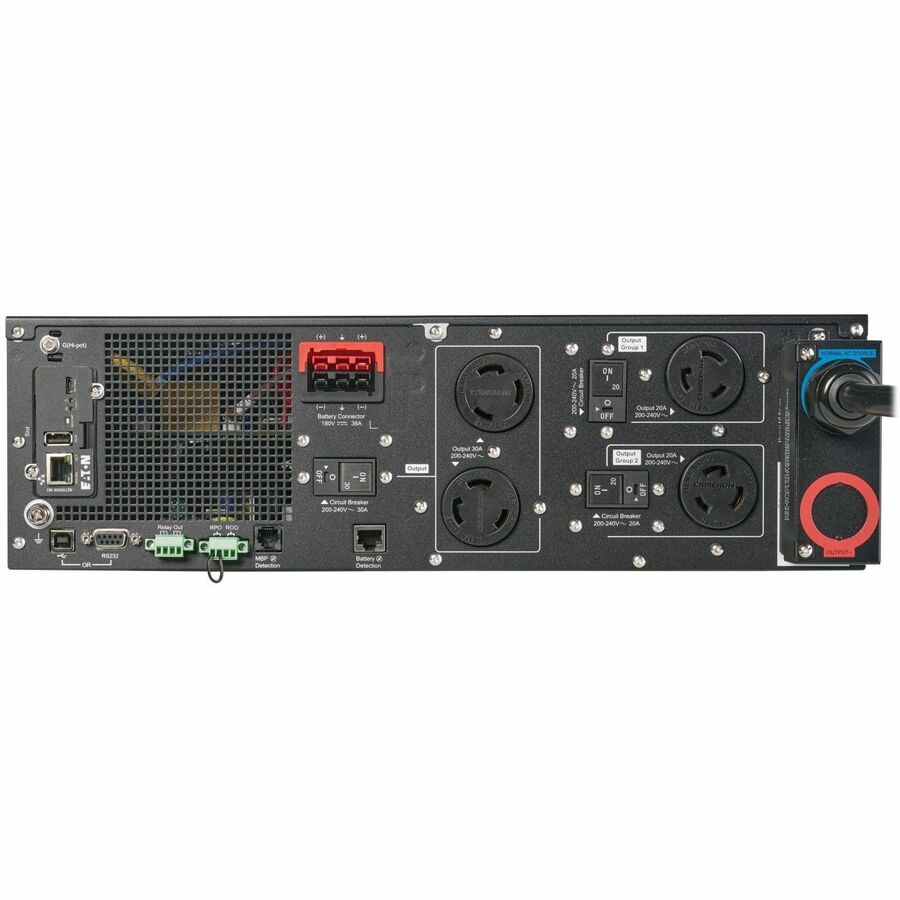

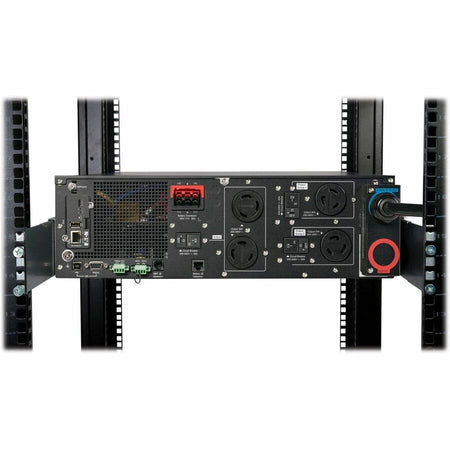

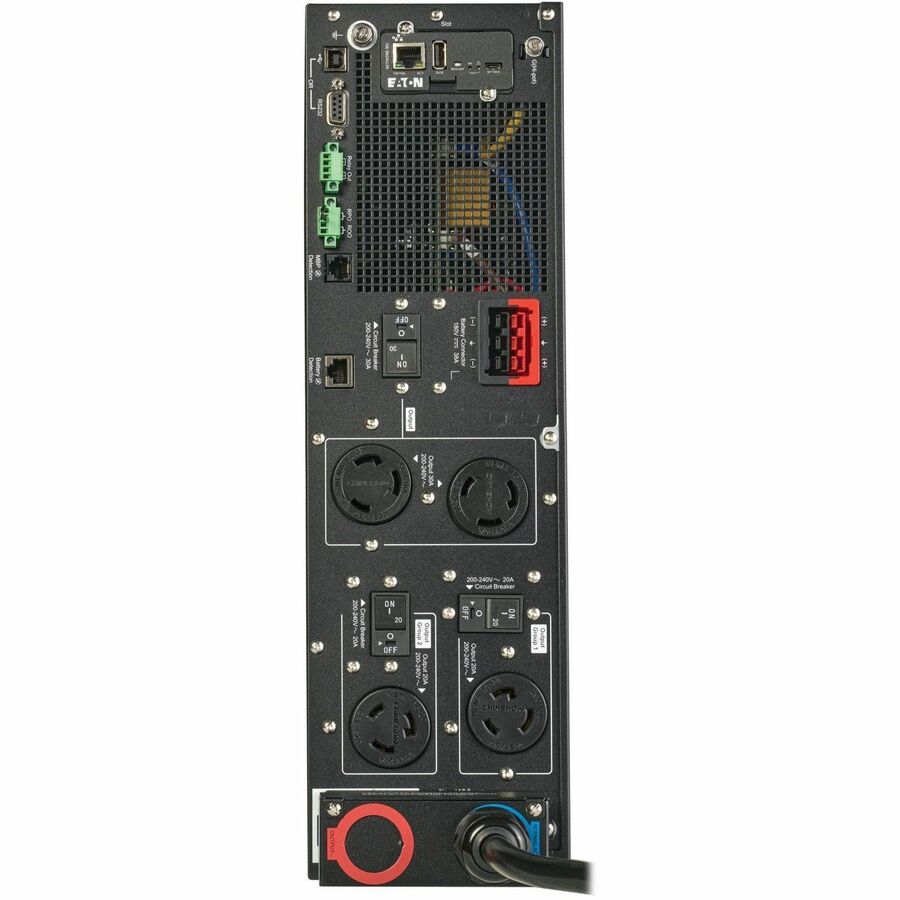

    • Receptacle Type:
      • Hardwired
      • NEMA L6-20R
      • NEMA L6-30R
    • Receptacle Detail:
      • 2 x NEMA L6-20R
      • 2 x NEMA L6-30R
    • Cord Length: 10 ft
    • EMI/RFI Noise Filter: Yes
    • Phase: Single Phase
    • Efficiency Detail:
      • 96% (AC Mode)
      • 98.9% (Eco Mode)
    • Application/Usage:
      • Mission Critical Equipment
      • IT
      • Edge Computing
      • Network
      • Equipment
      • IT Equipment
      • Data Center
      • Business
      • Education
      • Government
      • Healthcare
      • Retail
      • Server
      • PoE System
      • Switch
    • Surge Suppression: Yes
    • Features: Advanced Battery Management (ABM+)
    Power Description
    • Load Capacity (VA): 6000 VA
    • Load Capacity (Watt): 5400 W
    • Input Voltage: 230 V AC
    • Input Current: 24.40 A
    • Output Voltage:
      • 200 V AC
      • 208 V AC
      • 220 V AC
      • 230 V AC
      • 240 V AC
    • Output Frequency:
      • 50 Hz
      • 60 Hz
    • Waveform Type:
      • Sine Wave
      • Pure Sine Wave
    • Circuit Breaker: Yes
    • Output Power Factor: 0.9
    Display & Graphics

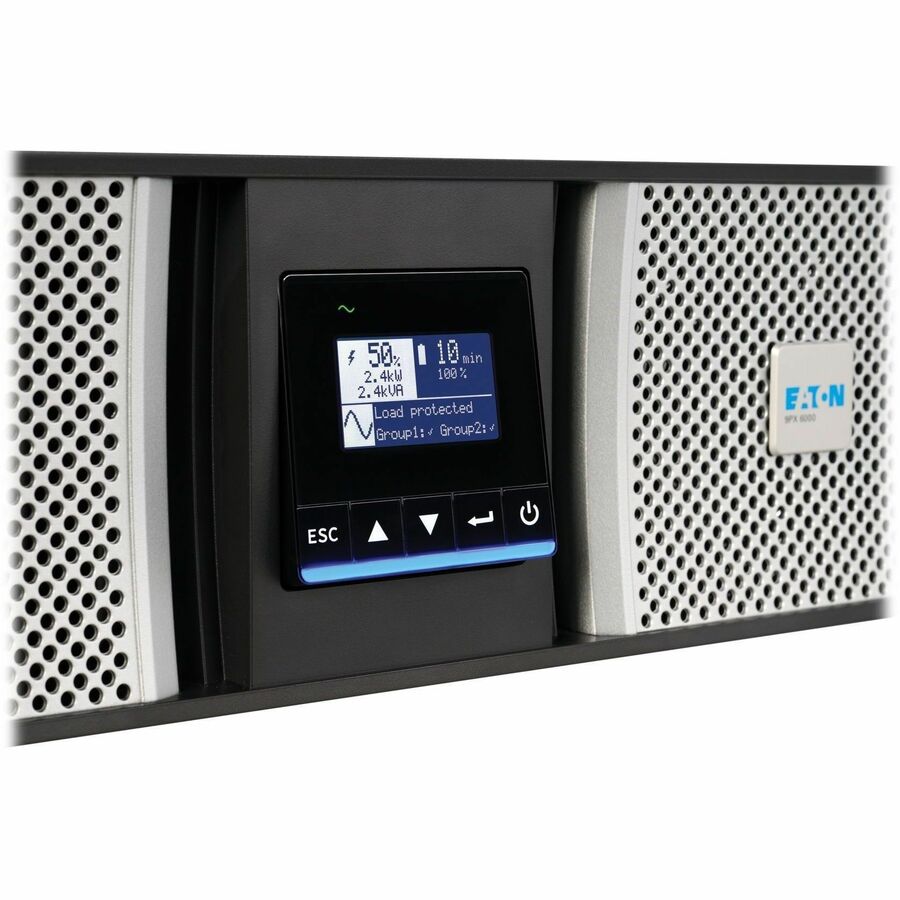

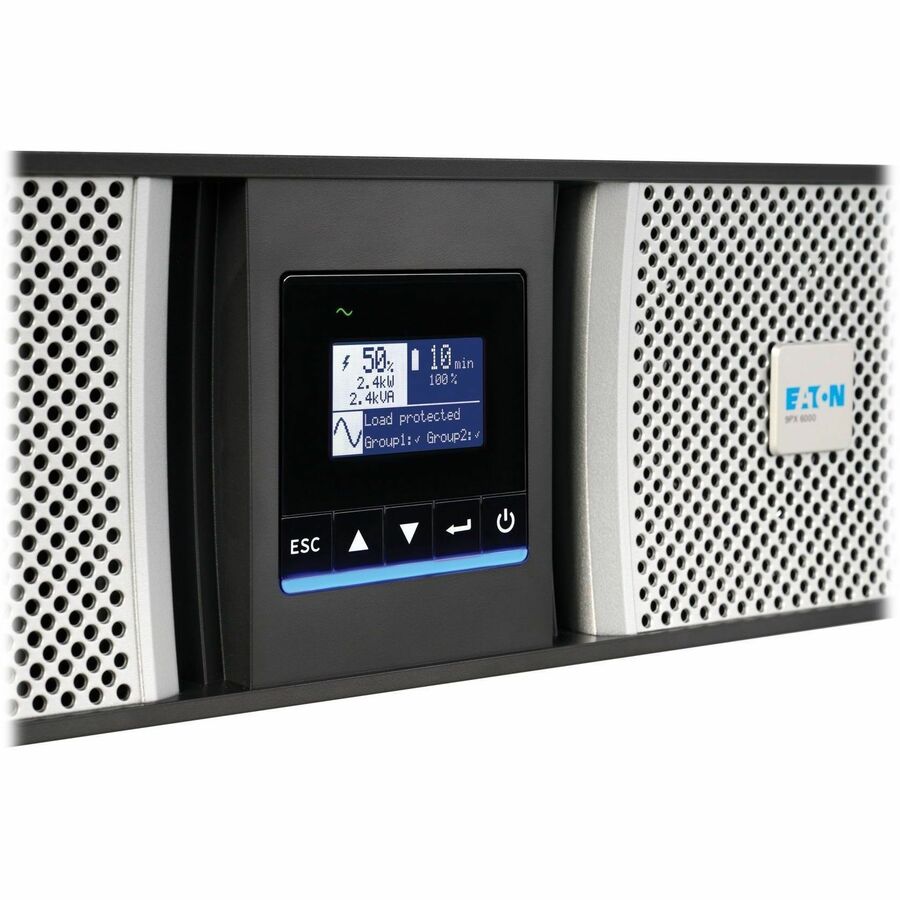

    • Display: LCD
    Management
    • Network Management:
      • INDGW-M2 Card
      • Relay-MS Card
      • Network-M3 Card
      • Network Card
    • Alarm:
      • Utility Power Failure
      • Low Battery
      • Overload
      • UPS Fault
      • Battery Fault
      • Remote Shutdown
    Controls/Indicators
    • Status Indicators:

      LED Indicators:

      • LED status bar
    Interfaces/Ports
    • Serial Port: Yes
    • USB: Yes
    • EPO Port: Yes
    Battery Information
    • DC System Voltage: 180 V DC
    • Battery Characteristics: Valve-regulated
    • Battery Chemistry: Lead Acid
    • Backup/Run Time (Full Load): 3 Minute
    • Backup/Run Time (Half Load): 8.30 Minute
    • Hot Swappable: Yes
    • Typical Battery Recharge Time: 3 Hour
    • Replaceable Battery: Yes
    Environmental Conditions
    • Minimum Operating Temperature: 32°F (0°C)
    • Maximum Operating Temperature: 104°F (40°C)
    • Thermal Dissipation: 338.50 W
    Physical Characteristics
    • Height: 5.1"
    • Width: 17.3"
    • Depth: 27"

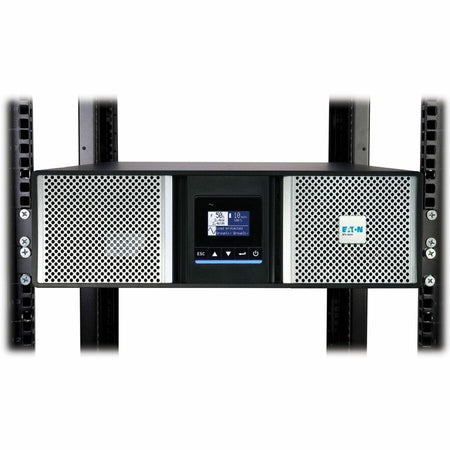

    • Rack Height: 3U

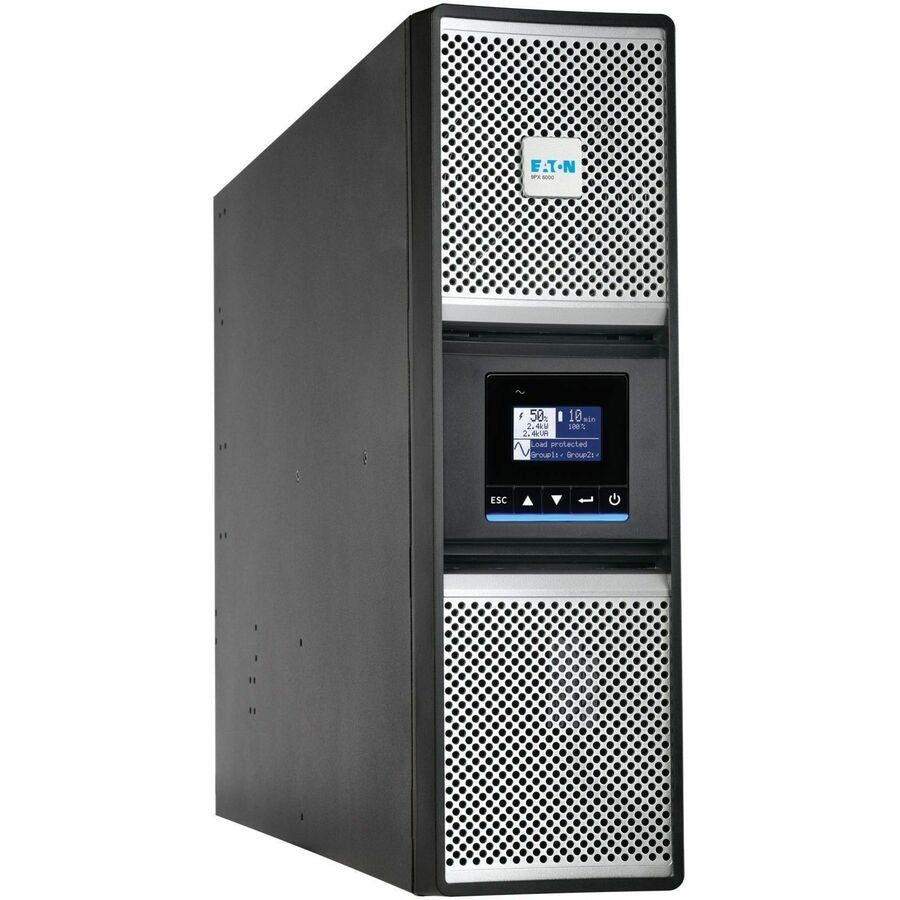

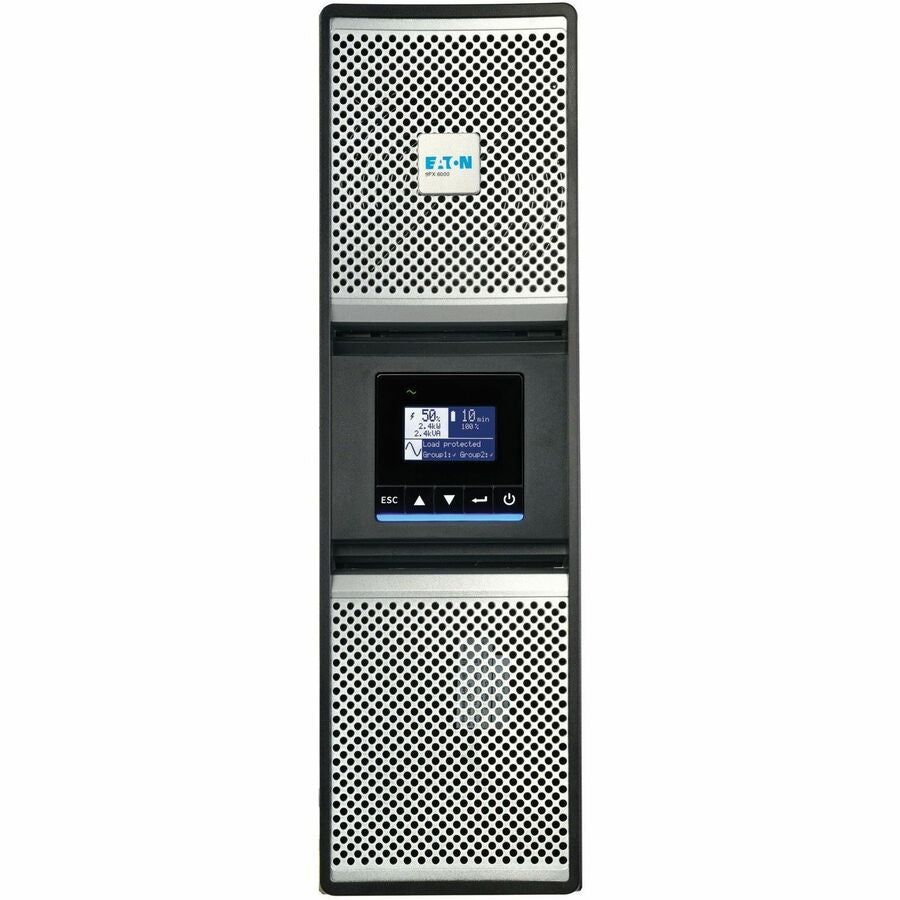

    • Form Factor: Rack/Tower
    • Weight (Approximate): 98.30 lb
    Miscellaneous
    • Package Contents:
      • 9PX G2 9PX6KG2 6000VA Rack/Tower UPS
      • NETWORK-M3 Gigabit Network Card
      • USB Cable
      • RS-232 Cable
      • Cable Gland for Hardwire Connection
      • Rack-mounting Hardware
      • Tower Support Stands
      • Quick Start Guide
    • Energy Star: Yes
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 3 Year
