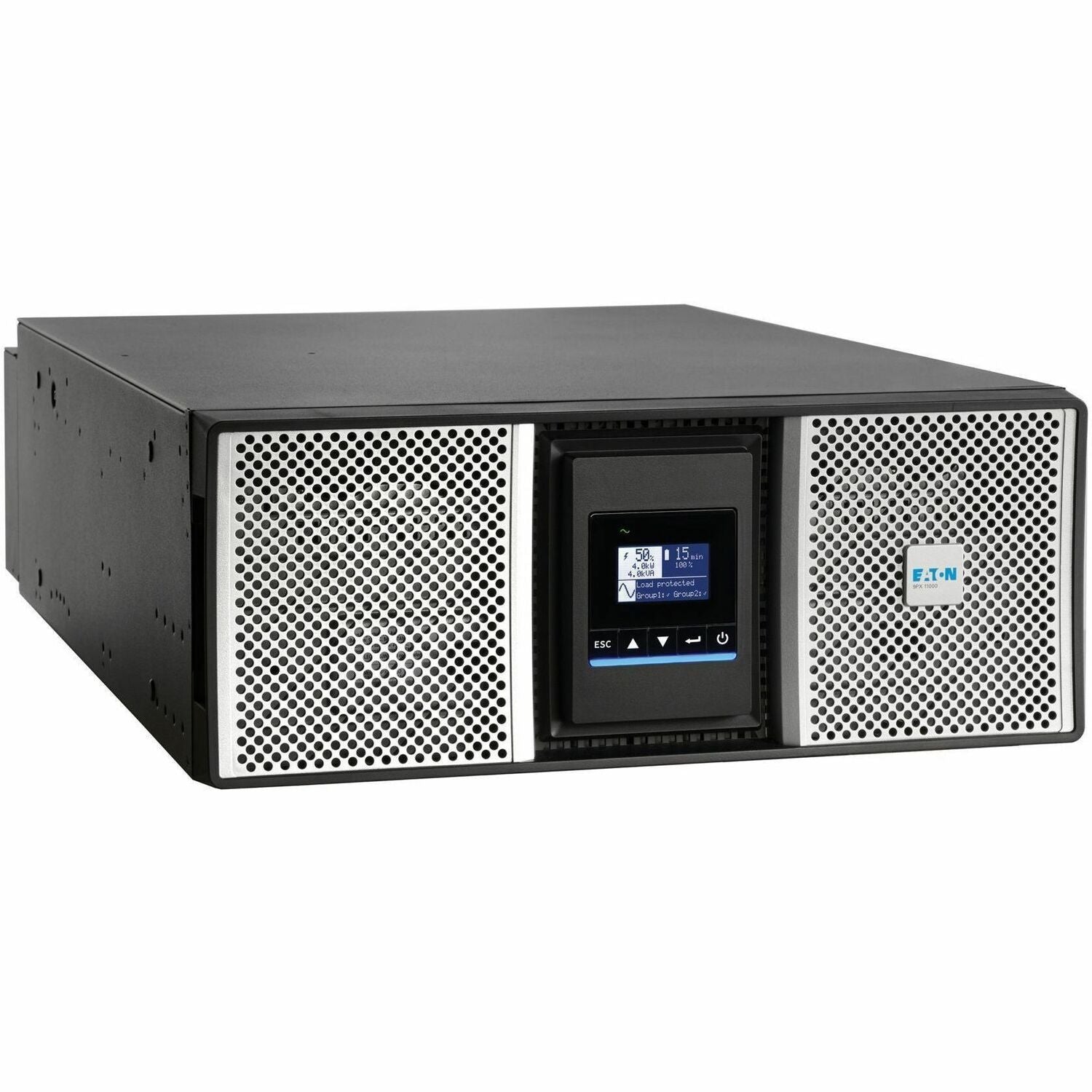

Eaton 9PX G2 8000VA 8000W 208V Online Double-Conversion UPS - Hardwired Input, 4 L6-30R/Hardwired Output, Cybersecure Network Card, Extended Run, 4U Rack/Tower - 9PX8KG2
Eaton 9PX G2 8000VA 8000W 208V Online Double-Conversion UPS - Hardwired Input, 4 L6-30R/Hardwired Output, Cybersecure Network Card, Extended Run, 4U Rack/Tower - 9PX8KG2
Regular price
$6,998.33
Regular price
-40%
$11,631.00
Sale price
$6,998.33
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Additional pdf1
Click here for Manufacturer Brochure
UPC: 786689860110
General Information
Click here for Manufacturer Brochure
Eaton 9PX G2 8000VA 8000W 208V Online Double-Conversion UPS - Hardwired Input, 4 L6-30R/Hardwired Output, Cybersecure Network Card, Extended Run, 4U Rack/Tower
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: 9PX8KG2
- Manufacturer Website Address: http://www.eaton.com
- Brand Name: Eaton
- Product Series: 9PX G2
- Product Model: 9PX8KG2
- Product Name: 9PX G2 9PX8KG2 8000VA Rack/Tower UPS
- Product Type: Double Conversion Online UPS
- Plug/Connector Type: Hardwired
- Receptacle Type:
- NEMA L6-30R
- Hardwired
- Receptacle Detail: 4 x NEMA L6-30R
- EMI/RFI Noise Filter: Yes
- Phase: Single Phase
- Efficiency Detail:
- 96.5% (AC Mode)
- 99.4% (Eco Mode)
- Application/Usage:
- Mission Critical Equipment
- IT
- Edge Computing
- Network
- Equipment
- IT Equipment
- Data Center
- Business
- Education
- Government
- Healthcare
- Retail
- Server
- PoE System
- Switch
- Surge Suppression: Yes
- Features: Advanced Battery Management (ABM+)
- Load Capacity (VA): 8000 VA
- Load Capacity (Watt): 8000 W
- Input Voltage: 230 V AC
- Input Current: 38.40 A
- Output Voltage:
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type:
- Sine Wave
- Pure Sine Wave
- Output Power Factor: 1
- Display: LCD
- Network Management:
- INDGW-M2 Card
- Relay-MS Card
- Network-M3 Card
- Network Card
- Alarm:
- Utility Power Failure
- Low Battery
- Overload
- UPS Fault
- Battery Fault
- Remote Shutdown
- Status Indicators:
LED Indicators:
- LED status bar
- Serial Port: Yes
- USB: Yes
- EPO Port: Yes
- DC System Voltage: 240 V DC
- Battery Characteristics: Valve-regulated
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 5.40 Minute
- Backup/Run Time (Half Load): 15.20 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Thermal Dissipation: 333.22 W
- Height: 6.8"
- Width: 17.3"
- Depth: 28.6"
- Rack Height: 4U
- Form Factor: Rack/Tower
- Weight (Approximate): 173.70 lb
- Package Contents:
- 9PX G2 9PX8KG2 8000VA Rack/Tower UPS
- NETWORK-M3 Gigabit Network Card
- USB Cable
- RS-232 Cable
- Cable Gland for Hardwire Connection
- Rack-mounting Hardware
- Tower Support Stands
- Quick Start Guide
- Energy Star: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Limited Warranty: 3 Year
