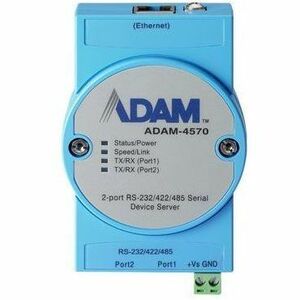

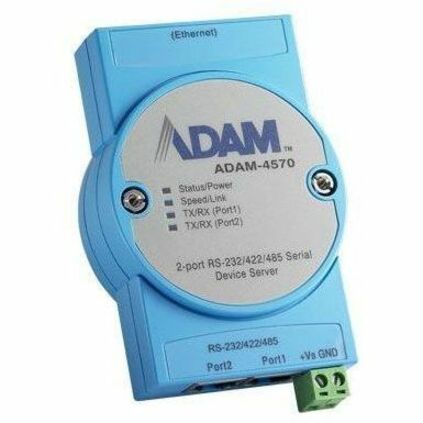

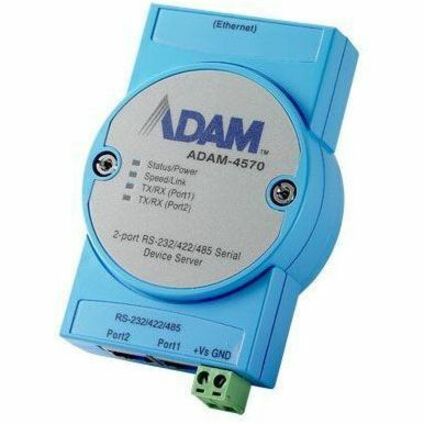

Advantech 2-port RS-232/422/485 Serial Device Server - ADAM-4570-CE
Advantech 2-port RS-232/422/485 Serial Device Server - ADAM-4570-CE

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Advantech Co., Ltd

Advantech 2-port RS-232/422/485 Serial Device Server - ADAM-4570-CE

7 in stock
SKU: 4791515
$272.43
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.

Advantech 2-port RS-232/422/485 Serial Device Server

  • UPC : N/A
    • General Information
    • Manufacturer: Advantech Co., Ltd
    • Manufacturer Part Number: ADAM-4570-CE
    • Manufacturer Website Address: http://www.advantech.com
    • Brand Name: Advantech
    • Product Model: ADAM-4570
    • Product Name: 2-port RS-232/422/485 Serial Device Server
    • Product Type: Device Server
    Technical Information
    • Connectivity Technology: Wired
    • Data Link Protocols:
      • TCP/IP
      • UDP
      • HTTP
      • ARP
    Media & Performance
    • Media Type Supported: Twisted Pair
    Network & Communication
    • Ethernet Technology: Fast Ethernet
    • Network Standard: 10/100Base-T
    Interfaces/Ports
    • Network (RJ-45): Yes
    • Serial Port: Yes
    • Total Number of Network Ports: 1
    • Number of Network (RJ-45) Ports: 1
    • Number of Serial Ports: 2
    Power Description
    • Input Voltage:
      • 10 V DC
      • 30 V DC
    • Input Voltage Range: 10 V DC - 30 V DC
    • Power Consumption: 2.50 W
    • Plug/Connector Type: Terminal Block
    Physical Characteristics
    • Form Factor:
      • DIN Rail Mountable
      • Wall Mountable
      • Stackable
    • Height: 5.1"
    • Width: 2.8"
    • Depth: 1.2"
    • Weight (Approximate): 5.64 oz
    Miscellaneous
    • Package Contents:
      • 2-port RS-232/422/485 Serial Device Server
      • 2 x 1 m RJ48 to DB9 Male Cables
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 5 Year
