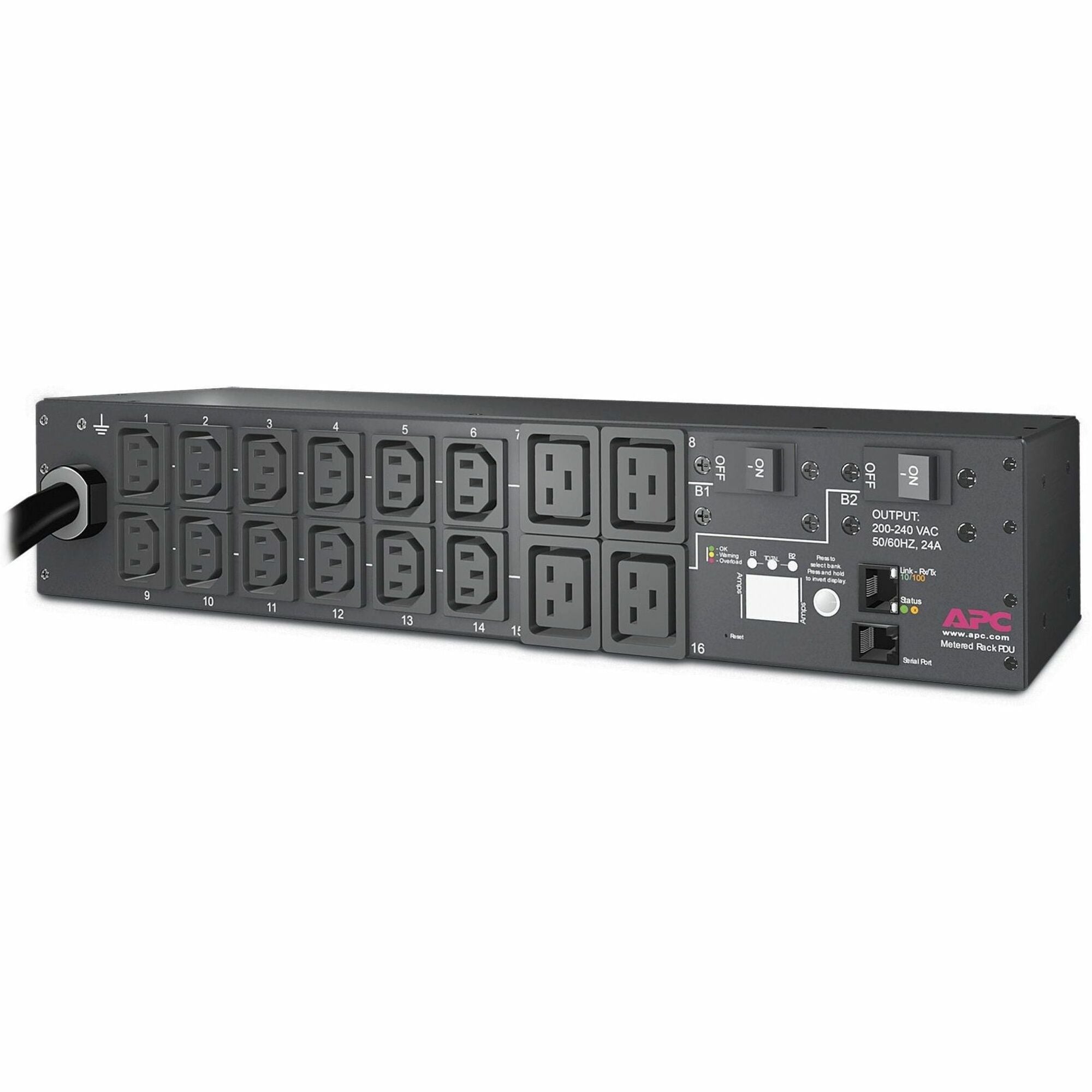

APC NetShelter Metered Rack PDU, 2U, 5.0kW, 208V, 30A, 12 C13 and 4 C19 outlet - AP7811B
APC NetShelter Metered Rack PDU, 2U, 5.0kW, 208V, 30A, 12 C13 and 4 C19 outlet - AP7811B

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Schneider Electric SA

APC NetShelter Metered Rack PDU, 2U, 5.0kW, 208V, 30A, 12 C13 and 4 C19 outlet - AP7811B

63 in stock
SKU: 4763500
$1,200.31
-33% $1,800.00 $1,200.31
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Additional pdf4
Click here for Additional pdf5
Click here for Additional pdf7
Click here for User Manual

APC NetShelter Metered Rack PDU, 2U, 5.0kW, 208V, 30A, 12 C13 and 4 C19 outlet

  • UPC: 731304331490
    • General Information
    • Manufacturer: Schneider Electric SA
    • Manufacturer Part Number: AP7811B
    • Manufacturer Website Address: http://www.schneider-electric.com
    • Brand Name: APC by Schneider Electric
    • Product Line: Metered Rack
    • Product Name: Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19
    • Product Type: PDU
    Technical Information
    • PDU Type: Metered
    • Plug/Connector Type: NEMA L6-30P
    • Plug/Connector Detail: 1
    • Receptacle Type:
      • IEC 60320 C13
      • IEC 60320 C19
    • Receptacle Detail:
      • 12 x IEC 60320 C13
      • 4 x IEC 60320 C19
    Power Description
    • Input Voltage:
      • 200 V
      • 208 V
      • 230 V
    • Output Voltage: 208 V AC
    • Input Current: 30 A
    Physical Characteristics
    • Mounting Orientation: Horizontal
    • Mount Type: Rack-mountable
    • Placement:
      • Front
      • Rear
    • Rack Height: 2U
    • Cord Length: 11.98 ft
    • Height: 3.5"
    • Width: 17.5"
    • Depth: 4.4"
    • Weight (Approximate): 7.41 lb
    Miscellaneous
    • Package Contents:
    • Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19
    • Cord retention bracket(s)
    • Installation guide
    • Rack mounting brackets
    • User manual
    • Country of Origin: India
    • Environmentally Friendly: Yes
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 2 Year
