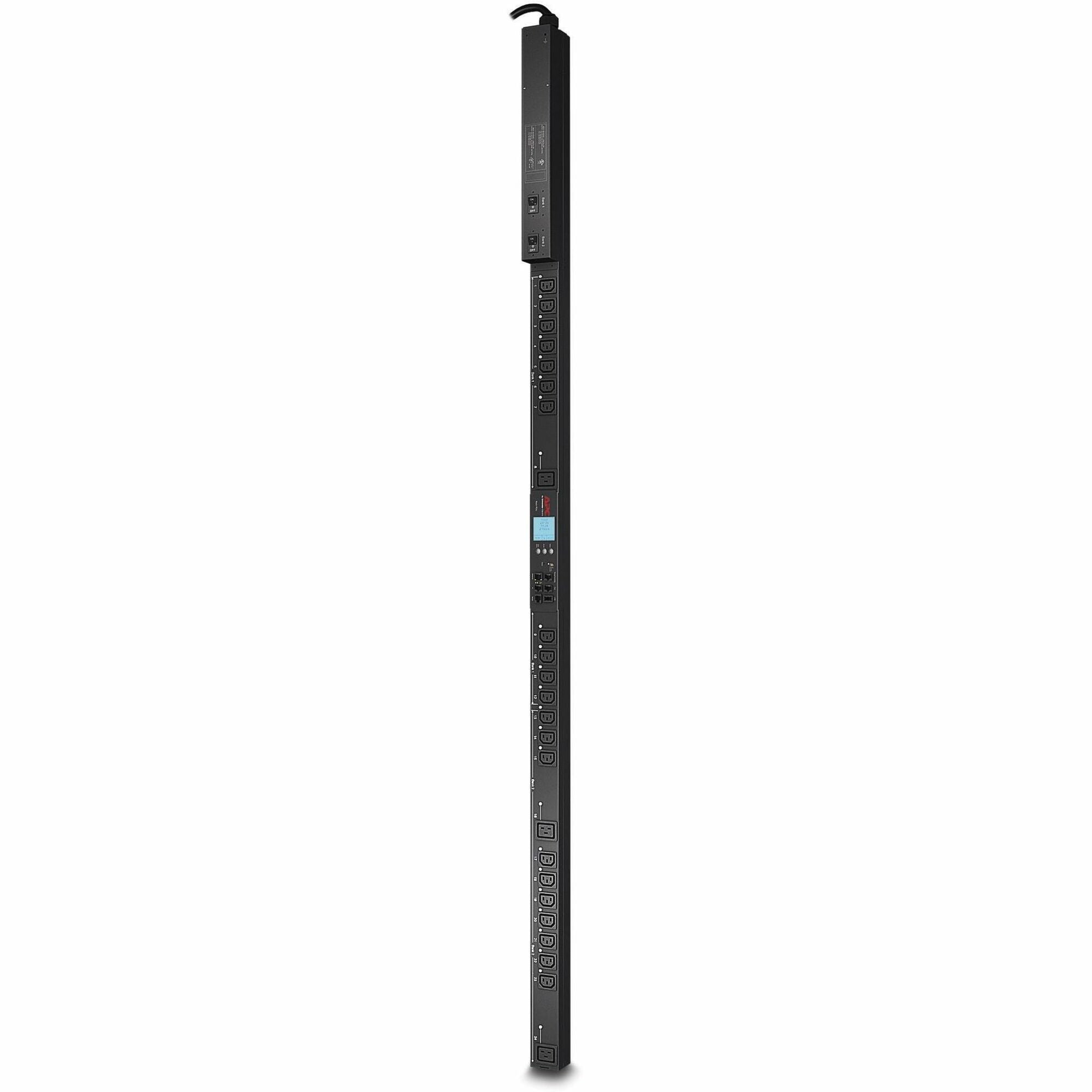

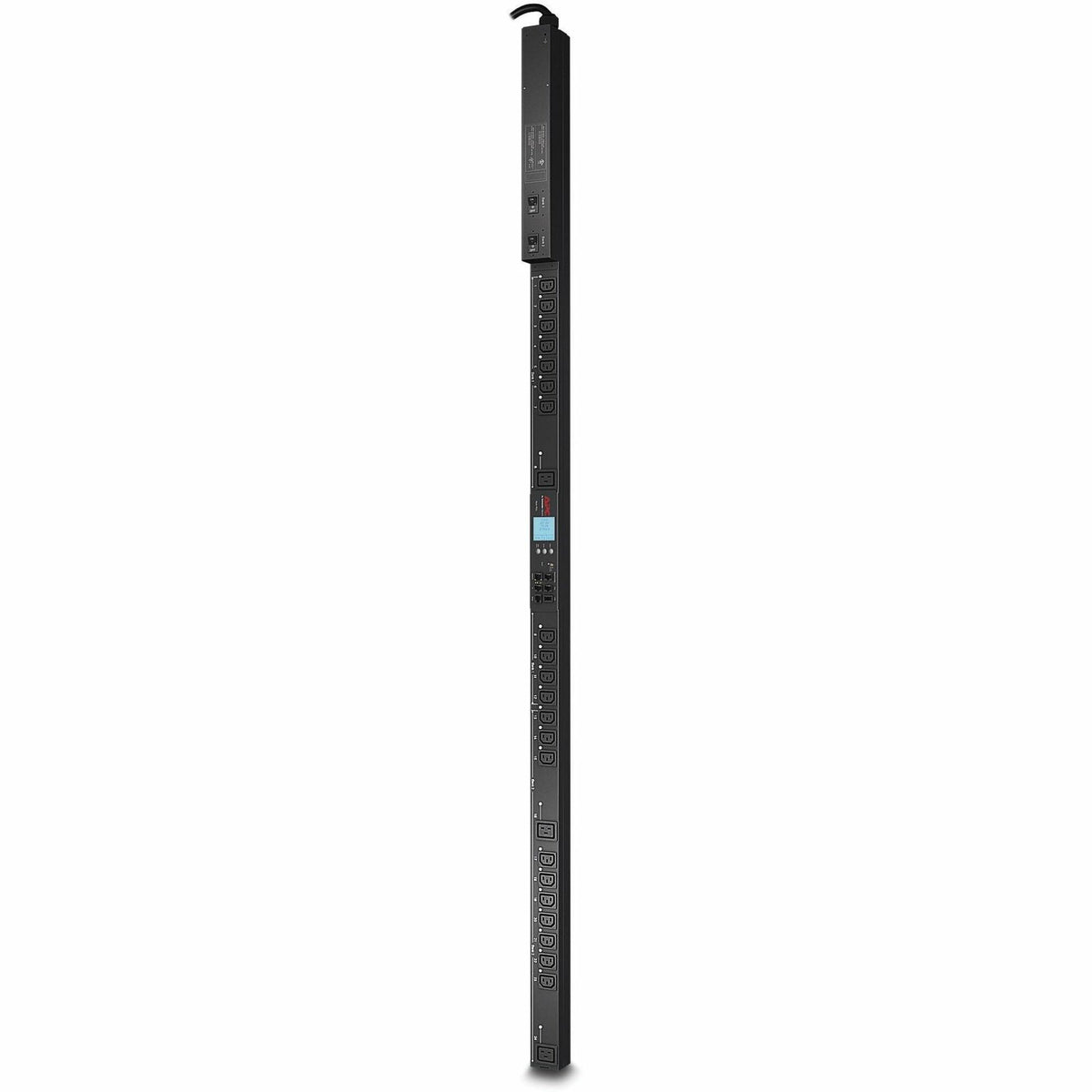

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets - AP8641
APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets - AP8641

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Schneider Electric SA

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets - AP8641

27 in stock
SKU: 2980651
$2,507.70
-33% $3,760.00 $2,507.70
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Additional pdf4
Click here for Additional pdf5
Click here for Additional pdf6
Click here for Additional pdf7
Click here for Additional pdf8
Click here for User Manual

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets

  • UPC: 731304276975
    • General Information
    • Manufacturer: Schneider Electric SA
    • Manufacturer Part Number: AP8641
    • Manufacturer Website Address: http://www.schneider-electric.com
    • Brand Name: APC by Schneider Electric
    • Product Line: Switched Rack
    • Product Series: AP8000
    • Product Model: AP8641
    • Product Name: Switched Rack AP8000 24-Outlets PDU
    • Product Type: PDU
    Technical Information
    • PDU Type: Switched

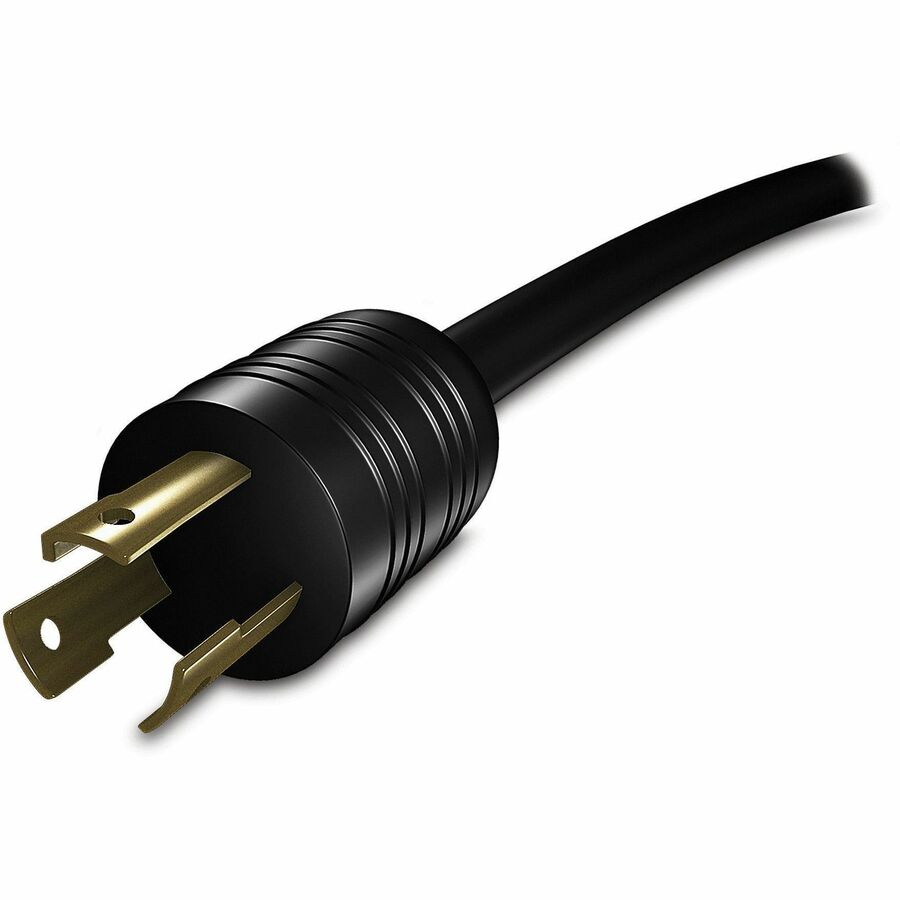

    • Plug/Connector Type: NEMA L6-30P
    • Receptacle Type:
      • IEC 60320 C19
      • IEC 60320 C13
    • Receptacle Detail:
      • 21 x IEC 60320 C13
      • 3 x IEC 60320 C19
    • Protection Type: Overload Protection
    Power Description
    • Input Voltage:
      • 200 V
      • 208 V
      • 230 V
    • Input Voltage Range: 200 V AC - 230 V AC
    • Output Voltage:
      • 200 V AC
      • 208 V AC
    Management
    • Management:

      Protocols:

      • Web
      • SNMP
      • Telnet
    Physical Characteristics
    • Mounting Orientation: Vertical
    • Mount Type: Rack-mountable
    • Placement: Side
    • Rack Height: 0U
    • Cord Length: 9.51 ft
    • Height: 72"
    • Width: 2.2"
    • Depth: 2"
    • Weight (Approximate): 18.14 lb
    Miscellaneous
    • Package Contents:
    • Switched Rack AP8000 24-Outlets PDU
    • CAN port terminator
    • Installation guide
    • Rack mounting brackets
    • Safety guide
    • Serial configuration cable
    • Country of Origin: India
    • Environmentally Friendly: Yes
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 2 Year
