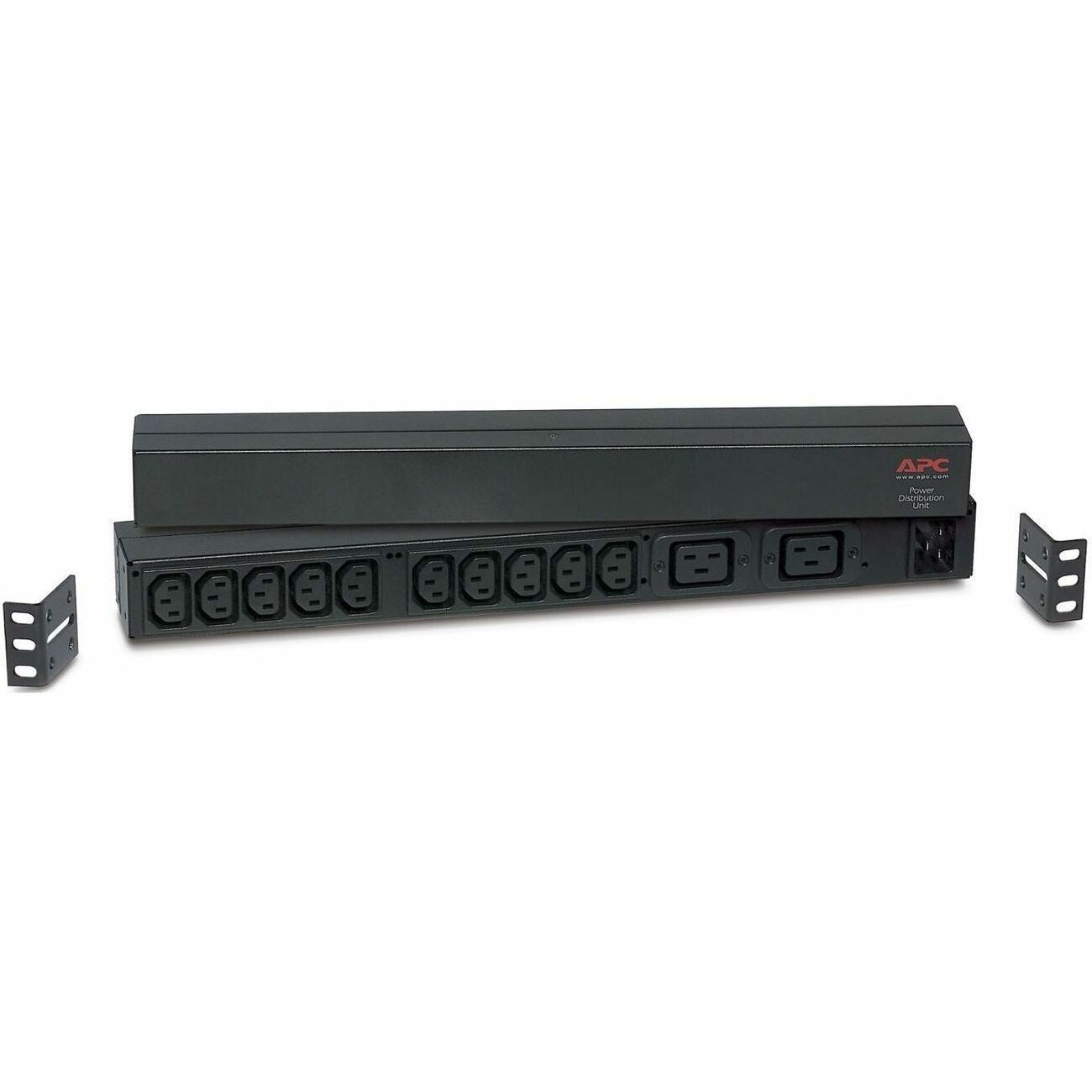

Home » APC NetShelter Basic Rack PDU, 1U, 16A, 208 & 230V, 10 C13 and 2 C19 outlets - AP9559
APC NetShelter Basic Rack PDU, 1U, 16A, 208 & 230V, 10 C13 and 2 C19 outlets - AP9559
APC NetShelter Basic Rack PDU, 1U, 16A, 208 & 230V, 10 C13 and 2 C19 outlets - AP9559

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Schneider Electric SA

APC NetShelter Basic Rack PDU, 1U, 16A, 208 & 230V, 10 C13 and 2 C19 outlets - AP9559

4 in stock
SKU: 940693
$394.74
-25% $523.00 $394.74
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf3
Click here for User Manual

APC NetShelter Basic Rack PDU, 1U, 16A, 208 & 230V, 10 C13 and 2 C19 outlets

  • UPC: 731304123521
    • General Information
    • Manufacturer: Schneider Electric SA
    • Manufacturer Part Number: AP9559
    • Manufacturer Website Address: http://www.schneider-electric.com
    • Brand Name: APC by Schneider Electric
    • Product Line: NetShelter
    • Product Name: NetShelter 12-Outlets PDU
    • Packaged Quantity: 1 Each
    • Product Type: PDU
    Technical Information
    • PDU Type: Basic
    • Plug/Connector Type: IEC 60320 C20
    • Plug/Connector Detail: 1 x IEC 60320 C20
    • Receptacle Type:
      • IEC 60320 C13
      • IEC 60320 C19
    • Receptacle Detail:
      • 10 x IEC 60320 C13
      • 2 x IEC 60320 C19
    • Load Capacity (VA): 3680 W
    Power Description
    • Input Voltage:
      • 120 V
      • 208 V
      • 230 V
    • Input Voltage Range: 90 V AC - 250 V AC
    • Output Voltage:
      • 120 V AC
      • 208 V AC
      • 230 V AC
    • Input Current: 16 A
    • Input Frequency: 60 Hz
    Physical Characteristics
    • Color Family: Black
    • Product Color: Black
    • Mounting Orientation: Horizontal
    • Mount Type: Rack-mountable
    • Rack Height: 1U
    • Cord Length: 8.17 ft
    • Height: 1.7"
    • Width: 17.6"
    • Depth: 2.2"
    • Weight (Approximate): 2.16 lb
    Environmental Conditions
    • Minimum Operating Temperature: 32°F (0°C)
    • Maximum Operating Temperature: 113°F (45°C)
    • Minimum Storage Temperature: -13°F (-25°C)
    • Maximum Storage Temperature: 149°F (65°C)
    • Minimum Operating Humidity: 0%
    • Maximum Operating Humidity: 95%
    Miscellaneous
    • Package Contents:
      • NetShelter 12-Outlets PDU
      • User Manual
      • Rack Mounting Brackets
    • Country of Origin: Philippines
    • Environmentally Friendly: Yes
    • Environmental Compliance:
      • Restriction of Hazardous Substances (RoHS)
      • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
      • Waste Electrical and Electronic Equipment Directive (WEEE)
    Warranty
    • Limited Warranty: 2 Year
