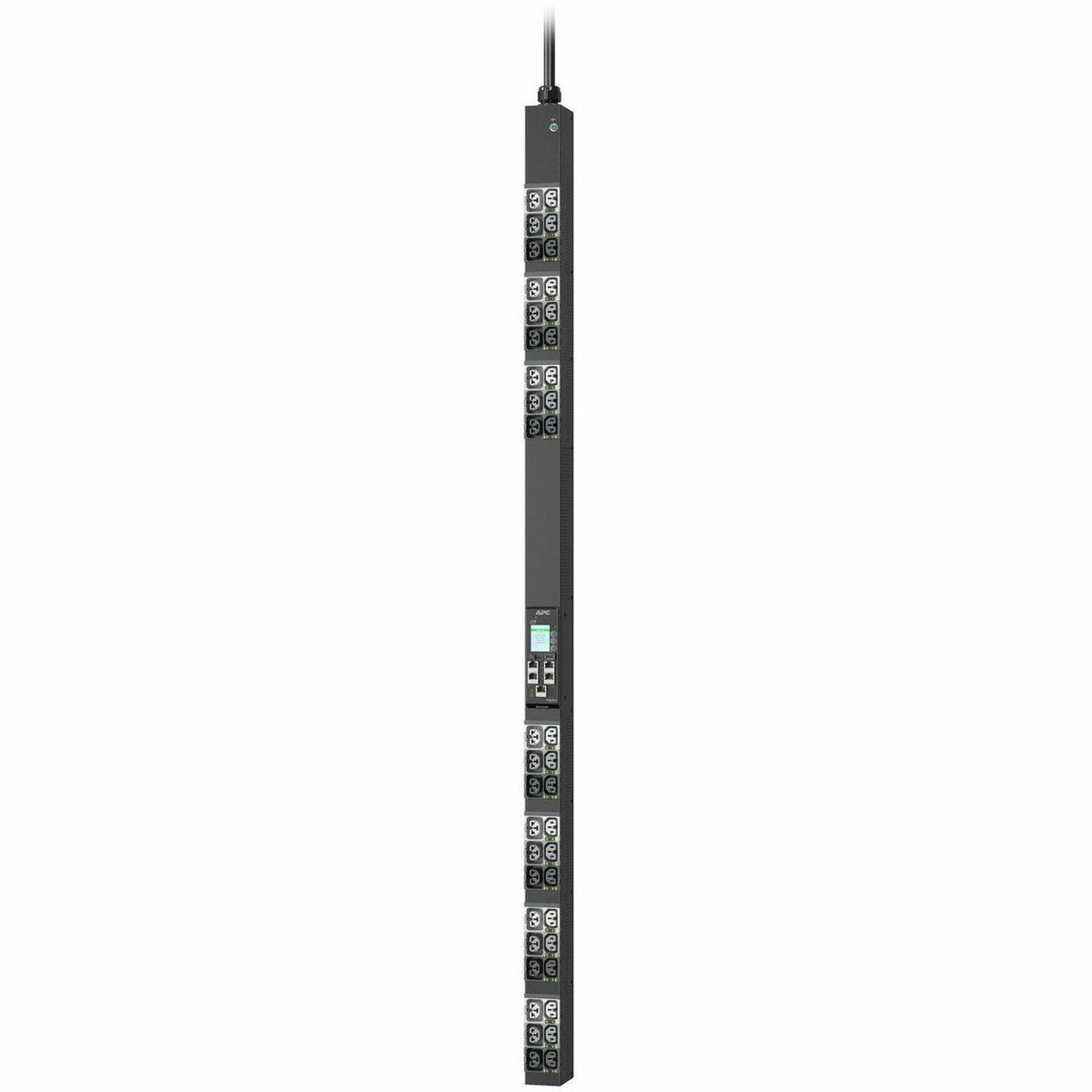

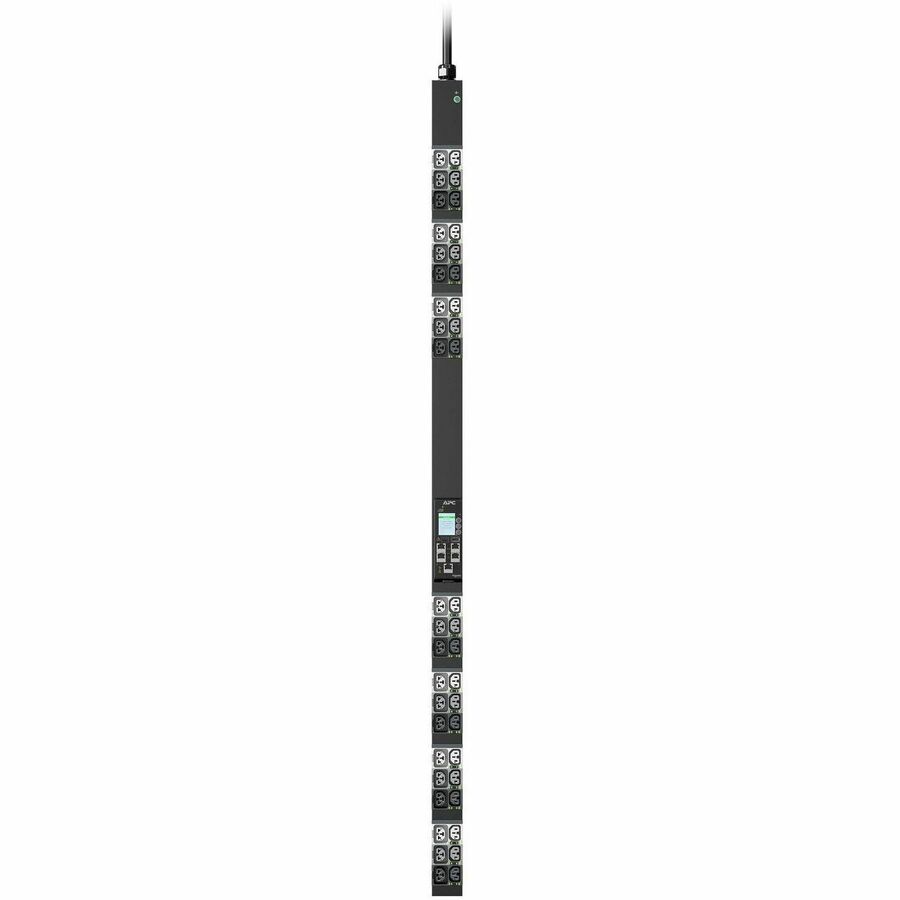

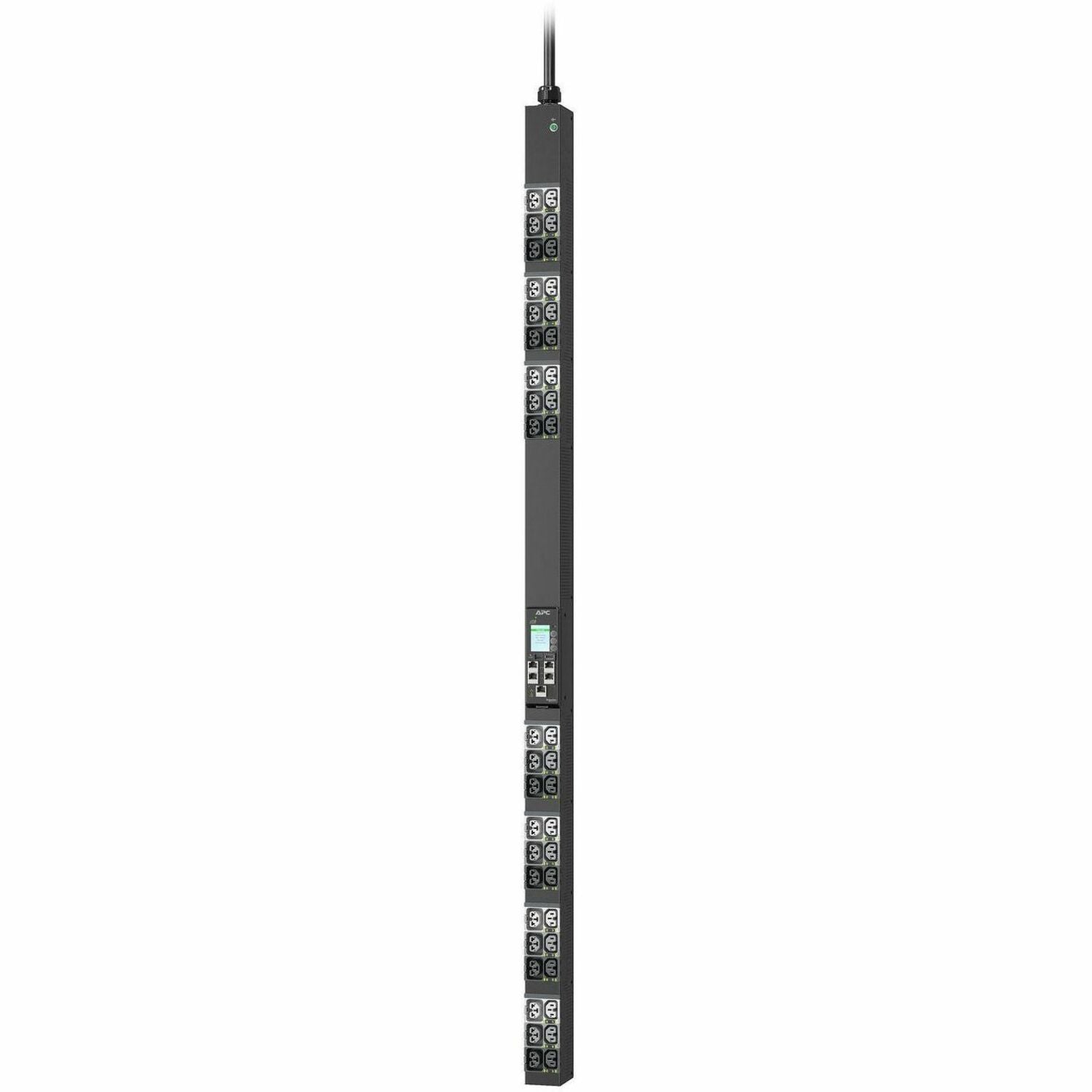

APC NetShelter Rack PDU Advanced Gen 2, Switched, 11.5kW, 3Phase, 11kW 400V 16A or 11.5kW 415V 20A, 520P6, 42 Outlet - APDU11250SW
APC NetShelter Rack PDU Advanced Gen 2, Switched, 11.5kW, 3Phase, 11kW 400V 16A or 11.5kW 415V 20A, 520P6, 42 Outlet - APDU11250SW

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Schneider Electric SA

APC NetShelter Rack PDU Advanced Gen 2, Switched, 11.5kW, 3Phase, 11kW 400V 16A or 11.5kW 415V 20A, 520P6, 42 Outlet - APDU11250SW

1 in stock
SKU: 14798063
$2,828.07
-32% $4,155.00 $2,828.07
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Manufacturer Brochure
Click here for User Manual

APC NetShelter Rack PDU Advanced Gen 2, Switched, 11.5kW, 3Phase, 11kW 400V 16A or 11.5kW 415V 20A, 520P6, 42 Outlet

  • UPC: 731304752707
    • General Information
    • Manufacturer: Schneider Electric SA
    • Manufacturer Part Number: APDU11250SW
    • Manufacturer Website Address: http://www.schneider-electric.com
    • Brand Name: APC by Schneider Electric
    • Product Line: NetShelter
    • Product Name: NetShelter 42-Outlets PDU
    • Packaged Quantity: 1
    • Product Type: PDU
    Technical Information
    • PDU Type: Switched
    • Phase: Three Phase
    • Plug/Connector Type: IEC 60309 20A 3P+N+PE
    • Receptacle Type:
      • IEC 60320 C13/C15/C19/C21
      • IEC 60320 C13/C15
    • Receptacle Detail:
      • 21 x IEC 60320 C13/C15/C19/C21
      • 21 x IEC 60320 C13/C15
    • Load Capacity (Watt): 11.50 kW
    Power Description
    • Input Voltage:
      • 415 V AC
      • 400 V AC
    • Output Voltage: 240 V AC
    • Power Source: Power Supply
    • Input Current: 20 A

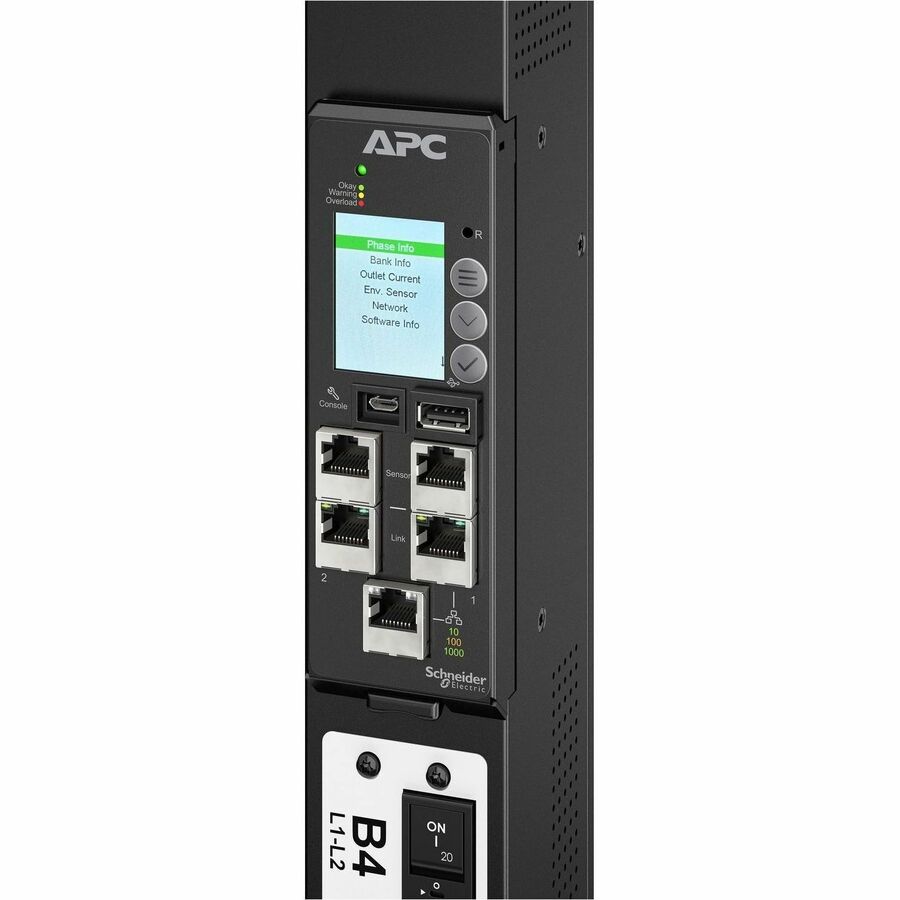

    Management
    • Management:
      • NMC3
      • Web
      • SNMP
      • CLI
    • Remote Outlet Switching: Yes
    Interfaces/Ports
    • Network (RJ-45): Yes
    Physical Characteristics
    • Mounting Orientation: Vertical
    • Mount Type: Rack-mountable
    • Form Factor: Rack
    • Placement: Side
    • Rack Height: 0U
    • Cord Length: 9.84 ft
    • Height: 58.7"
    • Width: 2.2"
    • Depth: 3"
    • Weight (Approximate): 15.87 lb
    Environmental Conditions
    • Maximum Operating Temperature: 140°F (60°C)
    Miscellaneous
    • Application/Usage:
      • IT Equipment
      • Server/Network Rack
      • Data Center
    • TAA Compliant: No
    • Environmental Compliance:
      • Restriction of Hazardous Substances (RoHS)
      • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
      • China Restriction of Hazardous Substances (China RoHS)
    Warranty
    • Limited Warranty: 3 Year
