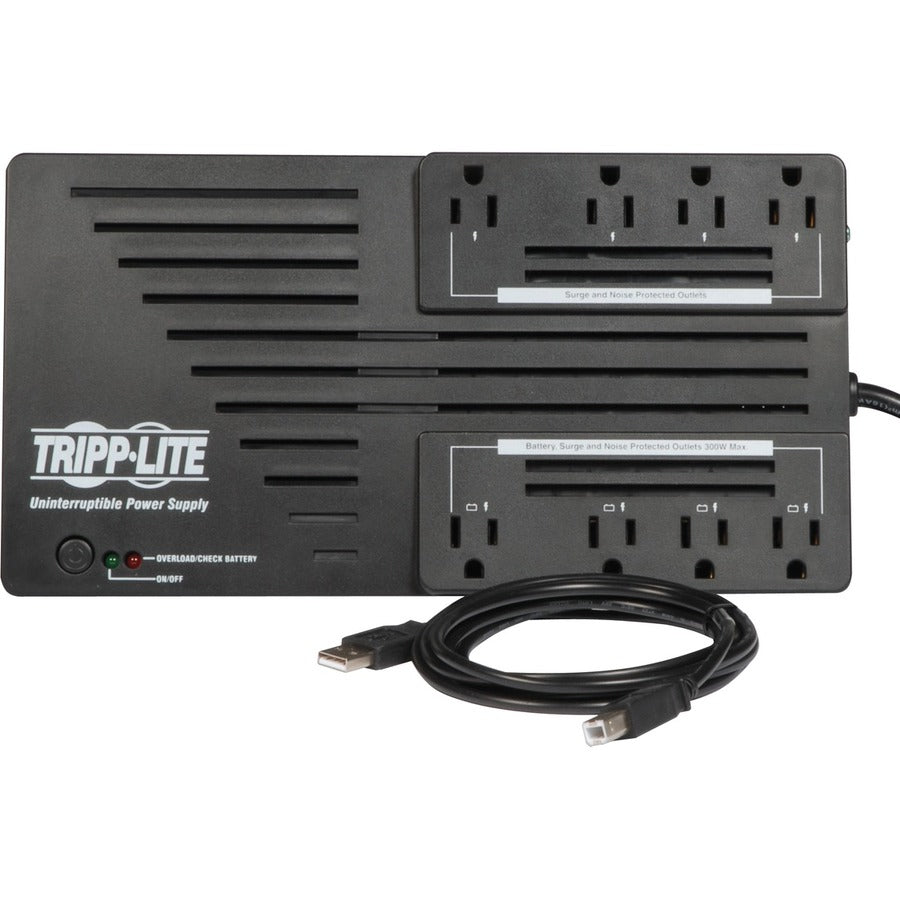

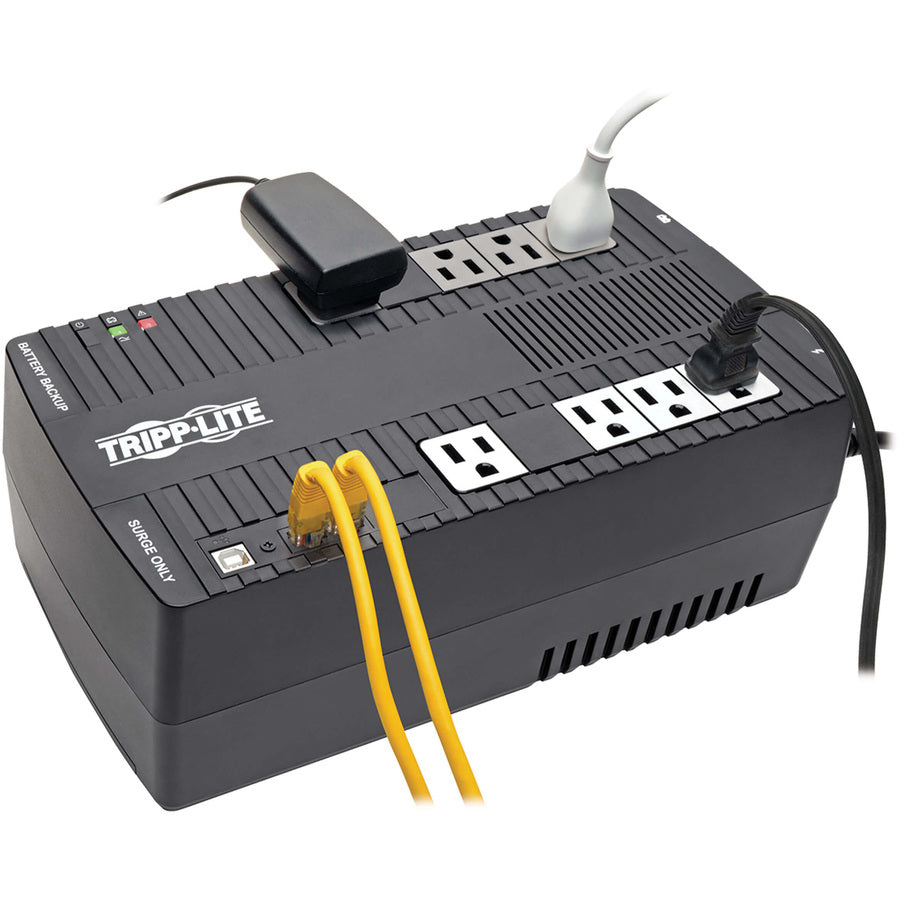

Tripp Lite by Eaton UPS 550VA 300W Line-Interactive UPS - 8 NEMA 5-15R Outlets AVR 120V 50/60 Hz USB Desktop/Wall Mount - AVR550U
Regular price
$232.65
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Manufacturer Brochure
Click here for User Manual
Click here for Video
UPC: 037332211453
General Information
Click here for User Manual
Click here for Video

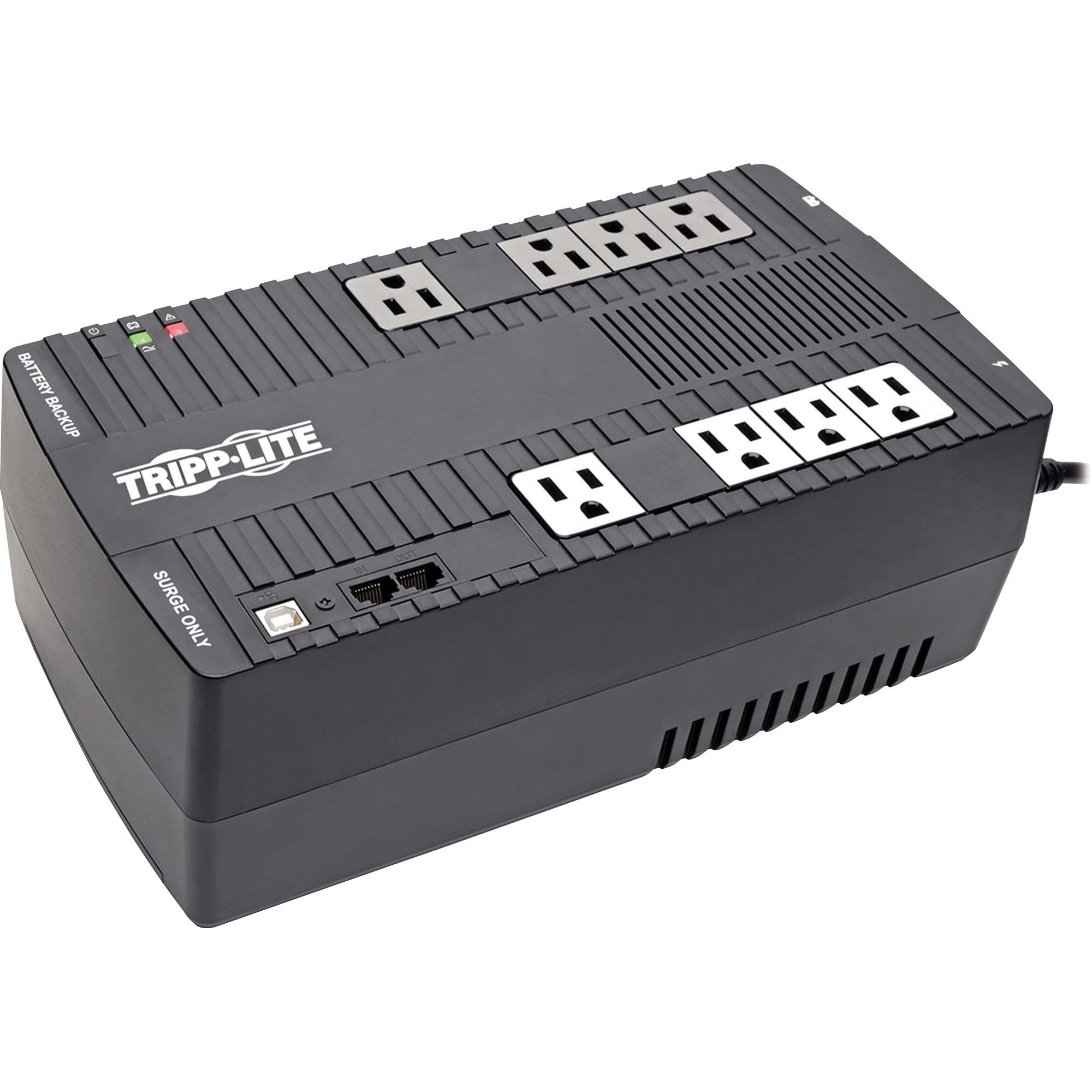

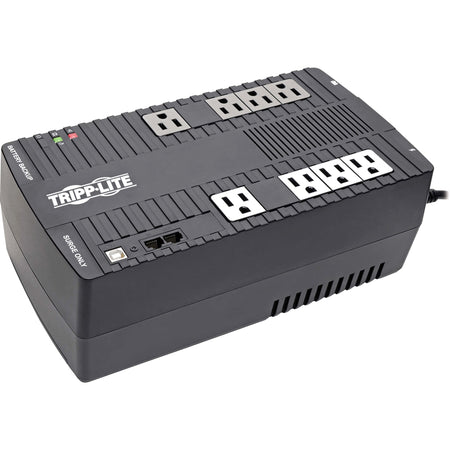

Tripp Lite by Eaton UPS 550VA 300W Line-Interactive UPS - 8 NEMA 5-15R Outlets AVR 120V 50/60 Hz USB Desktop/Wall Mount
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: AVR550U
- Manufacturer Website Address: http://www.eaton.com
- Brand Name: Tripp Lite series
- Product Series: AVR
- Product Model: AVR550U
- Product Name: Desktop/Wall Mount Battery Backup Outlets
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
- AVR: Yes
- AVR Range: Boost +18% / Buck -15%
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

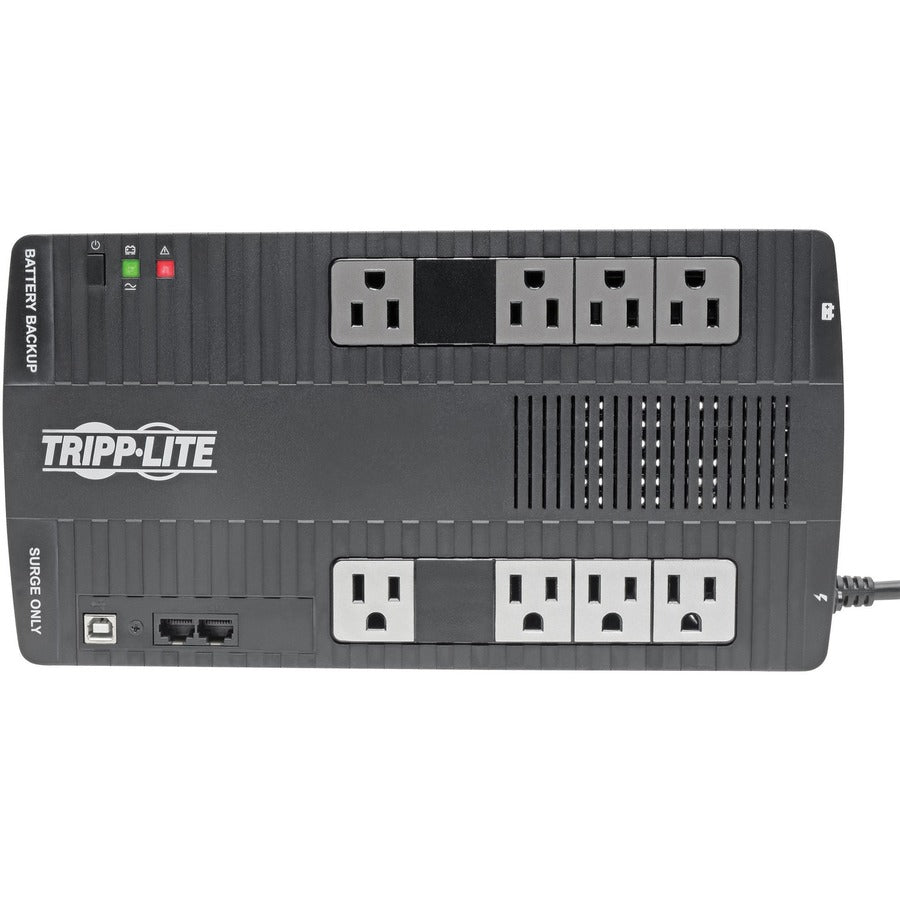

- Receptacle Detail: 8 x NEMA 5-15R
- Number of Battery & Surge Outlets: 4
- Number of Surge-only Outlets: 4

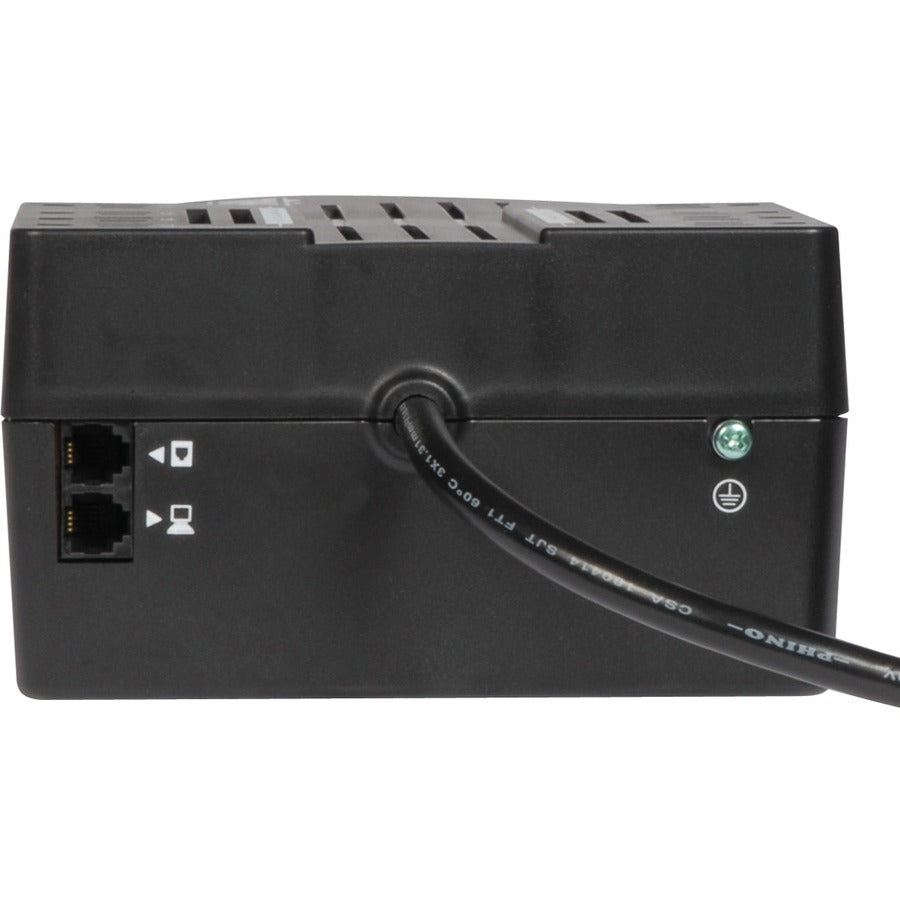

- Dataline Protection: RJ-11
- Cord Length: 6 ft
- Transfer Time: 6 ms
- EMI/RFI Noise Filter: Yes
- Phase: Single Phase
- Energy Saving: Greater than 95% efficiency - GREEN UPS
- Application/Usage:
- Printer
- Speaker
- Computer
- Router
- TV
- Blu-ray Player
- Gaming Console
- ATM
- Security System
- Digital Signage
- Media Center
- Home/Office
- Home Theater
- Load Capacity (VA): 550 VA
- Load Capacity (Watt): 300 W
- Input Voltage: 120 V AC
- Input Current: 12 A
- Output Voltage:
- 110 V AC
- 115 V AC
- 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Pulse-width Modulated Sine Wave
- Surge Energy Rating: 316 J
- Alarm:
- Battery Backup
- Low Battery
- Overload
- Replace Battery
- Fault
- Status Indicators:
2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions

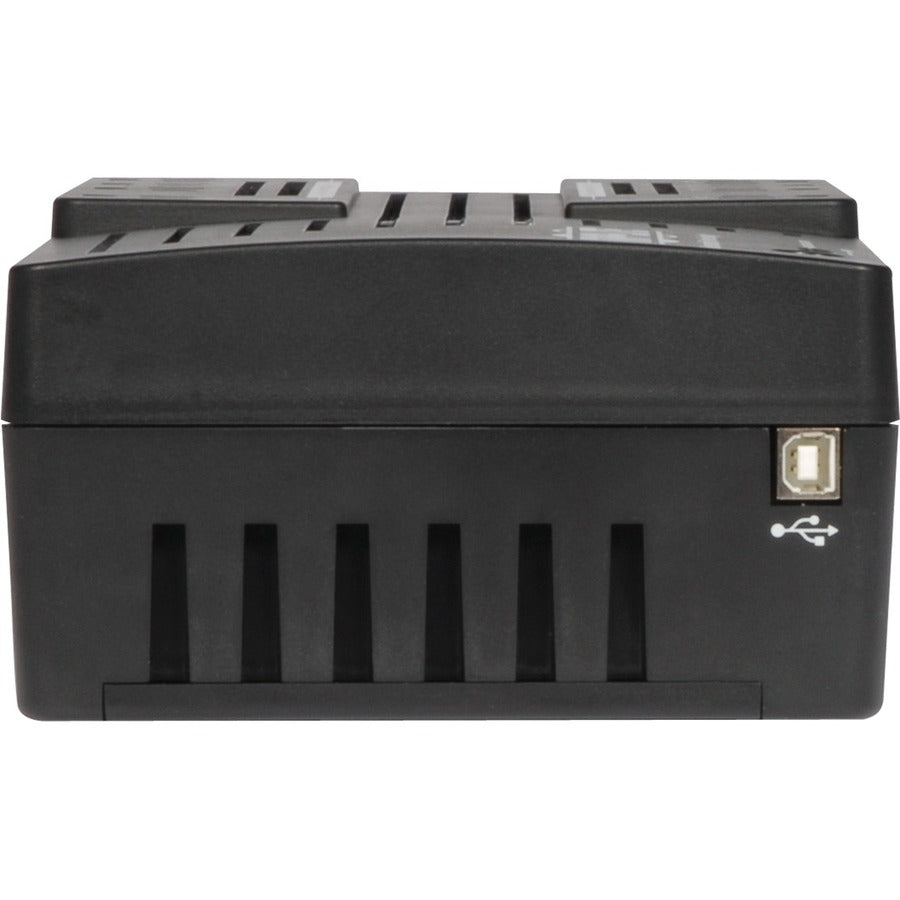

- USB: Yes
- USB (HID Compliant) Port: Yes
- DC System Voltage: 12 V DC
- Backup/Run Time (Full Load): 2 Minute
- Backup/Run Time (Half Load): 9 Minute
- Battery Life: 6 Year
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
- Maximum Operating Elevation: 10000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Temperature: 104°F (40°C)
- Product Color: Black
- Height: 4.3"
- Width: 6.4"
- Depth: 12"

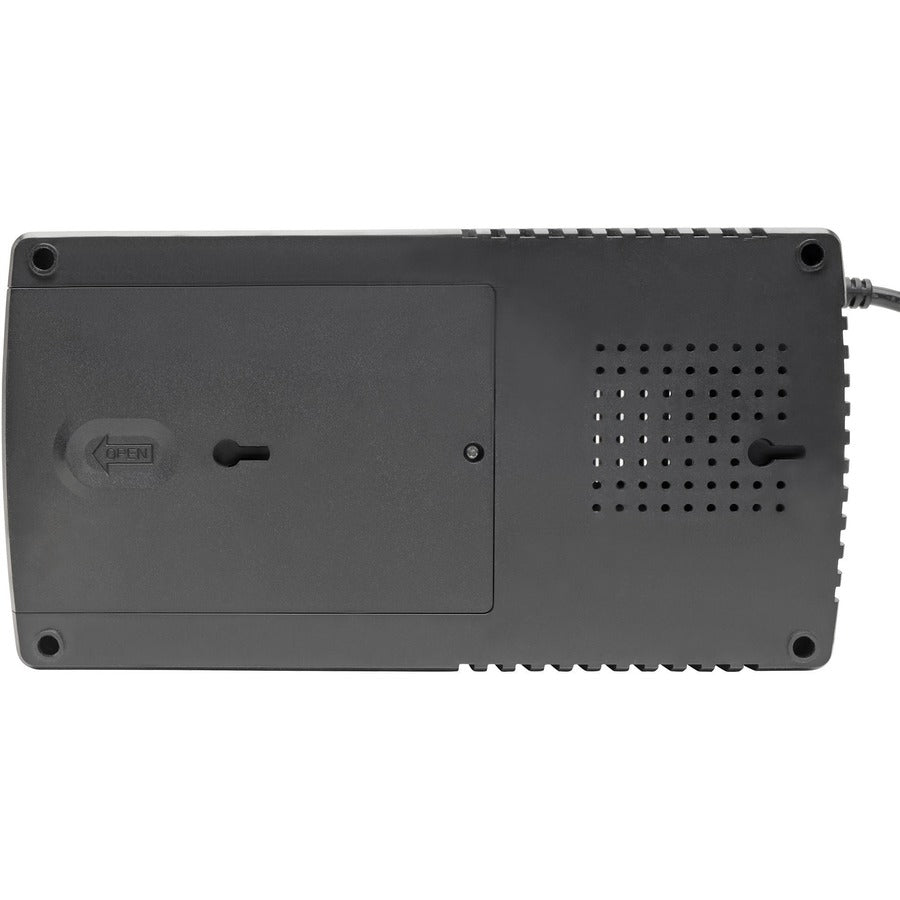

- Form Factor: Ultra-compact Desktop/Tower/Wall Mount
- Weight (Approximate): 13.69 lb
- Package Contents:
- Desktop/Wall Mount Battery Backup Outlets
- USB cable
- Owner's manual
- Software Included: PowerAlert UPS monitoring software
- Country of Origin: China
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Limited Warranty: 3 Year Lifetime
- Additional Warranty Information:
2-year warranty.
- 100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only).
