Eaton Tripp Lite Series 600VA 300W 120V Standby UPS - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop - BC600R
Eaton Tripp Lite Series 600VA 300W 120V Standby UPS - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop - BC600R

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Eaton Corporation

Eaton Tripp Lite Series 600VA 300W 120V Standby UPS - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop - BC600R

218 in stock
SKU: 9055506
$146.30
-8% $159.00 $146.30
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Manufacturer Brochure
Click here for User Manual

Eaton Tripp Lite Series 600VA 300W 120V Standby UPS - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop

  • UPC: 037332282071
    • General Information
    • Manufacturer: Eaton Corporation
    • Manufacturer Part Number: BC600R
    • Manufacturer Website Address: http://www.eaton.com
    • Brand Name: Tripp Lite series
    • Product Model: BC600R
    • Product Name: BC600R 600VA Desktop/Surface/Wall Mountable UPS
    • Packaged Quantity: 1 Each
    • Product Type: Standby UPS
    Technical Information

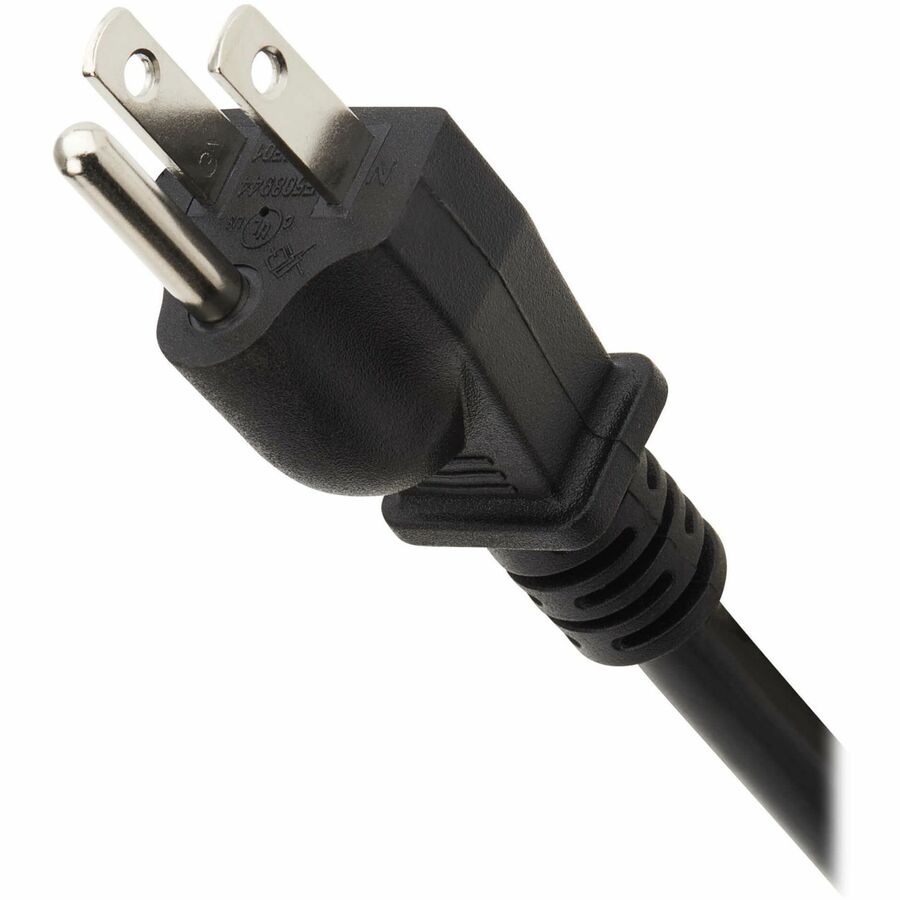

    • Plug/Connector Type: NEMA 5-15P
    • Receptacle Type: NEMA 5-15R

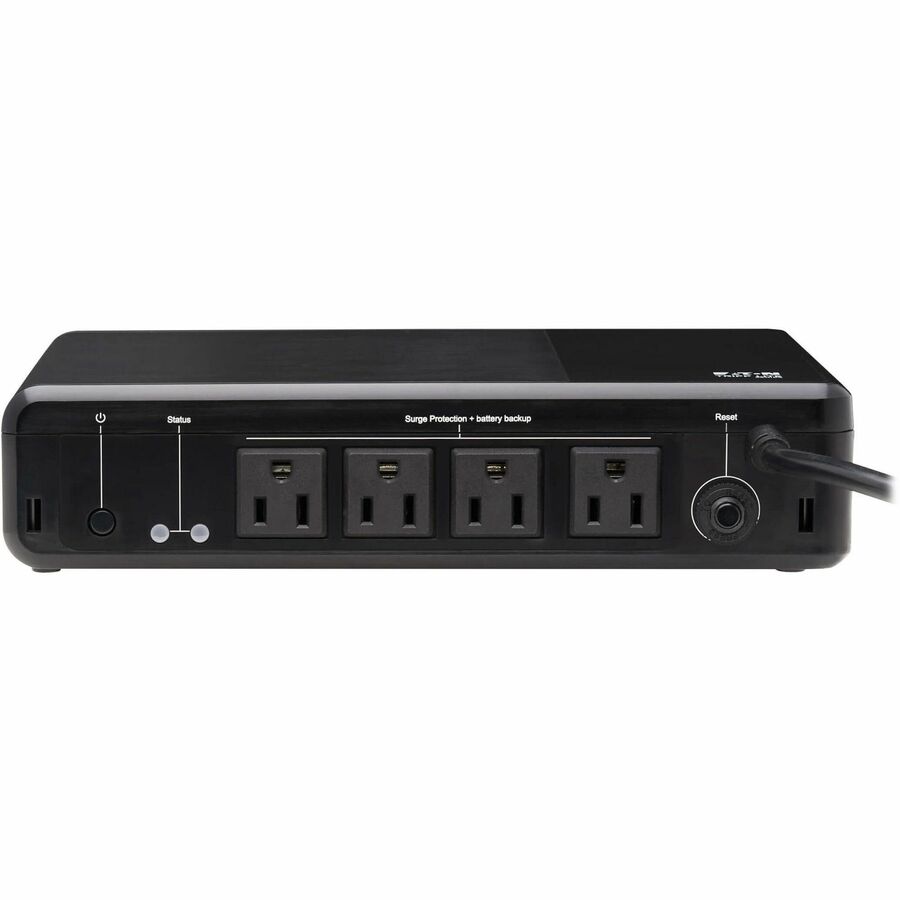

    • Receptacle Detail: 4 x NEMA 5-15R
    • Number of Battery & Surge Outlets: 4
    • Cord Length: 5 ft
    • Transfer Time: 10 ms
    • EMI/RFI Noise Filter: Yes
    • Phase: Single Phase
    • Efficiency Detail: 97% (AC Mode)

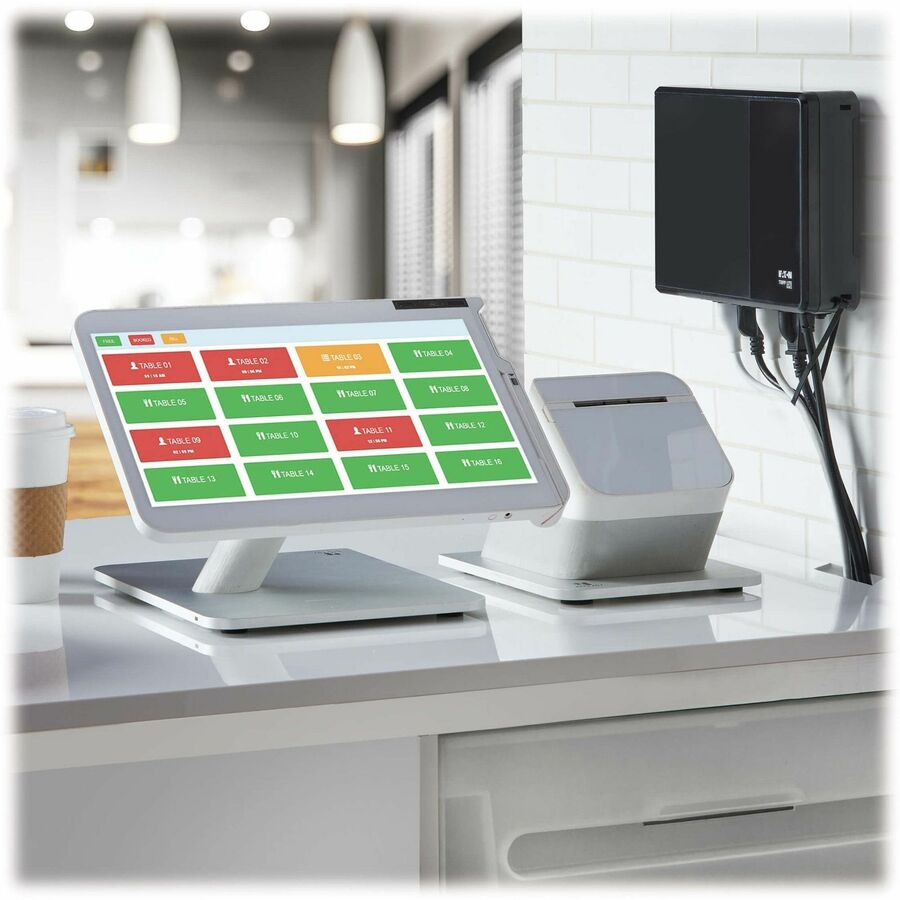

    • Application/Usage:
      • POS
      • Network
      • Retail
      • Kiosk
      • Industrial
      • Food Service
      • Home Network
      • Wireless Access Point
      • Desktop
      • Computer Peripheral
      • Home/Office
      • Hospital
    • Features:
      • Audible Alarm
      • Cold Start Function
      • Green Energy Saving
    Power Description
    • Load Capacity (VA): 600 VA
    • Load Capacity (Watt): 300 W
    • Input Voltage: 120 V AC
    • Input Current: 5 A
    • Output Voltage: 120 V AC
    • Input Frequency: 60 Hz
    • Output Frequency: 60 Hz
    • Waveform Type: Pulse-width Modulated Sine Wave
    • Surge Energy Rating: 190 J
    • Circuit Breaker: Yes
    • Output Power Factor: 0.5
    Controls/Indicators
    • Status Indicators:

      LED Indicators:

      • Low Battery or Fault Condition
      • Power and Line/battery Mode Status
    Battery Information
    • DC System Voltage: 12 V DC
    • Battery Characteristics: Valve-regulated
    • Battery Chemistry: Lead Acid

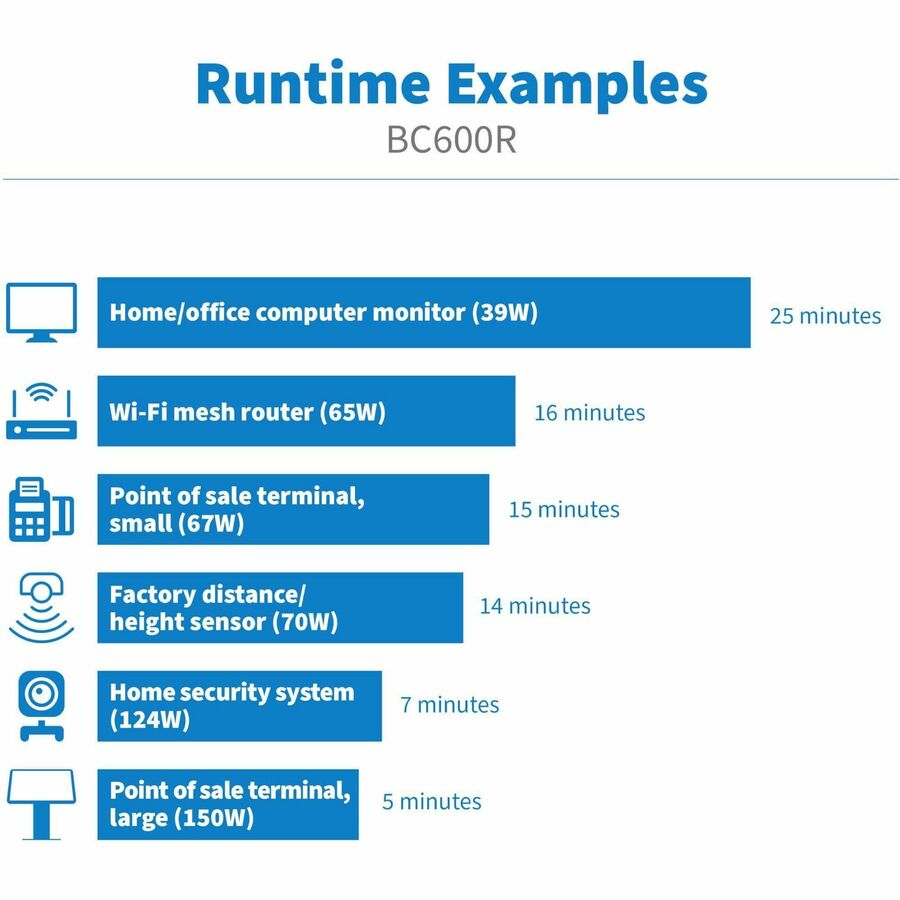

    • Backup/Run Time (Full Load): 1.50 Minute
    • Backup/Run Time (Half Load): 5 Minute
    • Typical Battery Recharge Time: 8 Hour
    • Replaceable Battery: Yes
    Environmental Conditions
    • Maximum Operating Elevation: 6561.68 ft
    • Storage Temperature: 5°F (-15°C) - 122°F (50°C)
    • Minimum Operating Temperature: 32°F (0°C)
    • Maximum Operating Temperature: 122°F (50°C)
    • Sound Emission: 40 dB
    Physical Characteristics

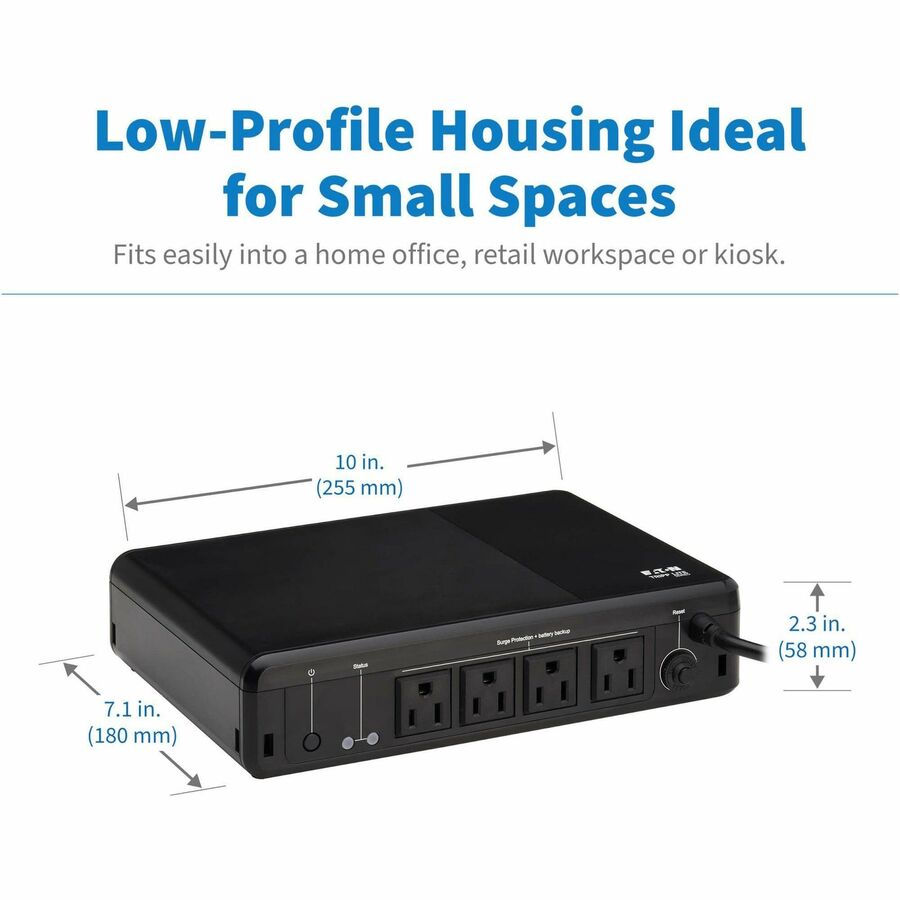

    • Height: 2.3"
    • Width: 10"
    • Depth: 7.1"

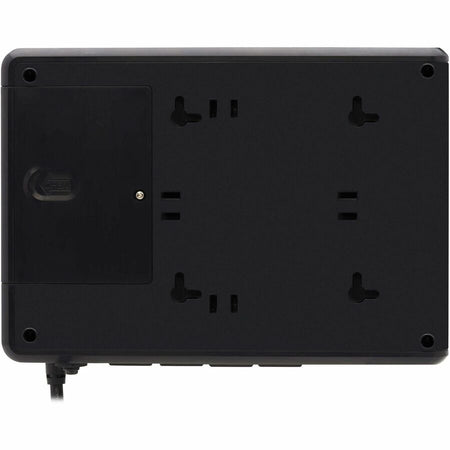

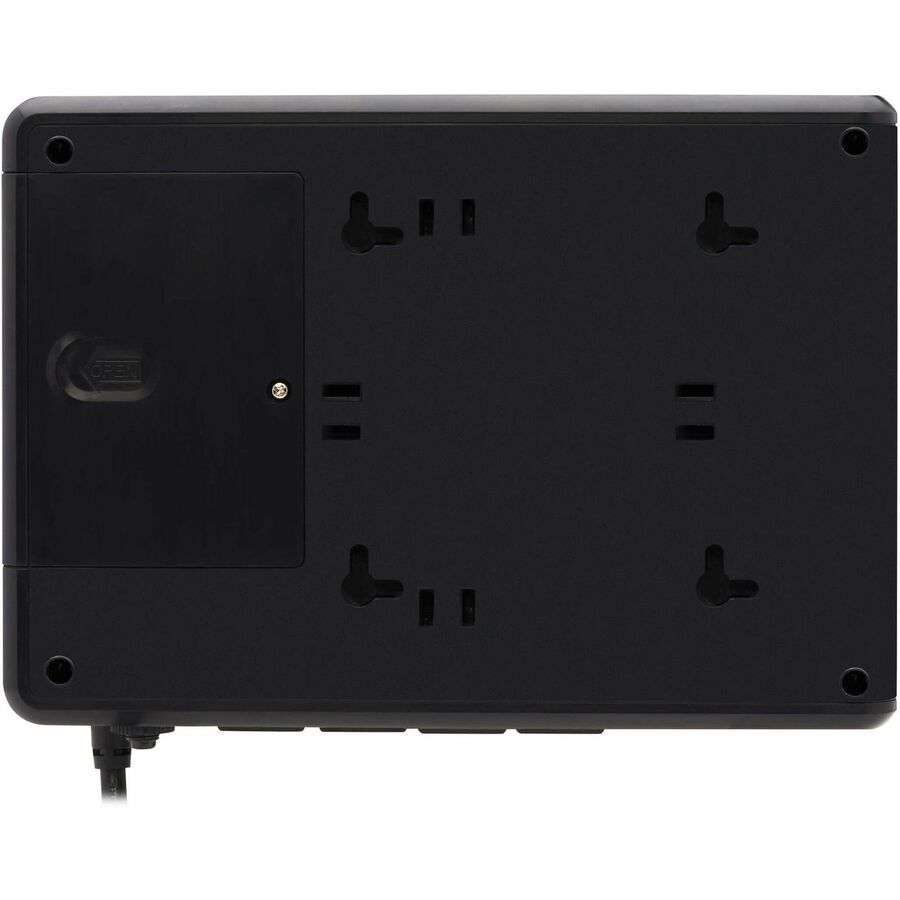

    • Form Factor: Desktop/Surface/Wall Mountable
    • Weight (Approximate): 4.41 lb
    Miscellaneous

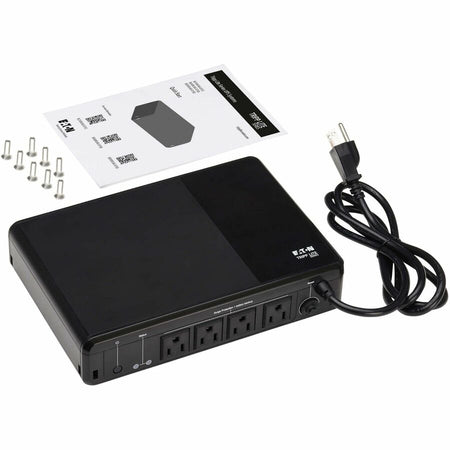

    • Package Contents:
      • BC600R 600VA Desktop/Surface/Wall Mountable UPS
      • 4 x M4 x 12 mm Screws
      • 4 x M4 x 20 mm Screws
      • Quick Start Guide
    • Energy Star: Yes
    • Country of Origin: Vietnam
    • Environmentally Friendly: Yes
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 2 Year
