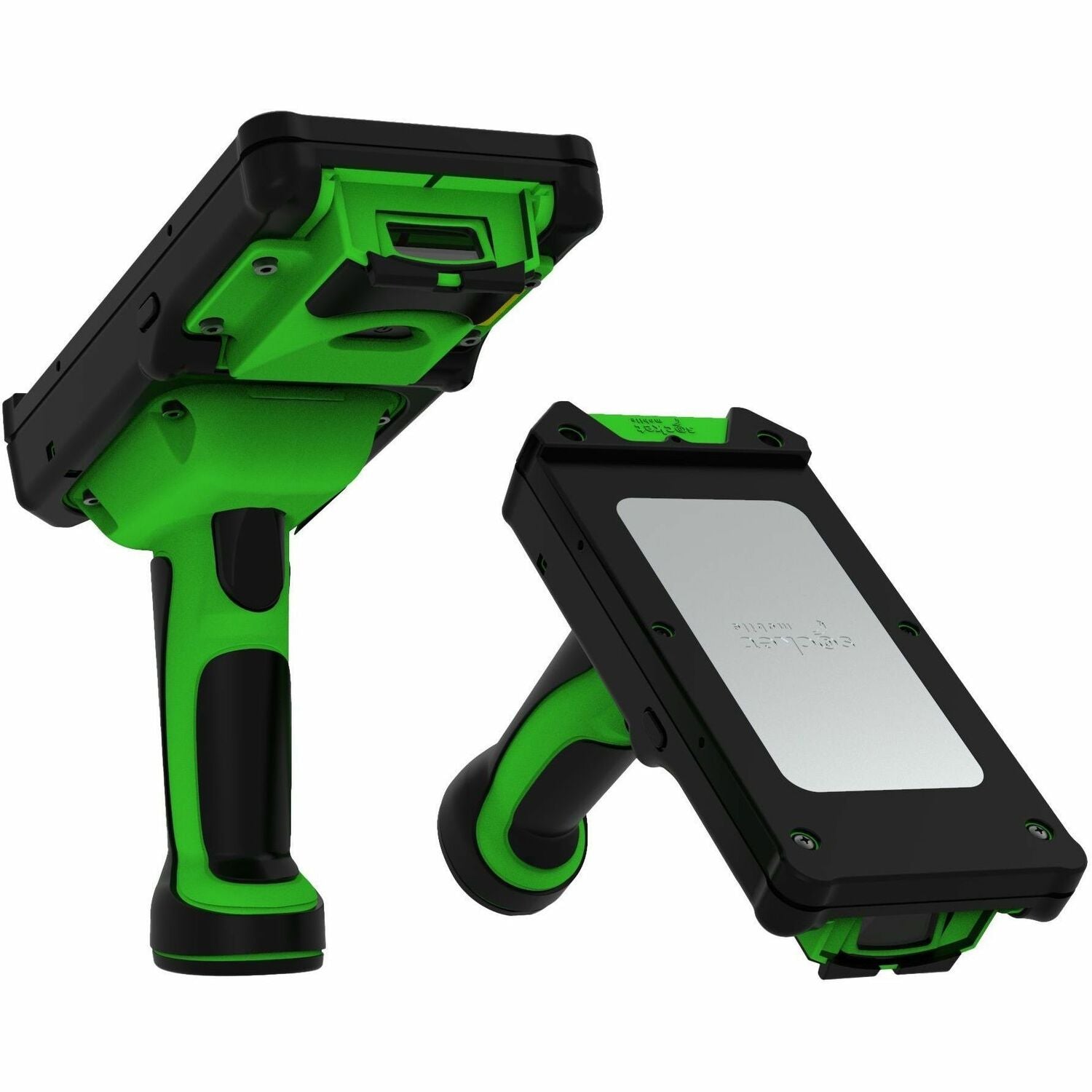

Socket Mobile XtremeScan XG640 Barcode Scanner - CX4274-3386
Socket Mobile XtremeScan XG640 Barcode Scanner - CX4274-3386

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Socket Mobile, Inc

Socket Mobile XtremeScan XG640 Barcode Scanner - CX4274-3386

2 in stock
SKU: 14363427
$808.53
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Manufacturer Brochure

Socket Mobile XtremeScan XG640 Barcode Scanner

  • UPC: 758497124036
    • General Information
    • Manufacturer: Socket Mobile, Inc
    • Manufacturer Part Number: CX4274-3386
    • Manufacturer Website Address: http://www.socketmobile.com
    • Brand Name: Socket Mobile
    • Product Line: XtremeScan
    • Product Model: XG640
    • Product Name: XtremeScan XG640 Barcode Scanner
    • Product Type: Barcode Scanner
    Technical Information
    • Connectivity Technology: Wireless
    • Scanning Capability:
      • 1D
      • 2D
    • Barcode Symbology Supported:

      1D:

      • Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Composite CC-A/B, Composite CC-C, Composite TLC, Discrete 2 of 5, EAN-13/JAN, EAN8/JAN, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, ISSN EAN, Matrix 2 of 5, MSI, UPC/EAN/JAN, UPC A, UPC EO

      2D:

      • Aztec, Data Matrix, DotCode, GS1 Data Matrix, GS1 QR Code, Maxicode, Micro PDF417, MicroQR, PDF417, QR Code

      Postal Codes:

      • Australia Post, Han Xin, Japan Postal, KIX Code, Maxicode, Netherlands, UPU FICS Posta, US Planet, US Postnet, USPS 4CB/One Code/Intelligent Mail

      OCR Typeface:

      • OCR-A, OCR-B, MICR (E13B), US currency serial number
    • Light Source: LED
    • Image Sensor Type: Imager
    • Scan Mode: Trigger
    • Scan Pattern: Omni-directional
    • Scanning Distance: 19.50"
    • Field of View (Horizontal): 45°
    • Field of View (Vertical): 34°
    • Maximum Ambient Light: 86000 lux
    • Drop Specification:

      Standard:

      • 10 ft. (3.1m) drop at room temperature per MIL-STD-810G
      • 8 ft. (2.4m) drop to concrete across temperature per MIL-STD-810G

      Freezer:

      • 7 ft. (2.1m) drop to concrete across temperature per MIL-STD-810G.
    • Minimum Print Contrast: 25%
    • Minimum Element Resolution (Code 39): 5 mil
    • Minimum Element Resolution (DataMatrix): 10 mil
    • Minimum Element Resolution (PDF417): 6.7 mil
    • Image Sensor Resolution: 1280 x 960
    • Features:
      • Notification LED
      • Scan Button
    Network & Communication
    • Bluetooth: Yes
    Battery Information
    • Battery Chemistry: Lithium Polymer (Li-Polymer)
    • Battery Capacity: 700 mAh
    • Maximum Battery Run Time: 25 Hour
    • Maximum Battery Recharge Time: 8 Hour
    Environmental Conditions
    • Operating Temperature: 32°F (0°C) to 113°F (45°C)
    • Storage Temperature: 23°F (-5°C) to 158°F (70°C)
    • Humidity (Non-condensing): 95%
    Physical Characteristics
    • Form Factor: Handheld
    • Rugged: Yes
    • Durability:
      • Dust Resistant
      • Water Resistant
    Miscellaneous
    • Ingress Protection (IP) Rating: IP67
    • Application/Usage:
      • Warehouse
      • Inventory
      • Asset Tracking
      • Commercial Service
      • Manufacturing
      • Transportation
      • Logistics
    • Platform Supported:
      • PC
      • Linux
      • iOS
      • Android
      • Mac
