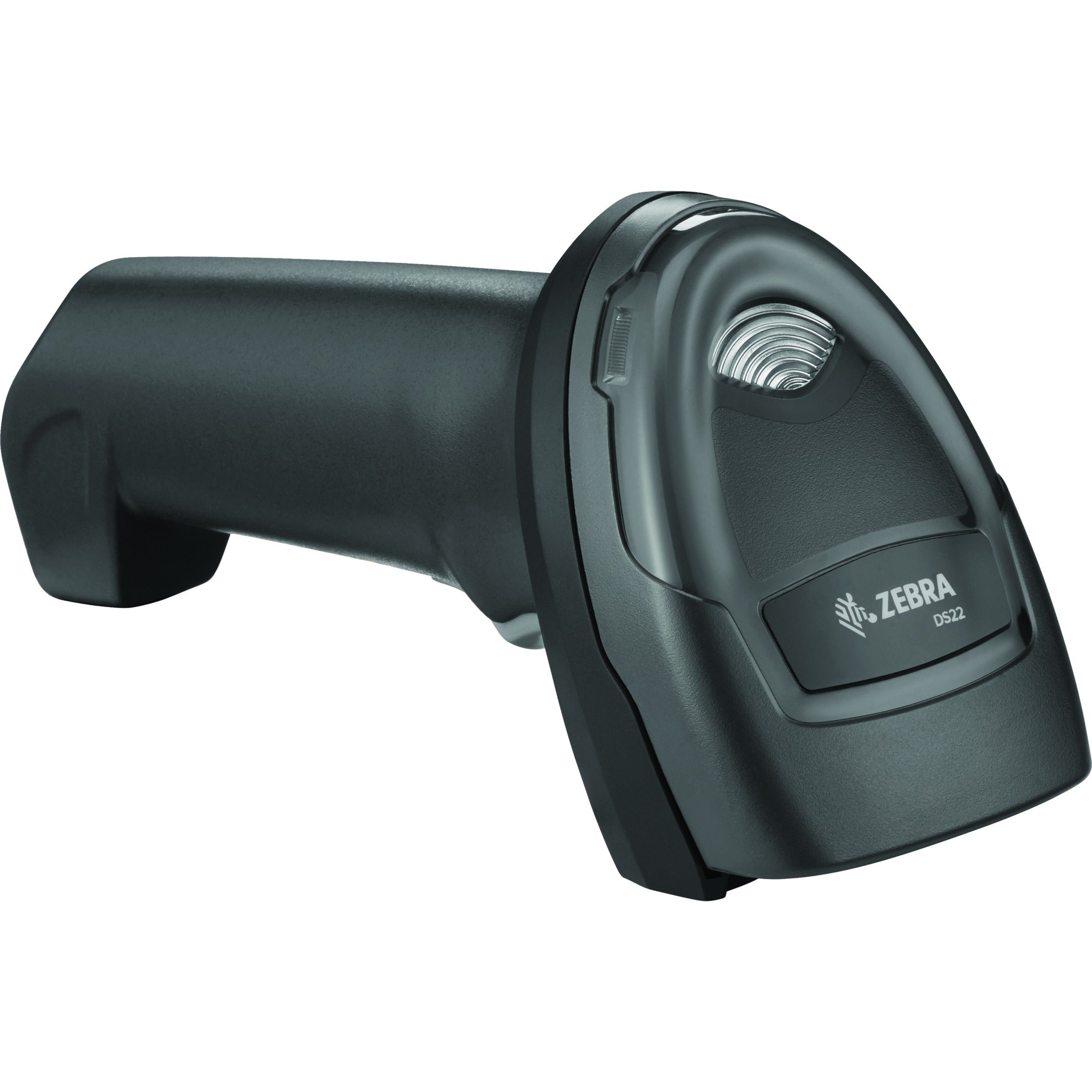

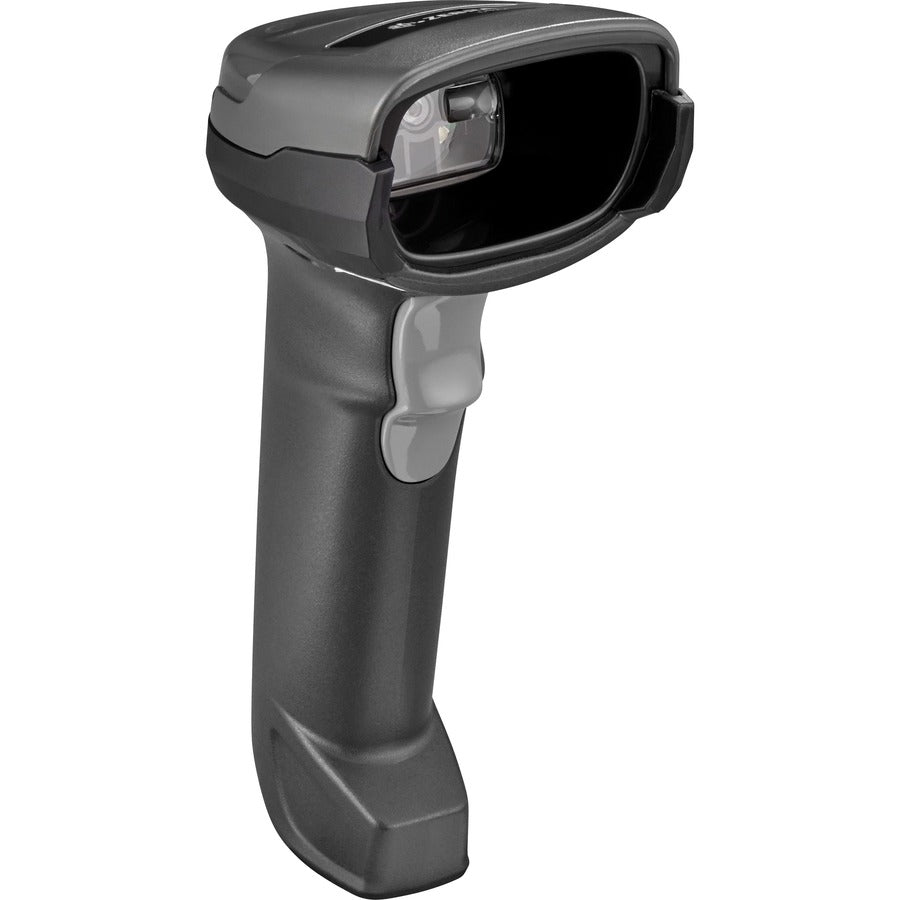

Zebra DS2278-SR Handheld Barcode Scanner - DS2278-SR7U2100PRW
Zebra DS2278-SR Handheld Barcode Scanner - DS2278-SR7U2100PRW

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Zebra Technologies Corporation

Zebra DS2278-SR Handheld Barcode Scanner - DS2278-SR7U2100PRW

Chat for Availability
SKU: 2DK394
$409.30
-41% $694.89 $409.30
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Manufacturer Brochure
Click here for User Manual

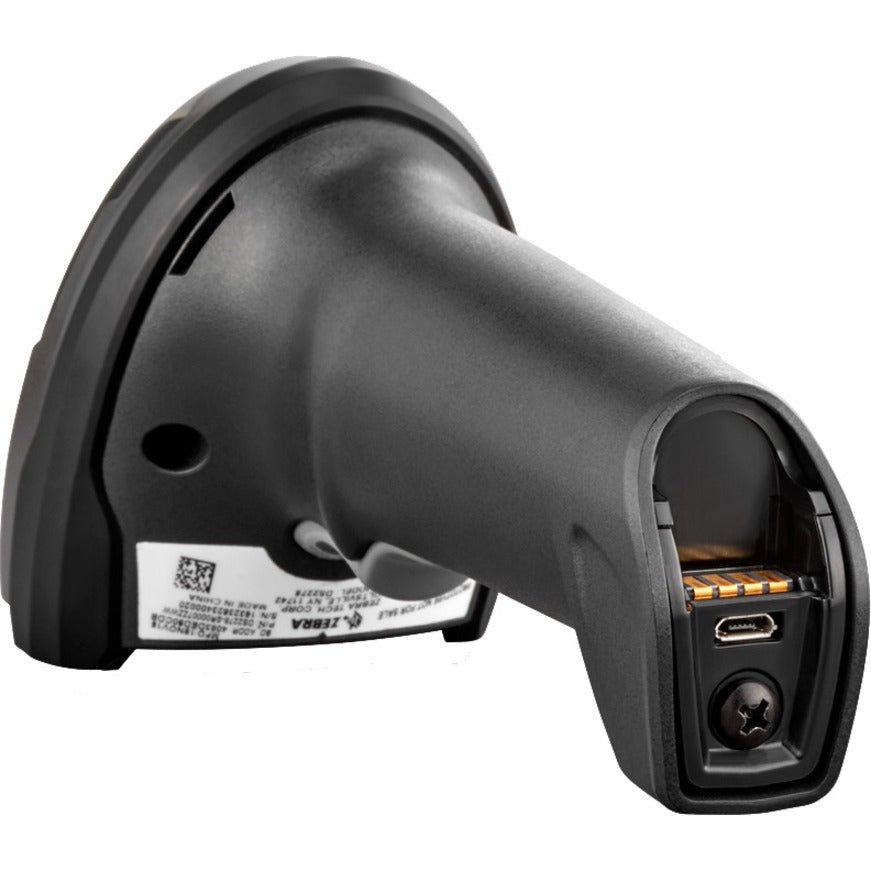

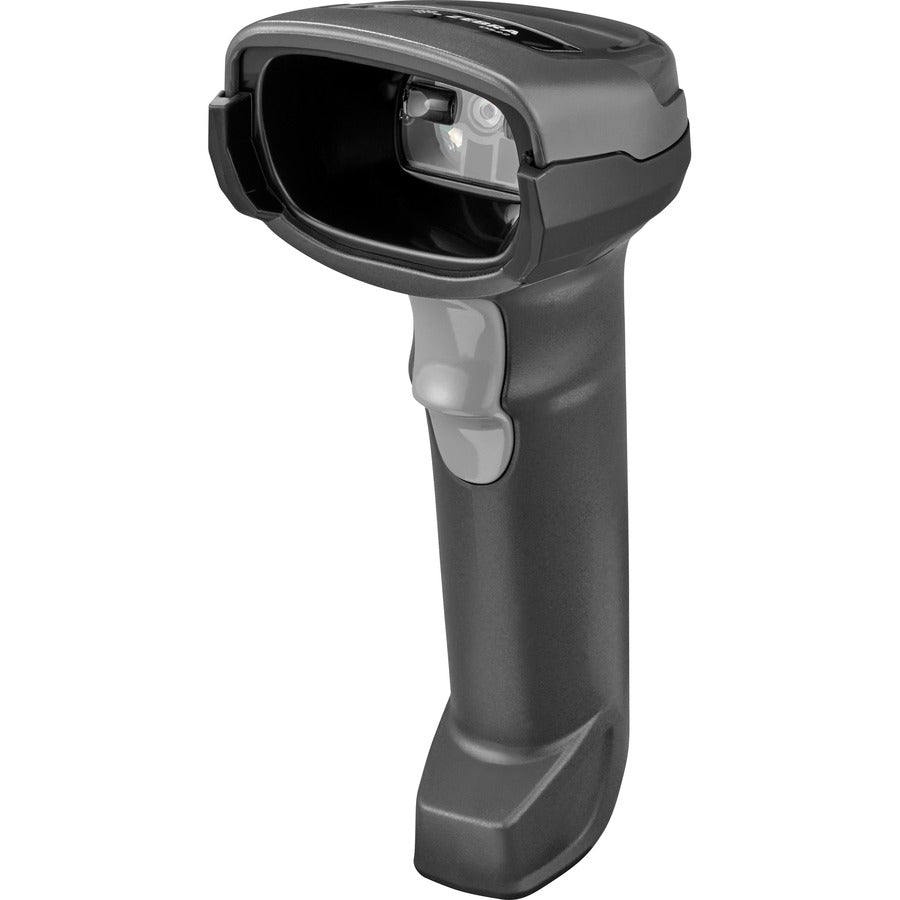

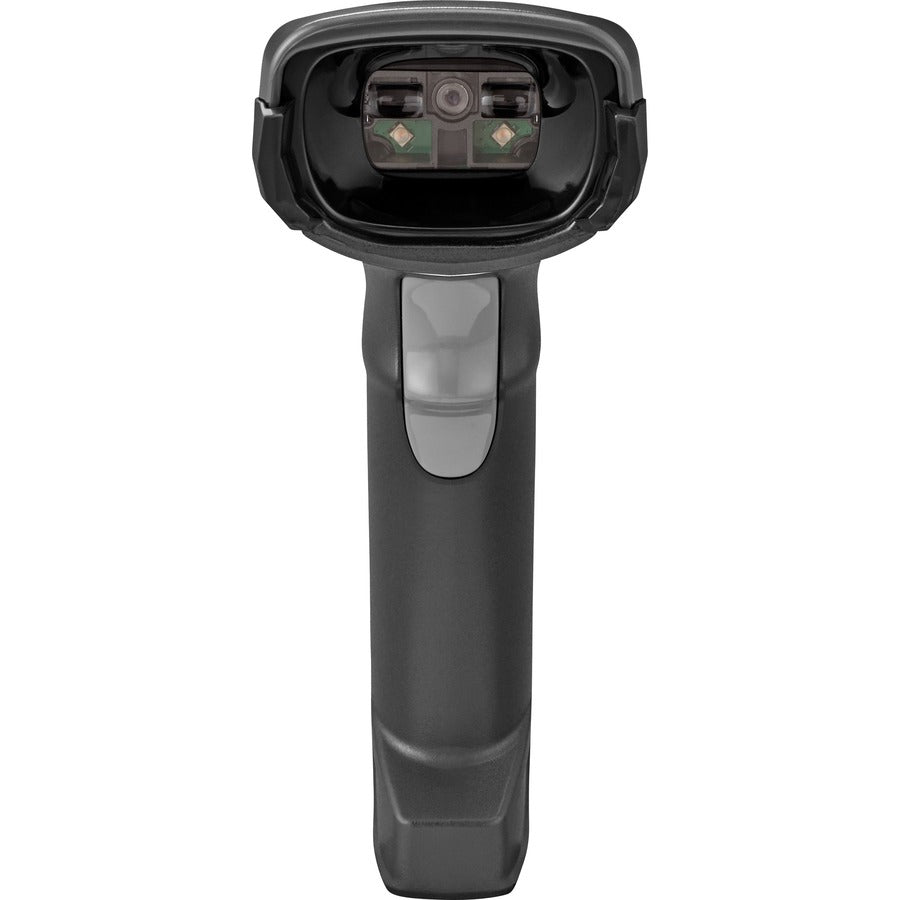

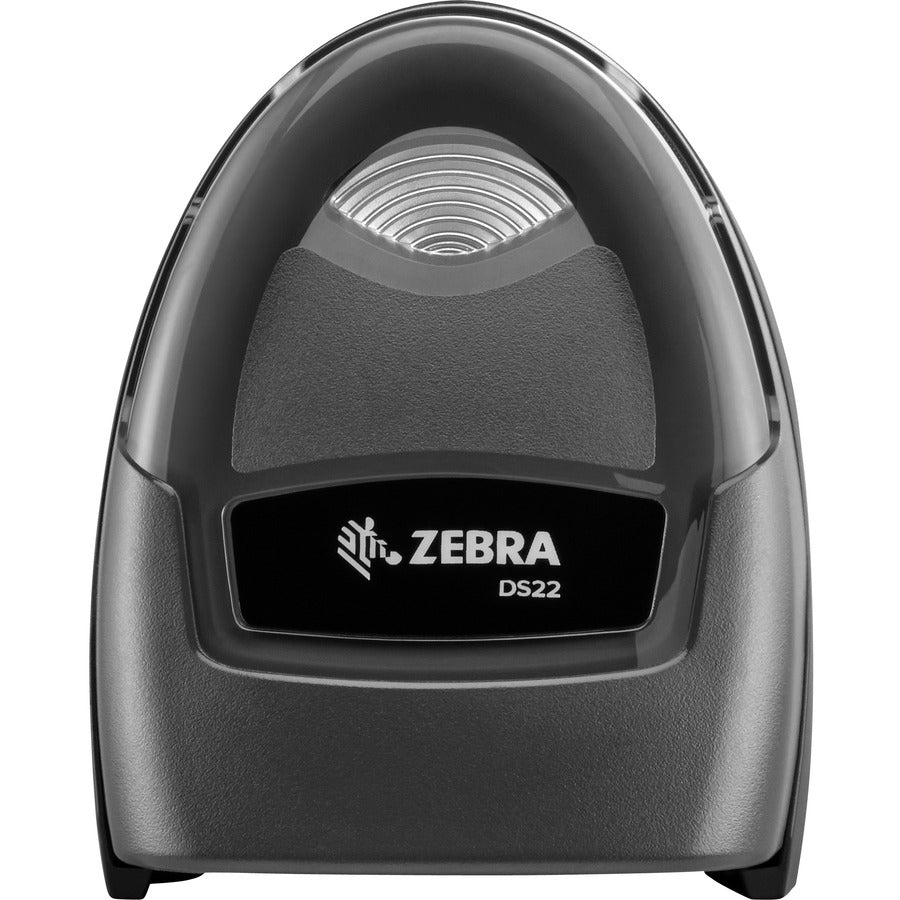

Zebra DS2278-SR Handheld Barcode Scanner

  • UPC: 9999999999999
    • General Information
    • Manufacturer: Zebra Technologies Corporation
    • Manufacturer Part Number: DS2278-SR7U2100PRW
    • Manufacturer Website Address: http://www.zebra.com
    • Brand Name: Zebra
    • Product Series: DS2200
    • Product Model: DS2278-SR
    • Product Name: DS2278-SR Handheld Barcode Scanner

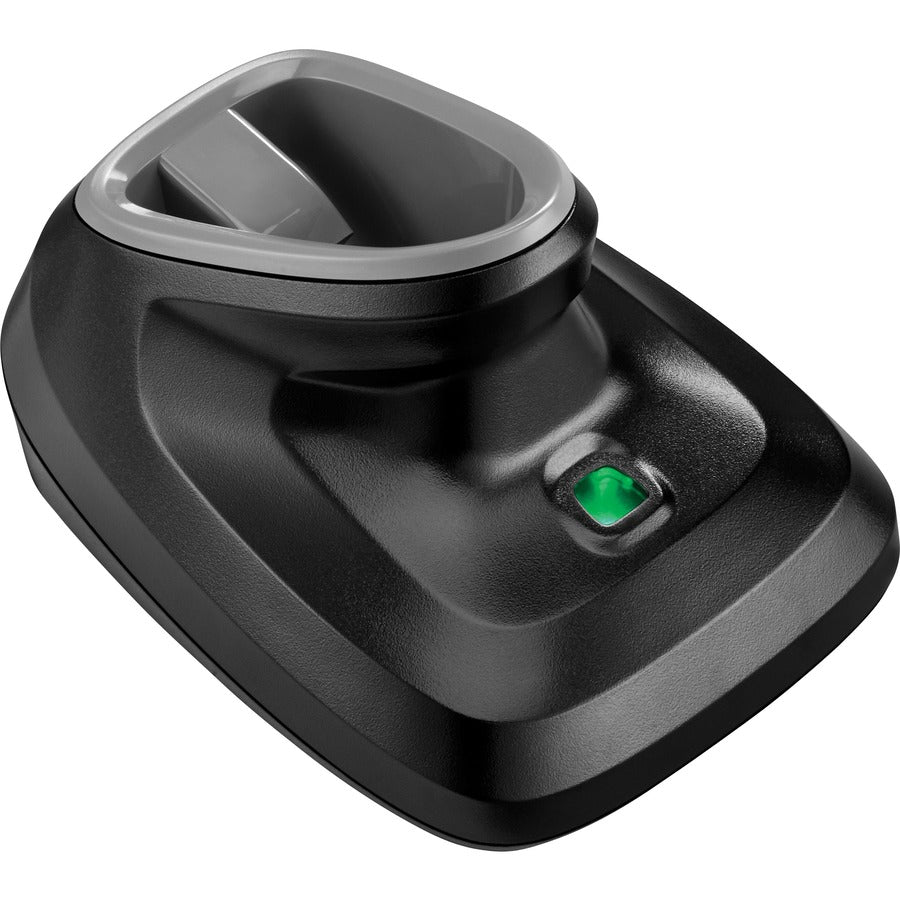

    • Product Type: Barcode Scanner Kit
    Technical Information
    • Connectivity Technology: Wireless
    • Scanning Capability:
      • 1D
      • 2D
    • Barcode Symbology Supported:

      1D:

      • Code 39
      • Code 128
      • Code 93
      • Codabar/NW7
      • Code 11
      • MSI Plessey
      • UPC/EAN
      • I 2 of 5
      • Korean 3 of 5
      • GS1 DataBar
      • Base 32 (Italian Pharma)

      2D:

      • PDF417
      • Composite Codes
      • TLC-39
      • Aztec
      • DataMatrix
      • MaxiCode
      • QR Code
      • Micro QR
      • Chinese Sensible (Han Xin)
      • Postal Codes
    • Image Sensor Type: Imager
    • Scan Pattern: Linear
    • Scanner Range: Standard Range
    • Scanning Distance: 14.49"

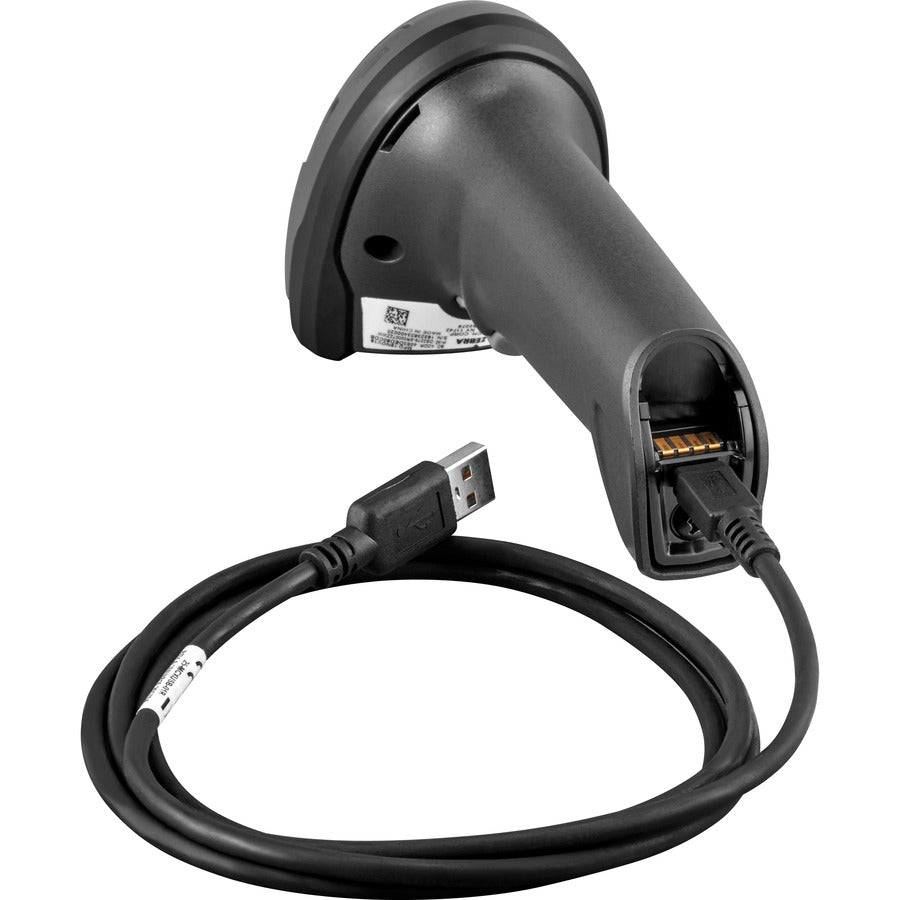

    • Cable Type Included: USB
    • Field of View (Horizontal): 33°
    • Field of View (Vertical): 25°
    • Reading Angle (Skew): 65°
    • Reading Angle (Pitch): 65°
    • Reading Angle (Roll): 360°
    • Motion Tolerance: 5 in/s
    • Maximum Ambient Light: 107600 lux
    • Drop Specification: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
    • Minimum Print Contrast: 25%
    • Maximum Element Resolution (Code 39): 5 mil
    • Maximum Element Resolution (DataMatrix): 10 mil
    • Maximum Element Resolution (PDF417): 6.7 mil
    Network & Communication
    • Bluetooth: Yes
    Interfaces/Ports
    • Host Interface: USB
    Physical Characteristics
    • Form Factor: Handheld
    • Product Color: Twilight Black
    • Height: 6.9"
    • Width: 2.6"
    • Depth: 3.9"
    • Weight (Approximate): 7.50 lb
    Miscellaneous
    • Ingress Protection (IP) Rating: IP42
    • Application/Usage:
      • Retail
      • Hospitality
      • Transportation
      • Logistics
      • Light/Clean Manufacturing
      • Government
    • Environmentally Friendly: Yes
    Warranty
    • Limited Warranty: 3 Year
