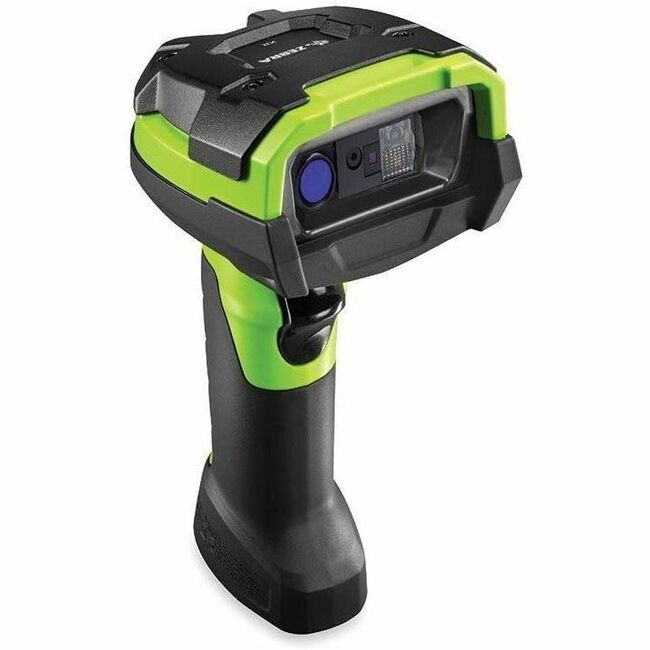

Zebra DS3600 DS3608-XR Barcode Scanner - DS3608-XR60003VZWW
Zebra DS3600 DS3608-XR Barcode Scanner - DS3608-XR60003VZWW

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Zebra Technologies Corporation

Zebra DS3600 DS3608-XR Barcode Scanner - DS3608-XR60003VZWW

Chat for Availability
SKU: LS8257
$784.07
-24% $1,027.37 $784.07
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Click here for Additional pdf1
Click here for Manufacturer Brochure
Click here for User Manual

Zebra DS3600 DS3608-XR Barcode Scanner

  • UPC:
    • General Information
    • Manufacturer: Zebra Technologies Corporation
    • Manufacturer Part Number: DS3608-XR60003VZWW
    • Manufacturer Website Address: http://www.zebra.com
    • Brand Name: Zebra
    • Product Series: 3600
    • Product Model: DS3608-XR
    • Product Name: DS3600 DS3608-XR Barcode Scanner
    • Product Type: Barcode Scanner
    Technical Information
    • Connectivity Technology: Cable
    • Scanning Capability:
      • 1D
      • 2D
    • Barcode Symbology Supported:

      1D:

      • Code 39
      • Code 128
      • Code 93
      • Codabar/NW7
      • Code 11
      • MSI Plessey
      • UPC/EAN
      • I 2 of 5
      • Korean 3 of 5
      • GS1 DataBar
      • Base 32 (Italian Pharma)

      2D:

      • PDF417
      • Micro PDF417
      • Composite Codes
      • TLC-39
      • Aztec
      • DataMatrix
      • MaxiCode
      • QR Code
      • Micro QR
      • Chinese Sensible (Han Xin)
      • Postal Codes
      • DotCode

      Digimarc:

      • Digital watermark technology

      IUID Support:

      • Supports IUID parsing, the ability to read and separate IUID fields per application requirements
    • Scan Engine Model: SE58
    • Light Source: Laser
    • Image Sensor Type: Imager
    • Scan Mode: Trigger
    • Scan Pattern: Area
    • Scanner Range: Extended Range
    • Scanning Distance: 104.99 ft
    • Field of View (Horizontal): 42°
    • Field of View (Vertical): 27°
    • Reading Angle (Skew): 60°
    • Reading Angle (Pitch): 60°
    • Reading Angle (Roll): 360°
    • Drop Specification:
      • DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature
      • Corded: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C
    • Minimum Print Contrast: 25%
    • Minimum Element Resolution (Code 39): 5 mil
    • Maximum Element Resolution (Code 39): 100 mil
    • Minimum Element Resolution (DataMatrix): 10 mil
    • Maximum Element Resolution (DataMatrix): 0.20"
    • Illumination Type: LED
    • Illumination Color: White
    • Air Electrostatic Discharge (+/-): 25kV
    • Features:
      • Vibration
      • Beep
      • Notification LED
      • Data Formatter
      • Data Parser
      • Diagnostic Reporting
    Network & Communication
    • Bluetooth: Yes
    Power Description
    • Standby Current: 100 mA
    Battery Information
    • Battery Chemistry: Lithium Ion (Li-Ion)
    • Battery Capacity: 3100 mAh
    Environmental Conditions
    • Operating Temperature: -22°F (-30°C) to 122°F (50°C)
    • Storage Temperature: -40°F (-40°C) to 158°F (70°C)
    • Humidity (Non-condensing): 5% to 95%
    Physical Characteristics
    • Rugged: Yes
    • Color Family: Green
    • Product Color: Industrial Green
    • Durability:
      • Dust Proof
      • Water Proof
    • Height: 7.3"
    • Width: 3"
    • Depth: 5.2"
    • Weight (Approximate): 10.86 oz
    Miscellaneous
    • Ingress Protection (IP) Rating:
      • IP65
      • IP68
    • Application/Usage:
      • Industrial
      • Manufacturing
      • Warehouse
      • Inventory
      • Self-checkout
      • Outdoor
