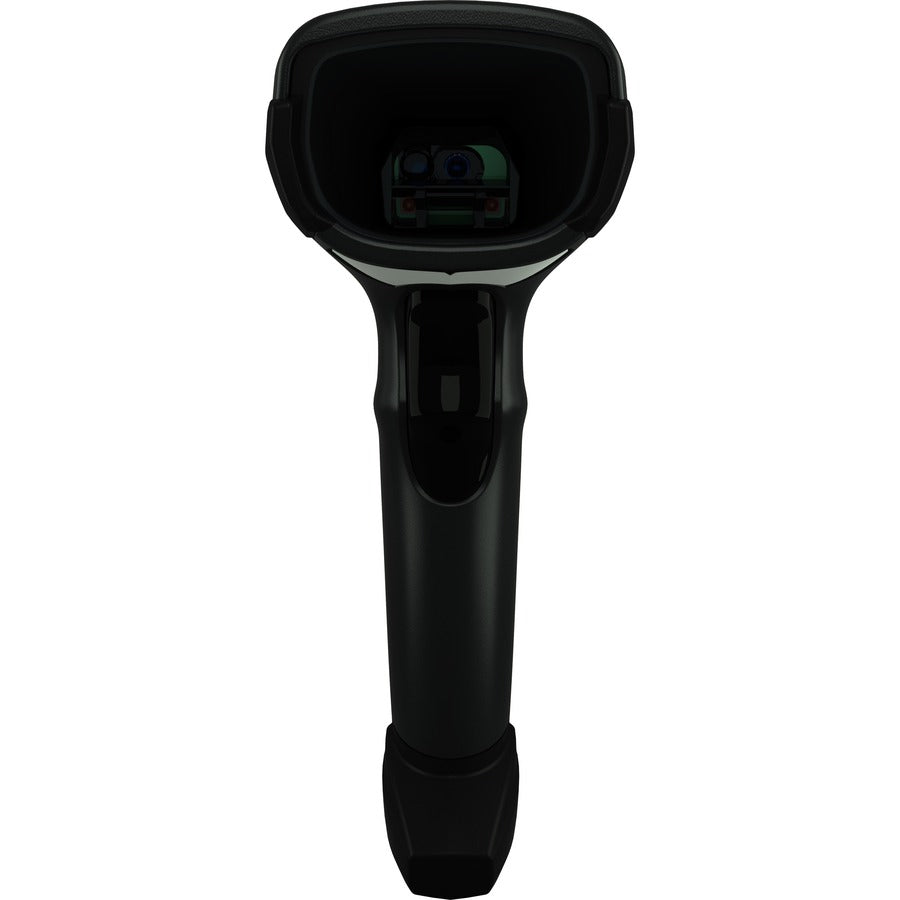

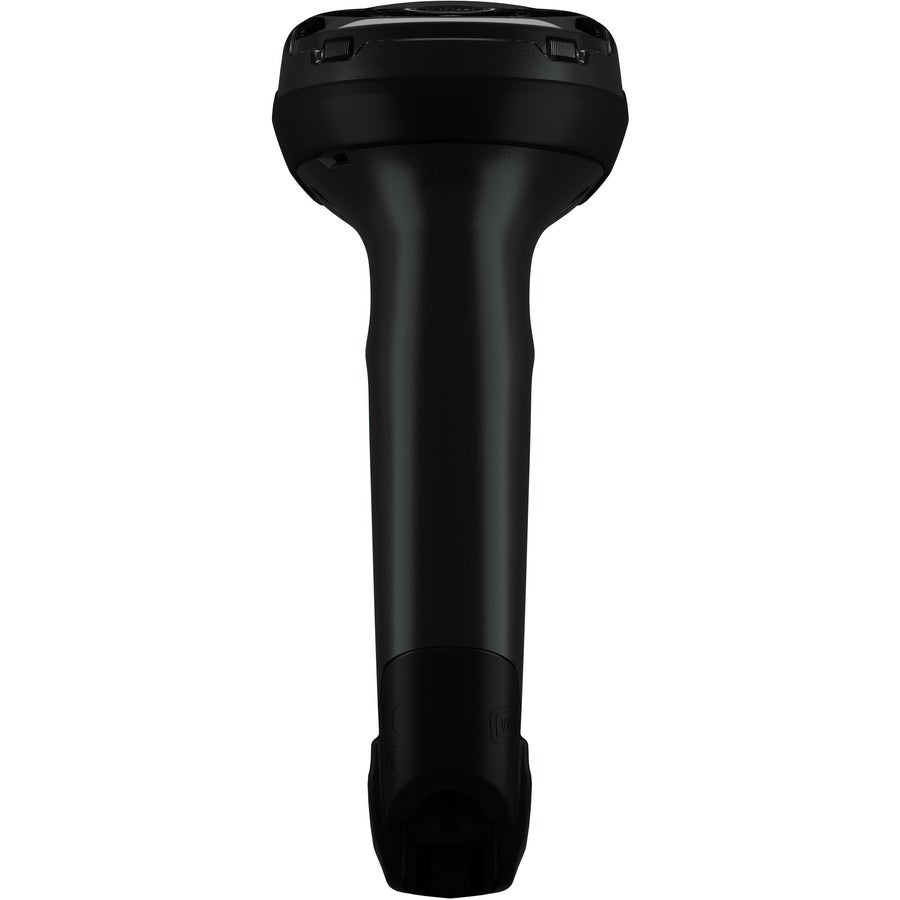

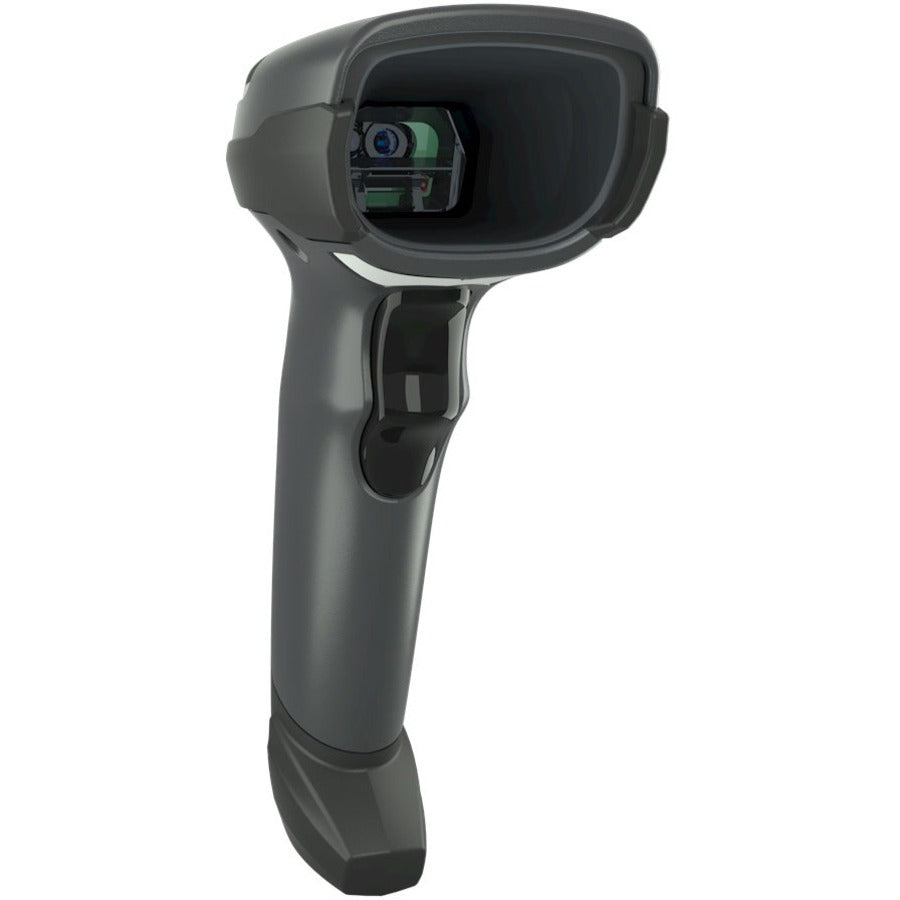

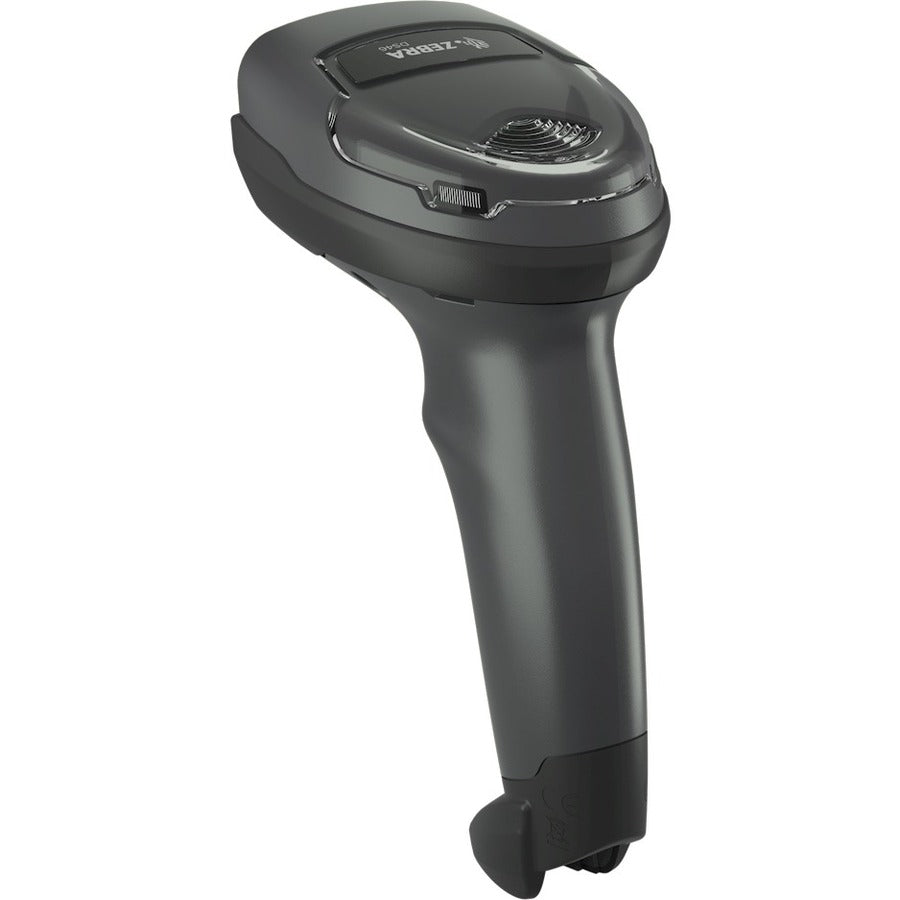

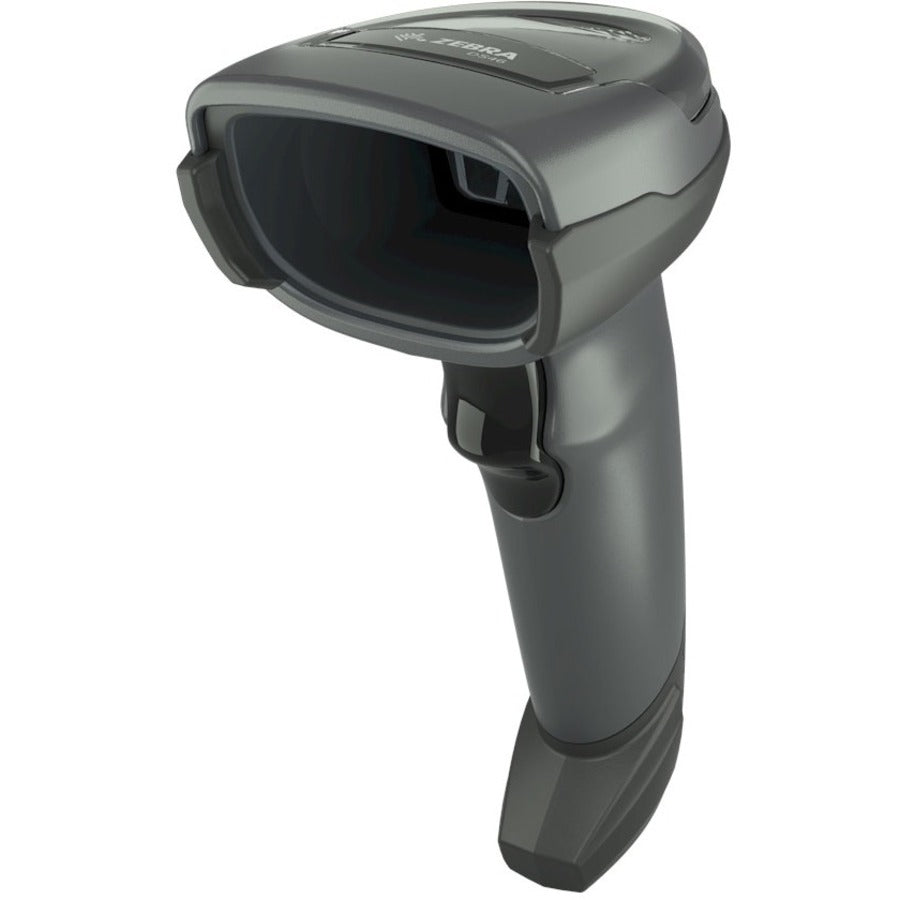

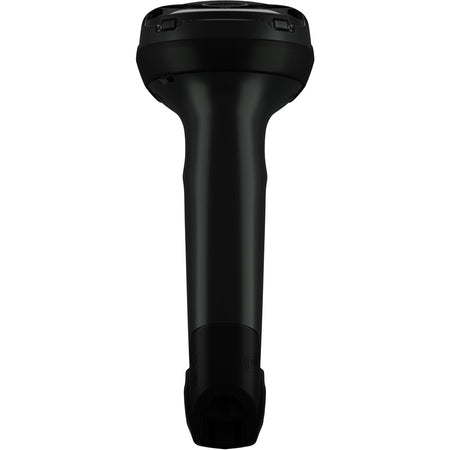

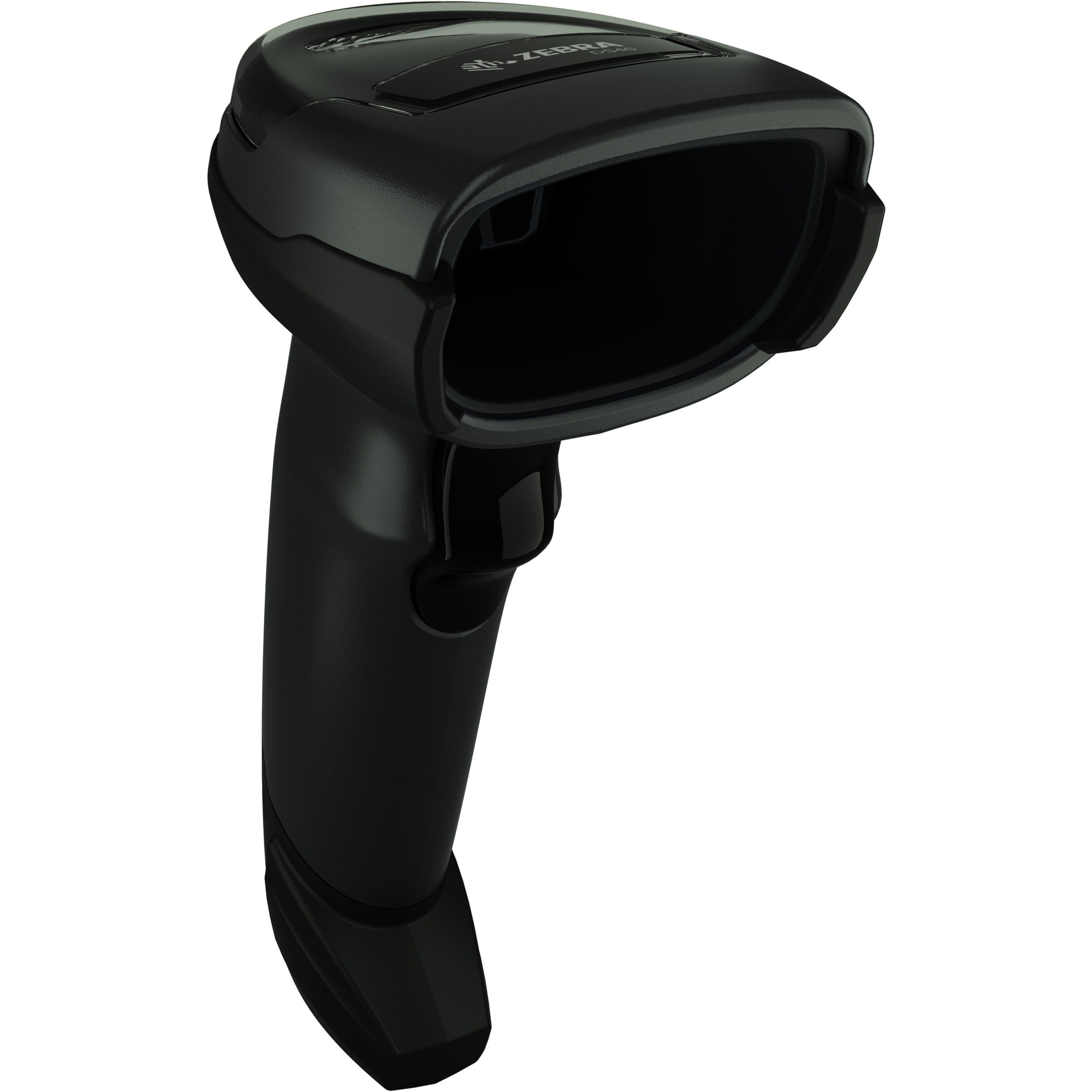

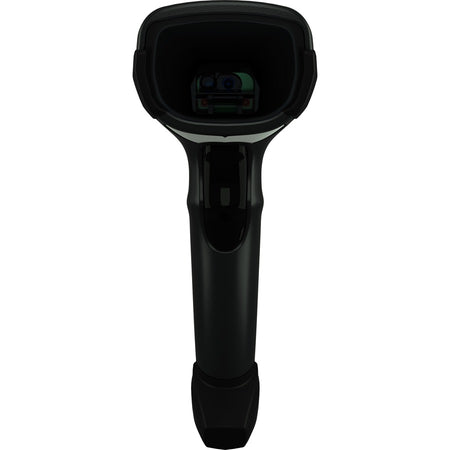

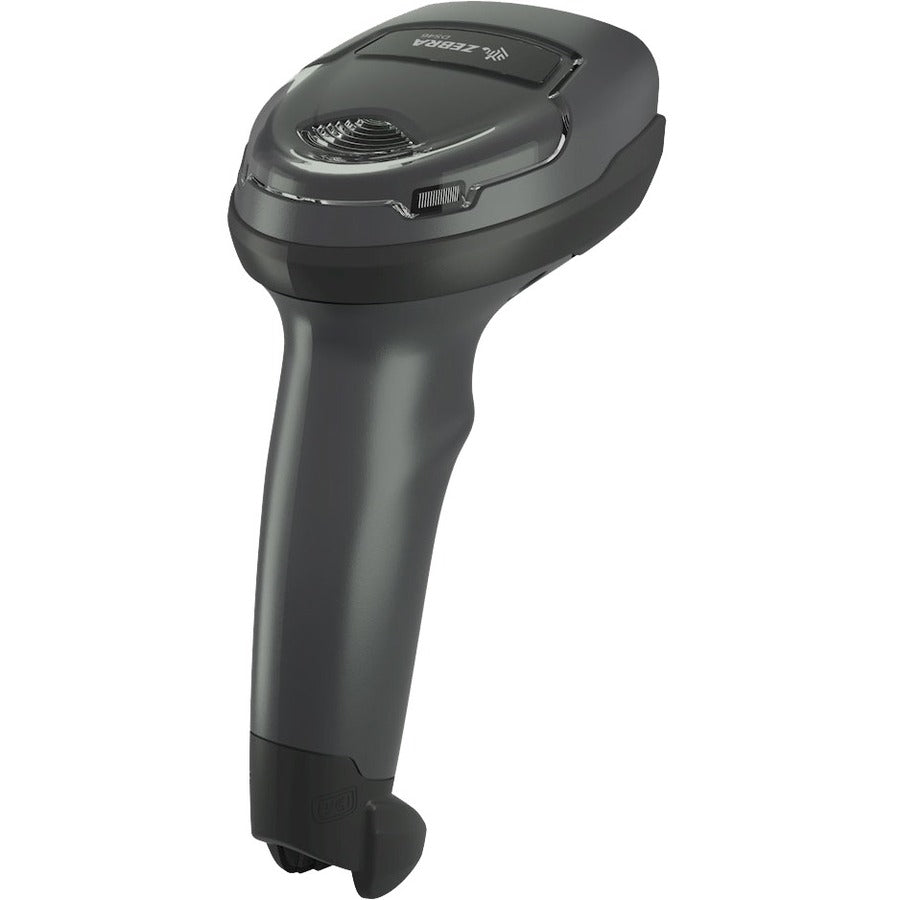

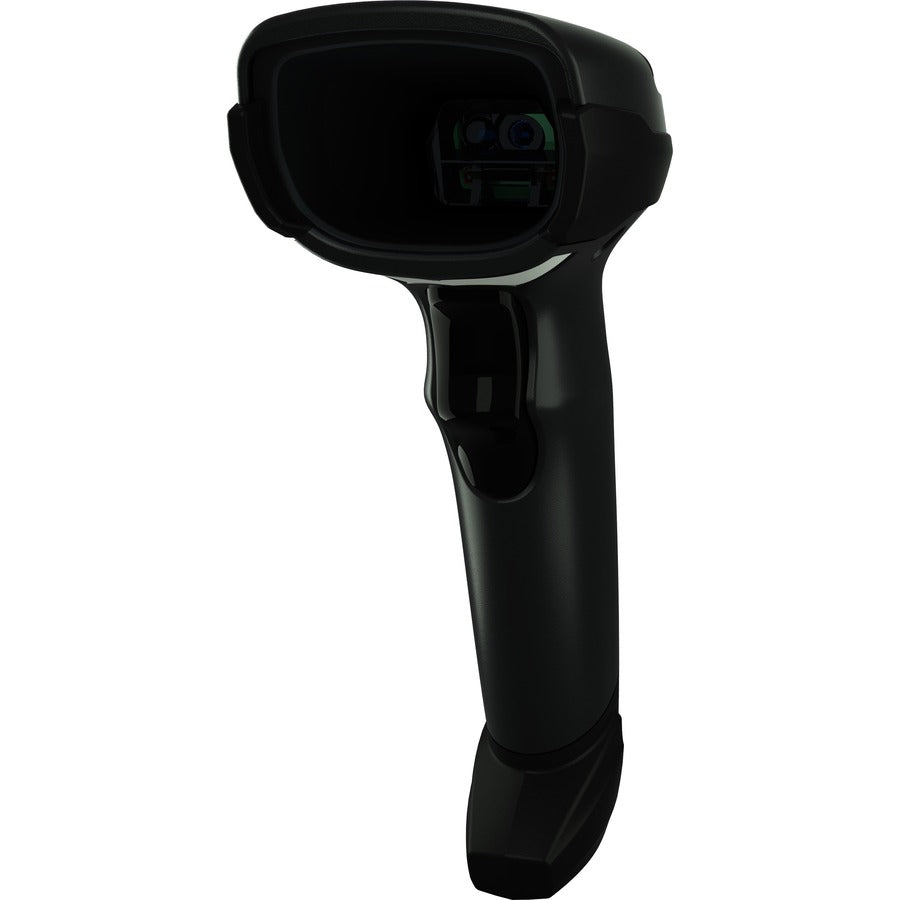

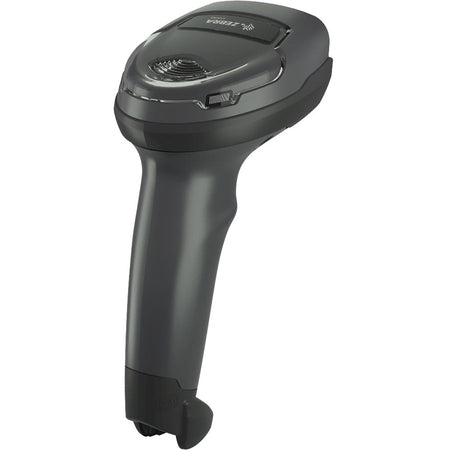

Zebra DS4608 Barcode Scanner Kit - DS4608-SR7U2100AZW
Zebra DS4608 Barcode Scanner Kit - DS4608-SR7U2100AZW

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Zebra Technologies Corporation

Zebra DS4608 Barcode Scanner Kit - DS4608-SR7U2100AZW

6 in stock
SKU: 9066229
$619.96
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Manufacturer Brochure
Click here for User Manual

Zebra DS4608 Barcode Scanner Kit

  • UPC : N/A
    • General Information
    • Manufacturer: Zebra Technologies Corporation
    • Manufacturer Part Number: DS4608-SR7U2100AZW
    • Manufacturer Website Address: http://www.zebra.com
    • Brand Name: Zebra
    • Product Series: DS4600
    • Product Model: DS4608
    • Product Name: DS4608 Barcode Scanner Kit
    • Product Type: Barcode Scanner Kit
    Technical Information
    • Connectivity Technology: Cable
    • Scanning Capability:
      • 1D
      • 2D
    • Barcode Symbology Supported: 1D:
      • Code 39
      • Code 128
      • Code 93
      • Codabar/NW7
      • Code 11
      • MSI Plessey
      • UPC/EAN
      • I 2 of 5
      • Korean 3 of 5
      • GS1 DataBar
      • Base 32 (Italian Pharma)
      2D:
      • PDF417
      • Micro PDF417
      • Composite Codes
      • TLC-39
      • Aztec
      • DataMatrix
      • MaxiCode
      • QR Code
      • Micro QR
      • Han Xin
      • Postal Codes
      • SecurPharm
      • DotCode
      • Dotted DataMatrix
      OCR:
      • OCR-A
      • OCR-B
      • MICR
      • US Currency
    • Image Sensor Type: Imager
    • Scanner Range: Standard Range
    • Scanning Distance: 27.95"
    • Cable Type Included: USB
    • Field of View (Horizontal): 36°
    • Field of View (Vertical): 23°
    • Reading Angle (Skew): 60°
    • Reading Angle (Pitch): 60°
    • Reading Angle (Roll): 360°
    • Maximum Ambient Light: 107000 lux
    • Drop Specification: Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
    • Minimum Print Contrast: 15%
    • Minimum Element Resolution (Code 39): 3 mil
    • Maximum Element Resolution (Code 39): 20 mil
    • Maximum Element Resolution (DataMatrix): 10 mil
    • Maximum Element Resolution (PDF417): 6.7 mil
    Interfaces/Ports
    • Host Interface: Multi-interface
    Physical Characteristics
    • Form Factor: Handheld
    • Color Family: Black
    • Product Color: Twilight Black
    • Height: 6.5"
    • Width: 2.6"
    • Depth: 3.9"
    • Weight (Approximate): 5.71 oz
    Miscellaneous
    • Ingress Protection (IP) Rating: IP52
    • Application/Usage:
      • Hospitality
      • Retail
      • Industrial
      • Inventory
    • Country of Origin: Mexico
