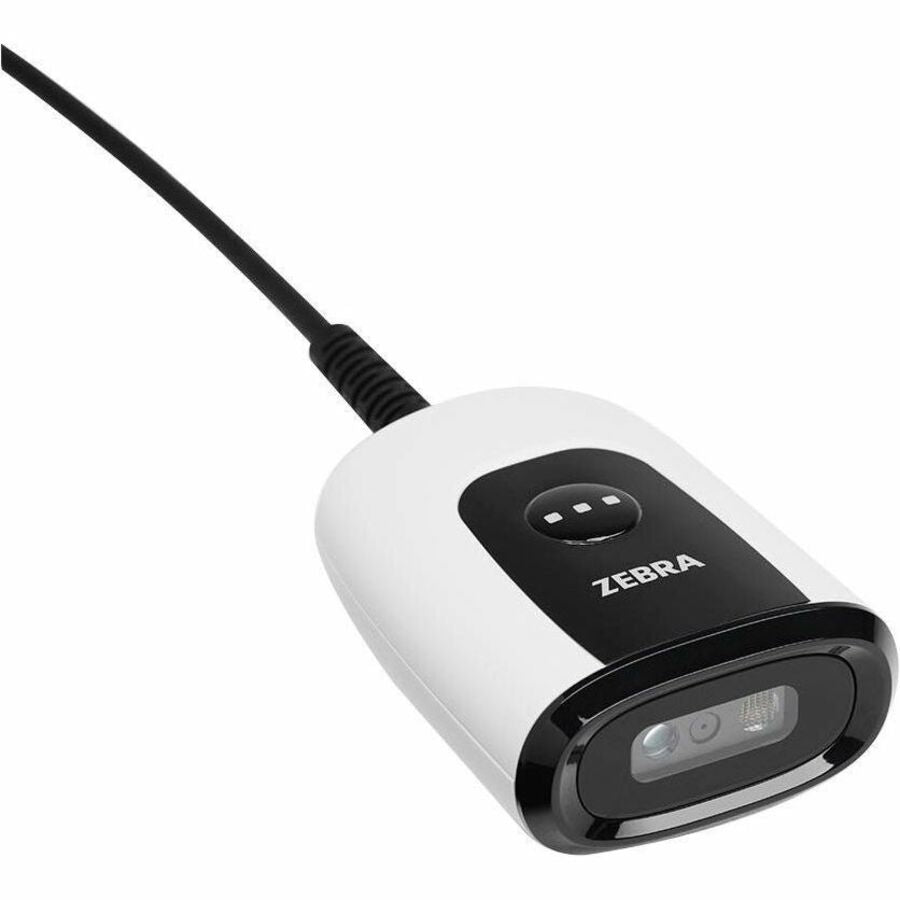

Zebra DS55 DS5502-LB Barcode Scanner - DS5502-LB4000WZZWW
Zebra DS55 DS5502-LB Barcode Scanner - DS5502-LB4000WZZWW

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Zebra Technologies Corporation

Zebra DS55 DS5502-LB Barcode Scanner - DS5502-LB4000WZZWW

11 in stock
SKU: 15200237
$564.04
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Manufacturer Brochure

Zebra DS55 DS5502-LB Barcode Scanner

  • UPC : N/A
    • General Information
    • Manufacturer: Zebra Technologies Corporation
    • Manufacturer Part Number: DS5502-LB4000WZZWW
    • Manufacturer Website Address: http://www.zebra.com
    • Brand Name: Zebra
    • Product Series: DS55
    • Product Model: DS5502-LB
    • Product Name: DS55 DS5502-LB Barcode Scanner
    • Product Type: Barcode Scanner
    Technical Information
    • Connectivity Technology: Cable
    • Light Source: LED
    • Image Sensor Type: Imager
    • Scan Mode: Trigger
    • Scan Pattern: Area
    • Scanning Distance: 35.90"
    • Field of View (Horizontal): 48°
    • Field of View (Vertical): 30°
    • Reading Angle (Skew): 60°
    • Reading Angle (Pitch): 60°
    • Reading Angle (Roll): 360°
    • Image Formats:
      • BMP
      • JPEG
      • TIFF
    • Maximum Ambient Light: 107600 lux
    • Drop Specification:
      • Designed to withstand multiple drops at 5 ft (1.5m) to concrete
    • Minimum Print Contrast: 15%
    • Minimum Element Resolution (Code 39): 3 mil
    • Maximum Element Resolution (Code 39): 20 mil
    • Minimum Element Resolution (DataMatrix): 10 mil
    • Minimum Element Resolution (PDF417): 6.7 mil
    • Image Sensor Resolution: 1280 x 800
    • Illumination Type: LED
    • Illumination Color: White
    • Air Electrostatic Discharge (+/-): 15kV
    • Features:
      • Notification LED
      • Data Formatter
      • Data Parser
      • Diagnostic Reporting
    Environmental Conditions
    • Operating Temperature: -4°F (-20°C) to 122°F (50°C)
    • Storage Temperature: -40°F (-40°C) to 158°F (70°C)
    • Humidity (Non-condensing): 5% to 95%
    Physical Characteristics
    • Form Factor: Fixed Mount
    • Rugged: Yes
    • Color Family: White
    • Product Color: Alpine White
    • Durability:
      • Drop Resistant
      • Spill Resistant
    • Height: 1.2"
    • Width: 2.2"
    • Depth: 2.8"
    • Weight (Approximate): 2.30 oz
    Miscellaneous
    • Ingress Protection (IP) Rating: IP54
    • Application/Usage:
      • Healthcare
      • Laboratory
      • Pharmacy
      • Specimen Collection
      • Self Service
    • Platform Supported:
      • PC
      • iOS
      • Android
      • Linux
