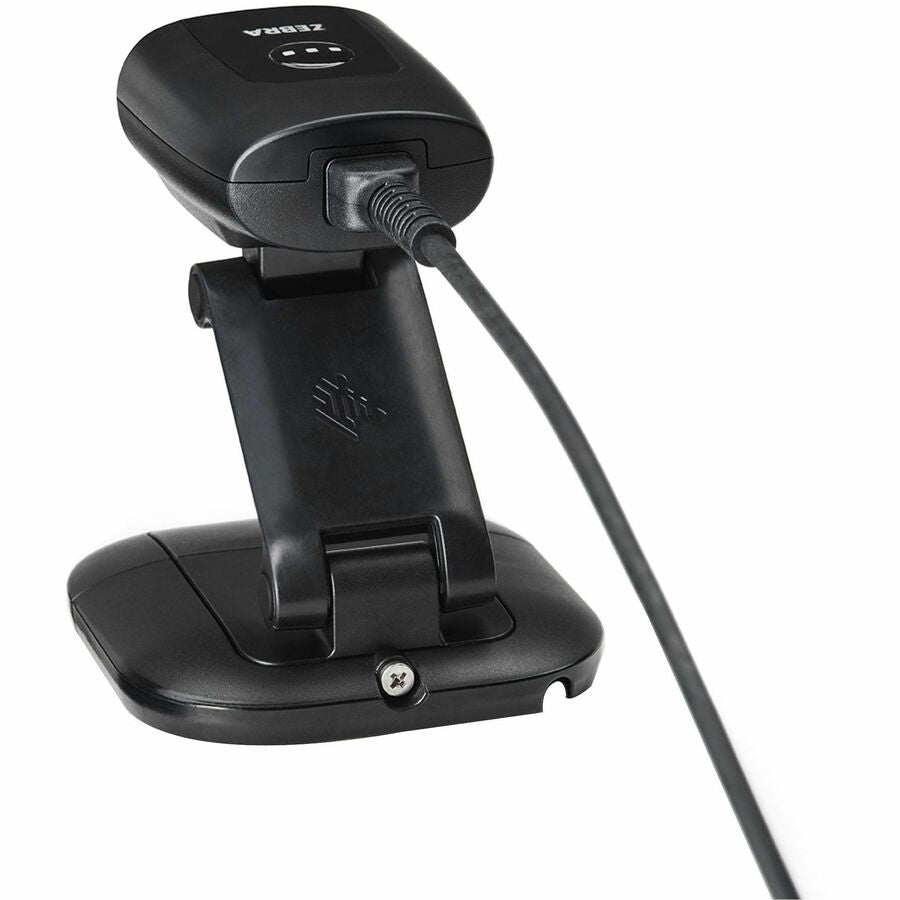

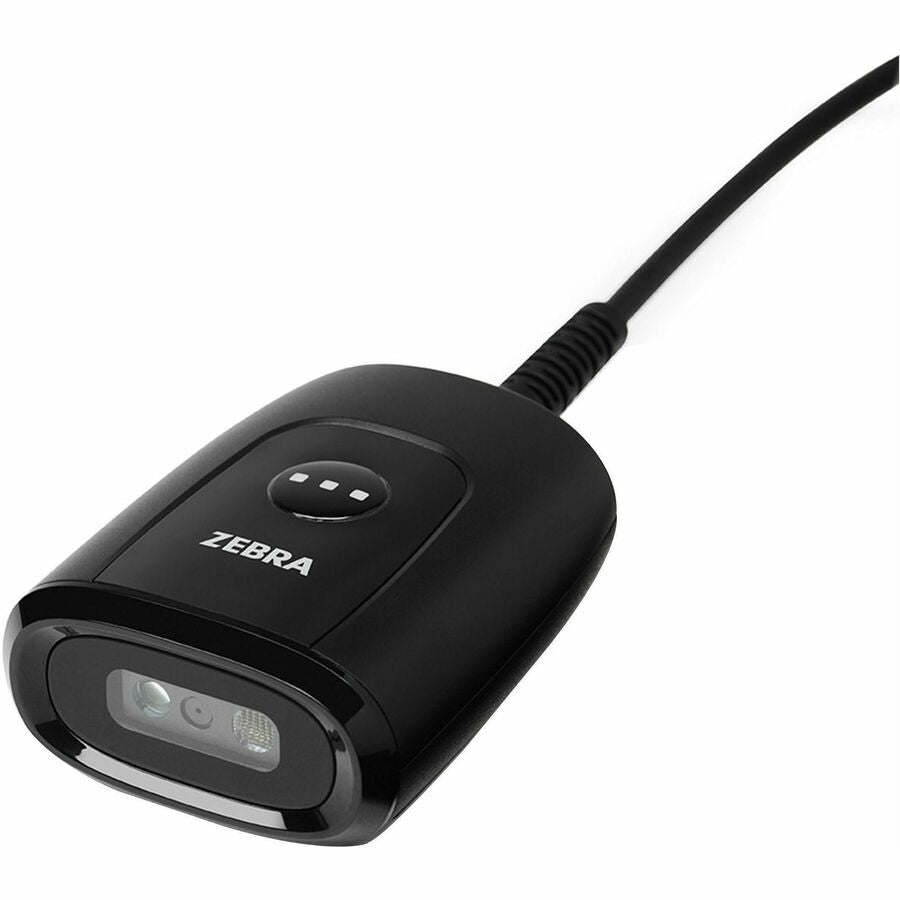

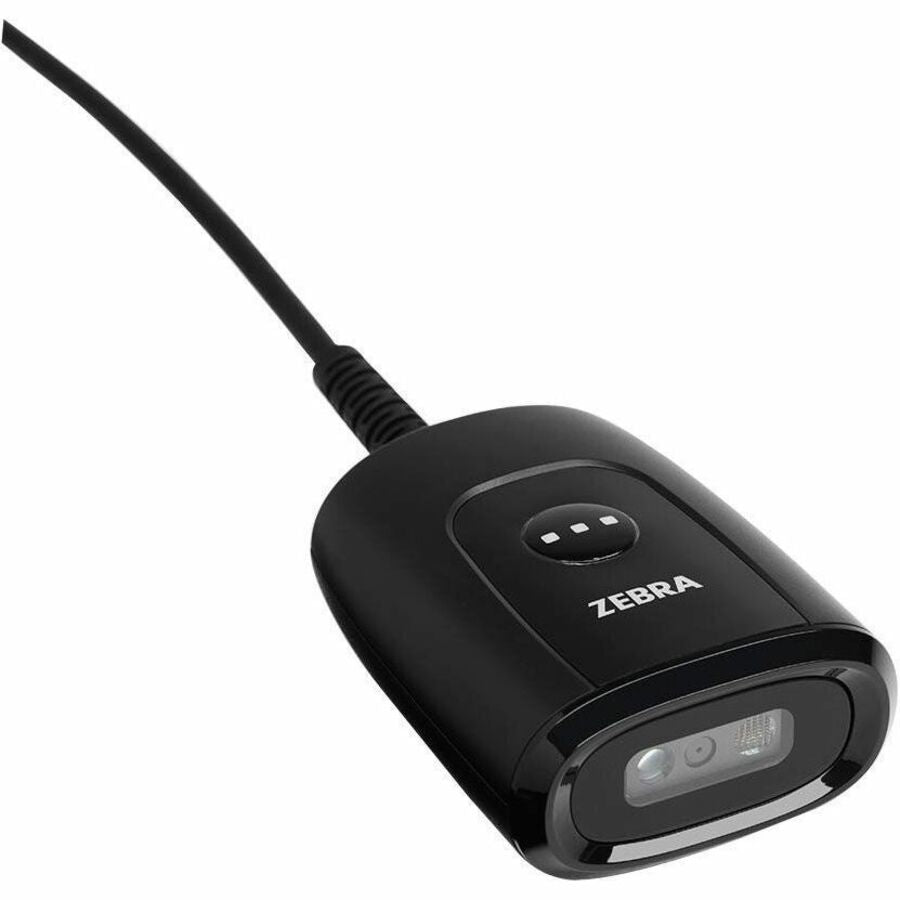

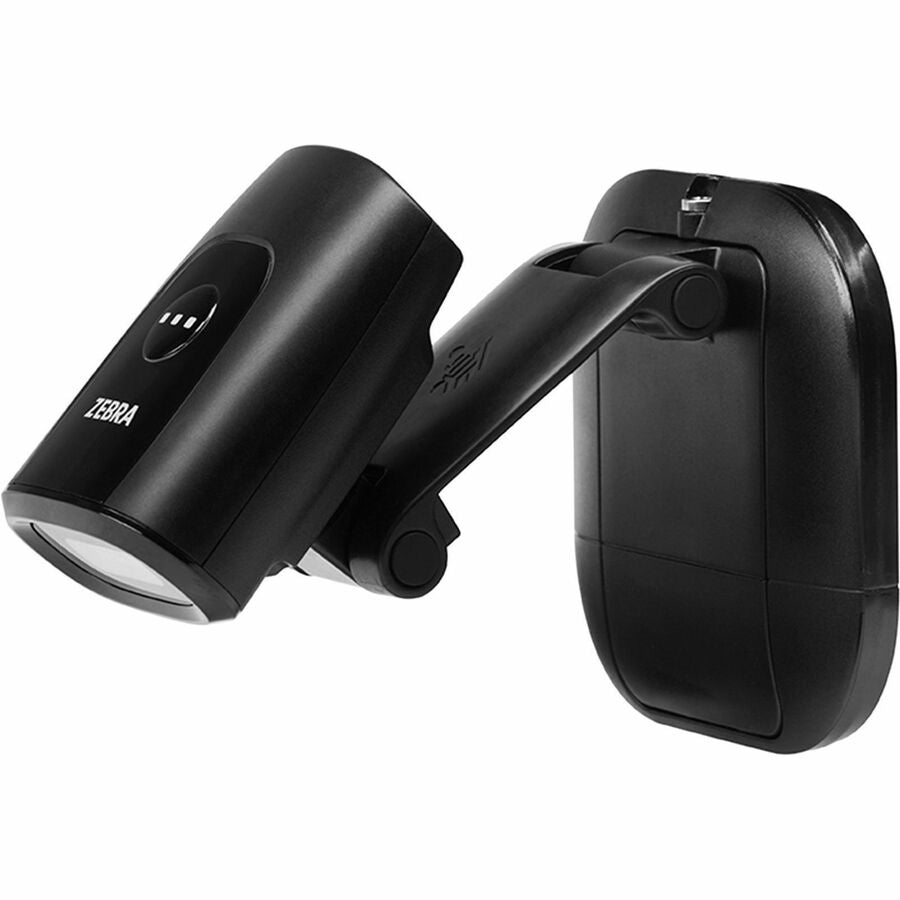

Zebra DS55 DS5502 Barcode Scanner - DS5502-SR40004ZZWW
Zebra DS55 DS5502 Barcode Scanner - DS5502-SR40004ZZWW

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Zebra Technologies Corporation

Zebra DS55 DS5502 Barcode Scanner - DS5502-SR40004ZZWW

87 in stock
SKU: 14962876
$553.23
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Manufacturer Brochure
Click here for User Manual

Zebra DS55 DS5502 Barcode Scanner

  • UPC : N/A
    • General Information
    • Manufacturer: Zebra Technologies Corporation
    • Manufacturer Part Number: DS5502-SR40004ZZWW
    • Manufacturer Website Address: http://www.zebra.com
    • Brand Name: Zebra
    • Product Series: DS55
    • Product Model: DS5502
    • Product Name: DS55 DS5502 Barcode Scanner
    • Product Type: Barcode Scanner
    Technical Information
    • Connectivity Technology: Cable
    • Light Source: LED
    • Image Sensor Type: Imager
    • Scan Mode: Trigger
    • Scan Pattern: Area
    • Scanner Range: Standard Range
    • Scanning Distance: 35.90"
    • Field of View (Horizontal): 48°
    • Field of View (Vertical): 30°
    • Reading Angle (Skew): 60°
    • Reading Angle (Pitch): 60°
    • Reading Angle (Roll): 360°
    • Image Formats:
      • BMP
      • JPEG
      • TIFF
    • Maximum Ambient Light: 107600 lux
    • Drop Specification:
      • Designed to withstand multiple drops at 5 ft (1.5m) to concrete
    • Minimum Print Contrast: 15%
    • Minimum Element Resolution (Code 39): 3 mil
    • Maximum Element Resolution (Code 39): 20 mil
    • Minimum Element Resolution (DataMatrix): 10 mil
    • Minimum Element Resolution (PDF417): 6.7 mil
    • Image Sensor Resolution: 1280 x 800
    • Illumination Type: LED
    • Illumination Color: White
    • Air Electrostatic Discharge (+/-): 15kV
    • Features:
      • Notification LED
      • Data Formatter
      • Data Parser
      • Diagnostic Reporting
    Environmental Conditions
    • Operating Temperature: -4°F (-20°C) to 122°F (50°C)
    • Storage Temperature: -40°F (-40°C) to 158°F (70°C)
    • Humidity (Non-condensing): 5% to 95%
    Physical Characteristics
    • Form Factor: Fixed Mount
    • Durability:
      • Drop Resistant
      • Spill Resistant
      • Dust Resistant
    • Height: 1.2"
    • Width: 2.2"
    • Depth: 2.8"
    • Weight (Approximate): 2.30 oz
    Miscellaneous
    • Ingress Protection (IP) Rating: IP54
    • Application/Usage:
      • Healthcare
      • Laboratory
      • Pharmacy
      • Specimen Collection
      • Self Service
    • Platform Supported:
      • PC
      • iOS
      • Android
      • Linux
