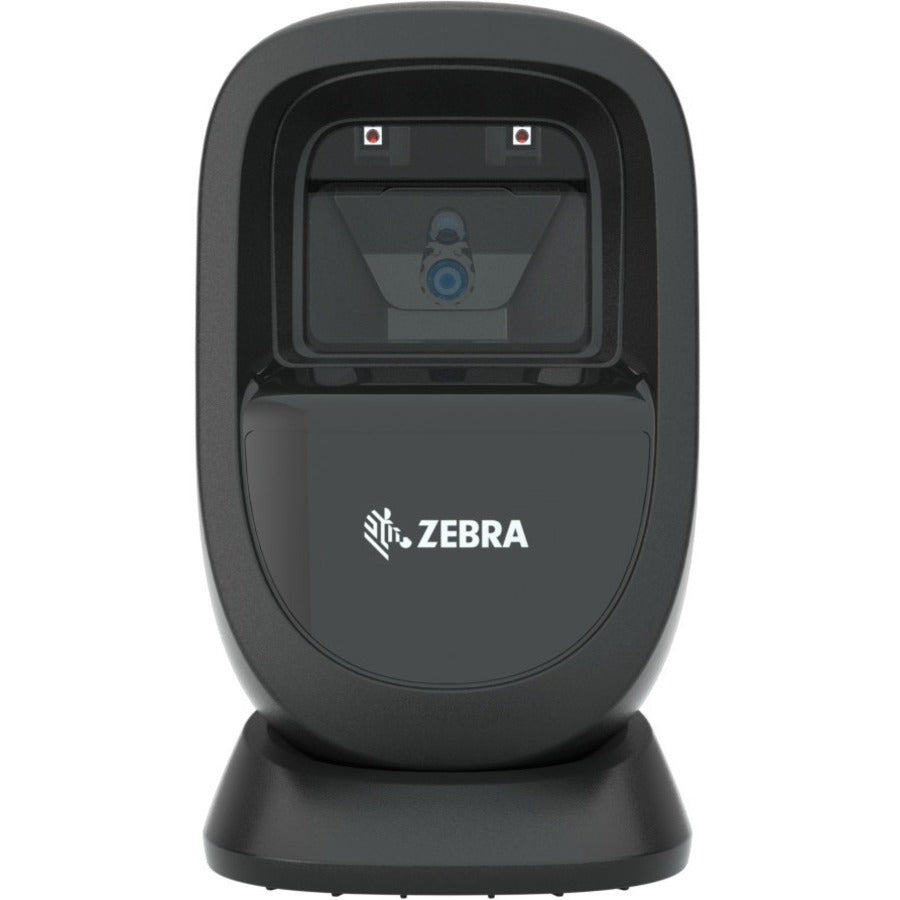

Zebra DS9308 Hands-Free Scanner - DS9308-SR00004ZZWW
Zebra DS9308 Hands-Free Scanner - DS9308-SR00004ZZWW

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Zebra Technologies Corporation

Zebra DS9308 Hands-Free Scanner - DS9308-SR00004ZZWW

Chat for Availability
SKU: 6XB223
$283.48
-42% $486.07 $283.48
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Click here for Manufacturer Brochure

Zebra DS9308 Hands-Free Scanner

  • UPC: 9999999999999
    • General Information
    • Manufacturer: Zebra Technologies Corporation
    • Manufacturer Part Number: DS9308-SR00004ZZWW
    • Manufacturer Website Address: http://www.zebra.com
    • Brand Name: Zebra
    • Product Series: DS9300
    • Product Model: DS9308
    • Product Name: DS9308 Hands-Free Scanner
    • Product Type: Barcode Scanner Kit
    Technical Information
    • Connectivity Technology: Cable
    • Scanning Capability:
      • 1D
      • 2D
    • Barcode Symbology Supported:

      1D:
      • Code 39
      • Code 128
      • Code 93
      • Codabar/NW7
      • Code 11
      • MSI Plessey
      • UPC/EAN
      • I 2 of 5
      • Korean 3 of 5
      • GS1 DataBar
      • Base 32 (Italian Pharma)

      2D:

      • PDF417
      • Micro PDF417
      • Composite Codes
      • TLC-39, Aztec
      • DataMatrix
      • MaxiCode
      • QR Code
      • Micro QR
      • Han Xin
      • Postal Codes
      • securPharm
      • DotCode
      • Dotted DataMatrix

      OCR:

      • OCR-A
      • OCR-B
      • MICR
      • US currency
    • Image Sensor Type: Imager
    • Scanning Distance: 8.80"
    • Display Screen: Yes
    • Field of View (Horizontal): 52°
    • Field of View (Vertical): 33°
    • Reading Angle (Skew): 60°
    • Reading Angle (Pitch): 60°
    • Reading Angle (Roll): 360°
    • Image Formats:
      • JPEG
      • BMP
      • TIFF
    • Maximum Ambient Light: 107700 lux
    • Drop Specification:

      Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete

    • Minimum Print Contrast: 15%
    • Minimum Element Resolution (Code 39): 3 mil
    • Maximum Element Resolution (Code 39): 3 mil
    • Minimum Element Resolution (DataMatrix): 5 mil
    • Maximum Element Resolution (DataMatrix): 10 mil
    • Maximum Element Resolution (PDF417): 6.7 mil
    Interfaces/Ports
    • Host Interface:
      • USB
      • EAS
      • Keyboard Wedge
      • Serial
    Physical Characteristics
    • Form Factor: Desktop
    • Product Color: Midnight Black
    • Height: 5.7"
    • Width: 3.4"
    • Depth: 3.3"
    • Weight (Approximate): 11.22 oz
    Miscellaneous
    • Ingress Protection (IP) Rating: IP52
    • Application/Usage:
      • Retail
      • Hospitality
      • Quick Service Restaurant (QSR)
      • Transportation
    • Country of Origin: Vietnam
