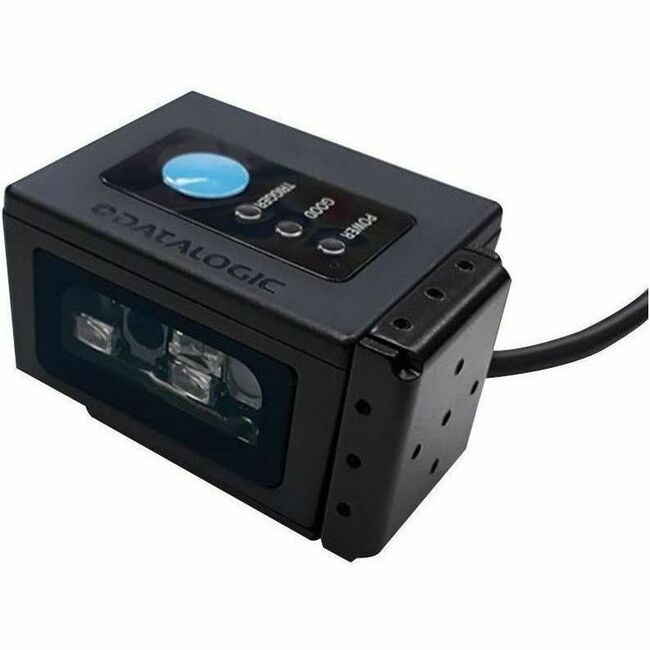

Datalogic DSM04XX FIXED SCAN MODULE - DSM0422-WA
Regular price
$623.38
Regular price
-19%
$772.00
Sale price
$623.38
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Video
UPC : N/A
General Information
Datalogic DSM04XX FIXED SCAN MODULE
- Manufacturer: Datalogic S.p.A
- Manufacturer Part Number: DSM0422-WA
- Manufacturer Website Address: http://www.datalogic.com
- Brand Name: Datalogic
- Product Model: DSM04XX
- Product Name: DSM04XX FIXED SCAN MODULE
- Product Type: Barcode Scanner
- Connectivity Technology: Cable
- Scanning Capability:
- 1D
- 2D
- Barcode Symbology Supported:
1D:
All standard 1D codes including:
- UPC/EAN/JAN
- P2 / P5 add-ons
- Code 39
- Italian Pharmacode 39
- Code 128
- C128 ISBT
- I 2 of 5
- Standard 2 of 5
- Interleaved 2 of 5
- Industrial 2of 5
- Datalogic 2of5
- IATA; Code 11
- Codabar
- ABC Codabar
- EAN 128
- Code 93
- MSI/Plessey
- RSS-14
- BC412
- Databar Limited
- Databar Omnidirectional
- Databar Expanded
- IATA
- Trioptic
- Matrix 2/5
- Telepen
- Composite codes CC-A
- CC-B
- CC-C
2D:
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
Postal Codes:
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Korea Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
Stacked Codes:
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
- Light Source: LED
- Image Sensor Type: Imager
- Scan Mode: Trigger/Sense
- Scanning Distance: 23.60"
- Field of View (Horizontal): 52°
- Field of View (Vertical): 40°
- Reading Angle (Skew): 60°
- Reading Angle (Pitch): 60°
- Reading Angle (Roll): 180°
- Image Formats:
- BMP
- JPEG
- Maximum Ambient Light: 100000 lux
- Drop Specification:
- Withstands repeated drops from 3 ft onto a concrete surface.
- Minimum Print Contrast: 25%
- Minimum Element Resolution (Code 39): 3 mil
- Maximum Element Resolution (Code 39): 20 mil
- Minimum Element Resolution (DataMatrix): 10 mil
- Maximum Element Resolution (DataMatrix): 15 mil
- Image Sensor Resolution: 1280 x 960
- Illumination Type: LED
- Illumination Color: White
- Features:
- Beep
- Notification LED
- Grayscale Image Capture
- Host Interface: USB
- Operating Temperature: -4°F (-20°C) to 122°F (50°C)
- Storage Temperature: -40°F (-40°C) to 158°F (70°C)
- Humidity (Non-condensing): 5% to 95%
- Form Factor: Fixed Mount
- Rugged: Yes
- Color Family: Black
- Product Color: Black
- Product Material: Resin
- Durability:
- Water Resistant
- Dust Resistant
- Impact Resistant
- Drop Resistant
- Weight (Approximate): 4.62 oz
- Ingress Protection (IP) Rating: IP54
- Application/Usage:
- Retail
- Self-checkout
- Ticketing
- Manufacturing
- Healthcare
- Transportation
- Logistics
- Kiosk
- Laboratory
- Platform Supported:
- Android
- Linux
- PC
- Windows
- Smartphone
