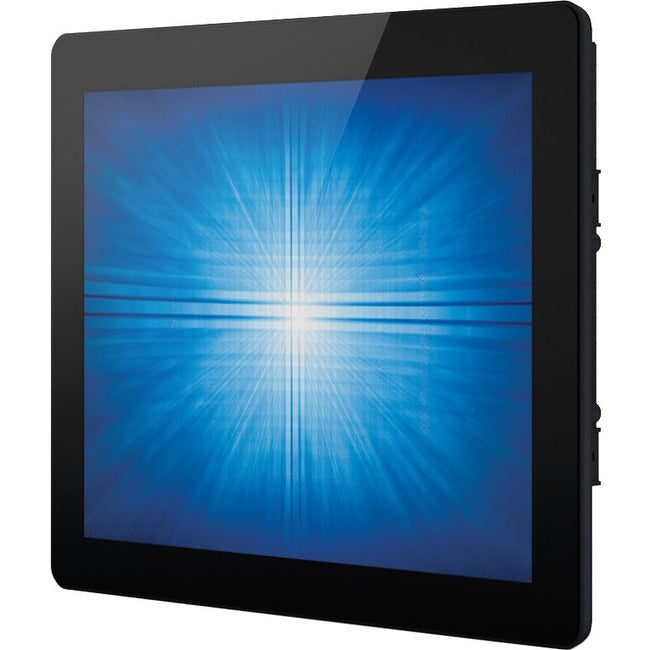

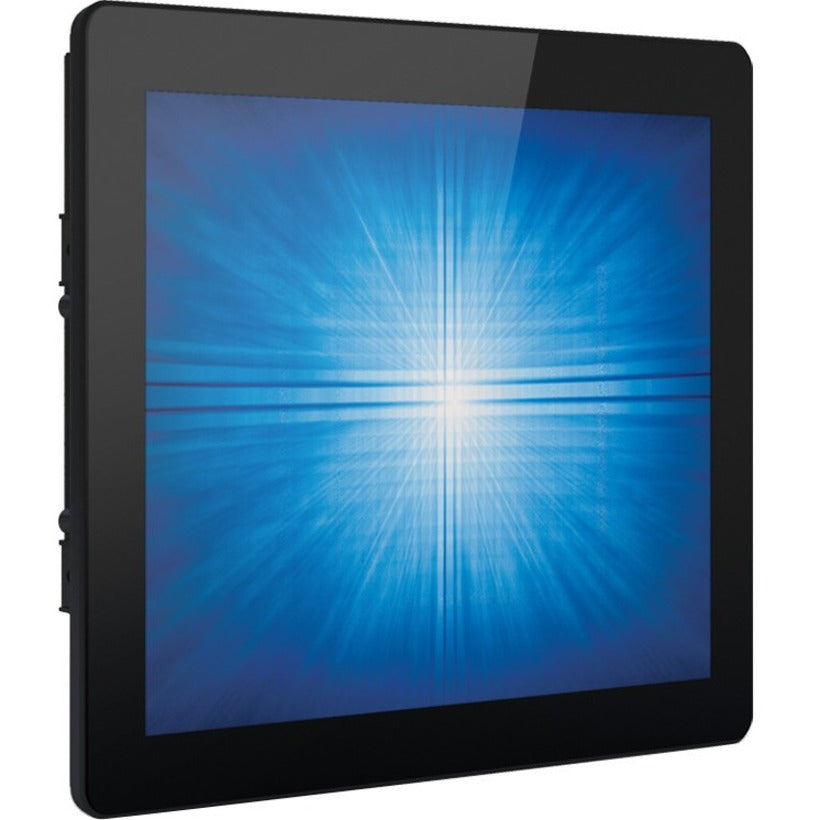

Elo 1590L 15" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms - E326738
Elo 1590L 15" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms - E326738

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Elo Touch Solutions, Inc

Elo 1590L 15" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms - E326738

2 in stock
SKU: 7829383
$622.08
-1% $627.00 $622.08
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Manufacturer Brochure
Click here for User Manual

Elo 1590L 15" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms

  • UPC: 815335025815
    • General Information
    • Manufacturer: Elo Touch Solutions, Inc
    • Manufacturer Part Number: E326738
    • Manufacturer Website Address: http://www.elotouch.com
    • Brand Name: Elo
    • Product Model: 1590L
    • Product Name: 1590L 15" Open Frame Touchscreen (Rev B)
    • Packaged Quantity: 1
    • Product Type: Open-frame LCD Touchscreen Monitor
    Technical Information
    • Screen Size Class: 15"
    • Viewable Screen Size: 15"
    • Screen Mode: XGA
    • Panel Technology: Thin Film Transistor (TFT)
    • Response Time: 16 ms
    • Aspect Ratio: 4:3
    • Horizontal Viewing Angle: 160°
    • Vertical Viewing Angle: 150°
    • Mount Type:
      • Rack-mountable
      • Front Mount
    • Backlight Technology: LED
    • Features:
      • On-screen Display (OSD)
      • Anti-glare
    • Curved Screen: No
    Video
    • Maximum Resolution: 1024 x 768
    • Color Supported: 16.2 Million Colors
    • Contrast Ratio: 700:1
    • Brightness: 300 Nit
    Touchscreen Information
    • Touchscreen Type: IntelliTouch Surface Wave
    Interfaces/Ports
    • HDMI: Yes
    • USB: Yes
    • VGA: Yes
    • DisplayPort: Yes
    Power Description
    • Operating Power Consumption: 14 W
    • Standby Power Consumption: 1.50 W
    • Off-Mode Power Consumption: 500 mW
    Physical Characteristics
    • Color Family: Black
    • Product Color: Black
    • VESA Mount Compatible: Yes
    • VESA Mount Standard: 100 x 100
    • Height: 10.4"
    • Width: 13.2"
    • Depth: 1.7"
    • Weight (Approximate): 6.40 lb
    Miscellaneous
    • Package Contents:
      • 1590L 15" Open Frame Touchscreen (Rev B)
      • HDMI cable
      • VGA Cable
      • RJ45 OSD Remote
      • Touch USB Cable
      • User Manual CD
      • Quick Install Guide
      • "L" (Side Mount) Brackets and w/Screws
      • EEI Label
      • Japan Class-B TM info sheet
    • TAA Compliant: No
    • Environmentally Friendly: Yes
    • Environmental Compliance:
      • Restriction of Hazardous Substances (RoHS)
      • China Restriction of Hazardous Substances (China RoHS)
      • Waste Electrical and Electronic Equipment Directive (WEEE)
    Warranty
    • Limited Warranty: 3 Year
