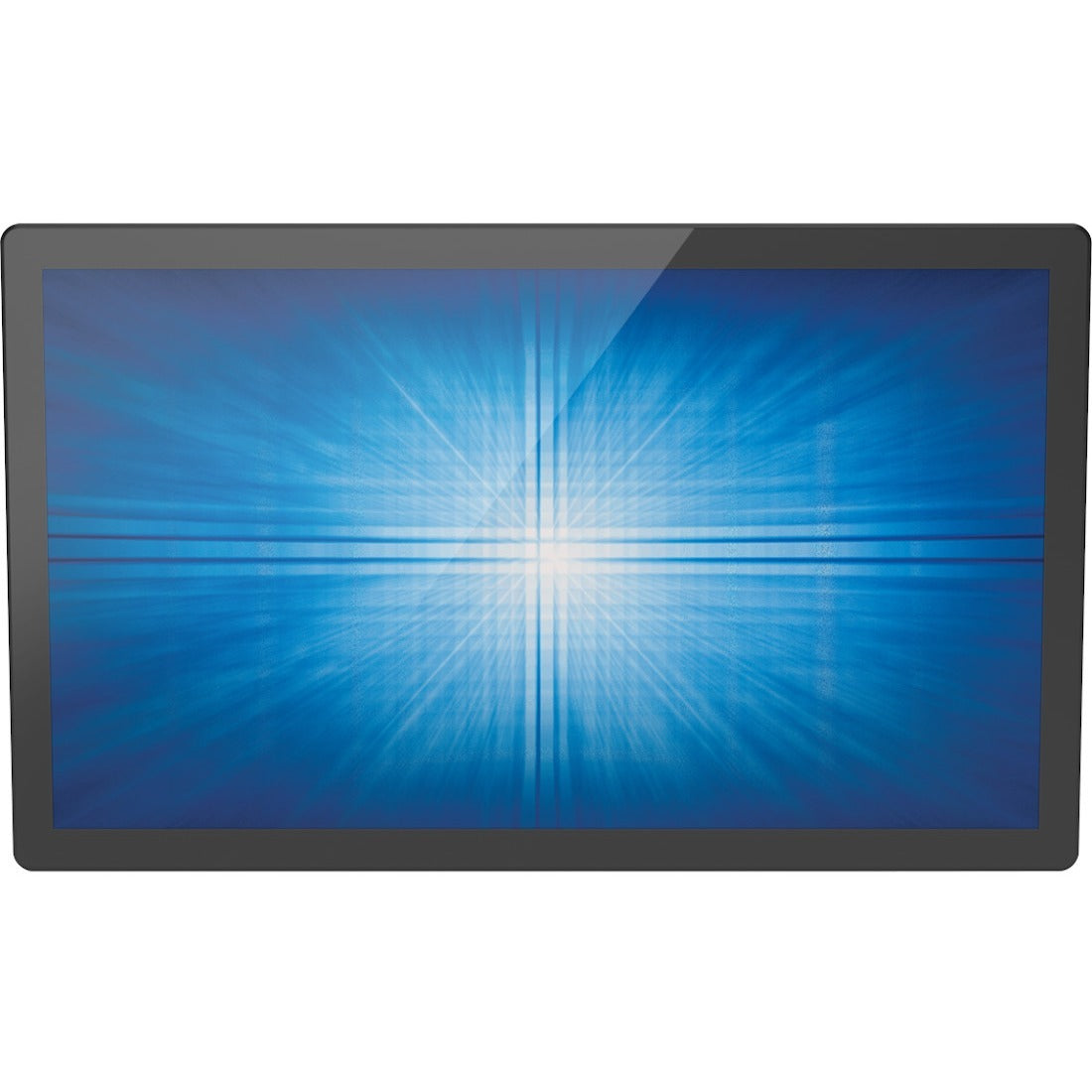

Elo 2494L 24" Class Open-frame LCD Touchscreen Monitor - 16:9 - 16 ms - E493782
Elo 2494L 24" Class Open-frame LCD Touchscreen Monitor - 16:9 - 16 ms - E493782

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Elo Touch Solutions, Inc

Elo 2494L 24" Class Open-frame LCD Touchscreen Monitor - 16:9 - 16 ms - E493782

1 in stock
SKU: 7829480
$743.24
$745.00 $743.24
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Manufacturer Brochure
Click here for User Manual

Elo 2494L 24" Class Open-frame LCD Touchscreen Monitor - 16:9 - 16 ms

  • UPC: 843173131221
    • General Information
    • Manufacturer: Elo Touch Solutions, Inc
    • Manufacturer Part Number: E493782
    • Manufacturer Website Address: http://www.elotouch.com
    • Brand Name: Elo
    • Product Series: 90
    • Product Model: 2494L
    • Product Name: 2494L 23.8" Open Frame Touchscreen
    • Product Type: Open-frame LCD Touchscreen Monitor
    Technical Information
    • Screen Size Class: 24"
    • Viewable Screen Size: 23.8"
    • Screen Mode: Full HD
    • Panel Technology: Thin Film Transistor (TFT)
    • Response Time: 16 ms
    • Aspect Ratio: 16:9
    • Horizontal Viewing Angle: 178°
    • Vertical Viewing Angle: 178°
    • Mount Type:
      • Flush Mount
      • Rear Mount
    • Placement: Tabletop
    • Backlight Technology: LED
    • Features:
      • OSD/Power Lock
      • On-screen Display (OSD)
    • Horizontal Frequency: 30 kHz to 82 kHz
    • Vertical Frequency: 50 Hz to 75 Hz
    Video
    • Maximum Resolution: 1920 x 1080
    • Color Supported: 16.7 Million Colors
    • Native Contrast Ratio: 3,000:1
    • Brightness: 250 Nit
    Touchscreen Information
    • Touchscreen Type: TouchPro Projected Capacitive
    • Multi-touch Screen: Yes
    • Number of Simultaneous Touchpoints: 10
    Interfaces/Ports
    • HDMI: Yes
    • USB: Yes
    • VGA: Yes
    • DisplayPort: Yes
    Power Description
    • Operating Power Consumption: 17.46 W
    Physical Characteristics
    • Color Family: Black
    • Product Color: Black
    • VESA Mount Compatible: Yes
    • VESA Mount Standard: 200 x 100
    • Height: 13.4"
    • Width: 22.4"
    • Depth: 1.5"
    • Weight (Approximate): 13.60 lb
    Miscellaneous
    • Package Contents:
      • 2494L 23.8" Open Frame Touchscreen
      • HDMI cable
      • VGA Cable
      • RJ45 OSD Remote
      • Touch USB Cable
      • Quick Install Guide
      • Flush Mount Brackets w/Screws
      • EEI Label
      • Japan Class-B TM info sheet
    • Environmentally Friendly: Yes
    • Environmental Compliance:
      • Restriction of Hazardous Substances (RoHS)
      • China Restriction of Hazardous Substances (China RoHS)
      • Waste Electrical and Electronic Equipment Directive (WEEE)
    Warranty
    • Limited Warranty: 3 Year
