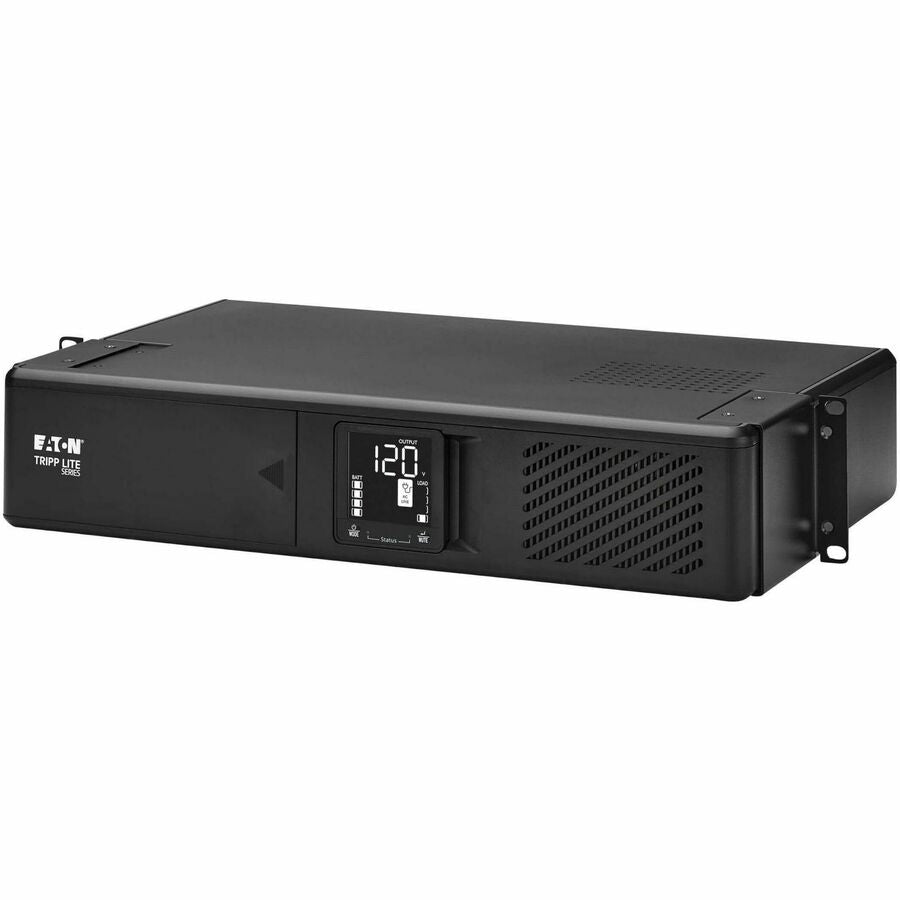

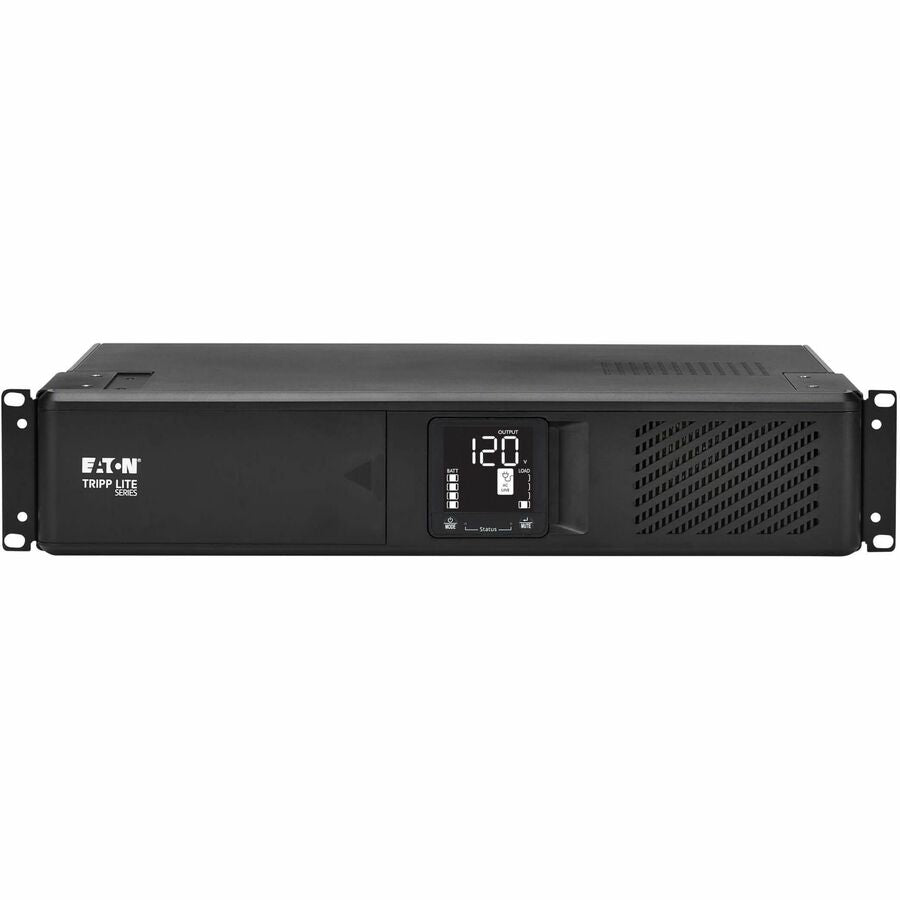

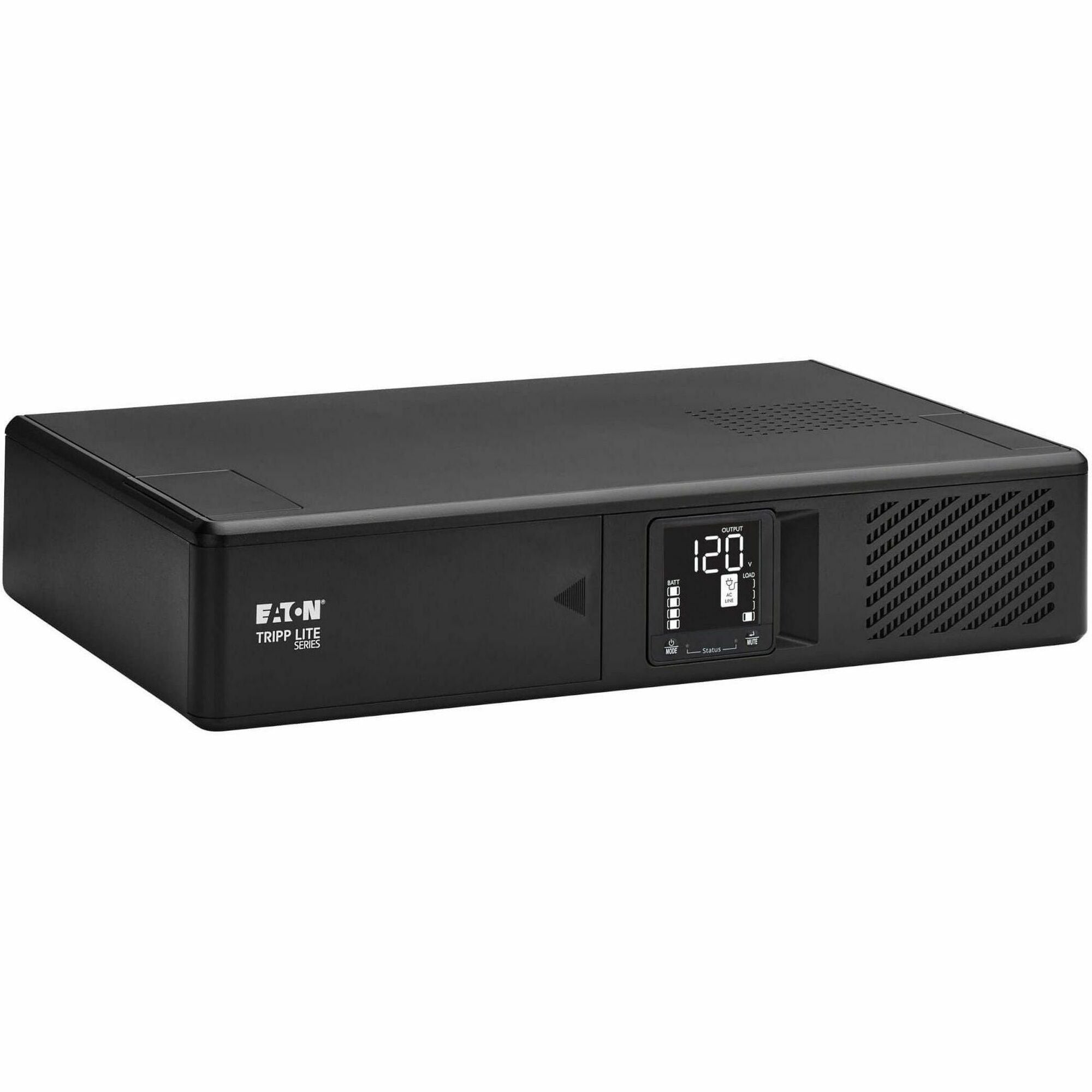

Eaton Tripp Lite Series 1440VA 1050W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (Surge and Battery Backup), Extended Run, LCD, 5-15P Plug, 2U Rack/Tower - SMART1500LCDXNC
Eaton Tripp Lite Series 1440VA 1050W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (Surge and Battery Backup), Extended Run, LCD, 5-15P Plug, 2U Rack/Tower - SMART1500LCDXNC

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Eaton Corporation

Eaton Tripp Lite Series 1440VA 1050W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (Surge and Battery Backup), Extended Run, LCD, 5-15P Plug, 2U Rack/Tower - SMART1500LCDXNC

Chat for Availability
SKU: 14646464
$682.55
-36% $1,066.80 $682.55
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for User Manual

Eaton Tripp Lite Series 1440VA 1050W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (Surge and Battery Backup), Extended Run, LCD, 5-15P Plug, 2U Rack/Tower

  • UPC: 037332280121
    • General Information
    • Manufacturer: Eaton Corporation
    • Manufacturer Part Number: SMART1500LCDXNC
    • Manufacturer Website Address: http://www.eaton.com
    • Brand Name: Tripp Lite series
    • Product Model: SMART1500LCDXNC
    • Product Name: SMART1500LCDXNC 1440VA Desktop/Tower/Rack UPS
    • Product Type: Line-interactive UPS
    Technical Information
    • AVR: Yes
    • AVR Range: Boost +18% / Buck -15%
    • Plug/Connector Type: NEMA 5-15P
    • Receptacle Type: NEMA 5-15R

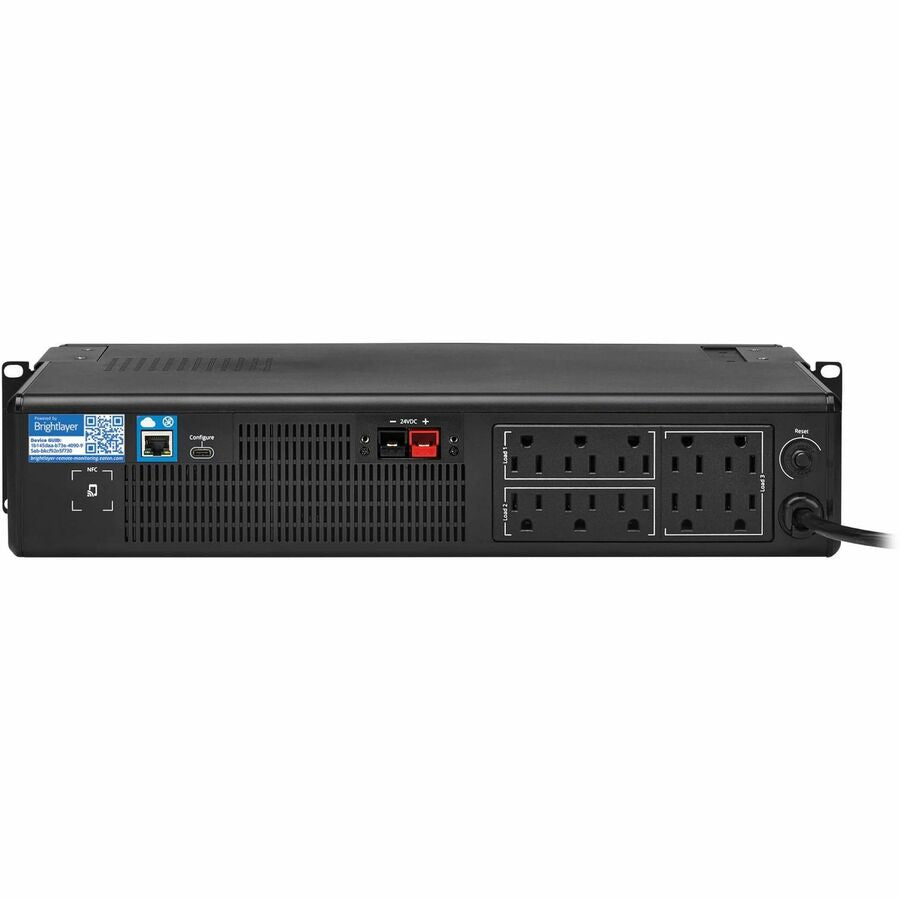

    • Receptacle Detail: 10 x NEMA 5-15R
    • Number of Load Management Outlets: 10
    • Number of Battery & Surge Outlets: 10
    • Overload Protection: Yes
    • Cord Length: 5 ft
    • Transfer Time: 10 ms
    • EMI/RFI Noise Filter: Yes
    • Phase: Single Phase
    • Energy Saving: Greater than 95% efficiency - GREEN UPS
    • Efficiency Detail: 98.4% (AC Mode)
    • Application/Usage:
      • Retail
      • POS
      • Hospital
      • Home
      • Office
      • Desktop
      • High-end System
      • Network
      • Home Network
      • Server
      • Workstation
      • Computer
      • Monitor
      • CCTV Camera
      • Router
      • Network Switch
      • Electronic Device
    • Surge Suppression: Yes
    • Features:
      • Audible Alarm
      • Cold Start Function
    Power Description
    • Load Capacity (VA): 1440 VA
    • Load Capacity (Watt): 1050 W
    • Input Voltage: 120 V AC
    • Input Voltage Range: 97 V AC - 145 V AC
    • Input Current: 12 A
    • Output Voltage: 120 V AC
    • Input Frequency:
      • 50 Hz
      • 60 Hz
    • Output Frequency:
      • 50 Hz
      • 60 Hz
    • Waveform Type:
      • Sine Wave
      • Pulse-width Modulated Sine Wave
    • Surge Energy Rating: 380 J
    • Circuit Breaker: Yes
    • Output Power Factor: 0.73
    Display & Graphics
    • Display: LCD
    Management
    • Network Management: Network Card
    • Alarm:
      • Power Failure
      • Low Battery
    Controls/Indicators
    • Status Indicators:

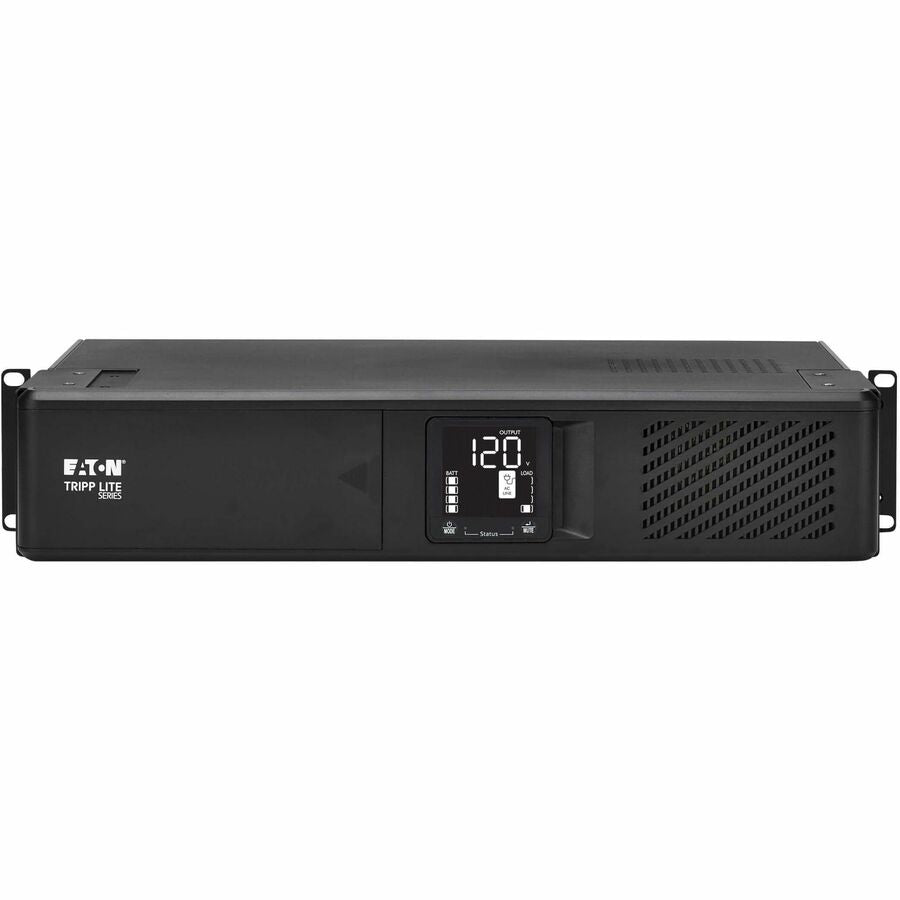

      Front Panel LCD Display:

      • UPS status
      • Input Voltage
      • Output Voltage
      • Estimated Runtime (minutes)
      • Output Load Percentage
      • Output Load Wattage
      • Battery Voltage
      • Graphical 4-Bar Battery Charge level
      • 4 bar load Level
      • UPS status AC Powered
      • Battery operation
      • Alarm muted (icon flashing)
      • Alarm disabled (icon steady on)

      LED Indicators:

      • AC operation
      • Battery charging
      • UPS fault
    Interfaces/Ports
    • USB: Yes
    • Network (RJ-45): Yes
    Battery Information
    • DC System Voltage: 24 V DC
    • Battery Characteristics: Valve-regulated
    • Battery Chemistry: Lead Acid
    • Backup/Run Time (Full Load): 2 Minute
    • Backup/Run Time (Half Load): 10 Minute
    • Hot Swappable: Yes
    • Typical Battery Recharge Time: 8 Hour
    • Replaceable Battery: Yes
    Environmental Conditions
    • Maximum Operating Elevation: 9843 ft
    • Storage Temperature: 5°F (-15°C) - 122°F (50°C)
    • Minimum Operating Temperature: 32°F (0°C)
    • Maximum Operating Temperature: 104°F (40°C)
    • Thermal Dissipation: 16.80 W
    Physical Characteristics
    • Height: 3.4"
    • Width: 17.2"
    • Depth: 11"
    • Rack Height: 2U

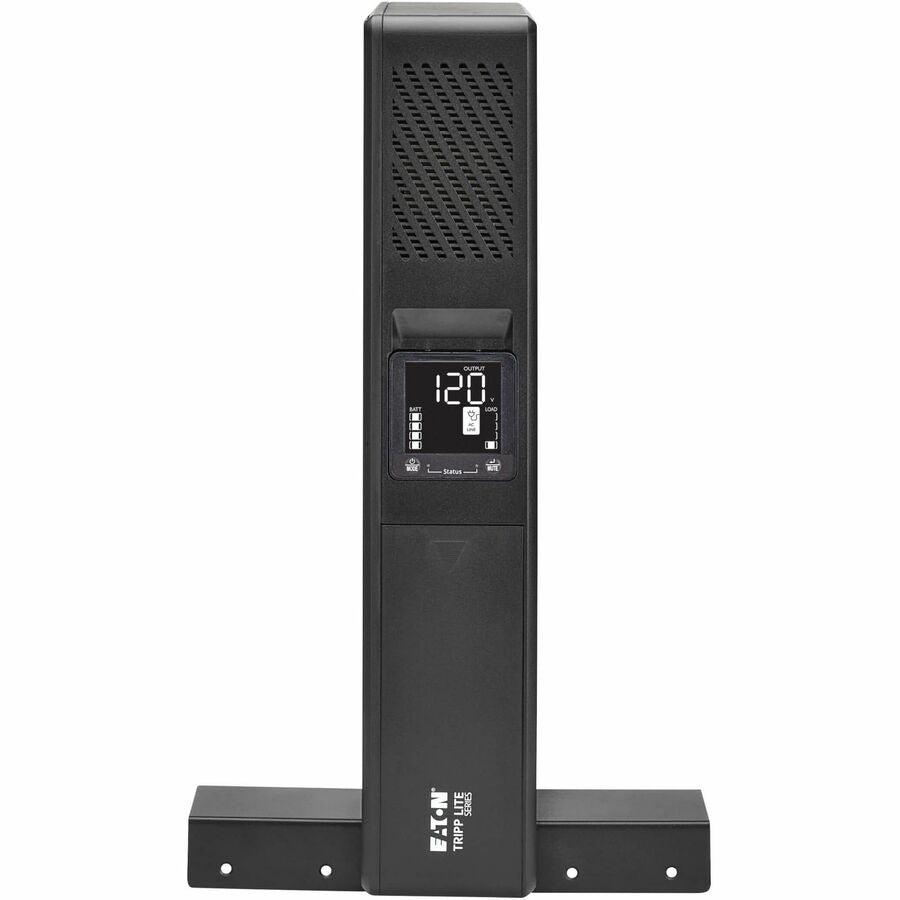

    • Form Factor: Desktop/Tower/Rack
    • Weight (Approximate): 26.50 lb
    Miscellaneous

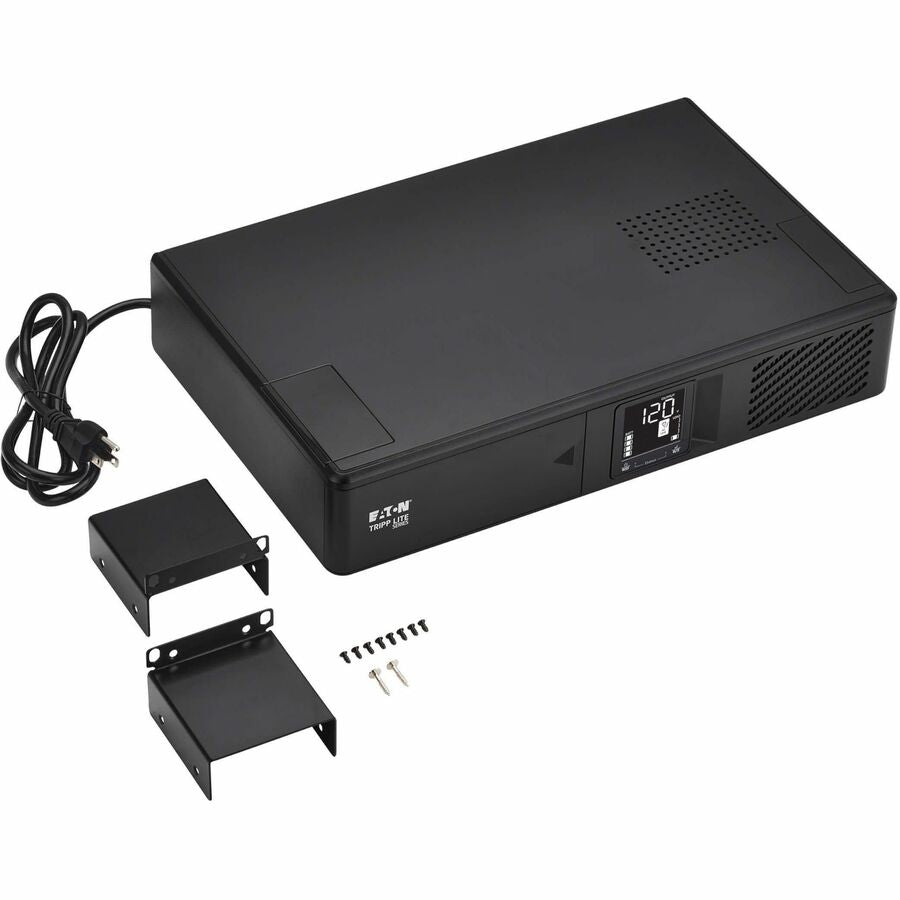

    • Package Contents:
      • SMART1500LCDXNC 1440VA Desktop/Tower/Rack UPS
      • Mounting Hardware
      • Quick Start Guide
    • Country of Origin: Vietnam
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 3 Year
