Home » Tripp Lite by Eaton UPS 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets 120V 50/60 Hz 5-15P Plug ENERGY STAR Desktop/Wall - ECO550UPS
Tripp Lite by Eaton UPS 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets 120V 50/60 Hz 5-15P Plug ENERGY STAR Desktop/Wall - ECO550UPS
Tripp Lite by Eaton UPS 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets 120V 50/60 Hz 5-15P Plug ENERGY STAR Desktop/Wall - ECO550UPS

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Eaton Corporation

Tripp Lite by Eaton UPS 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets 120V 50/60 Hz 5-15P Plug ENERGY STAR Desktop/Wall - ECO550UPS

547 in stock
SKU: 2302947
$249.21
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Manufacturer Brochure
Click here for User Manual
Click here for Video

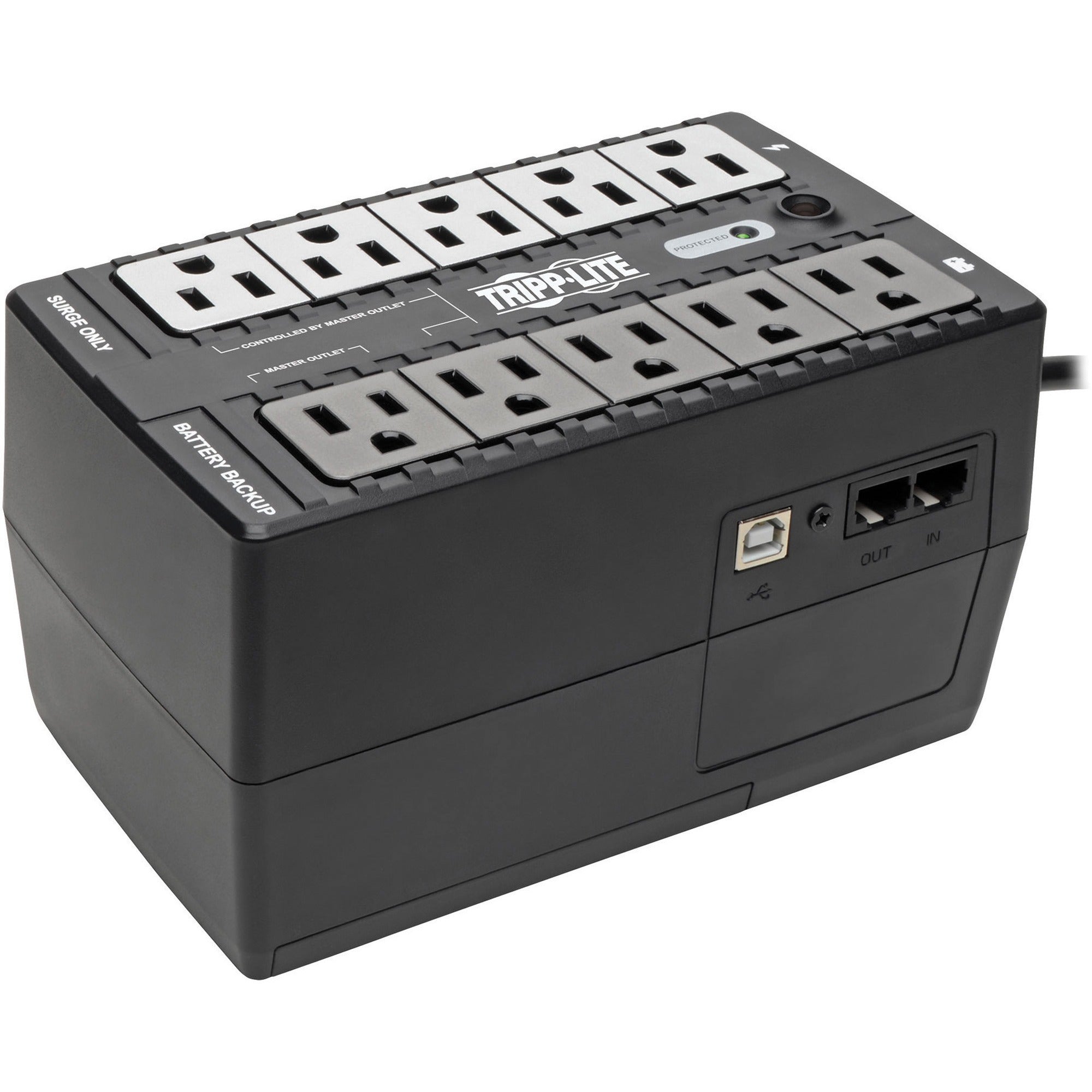

Tripp Lite by Eaton UPS 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets 120V 50/60 Hz 5-15P Plug ENERGY STAR Desktop/Wall

  • UPC: 037332211064
    • General Information
    • Manufacturer: Eaton Corporation
    • Manufacturer Part Number: ECO550UPS
    • Manufacturer Website Address: http://www.eaton.com
    • Brand Name: Tripp Lite series
    • Product Series: ECO
    • Product Model: ECO550UPS
    • Product Name: ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS
    • Packaged Quantity: 1 Each
    • Product Type: Standby UPS
    Technical Information
    • Plug/Connector Type: NEMA 5-15P
    • Receptacle Type: NEMA 5-15R
    • Receptacle Detail: 10 x NEMA 5-15R
    • Number of Surge-only Outlets: 5
    • Dataline Protection: RJ-11
    • Overload Protection: Yes
    • Cord Length: 6 ft
    • Transfer Time: 6 ms
    • Phase: Single Phase
    • Application/Usage:
      • Retail
      • Hospital
      • Computer Peripheral
    Power Description
    • Load Capacity (VA): 550 VA
    • Load Capacity (Watt): 300 W
    • Input Voltage: 120 V AC
    • Output Voltage:
      • 110 V AC
      • 115 V AC
      • 120 V AC
    • Output Frequency: 60 Hz
    • Waveform Type: Pure Sine Wave
    • Surge Energy Rating: 316 J
    Management
    • Alarm:
      • Battery Fault
      • Overload
      • Low Battery
    Controls/Indicators
    • Status Indicators:

      2 LED Indicator:

      • Line power
      • Battery power status

      Main Power Switch Controls :

      • ON
      • OFF
      • SELF-TEST
      • ALARM CANCEL
      • Second switch enables "ECO" outlet switching
    Interfaces/Ports
    • USB: Yes
    • USB (HID Compliant) Port: Yes
    Battery Information
    • DC System Voltage: 12 V DC
    • Battery Characteristics: Valve-regulated
    • Battery Chemistry: Lead Acid
    • Backup/Run Time (Full Load): 1.20 Minute
    • Backup/Run Time (Half Load): 5 Minute
    • Battery Life: 6 Year
    • Typical Battery Recharge Time: 6.50 Hour
    • Replaceable Battery: Yes
    Environmental Conditions
    • Maximum Storage Elevation: 6561 ft
    • Storage Temperature: 5°F (-15°C) - 133°F (56.1°C)
    • Minimum Operating Temperature: 32°F (0°C)
    • Maximum Operating Temperature: 104°F (40°C)
    • Sound Emission: 40 dB
    • Thermal Dissipation: 1.17 W
    Physical Characteristics
    • Product Color: Black
    • Height: 4.1"
    • Width: 4.3"
    • Depth: 7.3"
    • Form Factor: Ultra-compact Desktop/Tower/Wall Mount
    • Weight (Approximate): 5.20 lb
    Miscellaneous
    • Package Contents:
    • ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS
    • USB Cable
    • Owner's Manual
    • Software Included: PowerAlert software available via free download
    • Energy Star: Yes
    • Country of Origin: China
    • Environmentally Friendly: Yes
    • Energy Efficiency Certification: ENERGY STAR 2.0
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 3 Year
    • Additional Warranty Information:

      • 2 year

      • 100,000 connected equipment guarantee
