Home » TP Link Omada ES228GMP - Omada 28-Port Gigabit Easy Managed Switch with 24-Port - ES228GMP

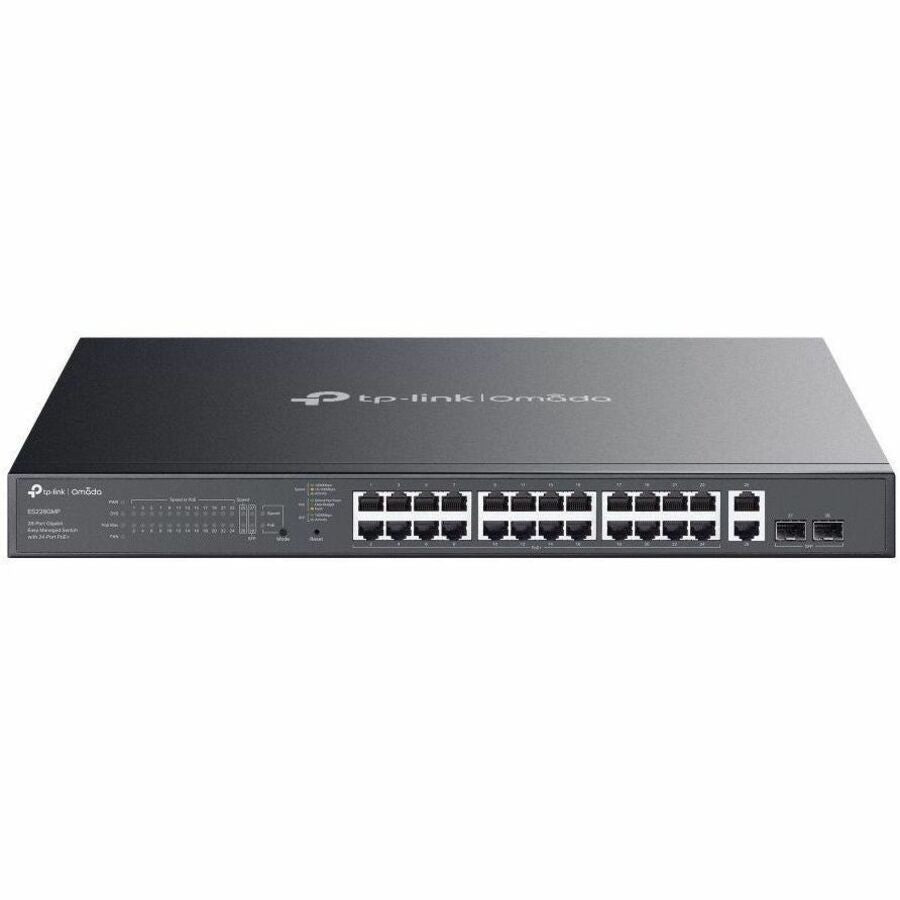

TP Link Omada ES228GMP - Omada 28-Port Gigabit Easy Managed Switch with 24-Port - ES228GMP
TP Link Omada ES228GMP - Omada 28-Port Gigabit Easy Managed Switch with 24-Port - ES228GMP

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

TP-LINK Technologies Co., Ltd

TP Link Omada ES228GMP - Omada 28-Port Gigabit Easy Managed Switch with 24-Port - ES228GMP

87 in stock
SKU: 14862538
$388.82
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3

TP Link Omada ES228GMP - Omada 28-Port Gigabit Easy Managed Switch with 24-Port

  • UPC: 840460600460
    • General Information
    • Manufacturer: TP-LINK Technologies Co., Ltd
    • Manufacturer Part Number: ES228GMP
    • Manufacturer Website Address: http://www.tp-link.com/us
    • Brand Name: Omada
    • Product Model: ES228GMP
    • Product Name: 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
    • Packaged Quantity: 1
    • Product Type: Ethernet Switch
    Technical Information
    • Features:
      • Fanless
      • Plug and Play
      • Remote/Cloud Management
      • Zero-Touch Provisioning (ZTP)
      • Intelligent monitoring
      • Loop Protection
      • VLAN Segmentation
      • Surge Protection
      • Broadcast Storm Control
      • Multicast Storm Control
      • Unicast Storm Control
      • Loopback Detection
    Interfaces/Ports
    • Total Number of Network Ports: 26
    • Network (RJ-45): Yes
    • Port/Expansion Slot Details:
      • 24 x Gigabit Ethernet PoE+
      • 2 x Gigabit Ethernet Network
      • 2 x Gigabit Ethernet Expansion Slot
    Media & Performance
    • Media Type Supported:
      • Twisted Pair
      • Optical Fiber
    • Ethernet Technology: Gigabit Ethernet
    • Network Technology:
      • 10/100/1000Base-T
      • 1000Base-X
    • Maximum Data Transfer Rate: 128 MB/s
    I/O Expansions
    • Total Number of Expansion Slots: 2
    • Expansion Slot Type: SFP (mini-GBIC)
    • Number of SFP Slots: 2
    Network & Communication
    • Layer Supported: 2
    • Networking Standards:
      • IEEE 802.3i
      • IEEE 802.3u
      • IEEE 802.3ab
      • IEEE 802.3x
      • IEEE 802.1p
      • IEEE 802.1Q
      • IEEE 802.1ab
      • IEEE 802.3af
      • IEEE 802.3at
    Management & Protocols
    • Manageable: Yes
    • Switch Management Type: Easy Managed
    Power Description
    • PoE (RJ-45) Port: Yes
    • PoE Budget: 384 W
    • Input Voltage:
      • 120 V AC
      • 230 V AC
    • Power Source: Power Supply
    • Power Consumption: 454.80 W
    Physical Characteristics
    • Product Material:
      • Metal
      • Steel
    • Compatible Rack Unit: 1U
    • Form Factor:
      • Desktop
      • Rack-mountable
    • Height: 1.7"
    • Width: 17.3"
    • Depth: 13"
    Miscellaneous
    • Package Contents:
      • 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
      • Power Cord
      • Mounting Brackets
      • Rubber Feet
      • Screws
      • Installation Guide
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
