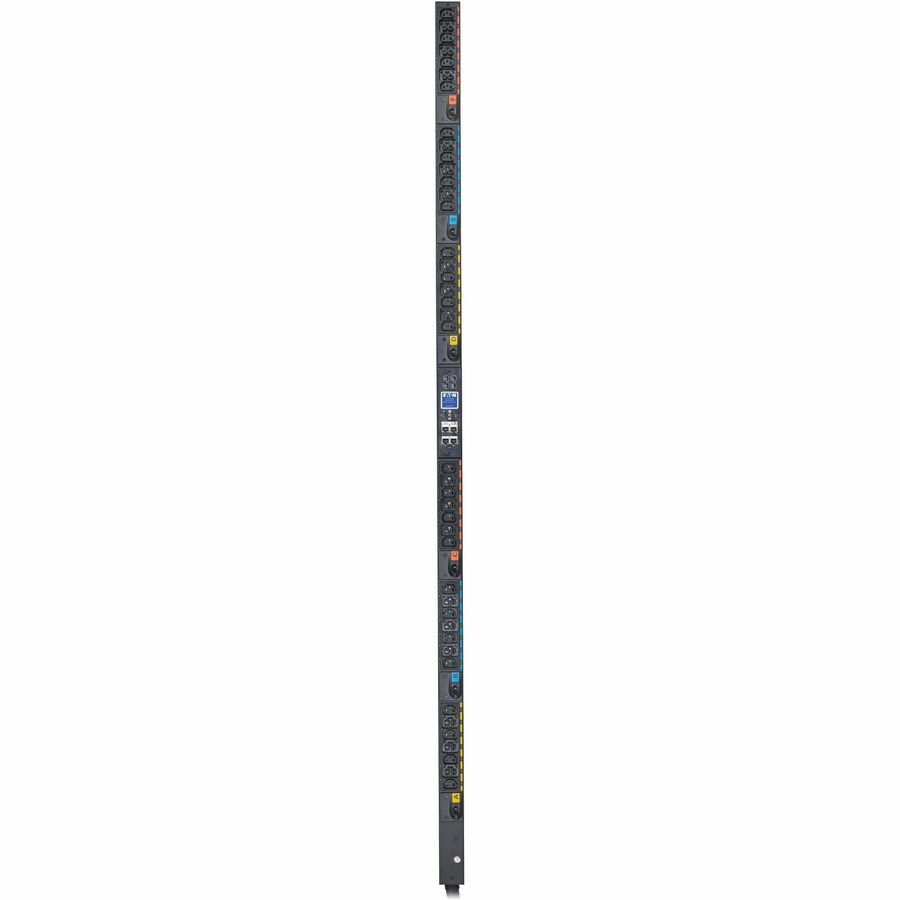

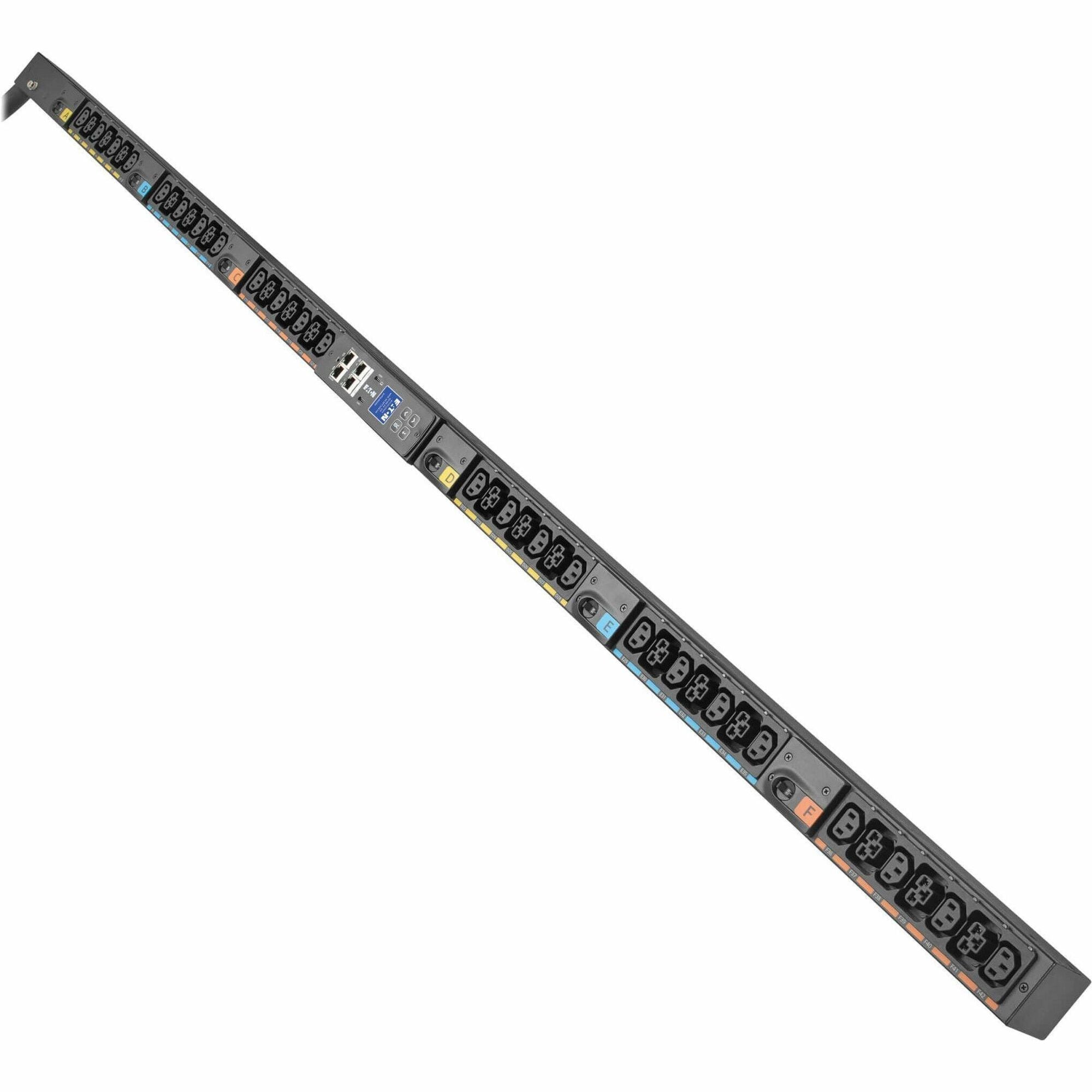

Eaton 3-Phase Metered Input Rack PDU G4, 208V, 42 Outlets, 48A, 17.3kW, 460P9W Input, 10 ft. Cord, 0U Vertical - EVMI4609X
Eaton 3-Phase Metered Input Rack PDU G4, 208V, 42 Outlets, 48A, 17.3kW, 460P9W Input, 10 ft. Cord, 0U Vertical - EVMI4609X

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Eaton Corporation

Eaton 3-Phase Metered Input Rack PDU G4, 208V, 42 Outlets, 48A, 17.3kW, 460P9W Input, 10 ft. Cord, 0U Vertical - EVMI4609X

691 in stock
SKU: 9061409
$4,827.57
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Manufacturer Brochure
Click here for User Manual

Eaton 3-Phase Metered Input Rack PDU G4, 208V, 42 Outlets, 48A, 17.3kW, 460P9W Input, 10 ft. Cord, 0U Vertical

  • UPC : N/A
    • General Information
    • Manufacturer: Eaton Corporation
    • Manufacturer Part Number: EVMI4609X
    • Manufacturer Website Address: http://www.eaton.com
    • Brand Name: Eaton
    • Product Series: G4
    • Product Model: EVMI4609X
    • Product Name: G4 EVMI4609X 42-Outlets PDU
    • Product Type: PDU
    Technical Information
    • PDU Type: Metered
    • Phase: Three Phase

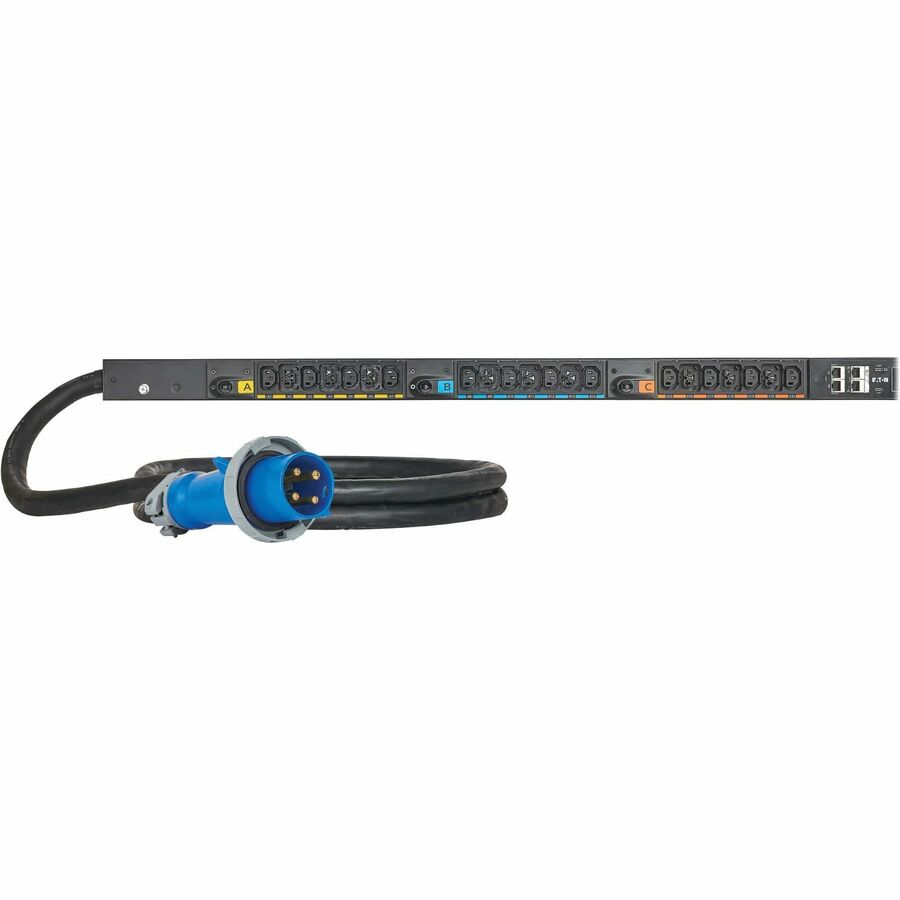

    • Plug/Connector Type: 460P9W

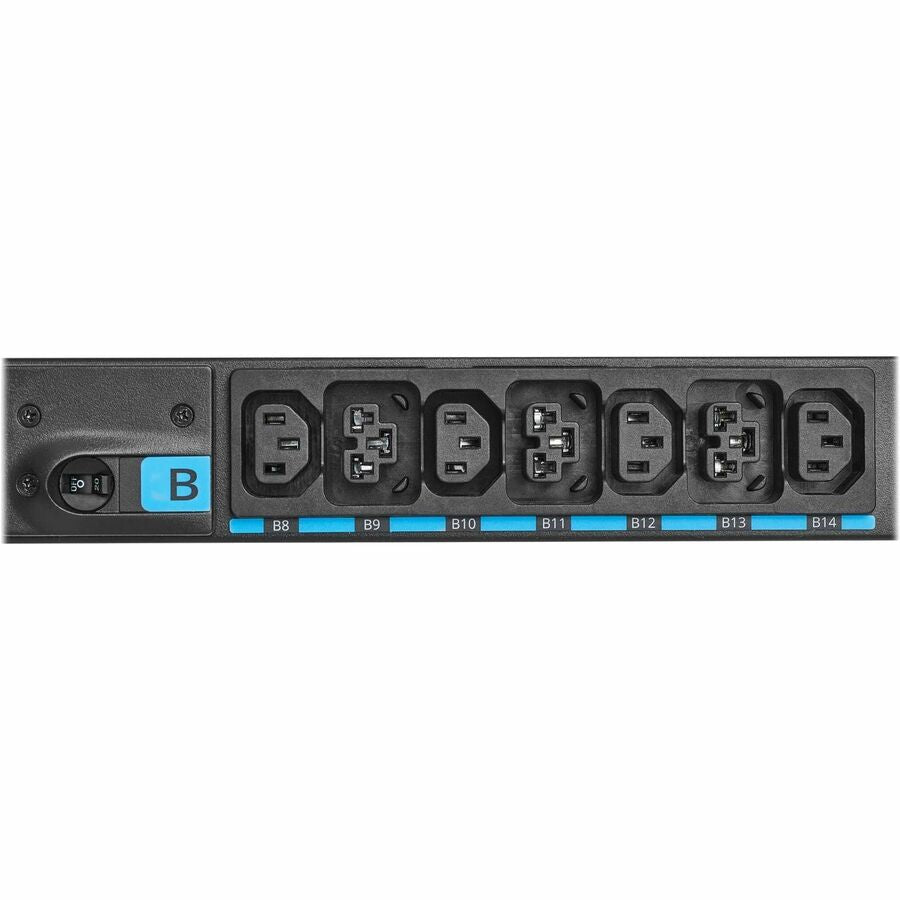

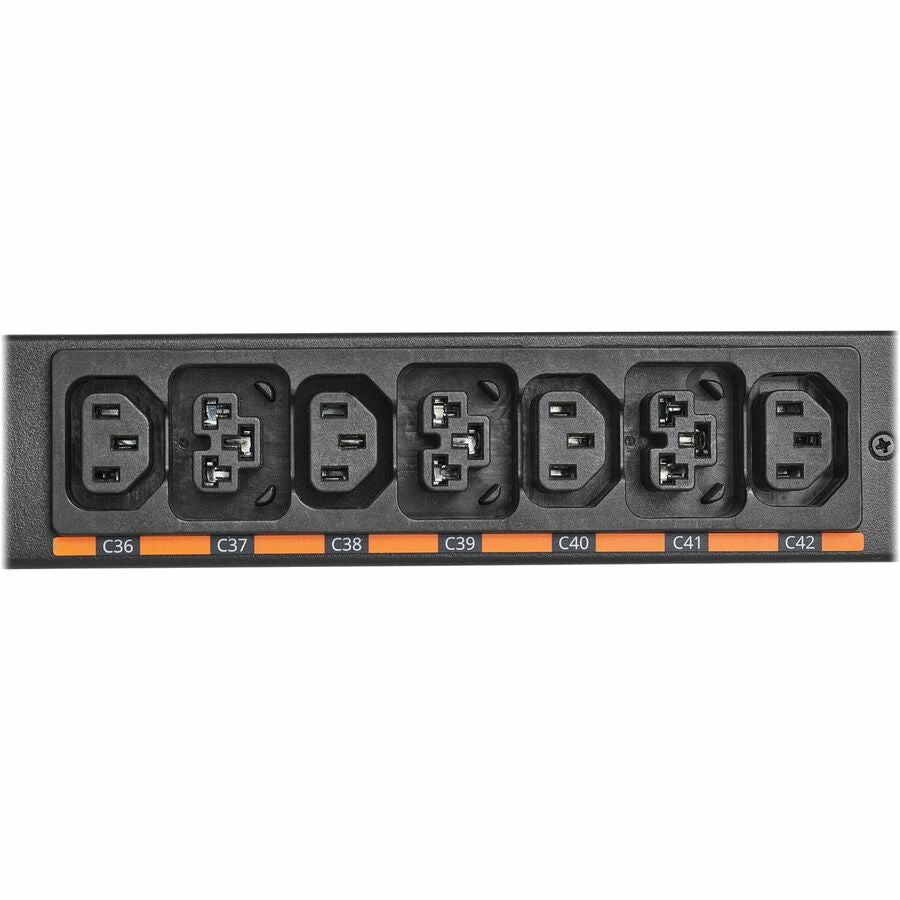

    • Receptacle Type:
      • IEC 60320 C13
      • IEC 60320 C39

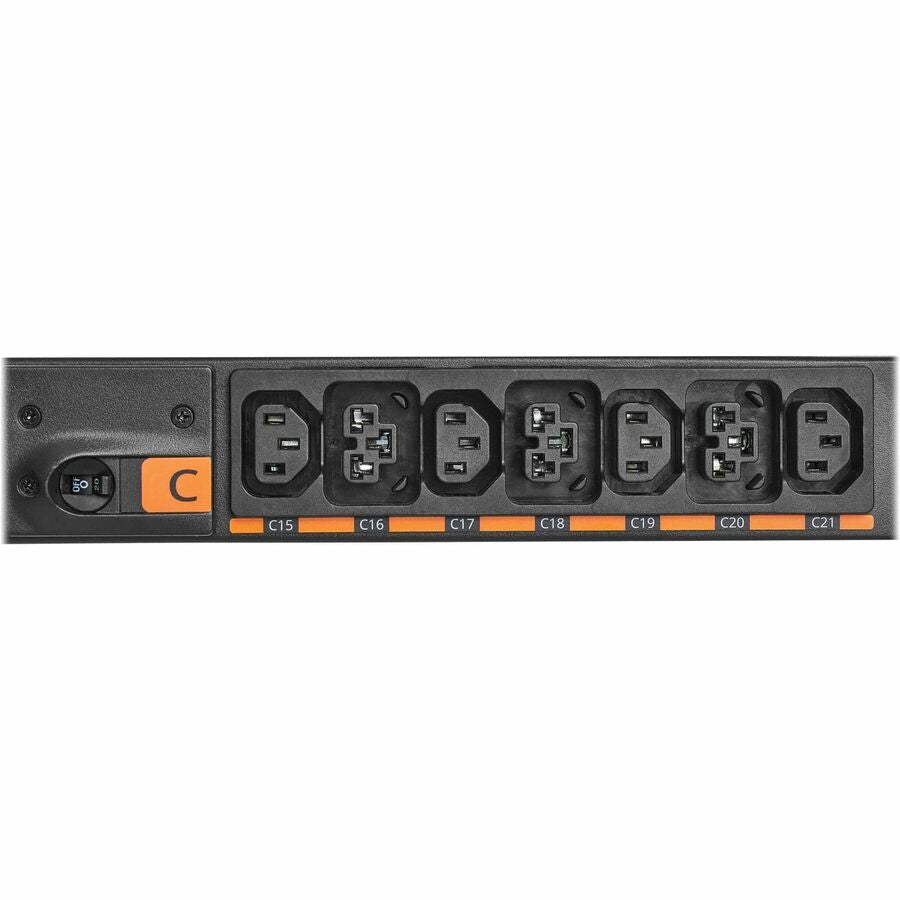

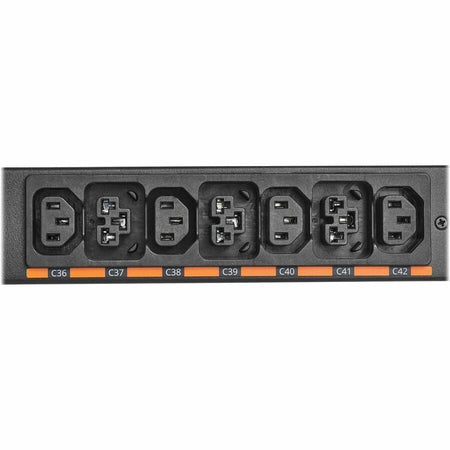

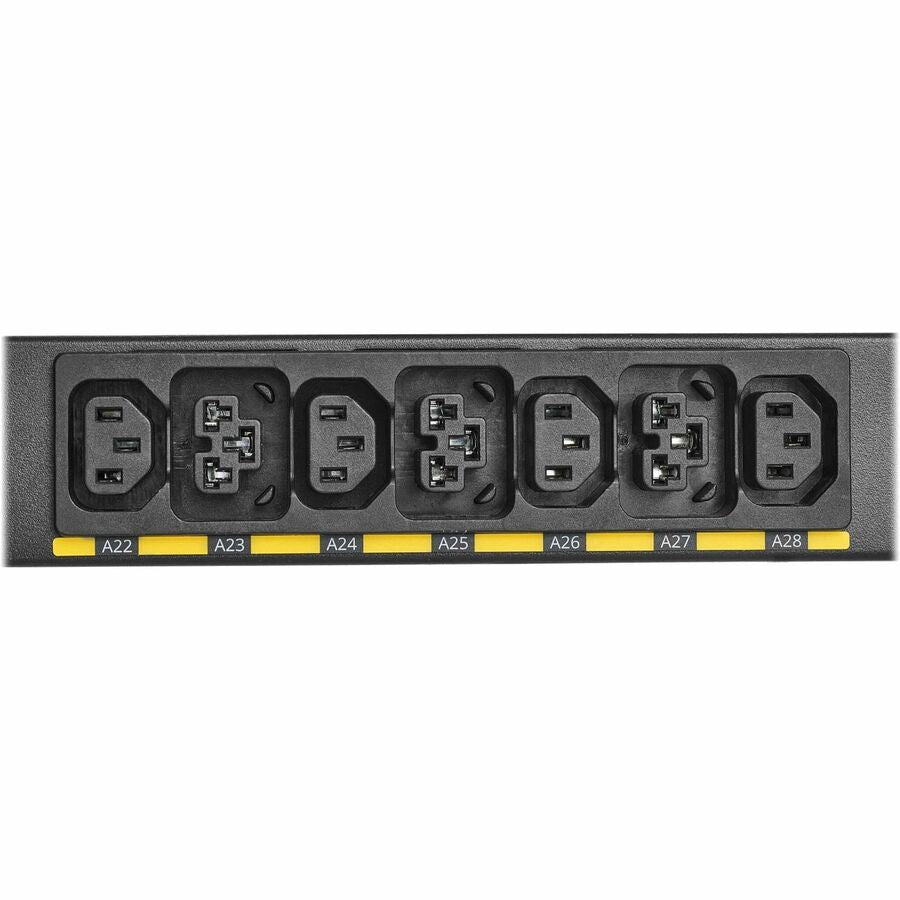

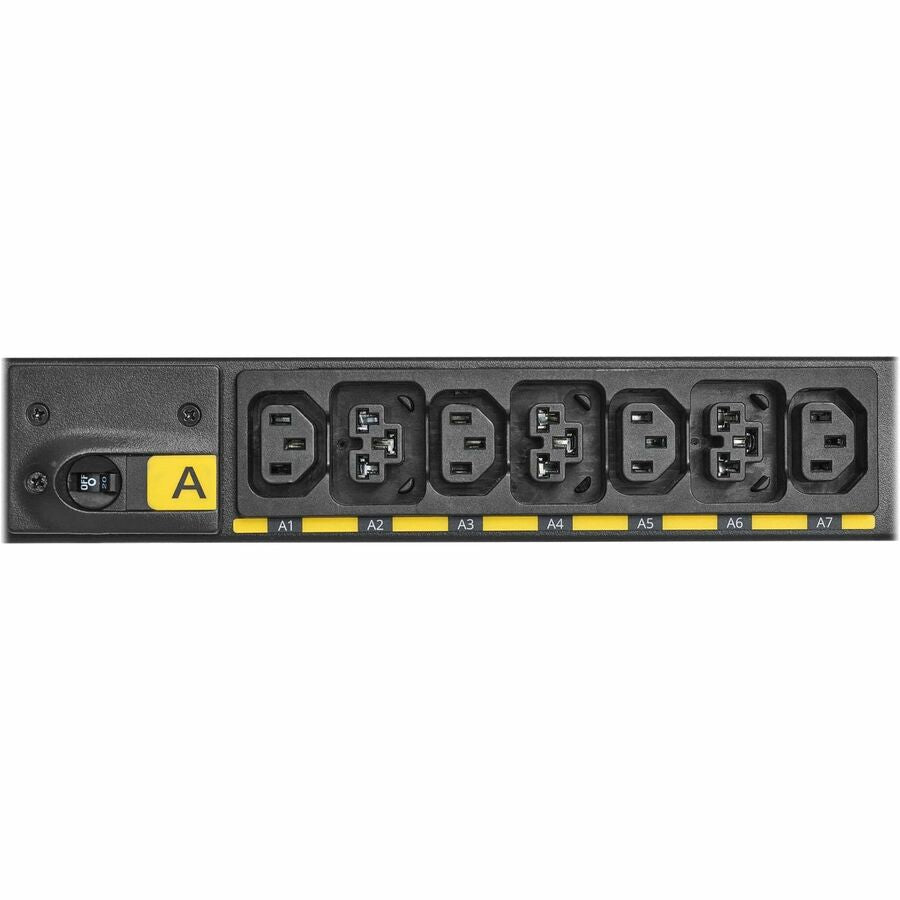

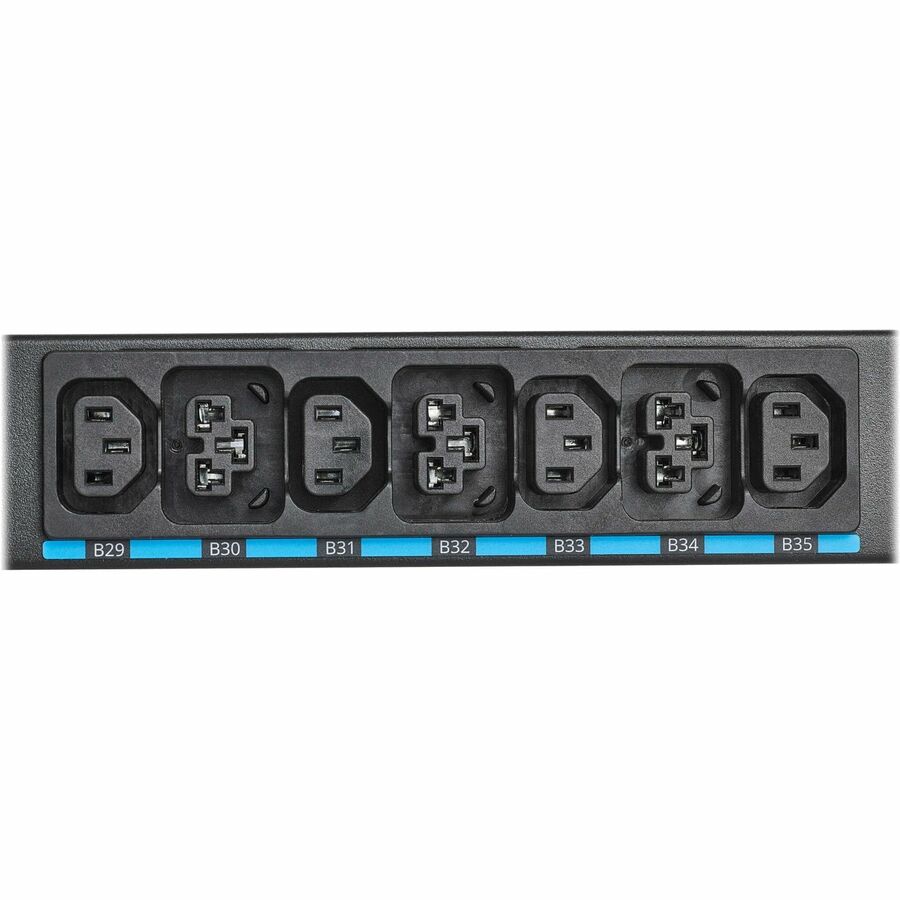

    • Receptacle Detail:
      • 24 x IEC 60320 C13
      • 18 x IEC 60320 C39

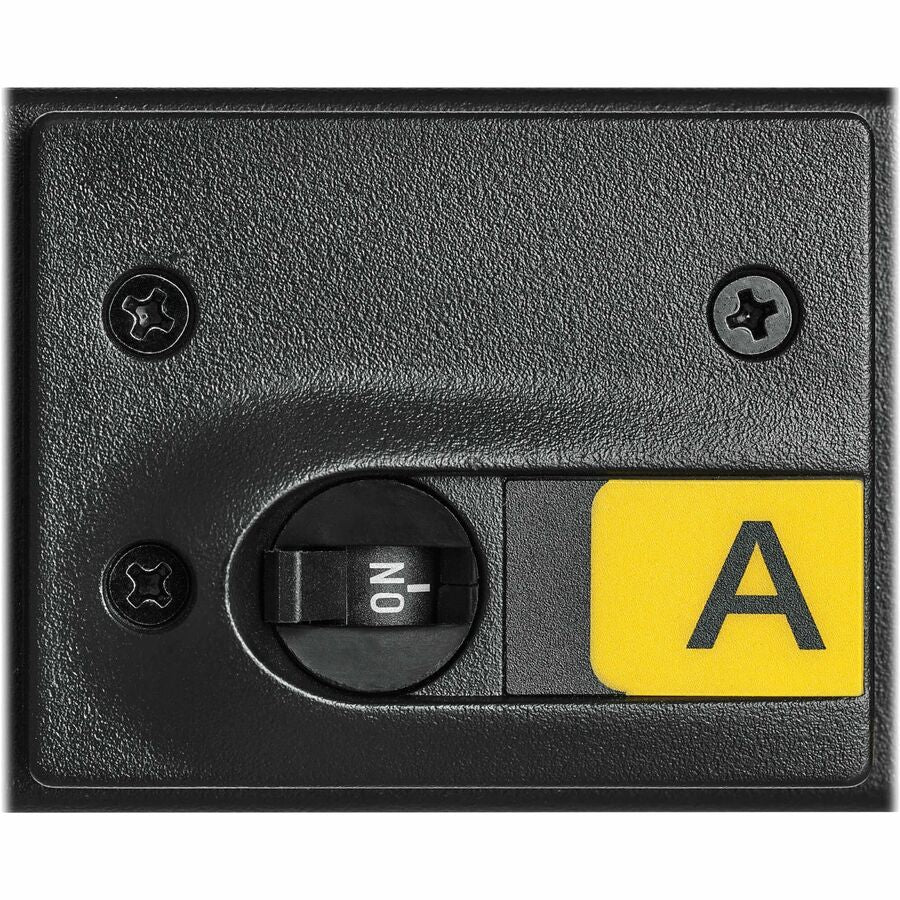

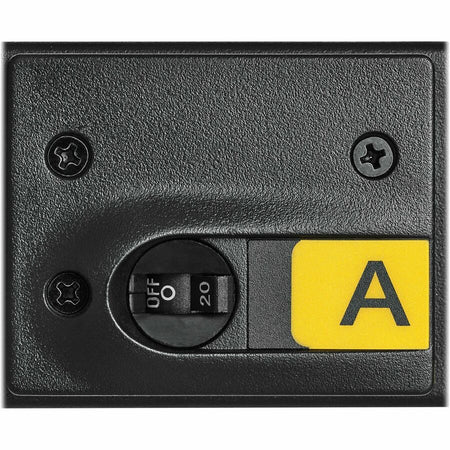

    • Protection Type: Circuit Breaker

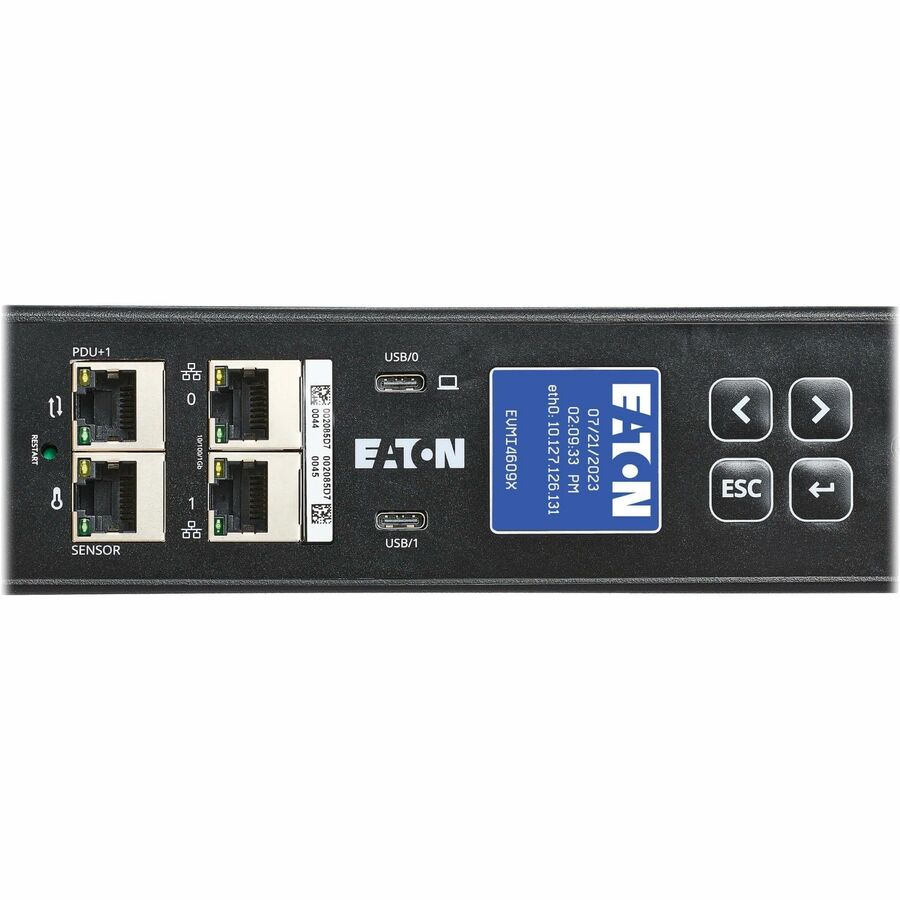

    • Features: LCD Display
    Power Description
    • Input Voltage: 230 V AC
    • Output Voltage: 208 V AC
    • Power Rating (VA): 17.30 kVA
    • Power Rating (Watt): 17.30 kW
    • Input Current: 60 A
    Management
    • Management:
      • SNMP
      • Network Management Card
    Interfaces/Ports
    • Network (RJ-45): Yes
    Physical Characteristics
    • Product Color: Black
    • Mounting Orientation: Vertical/Toolless
    • Mount Type:
      • Rack-mountable
      • Button Mount
    • Form Factor: Vertical
    • Rack Height: 0U
    • Cord Length: 10 ft
    • Height: 72"
    • Width: 2.6"
    • Depth: 2.1"
    • Weight (Approximate): 25.35 lb
    Environmental Conditions
    • Minimum Operating Temperature: 32°F (0°C)
    • Maximum Operating Temperature: 140°F (60°C)
    Miscellaneous
    • Package Contents:
      • G4 EVMI4609X 42-Outlets PDU
      • Mounting Buttons
    • Application/Usage:
      • Data Center
      • IT Equipment
    • Environmentally Friendly: Yes
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 3 Year
