Datalogic GRYPHON GD4520 Barcode Scanner Kit - GD4520-BKK1-HD
Regular price
$450.58
Regular price
-13%
$515.00
Sale price
$450.58
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Pickup currently unavailable at Chantilly, VA
Click here for Manufacturer Brochure
Click here for Video
UPC : N/A
General Information
Click here for Video

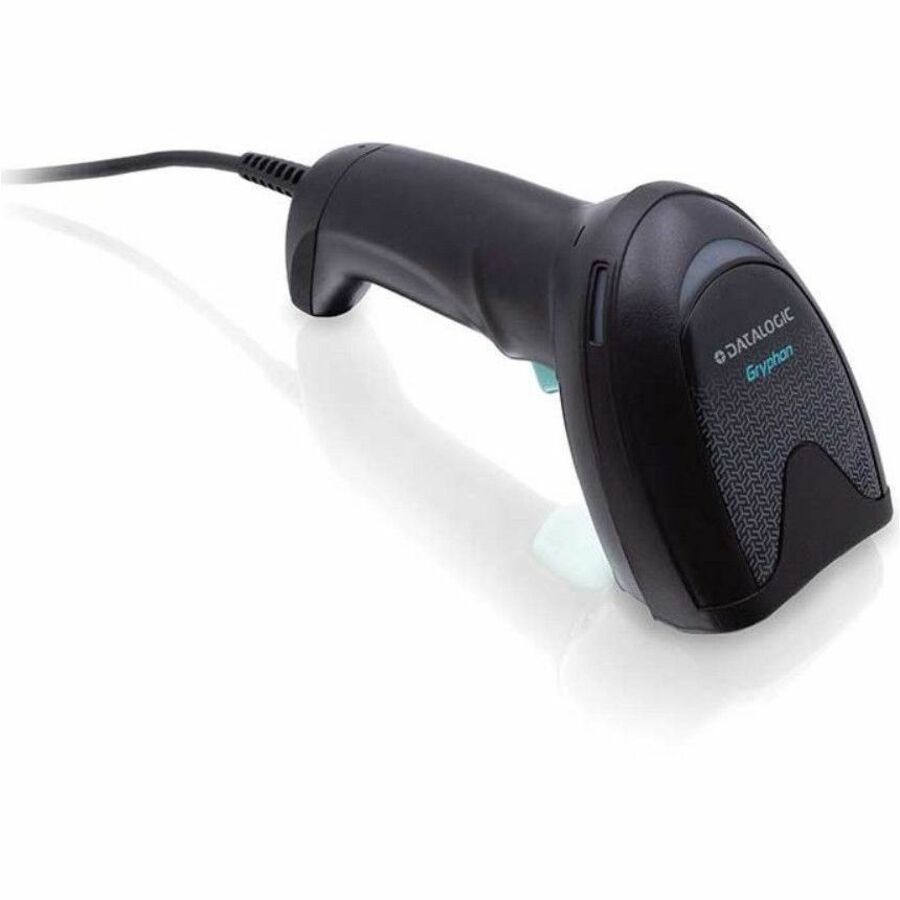

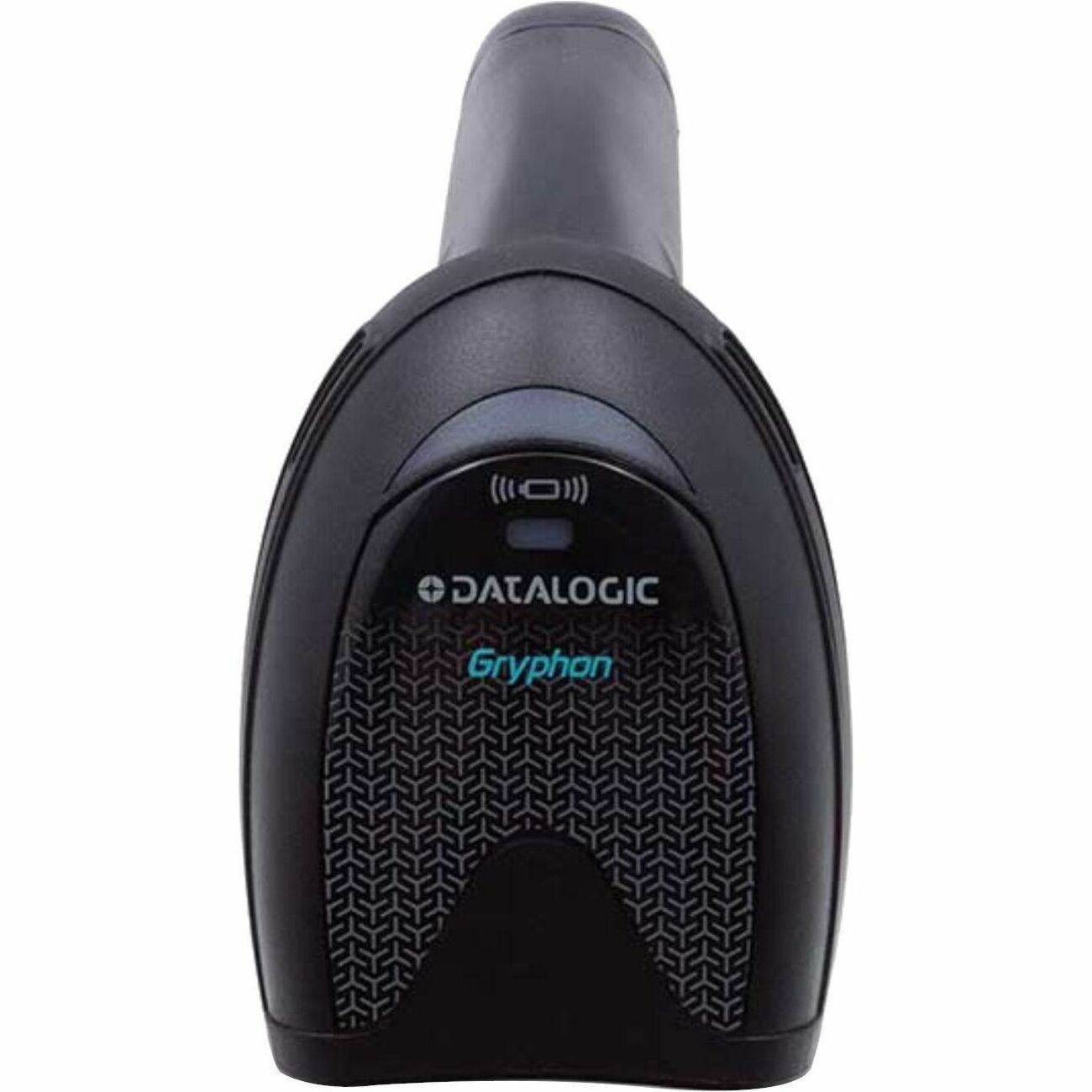

Datalogic GRYPHON GD4520 Barcode Scanner Kit
- Manufacturer: Datalogic S.p.A
- Manufacturer Part Number: GD4520BKK1HD
- Manufacturer Website Address: http://www.datalogic.com
- Brand Name: Datalogic
- Product Line: Gryphon
- Product Series: GD4500
- Product Model: GD4520
- Product Name: GRYPHON GD4520 Barcode Scanner Kit
- Product Type: Barcode Scanner Kit
- Connectivity Technology: Cable
- Scanning Capability:
- 1D
- 2D
- Barcode Symbology Supported:
1D CODES:
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
2D CODES:
- Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
POSTAL CODES:
- Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
STACKED CODES:
- EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
DIGITAL WATERMARKING:
- Digimarc Barcodes
- Light Source: Laser
- Image Sensor Type: Imager
- Scan Pattern: Area
- Scanner Range: Short Range
- Cable Type Included: USB
- Stand Included: Yes
- Reading Angle (Skew): 65°
- Reading Angle (Pitch): 65°
- Reading Angle (Roll): 360°
- Motion Tolerance: 35 in/s
- Image Formats:
- BMP
- TIFF
- JPEG
- Maximum Ambient Light: 100000 lux
- Drop Specification:
Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
- Minimum Print Contrast: 15%
- Image Sensor Resolution: 1280 x 800
- Illumination Type: LED
- Illumination Color: Red
- Air Electrostatic Discharge (+/-): 16kV
- Features:
- Notification LED
- Beep
- 3GL
- Host Interface: USB
- Operating Temperature: 32°F (0°C) to 122°F (50°C)
- Storage Temperature: -40°F (-40°C) to 158°F (70°C)
- Humidity (Non-condensing): 0% to 95%
- Form Factor: Handheld
- Color Family: Black
- Product Color: Black
- Weight (Approximate): 5.68 oz
- Ingress Protection (IP) Rating: IP52
- Application/Usage:
- Retail
- Healthcare
- Manufacturing
- Pharmacy
- Transportation
- Entertainment
- Commercial Service
