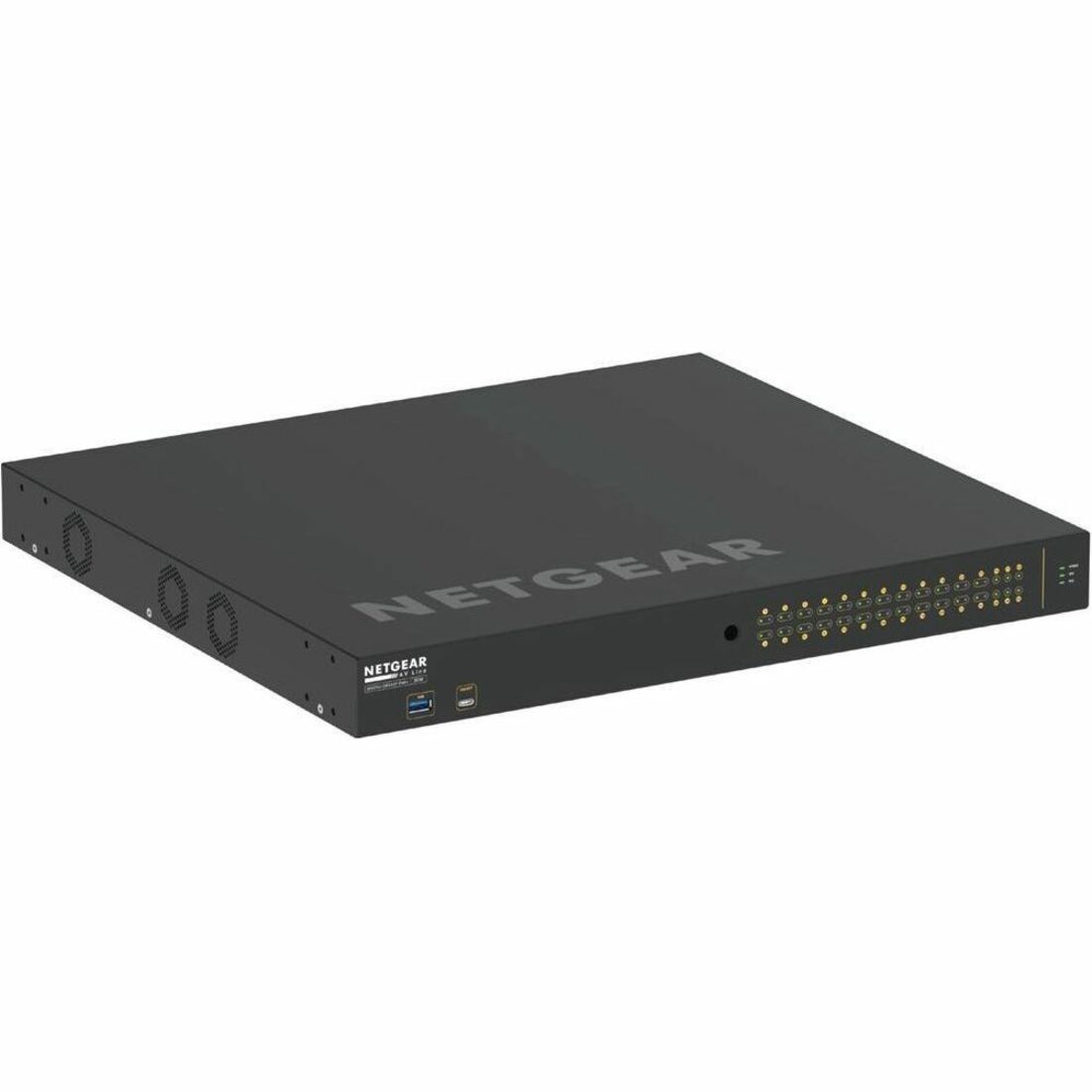

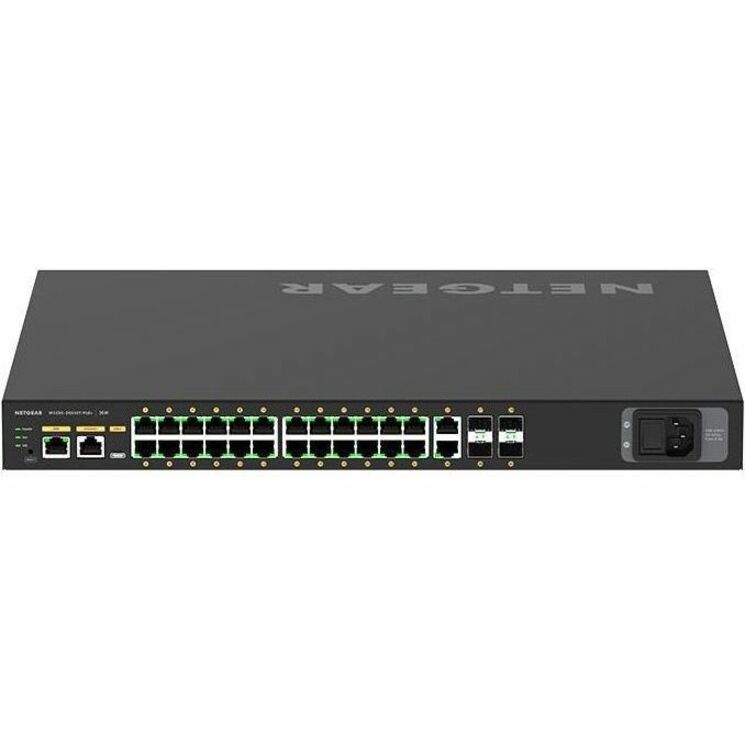

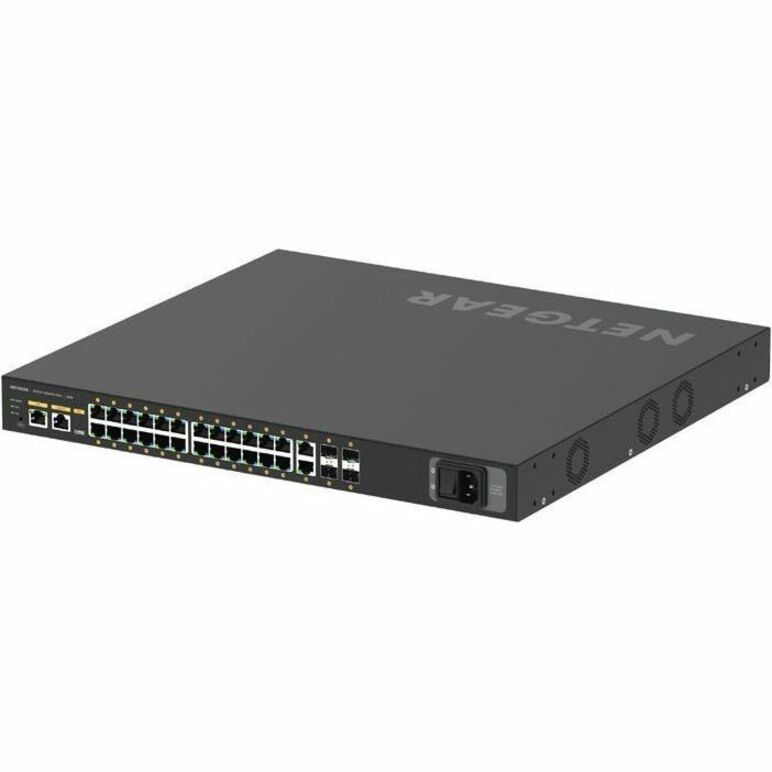

Netgear AV Line M4250-26G4XF-PoE+ 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch - GSM4230PX-TAANAS
Netgear AV Line M4250-26G4XF-PoE+ 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch - GSM4230PX-TAANAS

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Netgear, Inc

Netgear AV Line M4250-26G4XF-PoE+ 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch - GSM4230PX-TAANAS

7 in stock
SKU: 7671278
$2,125.89
-30% $3,041.36 $2,125.89
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3

Netgear AV Line M4250-26G4XF-PoE+ 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch

  • UPC: 606449168754
    • General Information
    • Manufacturer: Netgear, Inc
    • Manufacturer Part Number: GSM4230PXTAANAS
    • Manufacturer Website Address: http://www.netgear.com
    • Brand Name: Netgear
    • Product Line: AV Line
    • Product Series: M4250
    • Product Model: M4250-26G4XF-PoE+
    • Product Name: AV Line M4250-26G4XF-PoE+ 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch
    • Product Type: Ethernet Switch
    Interfaces/Ports
    • Total Number of Network Ports: 24
    • Uplink Port: Yes
    • Modular: Yes
    • Port/Expansion Slot Details:
      • 24 x Gigabit Ethernet PoE+
      • 2 x Gigabit Ethernet Network
      • 4 x 10 Gigabit Ethernet Expansion Slot
    Media & Performance
    • Media Type Supported:
      • Optical Fiber
      • Twisted Pair
    • Ethernet Technology:
      • Gigabit Ethernet
      • 10 Gigabit Ethernet
    • Network Technology:
      • 10/100/1000Base-T
      • 10GBase-X
    I/O Expansions
    • Total Number of Expansion Slots: 4
    • Expansion Slot Type: SFP+
    • Number of SFP+ Slots: 4
    Network & Communication
    • Layer Supported: 3
    • Networking Standards:
      • IEEE 802.3bt
      • IEEE 802.3af
      • IEEE 802.3at
      • IEEE 802.1as
      • IEEE 802.1Qav
      • IEEE 802.1Qat
      • IEEE 802.1ak
      • IEEE 802.3az
      • IEEE 802.3ad
      • IEEE 802.1AX
      • IEEE 802.1s
      • IEEE 802.1w
      • IEEE 802.1p
      • IEEE 802.1Q
      • IEEE 802.1BA
      • IEEE 802.3aq
      • IEEE 802.3x
      • IEEE 802.1x
      • IEEE 802.3
      • IEEE 802.3u
      • IEEE 802.3ab
      • IEEE 802.3bz
      • IEEE 1588v2
      • IEEE 1588
    Management & Protocols
    • Manageable: Yes
    Power Description
    • PoE (RJ-45) Port: Yes
    • PoE Budget: 480 W
    • Power Source: Power Supply
    • Number of Power Supplies Installed: 1
    • Power Consumption: 46.80 W
    • Plug/Connector Type: C14
    Physical Characteristics
    • Compatible Rack Unit: 1U
    • Form Factor:
      • Rack-mountable
      • Table Top
    • Height: 15.7"
    • Width: 17.3"
    • Depth: 1.7"
    • Weight (Approximate): 12.02 lb
    Miscellaneous
    • Package Contents:
      • AV Line M4250-26G4XF-PoE+ 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch
      • Power Cord(s)
      • RJ45 Straight-through Wiring Serial Console Cable to DB9
      • USB Type-C to USB-A 2.0 Console Cable
      • Rubber Caps for the SFP/SFP+ Sockets
      • Rubber Footpads for Tabletop Installation
      • Installation Guide
      • 2 x Regular (Short) Brackets and Screws for Two-post Rack Mount (for Front Posts) Allowing for Mounting with Ports on the Back, or Ports On the Front of the Rack
      • 2 x Longer Brackets for Two-post Rack Mount (for Front Posts) Recessing the Switch by 2 Inches in Order to Make Room for the Cabling
    • Environmentally Friendly: Yes
    • Energy Efficiency Compliance:
      • Energy-related Products Directive (ErP)
      • Energy-using Products Directive (EuP)
    • Environmental Compliance:
      • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
      • Restriction of Hazardous Substances (RoHS)
      • Waste Electrical and Electronic Equipment Directive (WEEE)
    Warranty
    • Limited Warranty: Lifetime
