Home » Black Box USB 2.0 Extender - CATx/LAN, 4-Port - IC408A-R2
Black Box USB 2.0 Extender - CATx/LAN, 4-Port - IC408A-R2
Black Box USB 2.0 Extender - CATx/LAN, 4-Port - IC408A-R2

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Black Box Corporation

Black Box USB 2.0 Extender - CATx/LAN, 4-Port - IC408A-R2

11 in stock
SKU: 5058757
$512.44
-15% $604.75 $512.44
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Additional pdf4

Black Box USB 2.0 Extender - CATx/LAN, 4-Port

  • UPC: 822088125716
    • General Information
    • Manufacturer: Black Box Corporation
    • Manufacturer Part Number: IC408A-R2
    • Manufacturer Website Address: http://www.blackbox.com
    • Brand Name: Black Box
    • Product Name: USB 2.0 Extender - CATx/LAN, 4-Port
    • Product Type: USB Extender
    Technical Information
    • Maximum Extended Range: 328.08 ft
    • Maximum Data Transfer Rate: 60 MB/s
    Interfaces/Ports
    • Network (RJ-45): Yes
    • Number of Network (RJ-45) Ports: 2
    • USB: Yes
    • Number of USB Ports: 5
    Power Description
    • Input Voltage: 240 V AC
    Physical Characteristics
    • Height: 1"
    • Width: 3.9"
    • Depth: 3"
    Miscellaneous
    • Package Contents:
      • Local Extender Unit
      • Remote Extender Unit
      • USB Cable
      • Power Adapter
      • US Power Cord
      • Quick Start Guide
    • Additional Information:
      • Distance Between local and remote units in a direct CATx application and between network switches: 328 ft. (100 m)* maximum
      • Network Operation When used to extend over an Ethernet IP network: Data traffic: Layer 2; Management traffic: Layer 3 (dynamic or static IP assignments)
      • Operating Humidity 20 to 80%, noncondensing
      • Operating Temperature 32 to 122° F (0 to 50°C)
      • Power Input From 100-240 VAC, 50-60 Hz adapter (included)
      • Power Output 24 VDC
      • RoHS Yes
      • Speeds Up to 480 Mbps*
      • Standards FCC (Class B), IC (Class B), CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 8kV Contact, 16kV Air
      • Storage Humidity 10 to 90%, noncondensing

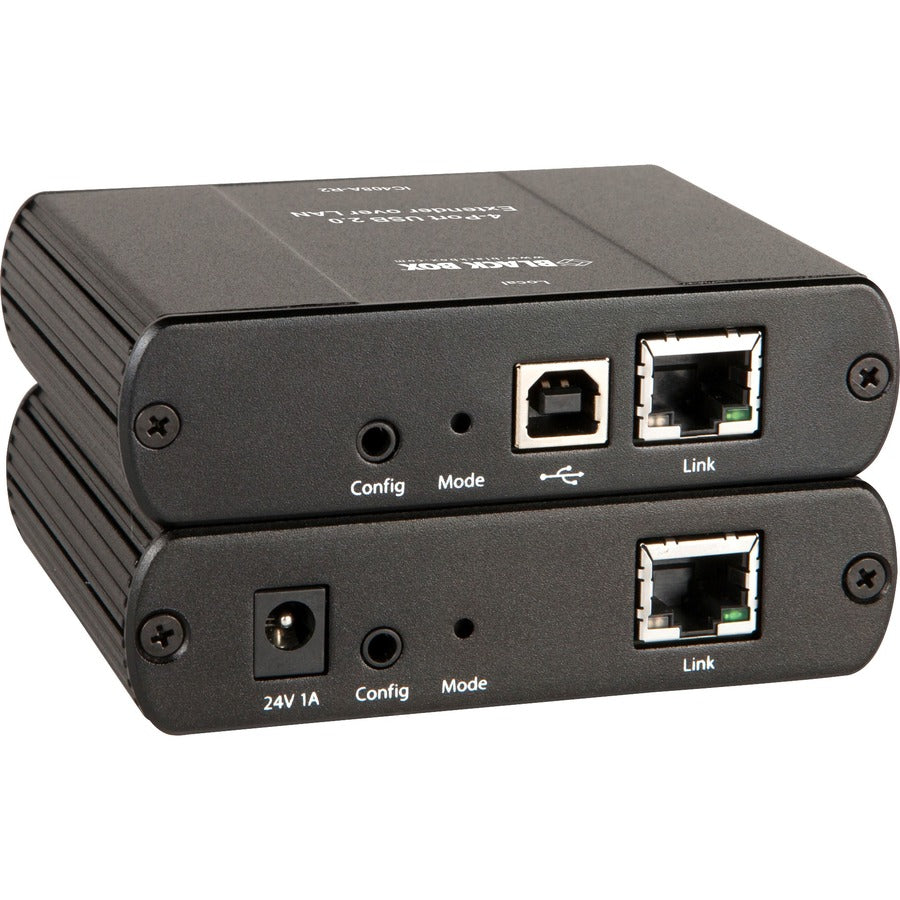

      • Connectors Local unit: USB: (1) USB Type B F; Interconnect: (1) RJ-45; Remote unit: USB: (4) USB Type A F; Interconnect: (1) RJ-45
      • Dimensions 1"H x 3.9"W x 3"D (2.6 x 10 x 7.6 cm)
      • Indicators On each unit: (4) LEDs (Power, Link, Host, Activity)
      • Weight 3.1 lb (1.4 kg)
    • Certifications & Standards: CE
    • Country of Origin: China
    • Environmentally Friendly: Yes
    Warranty
    • Limited Warranty: 2 Year
