TP Link VIGI INSIGHT S655I - VIGI 5MP IR Fisheye Network Camera - InSight S655I
TP Link VIGI INSIGHT S655I - VIGI 5MP IR Fisheye Network Camera - InSight S655I

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

TP-LINK Technologies Co., Ltd

TP Link VIGI INSIGHT S655I - VIGI 5MP IR Fisheye Network Camera - InSight S655I

1 in stock
SKU: 14862552
$485.98
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for User Manual
Click here for Video

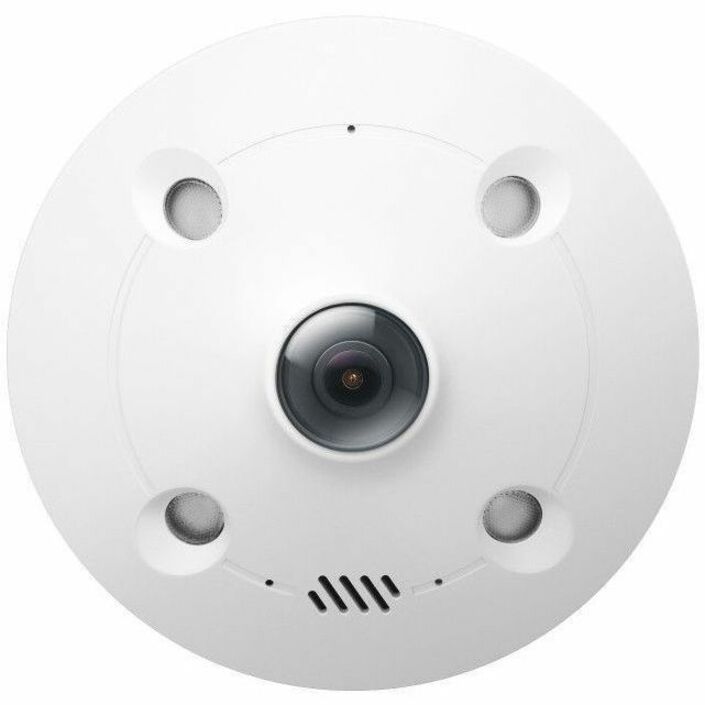

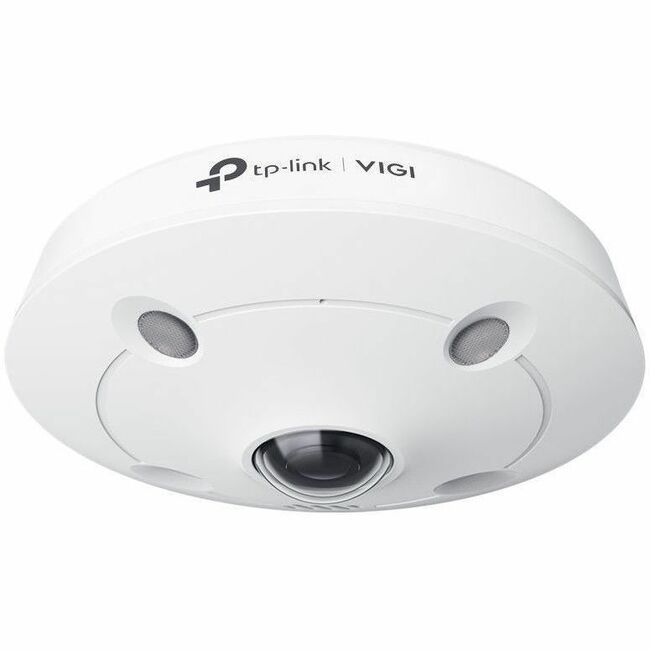

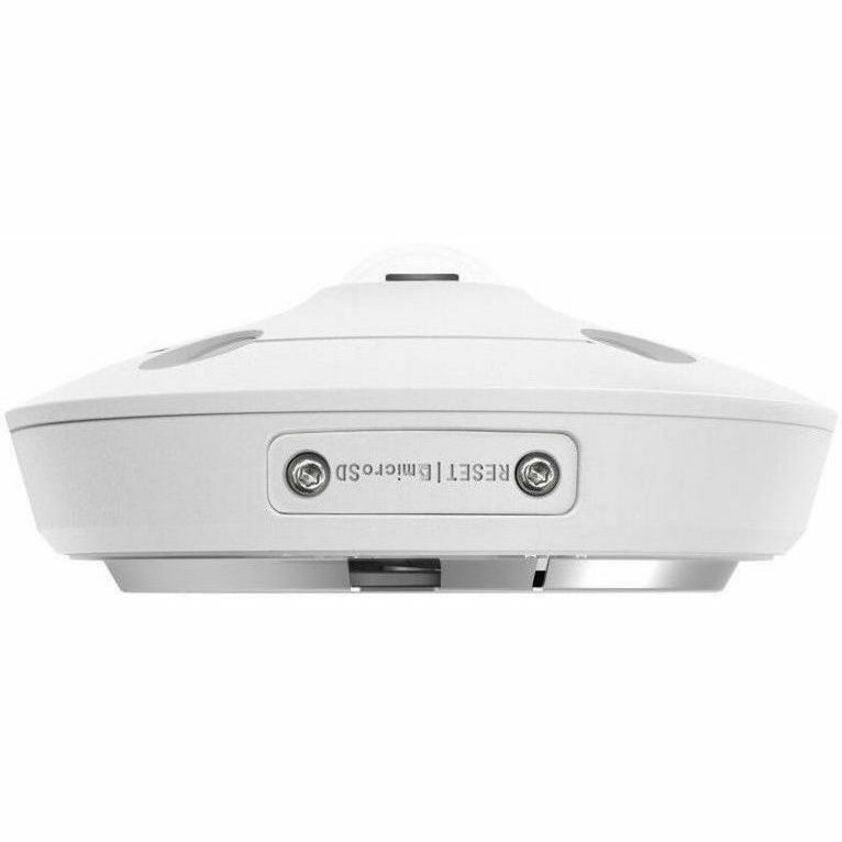

TP Link VIGI INSIGHT S655I - VIGI 5MP IR Fisheye Network Camera

  • UPC: 810142823807
    • General Information
    • Manufacturer: TP-LINK Technologies Co., Ltd
    • Manufacturer Part Number: InSight S655I
    • Manufacturer Website Address: http://www.tp-link.com/us
    • Brand Name: VIGI
    • Product Line: InSight
    • Product Model: S655I
    • Product Name: 5MP IR Fisheye Network Camera
    • Product Type: Network Camera
    Technical Information
    • HD Recording: Yes
    • Night Vision: Yes
    • Night Vision Distance: 32.81 ft
    • Night Vision Type: Infrared
    • Number of IR LEDs: 4
    • Wide Dynamic Range Detail: 120 dB
    • Infrared (IR) Cut-off Filter: Yes
    Display & Graphics
    • Image Sensor Type: CMOS
    • Image Sensor Size: 1/2.7"
    • Color Supported: Color
    • Field of View: Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180° ? Vertical FOV: 86° ? Diagonal FOV: 180°
    • Effective Camera Resolution: 5 Megapixel
    Video
    • Video Formats:
      • H.265+
      • H.265
      • H.264
      • H.264+
      • H.264H
      • H.265M
    • Maximum Video Resolution: 2560 x 1920
    • Maximum Frame Rate: 30 fps
    Audio
    • Audio Support: Yes
    Lens
    • Lens Type: Fixed
    • Maximum Focal Length: 1.44 mm
    • Lens Included: Yes
    • Lens Mount Type: M12-mount
    • Maximum Aperture: f/2.0
    Exposure
    • Shortest Shutter Speed: 1/10000 Second
    • Longest Shutter Speed: 1/3 Second
    Network & Communication
    • Connectivity Technology: Wired
    • Remote Management: Yes
    • Ethernet Technology: Fast Ethernet
    • Protocols:
      • TCP/IP
      • UDP
      • ICMP
      • HTTP
      • HTTPS
      • DHCP
      • DNS
      • RTSP
      • NTP
      • UPnP
      • SSL/TLS
      • FTP
      • SFTP
      • RTP
      • IPv4
      • IPv6
      • ARP
      • ONVIF
      • API
    Storage
    • Storage Type: Memory Card
    Interfaces/Ports
    • Network (RJ-45): Yes
    Power Description
    • Maximum Power Consumption: 12.14 W
    • Input Voltage: 12 V DC
    • Power Source Type:
      • DC
      • PoE
    Physical Characteristics
    • Product Material: Metal
    • Mount Type:
      • Ceiling Mount
      • Wall Mount
      • Pendant Mount
    • Form Factor: Fisheye
    • Durability:
      • Water Proof
      • Weather Proof
      • Vandal Proof
    • Height: 2.2"
    • Width: 5.2"
    • Length: 5.2"
    • Weight (Approximate): 15.52 oz
    Environmental Conditions
    • Minimum Operating Temperature: -22°F (-30°C)
    • Maximum Operating Temperature: 140°F (60°C)
    • Minimum Storage Temperature: -40°F (-40°C)
    • Maximum Storage Temperature: 140°F (60°C)
    • Maximum Operating Humidity (Non-condensing): 95%
    • Maximum Storage Humidity (Non-condensing): 95%
    Miscellaneous
    • Features:
      • Alarm Triggering
      • Vehicle Detection
      • Human Detection
      • Wide Dynamic Range
      • 3D Digital Noise Reduction
      • Noise Reduction
      • White Balance
      • Built-in Microphone
      • Day/Night
      • Mirror
    • Indoor/Outdoor: Indoor
    • Package Contents:
      • VIGI Network Camera
      • Quick Start Guide
      • Waterproof Cable Attachments
      • Mounting Accessories
    • Impact Protection Rating: IK10
    • Ingress Protection Rating: IP67
