MSI MEG 1600W Power Supply - MEGAI1600TPCIE5
Regular price
$782.74
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Additional pdf1
Click here for Additional pdf2
UPC: 824142374818
General Information
Click here for Additional pdf2

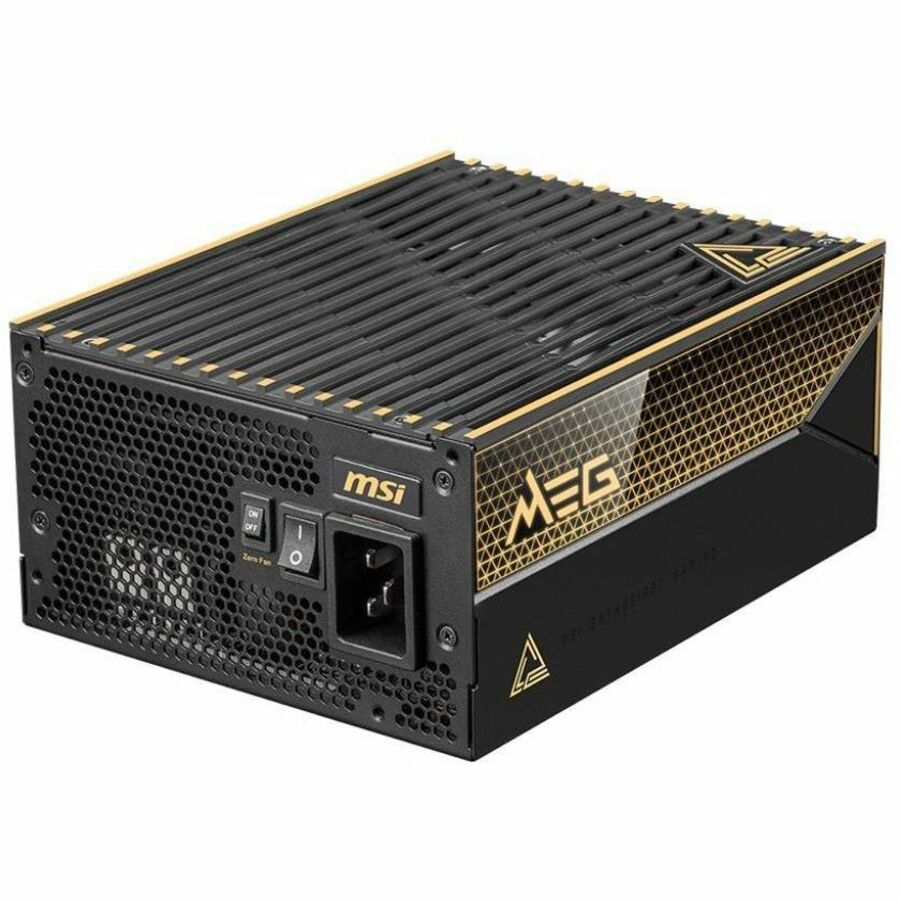

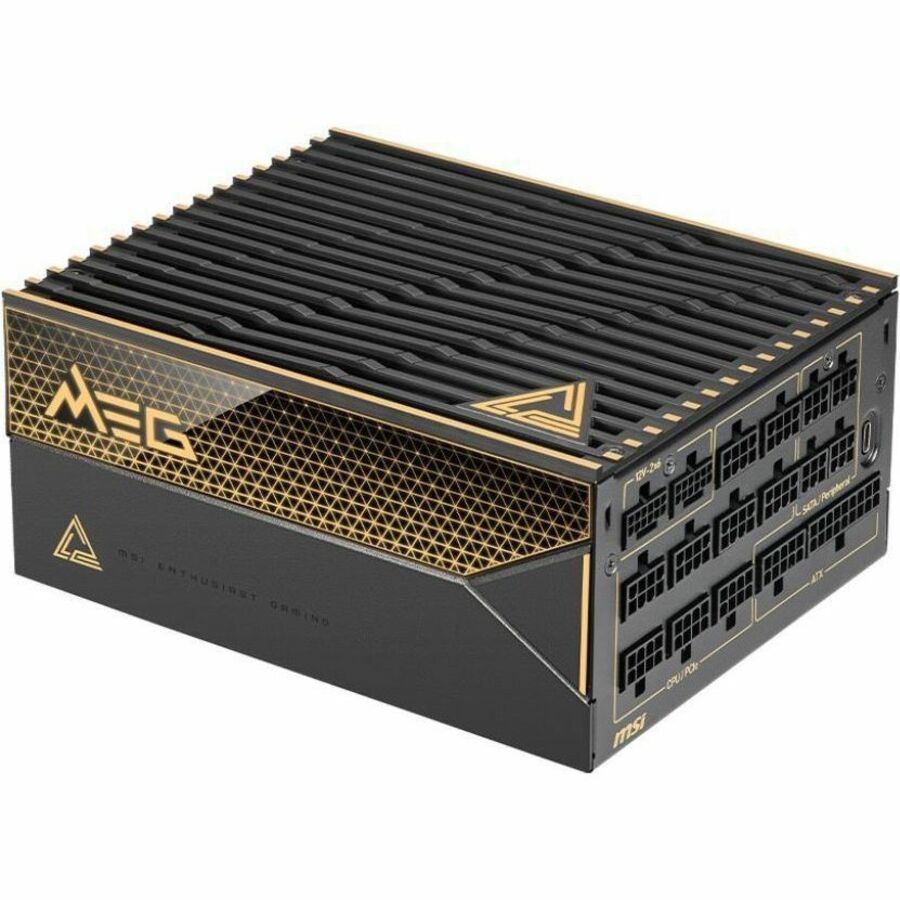

MSI MEG 1600W Power Supply
- Manufacturer: MSI
- Manufacturer Part Number: MEGAI1600TPCIE5
- Manufacturer Website Address: http://www.msi.com
- Brand Name: MSI
- Product Series: MEG
- Product Name: MEG 1600W Power Supply
- Product Type: Power Supply
- Specification Compliance: ATX 3.1
- Efficiency: 94%
- Power Factor Correction (PFC): Active

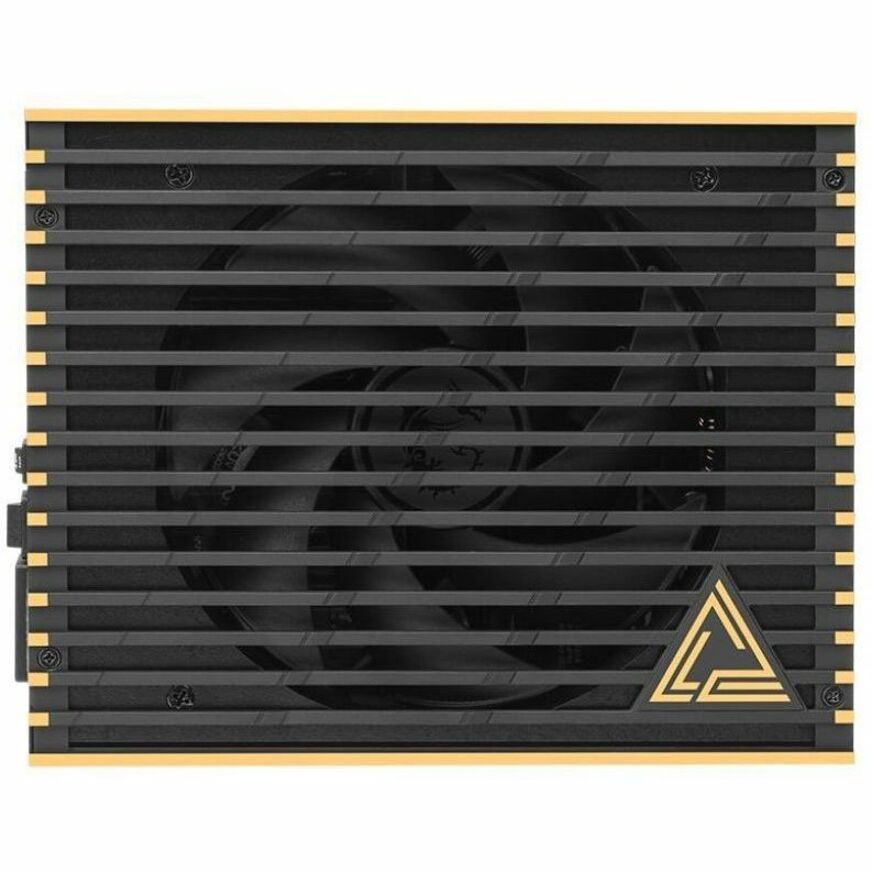

- Number of Fans: 1
- Fan Bearing Type: Dual Ball Fan Bearing
- Fan Diameter: 135 mm
- Protection Type:
- Over Current
- Over Temperature
- Over Power
- Short Circuit
- Over Voltage
- Under Voltage
- Surge & Inrush Protection
- No Load
- Modular: Yes
- NVIDIA SLI Supported: Yes
- Features:
- Low Noise
- Compact
- RGB Lighting
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 5 V DC
- 3.3 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail:
- 5 V DC @ 22 A
- 3.3 V DC @ 22 A
- 12 V DC @ 133.3 A
- -12 V DC @ 0.3 A
- 5 V SB @ 3 A
- Output Power: 1600 W

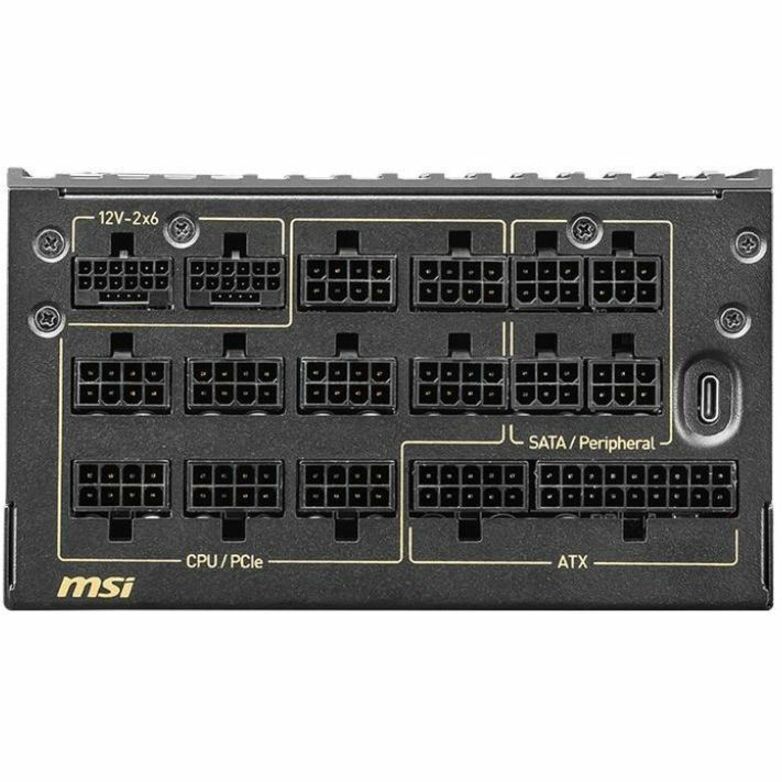

- Number of SATA Power Connectors: 8
- PCI Express Connector: Yes
- Number of (6+2 pin) PCI Express Power Connectors: 9
- Number of (4+4 pin) CPU Power Connectors: 2
- Number of 4-pin Molex Power Connectors: 8
- Form Factor: Internal
- Height: 7.5"
- Width: 5.9"
- Depth: 3.4"
- Energy Efficiency Certification: 80 Plus Titanium
