Panduit P12B46M Horizontal Power Distribution Unit - P12B46M
Panduit P12B46M Horizontal Power Distribution Unit - P12B46M

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

PANDUIT CORP

Panduit P12B46M Horizontal Power Distribution Unit - P12B46M

1 in stock
SKU: 12754821
$241.14
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Manufacturer Brochure
Click here for User Manual

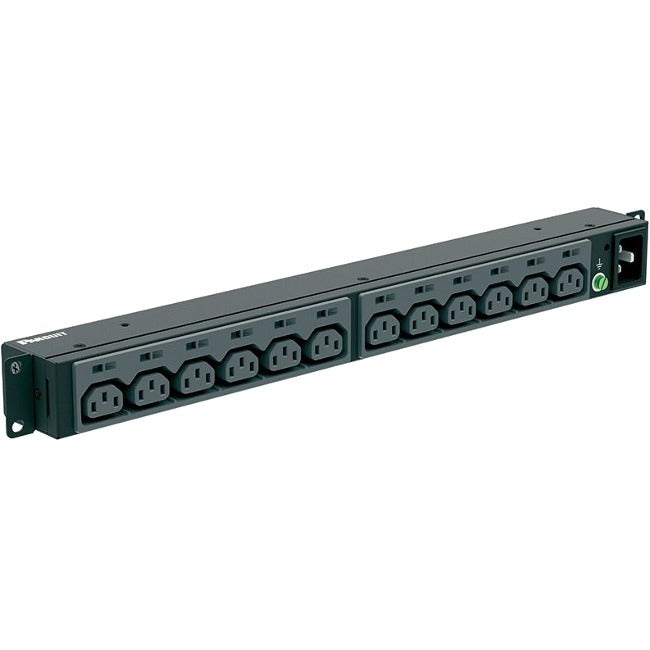

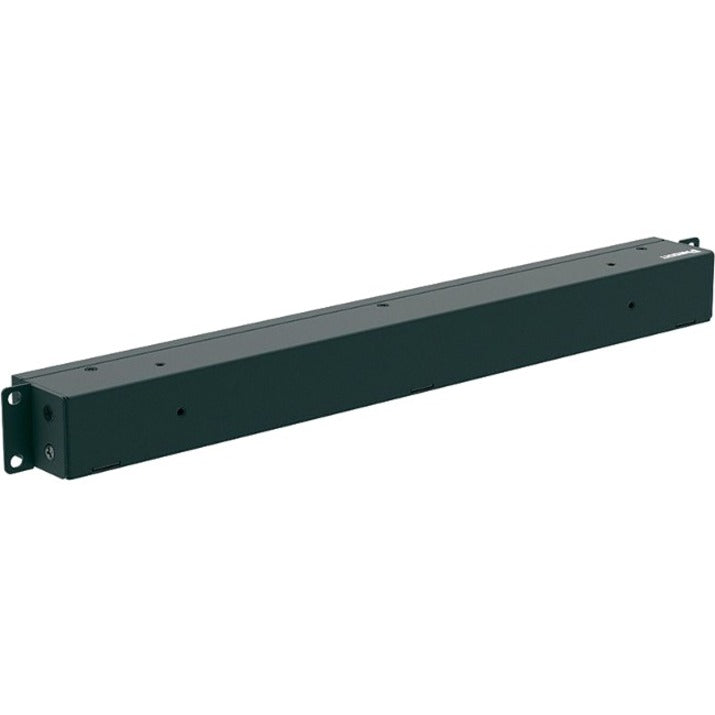

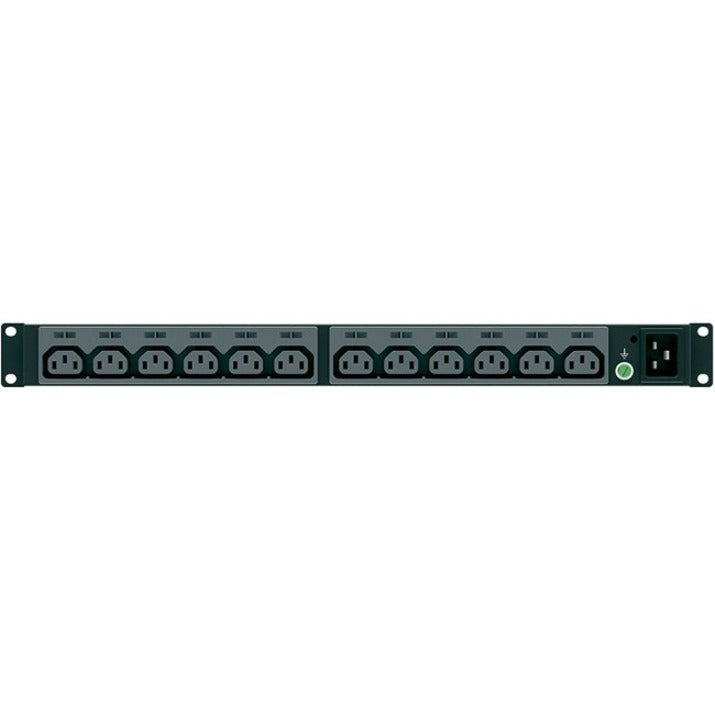

Panduit P12B46M Horizontal Power Distribution Unit

  • UPC: 613056263345
    • General Information
    • Manufacturer: PANDUIT CORP
    • Manufacturer Part Number: P12B46M
    • Manufacturer Website Address: http://www.panduit.com
    • Brand Name: Panduit
    • Product Model: P12B46M
    • Product Name: P12B46M Horizontal Power Distribution Unit
    • Packaged Quantity: 1
    • Product Type: PDU
    Technical Information
    • PDU Type: Basic
    • Phase: Single Phase
    • Plug/Connector Type: NEMA L6-20P
    • Receptacle Type: IEC 60320 C13
    • Receptacle Detail: 12 x IEC 60320 C13
    Power Description
    • Input Voltage: 230 V AC
    • Output Voltage: 230 V AC
    • Power Rating (VA): 3300 VA
    • Input Current: 20 A
    Physical Characteristics
    • Mounting Orientation: Horizontal
    • Mount Type: Rack-mountable
    • Rack Height: 1U
    • Height: 1.6"
    • Width: 17.5"
    • Depth: 2"
    Miscellaneous
    • Environmentally Friendly: Yes
    • Environmental Compliance:
      • Restriction of Hazardous Substances (RoHS)
      • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
