Datalogic PowerScan PBT9600-HP Barcode Scanner Kit - PBT9600-HPRBK10US
Regular price
$1,227.26
Regular price
-26%
$1,649.00
Sale price
$1,227.26
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Additional pdf1
Click here for Video
UPC : N/A
General Information
Click here for Video

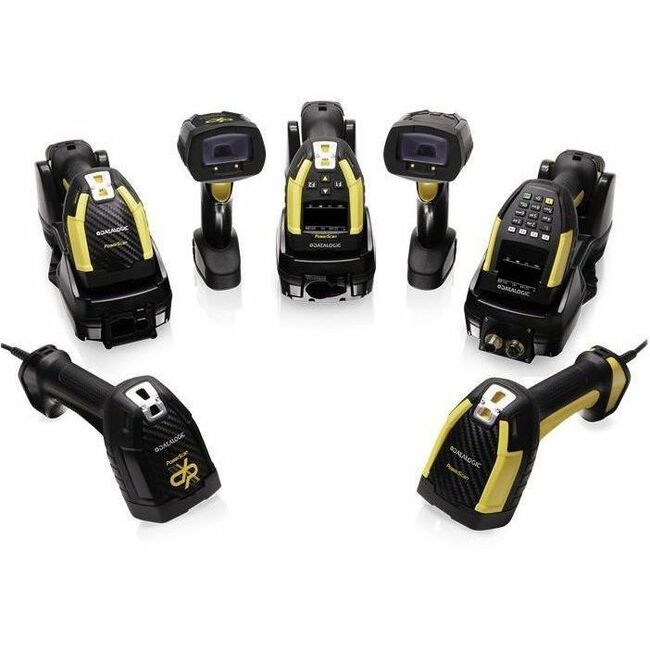

Datalogic PowerScan PBT9600-HP Barcode Scanner Kit
- Manufacturer: Datalogic S.p.A
- Manufacturer Part Number: PBT9600-HPRBK10US
- Manufacturer Website Address: http://www.datalogic.com
- Brand Name: Datalogic
- Product Line: PowerScan
- Product Series: 9600
- Product Model: PBT9600-HP
- Product Name: PowerScan PBT9600-HP Barcode Scanner Kit
- Product Type: Barcode Scanner Kit
- Connectivity Technology: Cable/Wireless
- Scanning Capability:
- 1D
- 2D
- Barcode Symbology Supported:
1D:
- Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
- Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code
Postal Codes:
- Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
Stacked Codes:
- EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Digital Watermarking:
- Digimarc Barcodes (HP and DC models)
- Light Source: LED
- Image Sensor Type: Imager
- Scan Mode: Trigger
- Scan Pattern: Area
- Scanning Distance: 40.20"
- Field of View (Horizontal): 38°
- Field of View (Vertical): 24°
- Reading Angle (Skew): 52°
- Reading Angle (Pitch): 52°
- Reading Angle (Roll): 360°
- Maximum Ambient Light: 100000 lux
- Drop Specification:
- Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
- Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
- Minimum Print Contrast: 15%
- Minimum Element Resolution (DataMatrix): 10 mil
- Minimum Element Resolution (PDF417): 10 mil
- Image Sensor Resolution: 1280 x 800
- Illumination Type: LED
- Illumination Color: White
- Air Electrostatic Discharge (+/-): 20kV
- Features:
- Ergonomic Design
- Beep
- Vibration
- Notification LED
- 3GL
- Removable Battery
- Bluetooth: Yes
- Radio Frequency: Yes
- Host Interface:
- Serial
- USB
- Ethernet
- Power Supply Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
- Battery Capacity: 3350 mAh
- Maximum Battery Recharge Time: 3.20 Hour
- Operating Temperature: -4°F (-20°C) to 122°F (50°C)
- Storage Temperature: -40°F (-40°C) to 158°F (70°C)
- Humidity (Non-condensing): 0% to 95%
- Form Factor: Handheld
- Rugged: Yes
- Durability:
- Water Resistant
- Dust Resistant
- Drop Resistant
- Height: 7.8"
- Width: 3.1"
- Length: 5.5"
- Weight (Approximate): 14.64 oz
- Package Contents:
- PowerScan PBT9600-HP Barcode Scanner
- Cradle BC9630-BT
- Cable CAB-552
- Power Supply 8-0935
- Power Cord 6003-0941
- Ingress Protection (IP) Rating:
- IP67
- IP65
- Application/Usage:
- Industrial
- Manufacturing
- Warehouse
- Logistics
- Inventory
- Picking
- Assembly Line
- Component Tracking
- Packing
- Sorting
- Environmental Compliance:
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Limited Warranty: 3 Year
