Eaton Tripp Lite Series 5.7kW 3-Phase Basic PDU - 42 NEMA 5-15/20R 120V Outlets, 208V L21-20P Input, 6 ft. Cord, 70 in. 0U Rack - PDU3V6L2120LV
Regular price
$1,037.22
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Manufacturer Brochure
Click here for User Manual
UPC: 037332255709
General Information
Click here for User Manual
Eaton Tripp Lite Series 5.7kW 3-Phase Basic PDU - 42 NEMA 5-15/20R 120V Outlets, 208V L21-20P Input, 6 ft. Cord, 70 in. 0U Rack
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: PDU3V6L2120LV
- Manufacturer Website Address: https://tripplite.eaton.com/
- Brand Name: Tripp Lite by Eaton
- Product Model: PDU3V6L2120LV
- Product Name: PDU3V6L2120LV 42-Outlets PDU
- Product Type: PDU
- PDU Type: Basic
- Phase: Three Phase

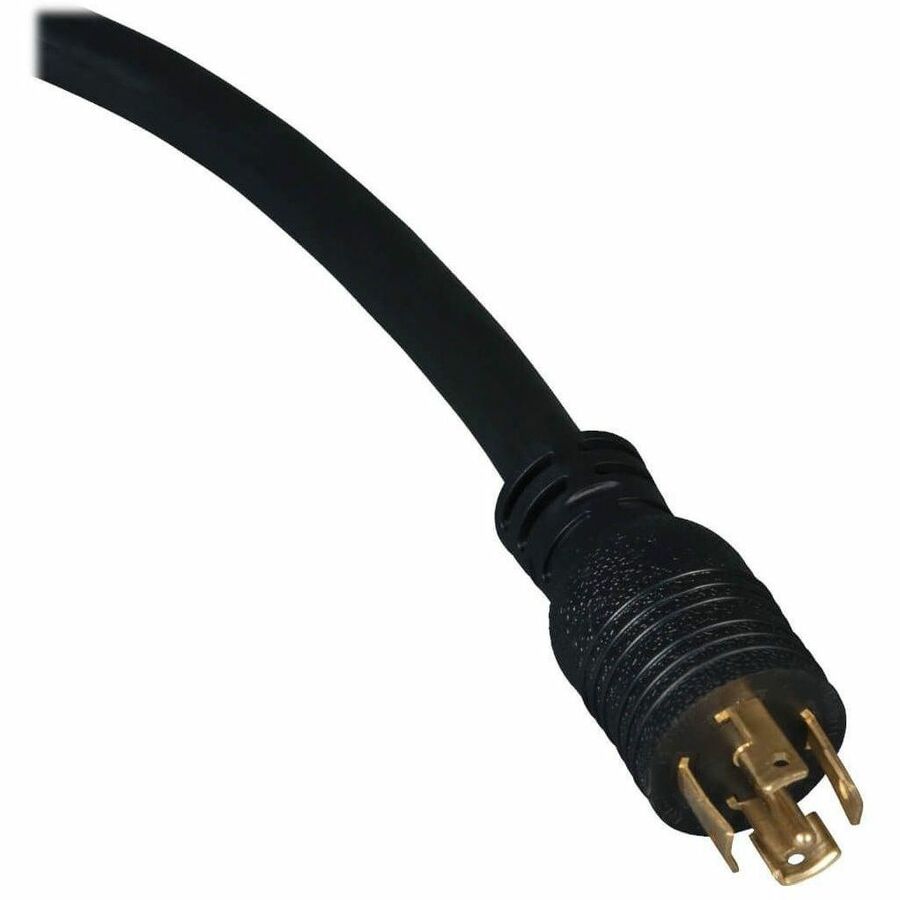

- Plug/Connector Type: NEMA L21-20P

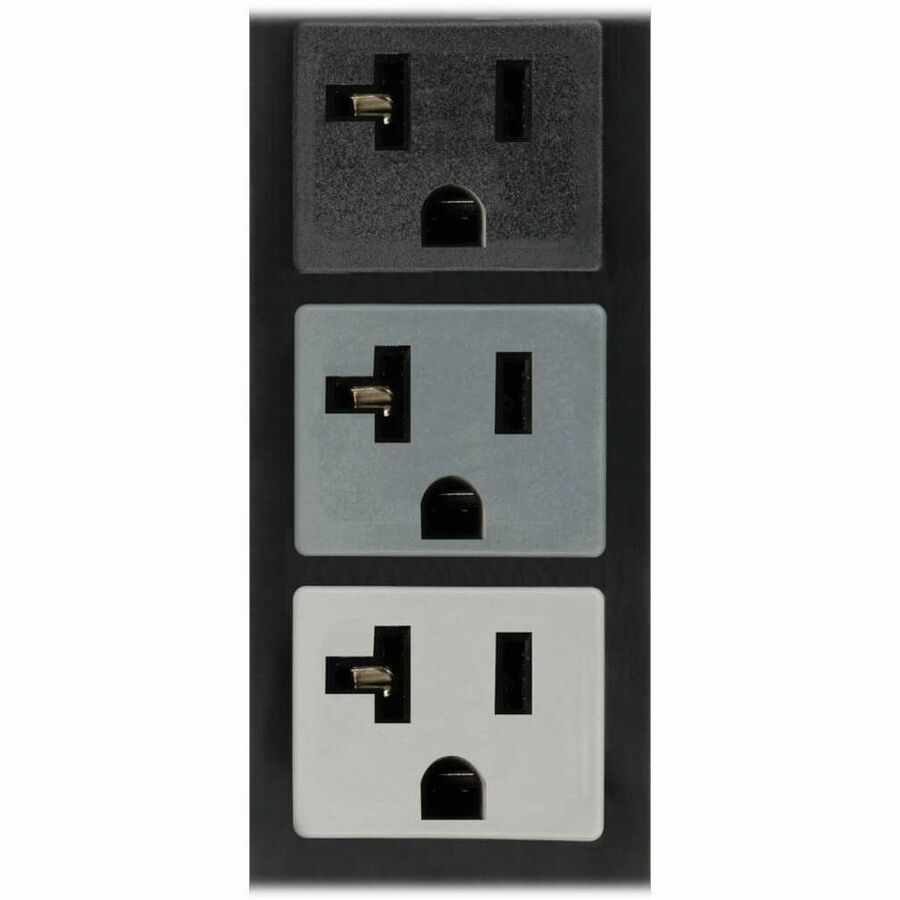

- Receptacle Type: NEMA 5-15/20R
- Receptacle Detail: 42 x NEMA 5-15/20R
- Protection Type:
- Accidental Power Shutdown
- Overload Protection
- Circuit Protection
- Locking Receptacles: Cord Retention Bracket
- Input Voltage: 230 V AC
- Output Voltage: 120 V AC
- Power Rating (Watt): 5700 W
- Input Current: 16 A

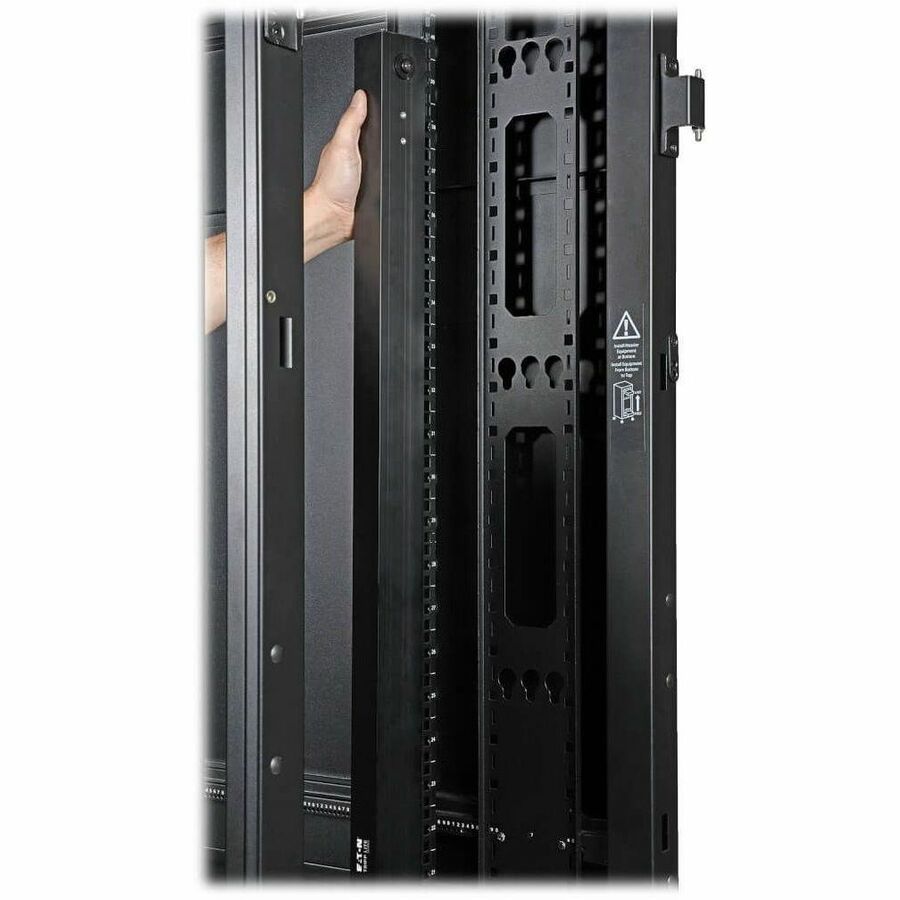

- Mounting Orientation: Vertical/Toolless
- Mount Type: Rack-mountable
- Rack Height: 0U
- Height: 70"
- Width: 2.2"
- Depth: 1.7"
- Weight (Approximate): 12.70 lb

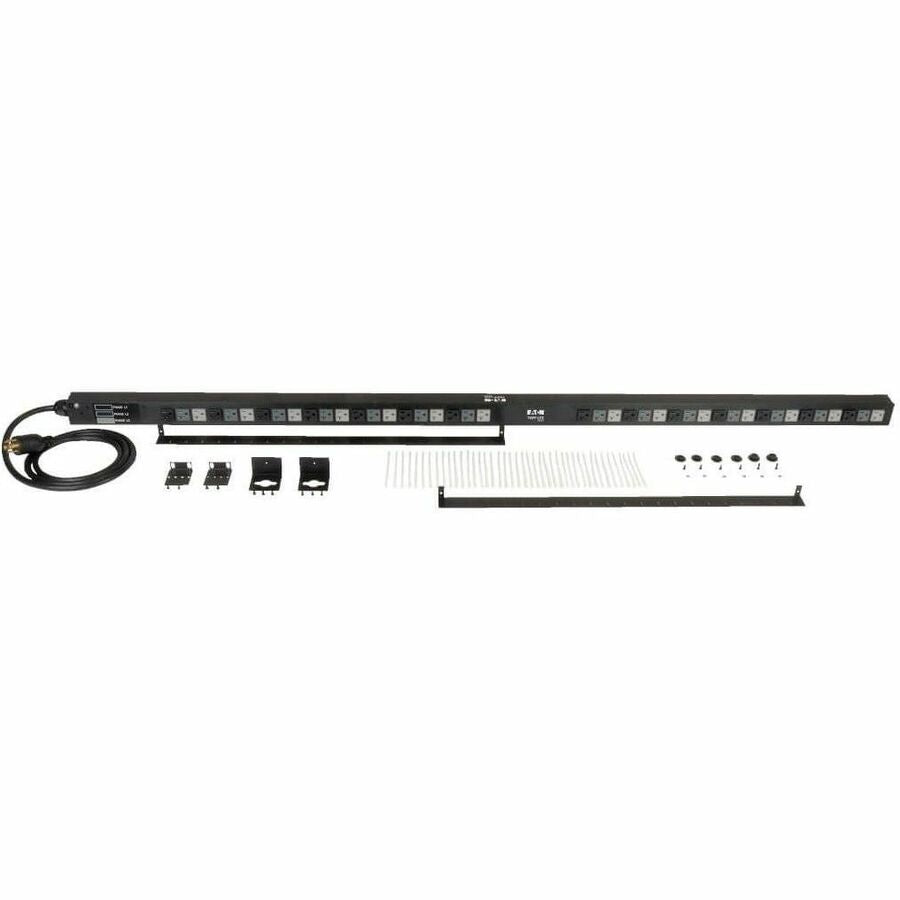

- Package Contents:
- PDU3V6L2120LV 42-Outlets PDU
- Cable Retention Brackets With Installation Hardware
- Rack-mounting Hardware
- Owner's Manual
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Limited Warranty: 2 Year
