Home » Eaton Tripp Lite Series 3.7kW 208/230V Single-Phase Local Metered PDU - 16 C13 & 4 C19 Outlets, C20/L6-20P Input, 10-ft. (3.05 m) Cord, 40 in. 0U Rack - PDUMV20HV-36
Eaton Tripp Lite Series 3.7kW 208/230V Single-Phase Local Metered PDU - 16 C13 & 4 C19 Outlets, C20/L6-20P Input, 10-ft. (3.05 m) Cord, 40 in. 0U Rack - PDUMV20HV-36
Eaton Tripp Lite Series 3.7kW 208/230V Single-Phase Local Metered PDU - 16 C13 & 4 C19 Outlets, C20/L6-20P Input, 10-ft. (3.05 m) Cord, 40 in. 0U Rack - PDUMV20HV-36

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Eaton Corporation

Eaton Tripp Lite Series 3.7kW 208/230V Single-Phase Local Metered PDU - 16 C13 & 4 C19 Outlets, C20/L6-20P Input, 10-ft. (3.05 m) Cord, 40 in. 0U Rack - PDUMV20HV-36

1 in stock
SKU: 6058332
$280.92
-32% $411.00 $280.92
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Manufacturer Brochure
Click here for User Manual

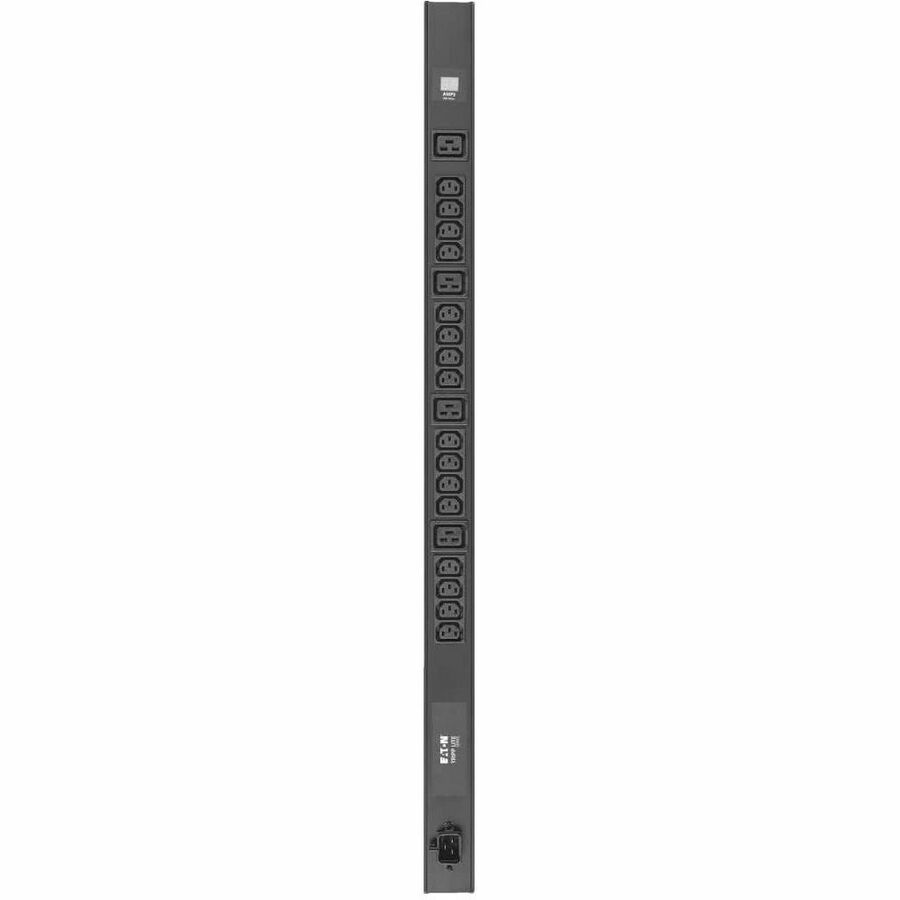

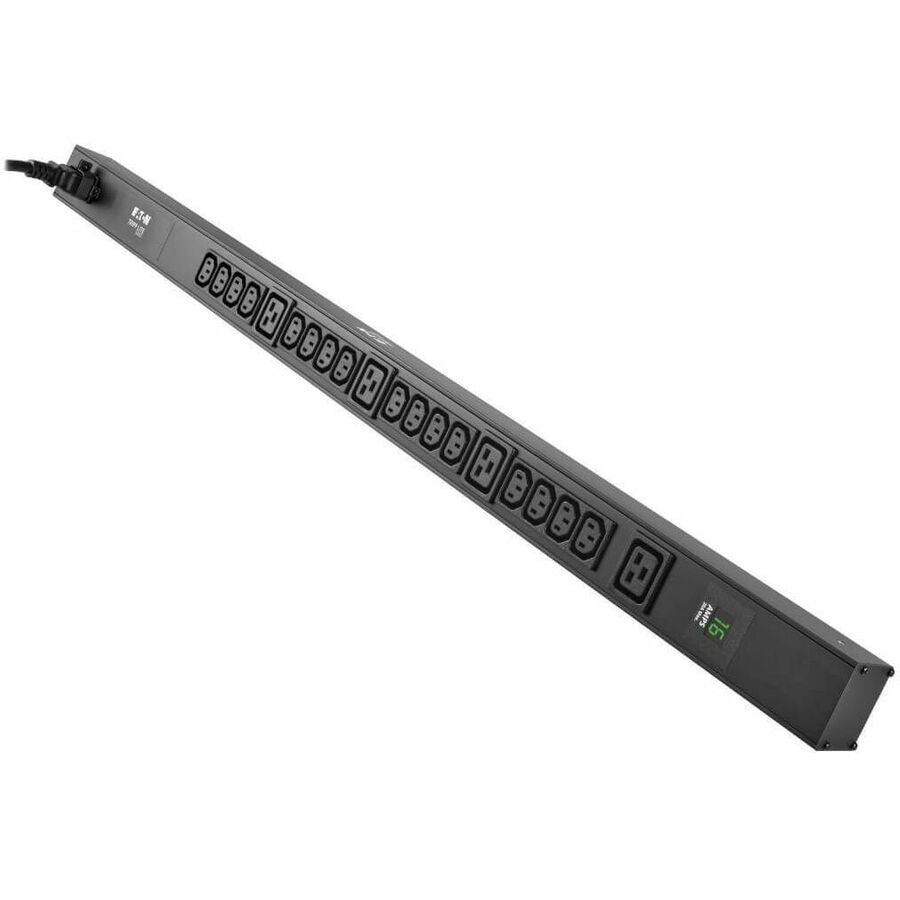

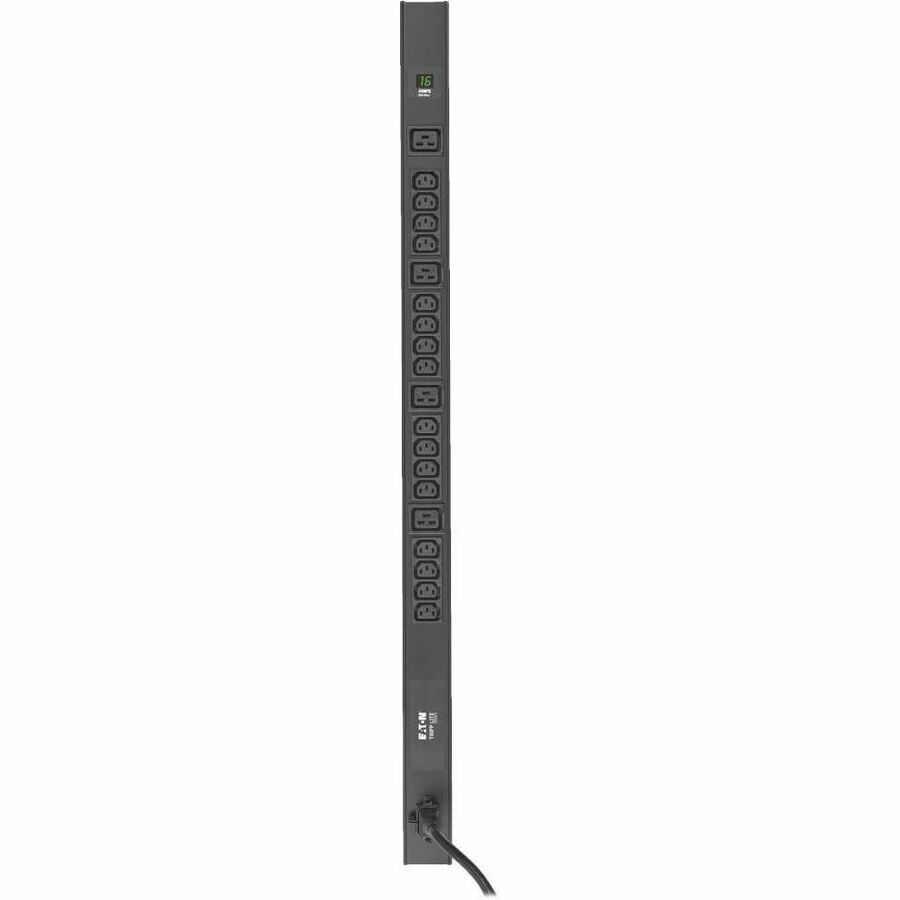

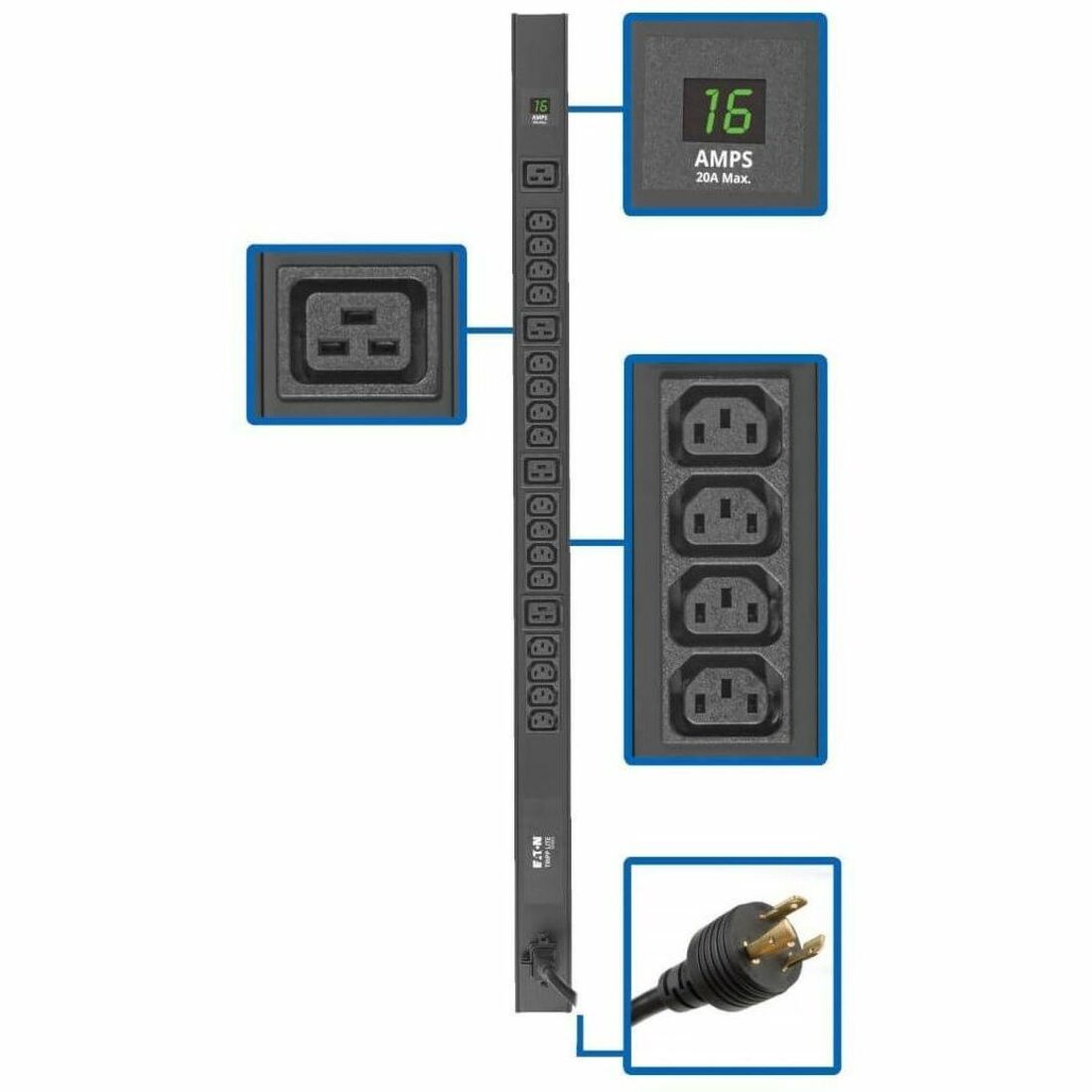

Eaton Tripp Lite Series 3.7kW 208/230V Single-Phase Local Metered PDU - 16 C13 & 4 C19 Outlets, C20/L6-20P Input, 10-ft. (3.05 m) Cord, 40 in. 0U Rack

  • UPC: 037332255921
    • General Information
    • Manufacturer: Eaton Corporation
    • Manufacturer Part Number: PDUMV20HV-36
    • Manufacturer Website Address: http://www.eaton.com
    • Brand Name: Tripp Lite series
    • Product Model: PDUMV20HV-36
    • Product Name: PDUMV20HV-36 20-Outlets PDU
    • Product Type: PDU
    Technical Information

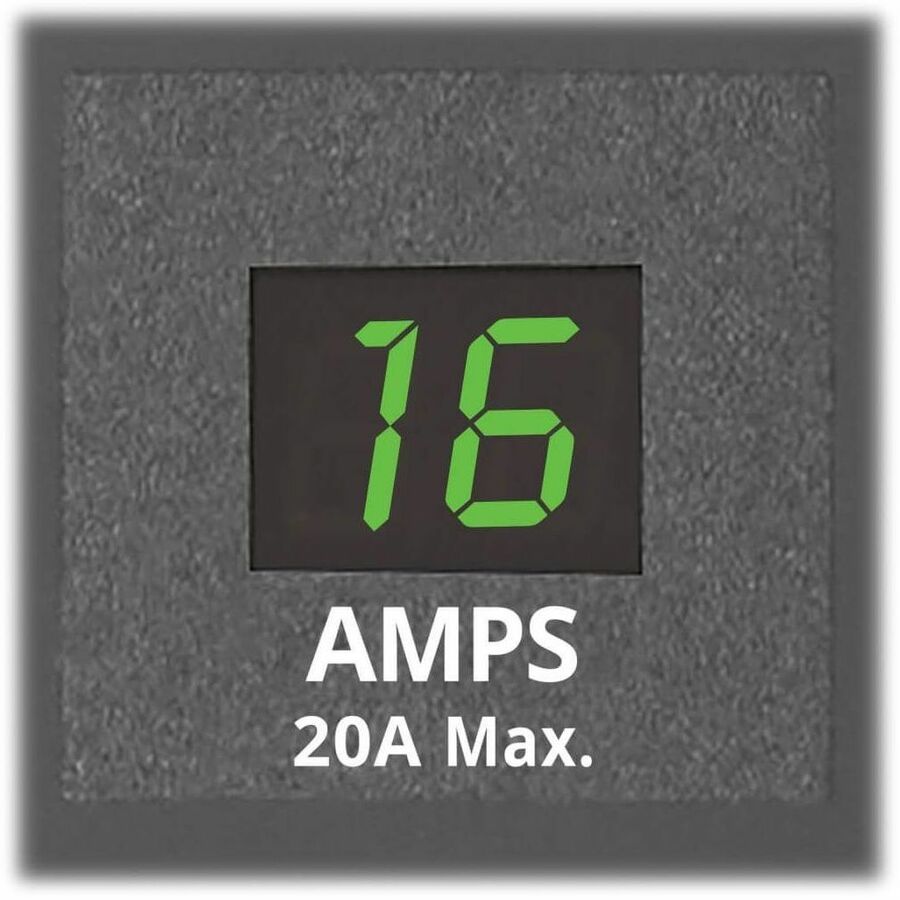

    • PDU Type: Metered
    • Phase: Single Phase
    • Plug/Connector Type:

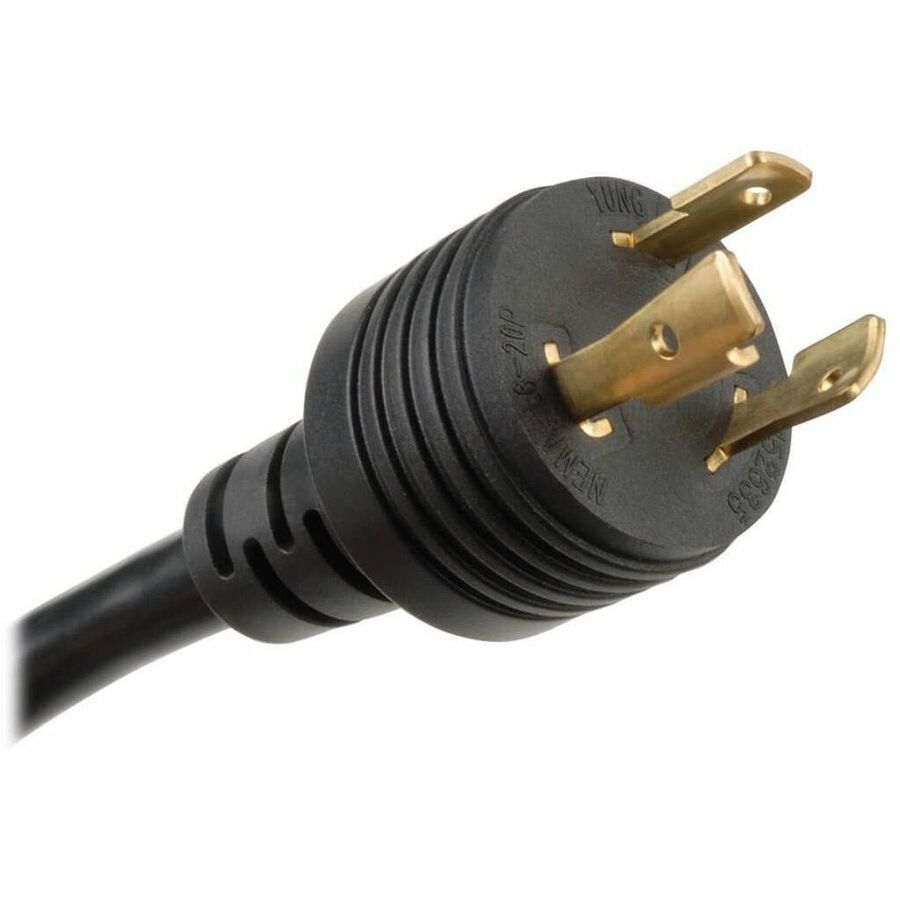

      • NEMA L6-20P

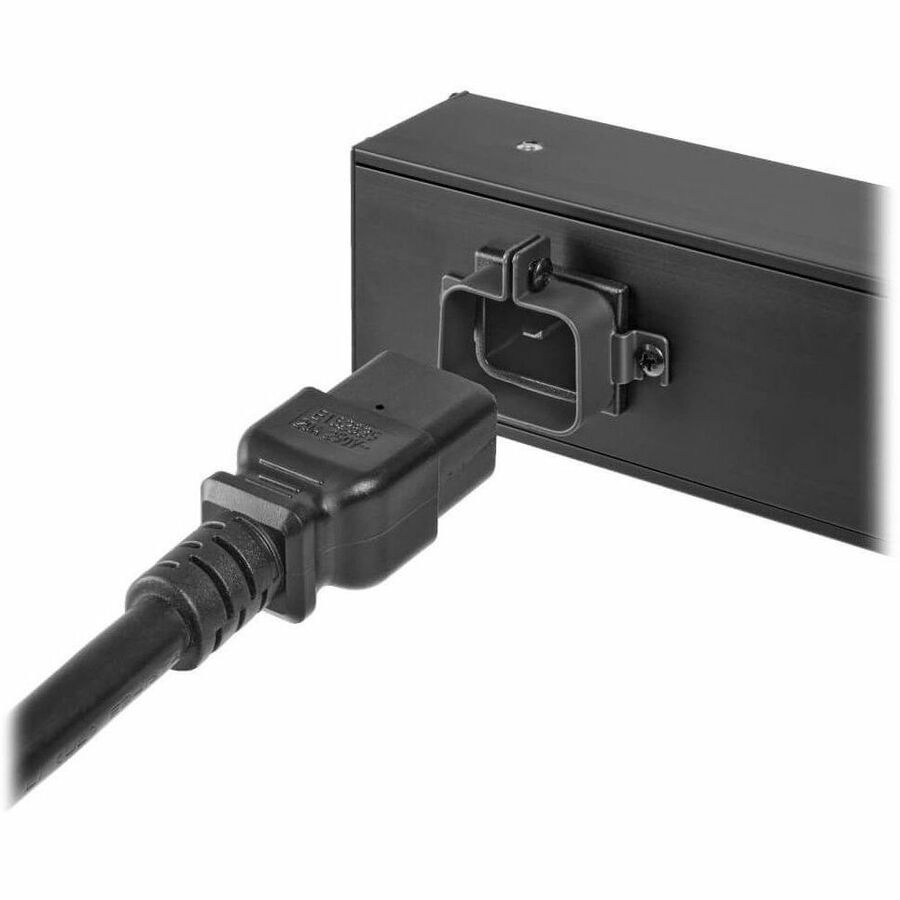

      • IEC 60320 C20
    • Receptacle Type:
      • IEC 60320 C13
      • IEC 60320 C19

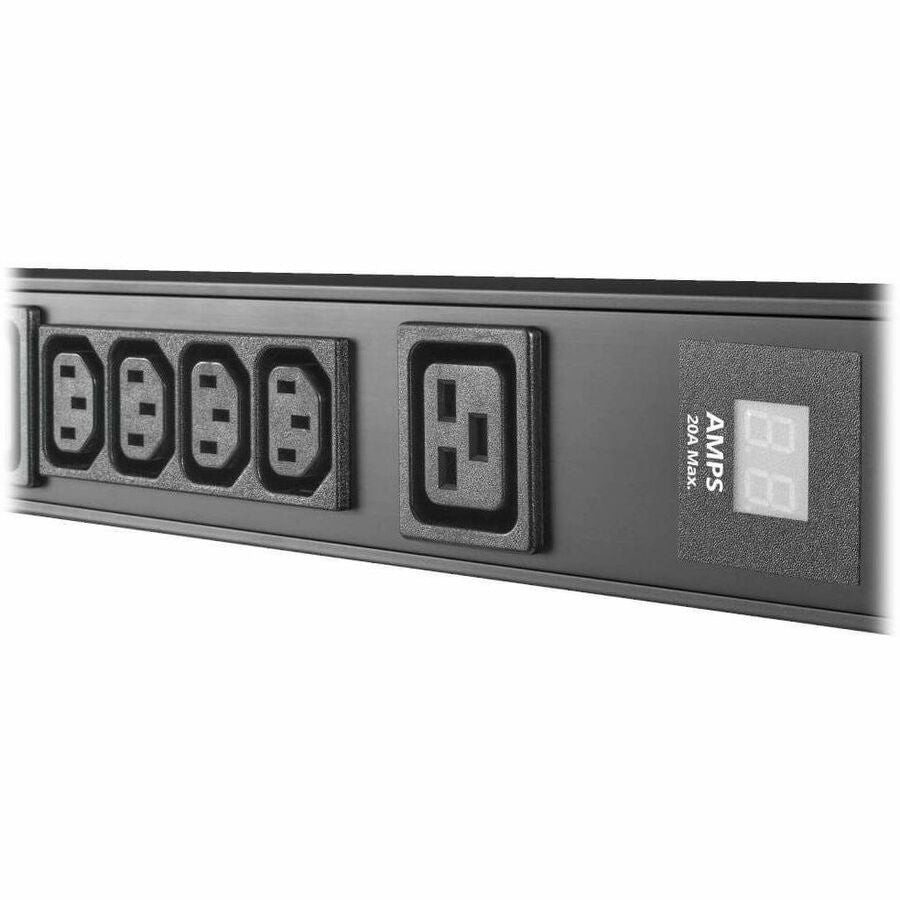

    • Receptacle Detail:

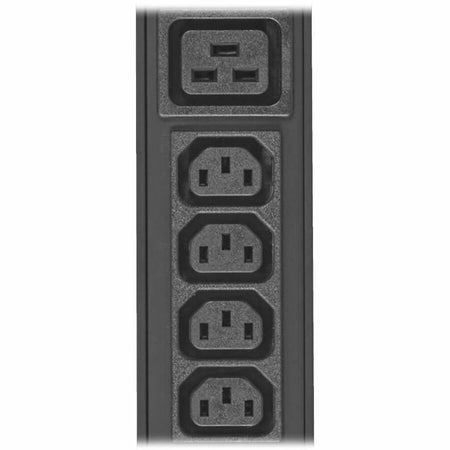

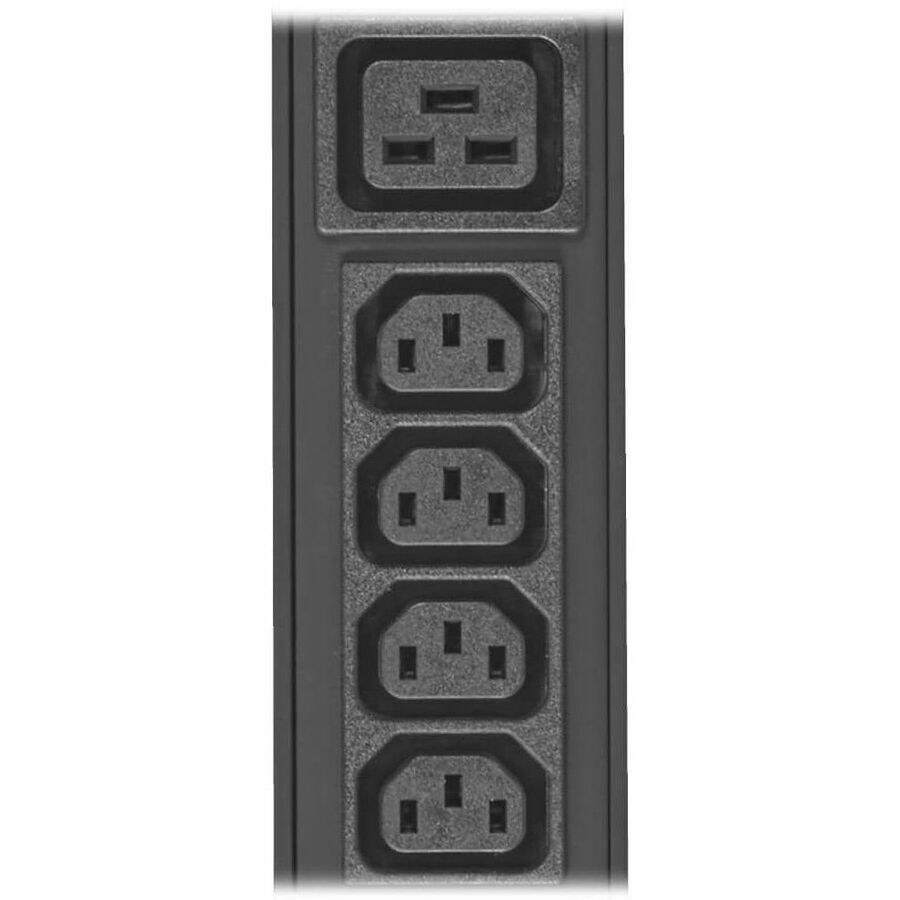

      • 16 x IEC 60320 C13
      • 4 x IEC 60320 C19
    • Protection Type:
      • Circuit Protection
      • Overload Protection
      • Accidental Power Shutdown
    Power Description
    • Input Voltage: 230 V AC
    • Output Voltage:
      • 200 V AC
      • 208 V AC
      • 220 V AC
      • 230 V AC
      • 240 V AC
    • Power Rating (Watt): 3840 W
    • Input Current: 20 A
    Physical Characteristics

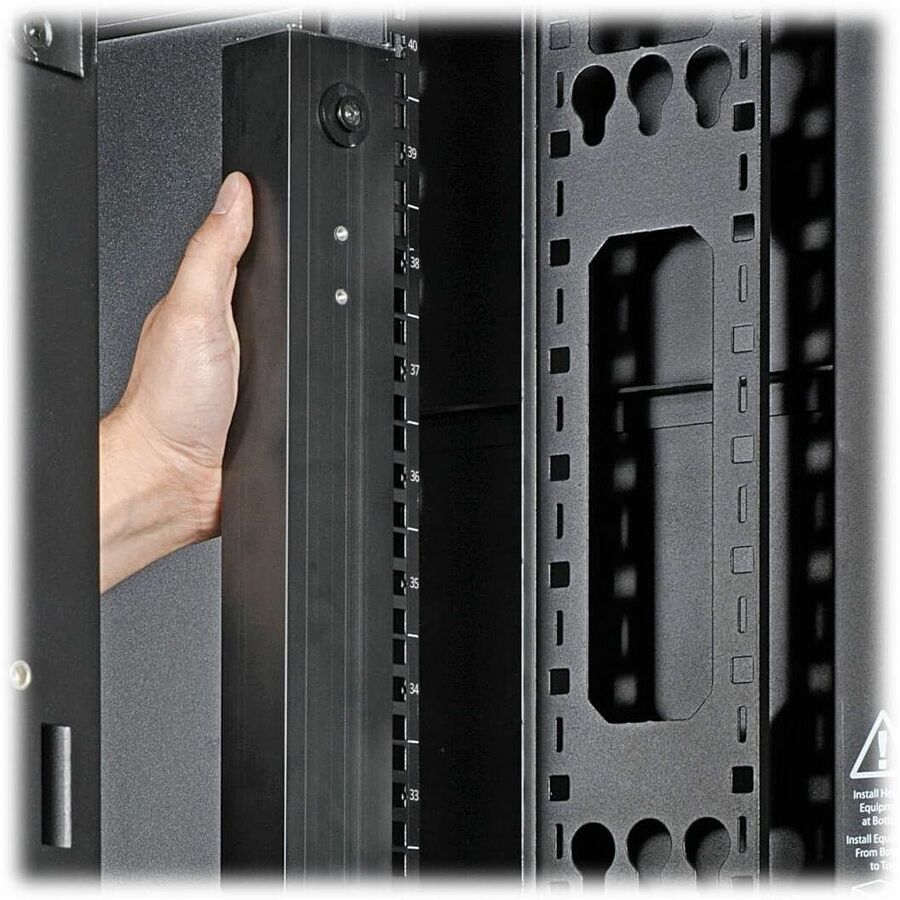

    • Mounting Orientation: Vertical/Toolless

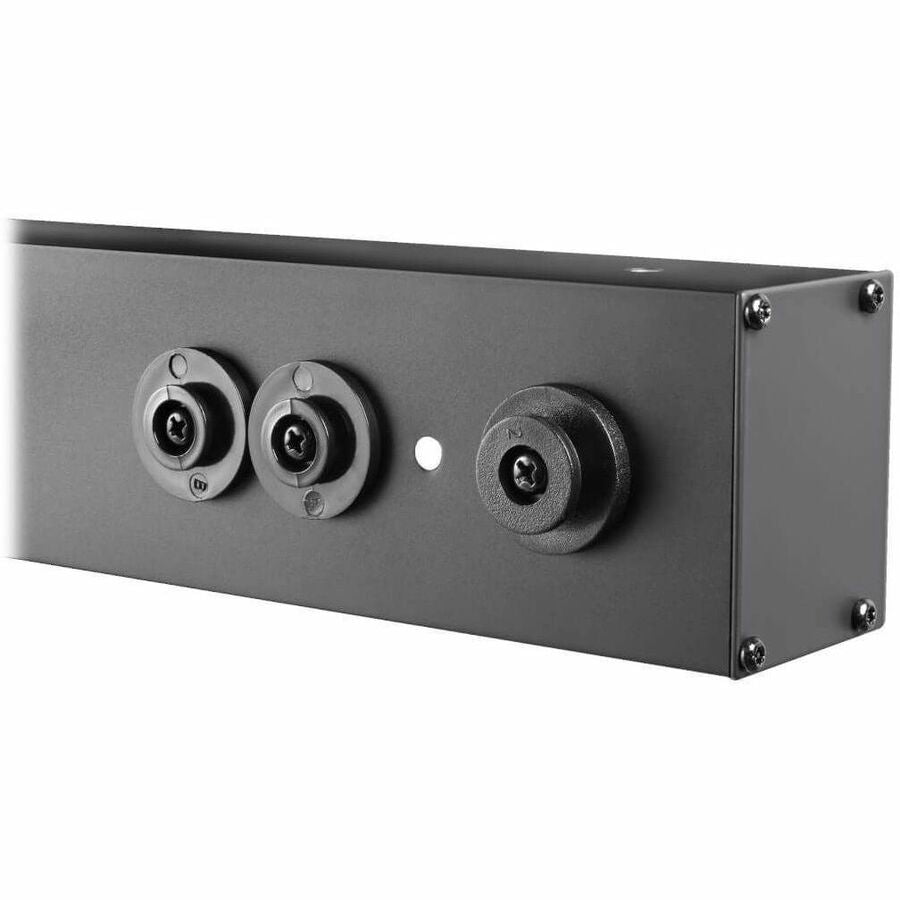

    • Mount Type:
      • Rack-mountable
      • Wall-mountable
    • Placement: Under-counter
    • Rack Height: 0U
    • Cord Length: 10 ft
    • Height: 39.8"
    • Width: 2.3"
    • Depth: 3.8"
    • Weight (Approximate): 5.20 lb
    Miscellaneous

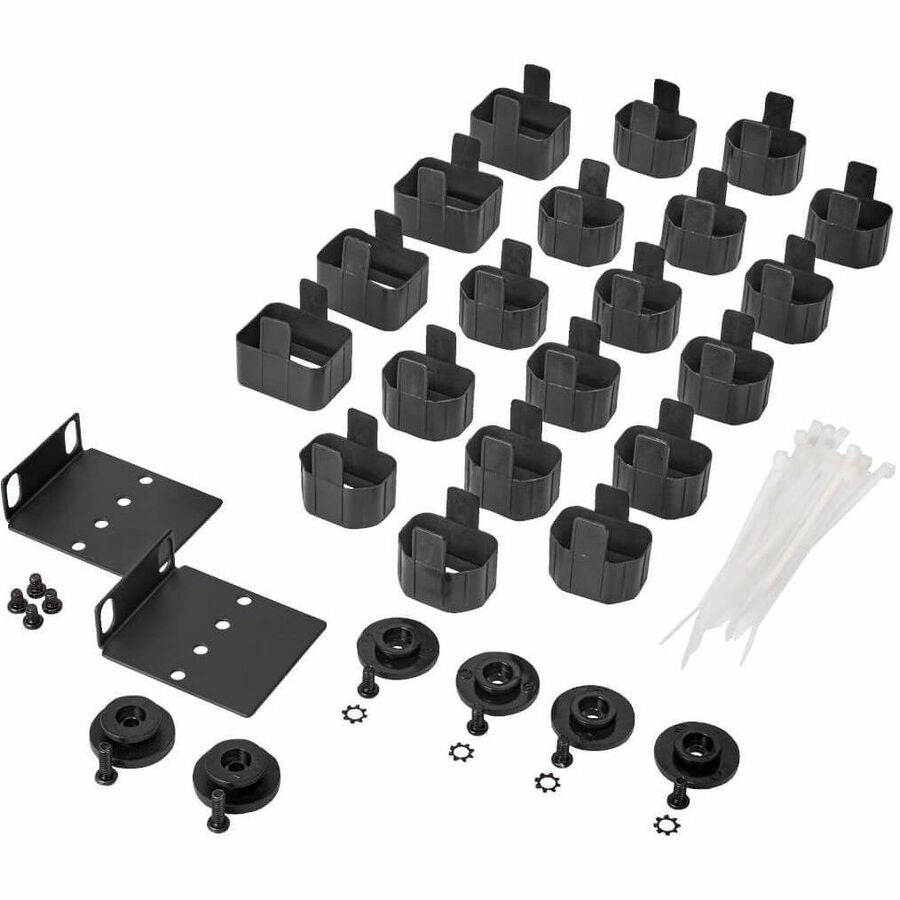

    • Package Contents:
      • PDUMV20HV-36 20-Outlets PDU

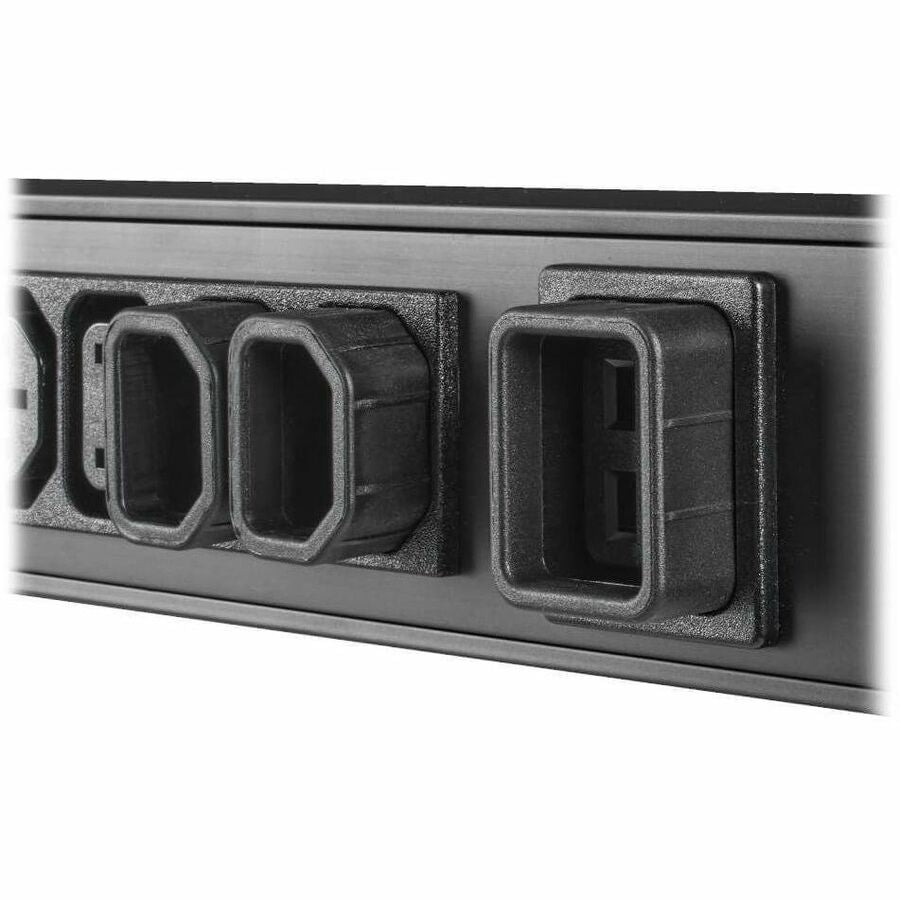

      • 20 x Plug-lock Insert Sleeves
      • C19 to L6-20P Input Cord, 10-ft. (3.05 m)
      • Rack-mounting Hardware
      • Owner's Manual
    • Country of Origin: China
    • Environmentally Friendly: Yes
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 2 Year
