Home » Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (6-C19 & 24-C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical - PDUMV30HV
Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (6-C19 & 24-C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical - PDUMV30HV
Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (6-C19 & 24-C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical - PDUMV30HV

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Eaton Corporation

Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (6-C19 & 24-C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical - PDUMV30HV

3 in stock
SKU: 2021643
$359.40
-43% $636.00 $359.40
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Additional pdf4
Click here for Additional pdf5
Click here for Additional pdf6
Click here for Manufacturer Brochure
Click here for User Manual
Click here for Video

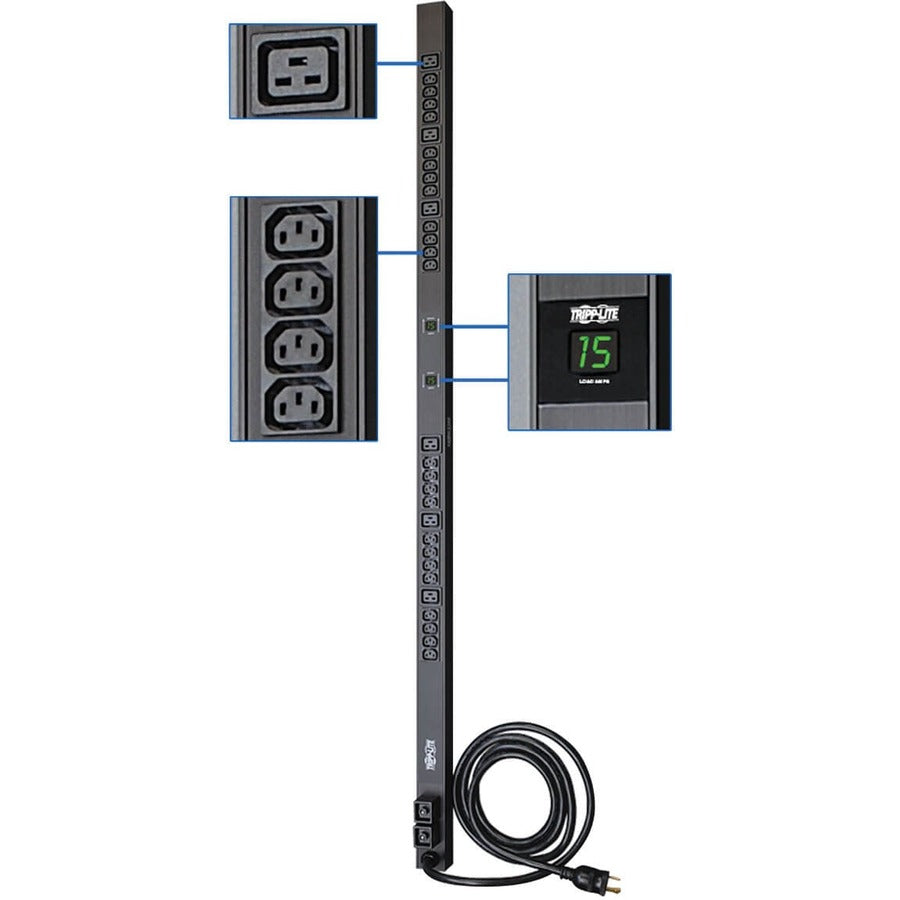

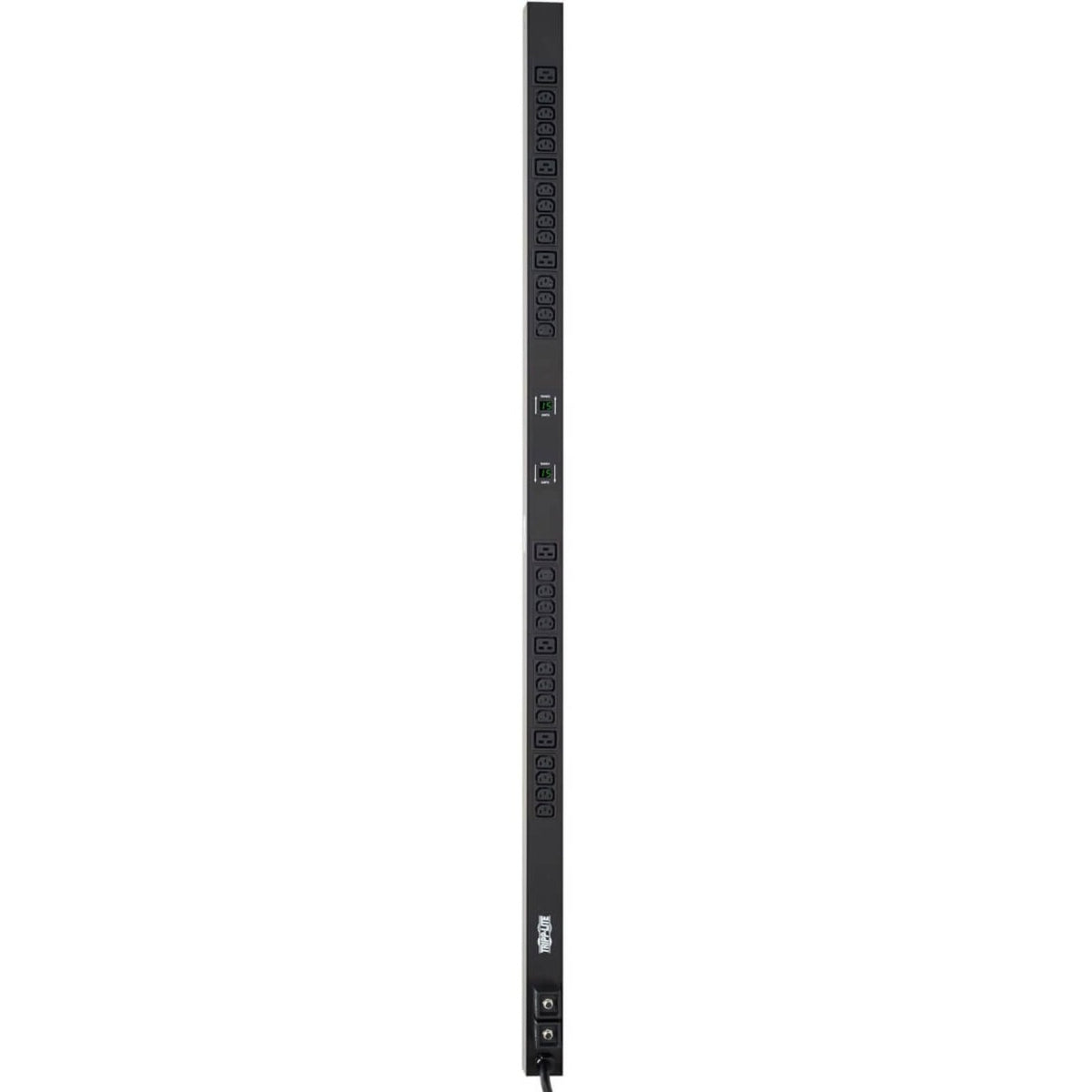

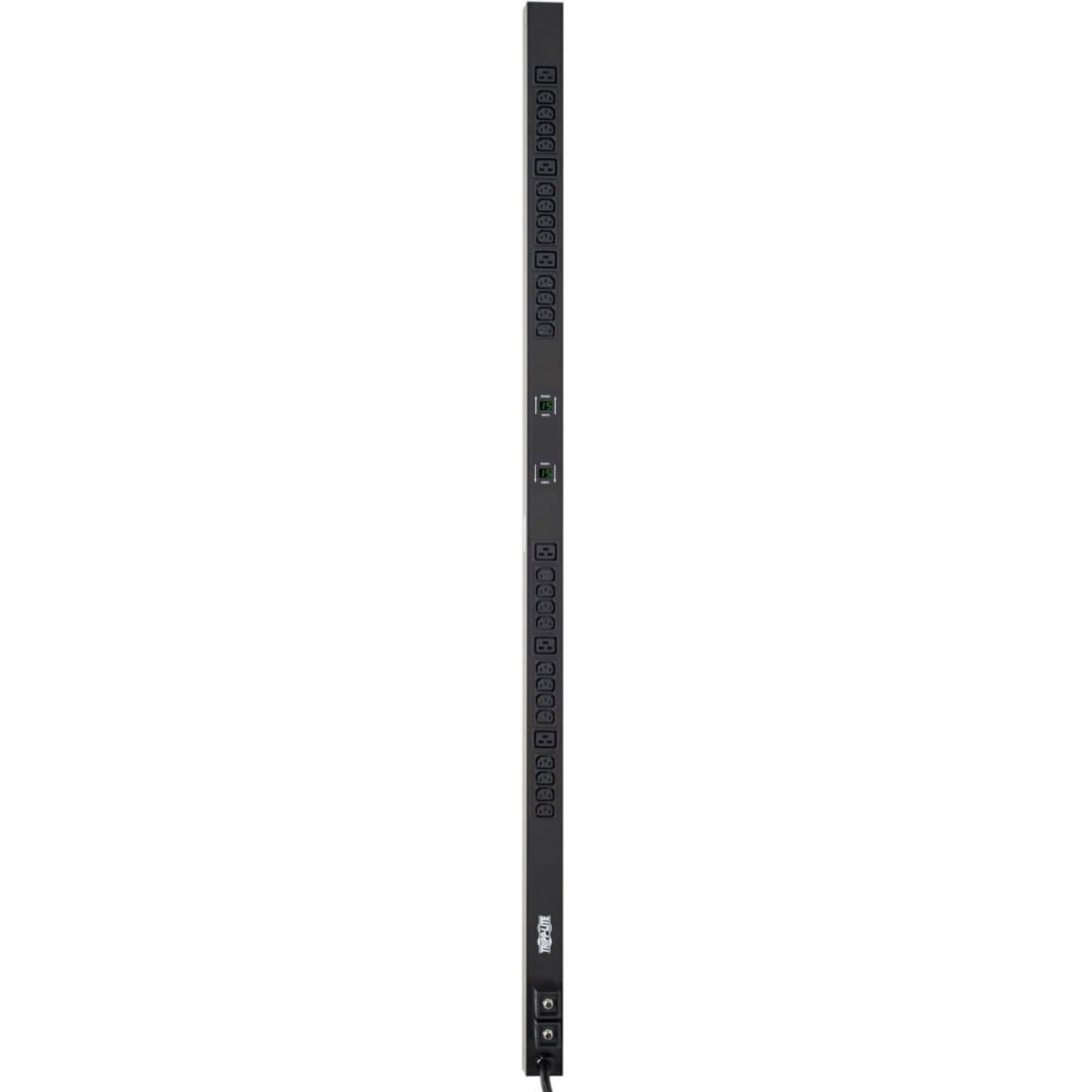

Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (6-C19 & 24-C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical

  • UPC: 0037332139351
    • General Information
    • Manufacturer: Eaton Corporation
    • Manufacturer Part Number: PDUMV30HV
    • Manufacturer Website Address: http://www.eaton.com
    • Brand Name: Tripp Lite series
    • Product Model: PDUMV30HV
    • Product Name: PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
    • Product Type: PDU
    Technical Information
    • Plug/Connector Type: NEMA L6-30P
    • Receptacle Type:
      • IEC 60320 C19
      • IEC 60320 C13
    • Receptacle Detail:
      • 6 x IEC 60320 C19
      • 24 x IEC 60320 C13
    • Protection Type:
      • Overload Protection
      • Short Circuit Protection
    Power Description
    • Input Voltage: 230 V AC
    • Input Voltage Range: 208 V AC - 240 V AC
    • Output Voltage:
      • 208 V AC
      • 240 V AC
    Physical Characteristics
    • Mounting Orientation: Vertical
    • Mount Type:
      • Wall-mountable
      • Rack-mountable
    • Height: 63.8"
    • Width: 2.3"
    • Depth: 3.8"
    • Weight (Approximate): 8 lb
    Miscellaneous
    • Package Contents:
      • PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
      • PDUMV30HV 63.75 inch basic PDU with owner's manual
      • Set of 2 bolt-on plug retention brackets and installation hardware
      • Set of mounting brackets and installation hardware
    • Country of Origin: China
    Warranty
    • Limited Warranty: 2 Year
