Hanwha PNM-C16013RVQ 4 Megapixel Network Camera - Color - Dome - White - PNM-C16013RVQ

1 in stock
SKU: 9121844
$1,420.25
-25% $1,900.00 $1,420.25
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Manufacturer Brochure
Click here for User Manual
Click here for Video

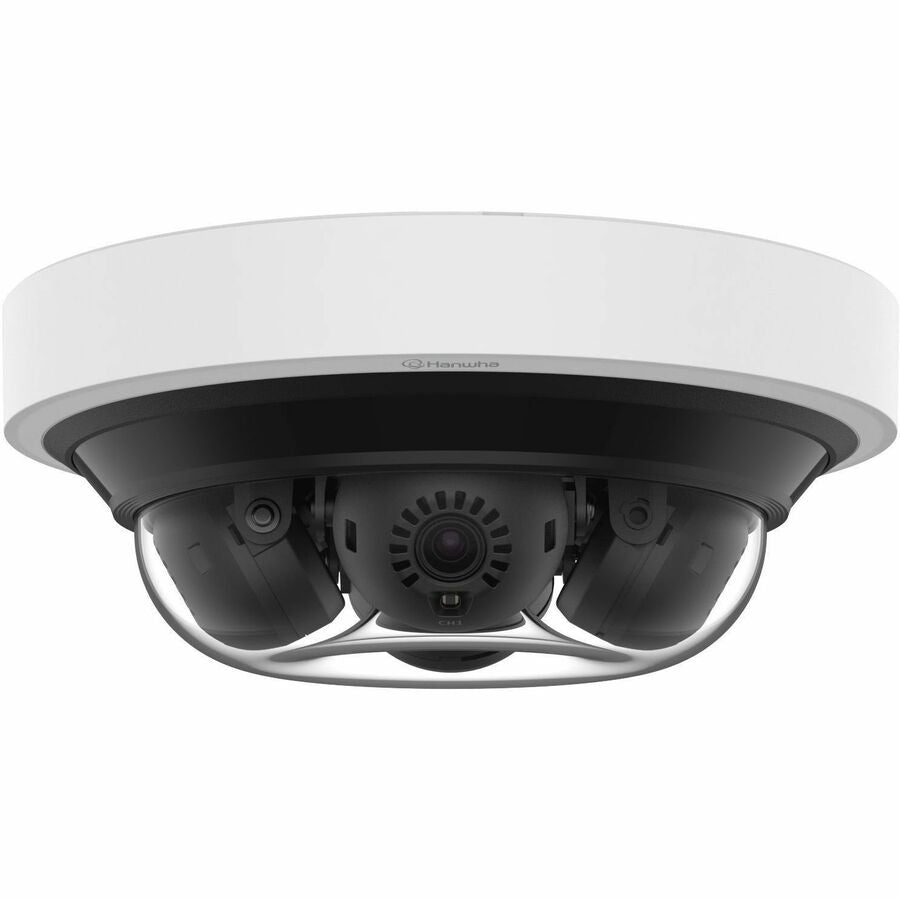

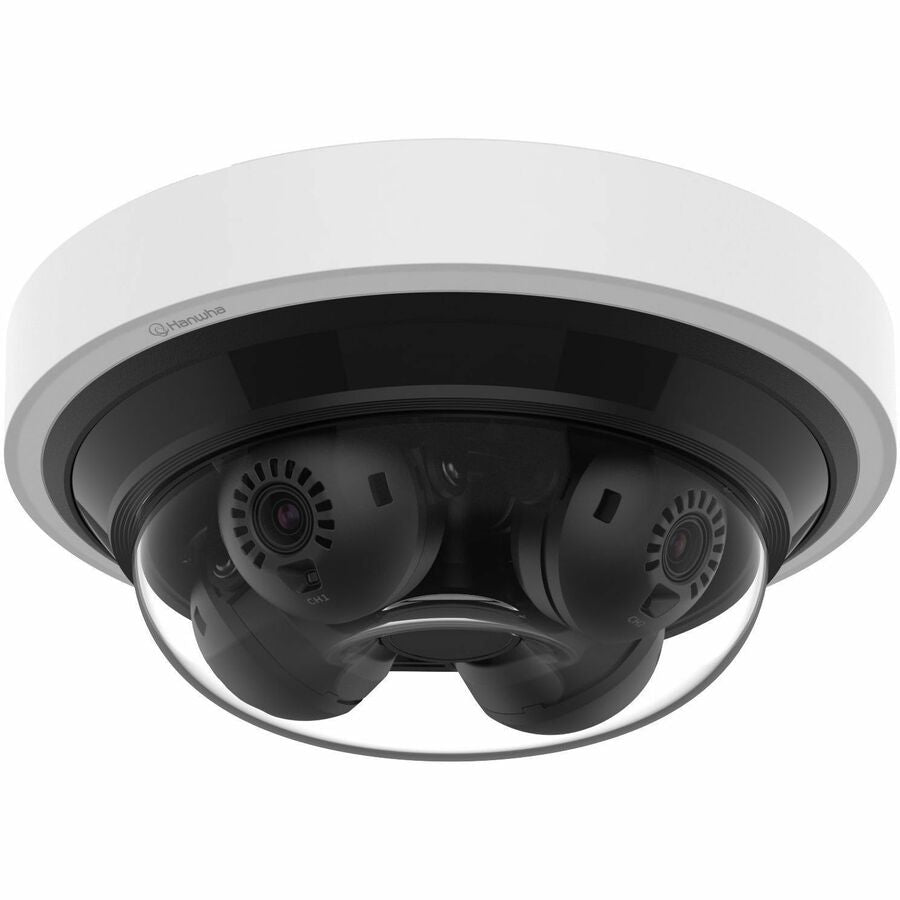

Hanwha PNM-C16013RVQ 4 Megapixel Network Camera - Color - Dome - White

  • UPC: 8801089225283
    • General Information
    • Manufacturer: Hanwha Group
    • Manufacturer Part Number: PNMC16013RVQ
    • Manufacturer Website Address: http://www.hanwha.com
    • Brand Name: Hanwha
    • Product Model: PNM-C16013RVQ
    • Product Name: 4MPx4 AI IR Mini Multi-directional Camera
    • Product Type: Network Camera
    Technical Information
    • HD Recording: Yes
    • Night Vision: Yes
    • Night Vision Distance: 65.62 ft
    • Night Vision Type: Infrared
    • Camera Iris: Fixed
    Display & Graphics
    • Image Sensor Type: CMOS
    • Image Sensor Size: 1/2.8"
    • Color Supported: Color
    • Field of View: H: 97° / V: 54° / D: 116°
    • Effective Camera Resolution: 4 Megapixel
    • Number of Sensors: 4
    Video
    • Video Formats:
      • H.264
      • H.265
      • MJPEG
      • H.264H
      • H.264M
      • H.264B
      • H.265B
      • H.265H
      • H.265M
    • Maximum Video Resolution: 2592 x 1520
    • Maximum Frame Rate: 15 fps
    Lens
    • Lens Type: Fixed
    • Maximum Focal Length: 3.19 mm
    • Lens Included: Yes
    • Lens Mount Type: M12-mount
    • Maximum Aperture: f/1.2
    Exposure
    • Shortest Shutter Speed: 1/12000 Second
    • Longest Shutter Speed: 1/5 Second
    Network & Communication
    • Connectivity Technology: Wired
    • Remote Management: Yes
    • Ethernet Technology: Gigabit Ethernet
    • Protocols:
      • IPv4
      • IPv6
      • TCP/IP
      • UDP/IP
      • RTP/TCP
      • RTCP
      • RTSP
      • NTP
      • HTTP
      • HTTPS
      • SSL/TLS
      • DHCP
      • FTP
      • SMTP
      • ICMP
      • IGMP
      • SNMPv1/v2c/v3 (MIB2)
      • ARP
      • DNS
      • DDNS
      • QoS
      • UPnP
      • Bonjour
      • LLDP
      • CDP
      • SRTP
      • TCP
      • UDP Multicast
      • MQTT
      • ONVIF
      • WebSocket
      • Digest Authentication
      • IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)
    Storage
    • Storage Type: Memory Card
    Interfaces/Ports
    • USB: Yes
    • Network (RJ-45): Yes
    Power Description
    • Maximum Power Consumption: 23.50 W
    • Power Source Type: PoE+
    Physical Characteristics
    • Color Family: White
    • Product Color: White
    • Form Factor: Dome
    • Diameter: 7.9"
    • Weight (Approximate): 3.04 lb
    Environmental Conditions
    • Minimum Operating Temperature: -40°F (-40°C)
    • Maximum Operating Temperature: 131°F (55°C)
    • Maximum Operating Humidity: 95%
    Miscellaneous
    • Features:
      • Day/Night
      • Built-in IR LED
      • HTTPS Encryption
      • Ingress Protection
      • Motion Detection
      • Vehicle Detection
      • Human Detection
      • Privacy Masking
      • White Balance
      • Gain Control
    • Impact Protection Rating: IK09
    • Ingress Protection Rating: IP66
    Warranty
    • Limited Warranty: 5 Year
