Home » APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, Short Depth - SCL500RM1U

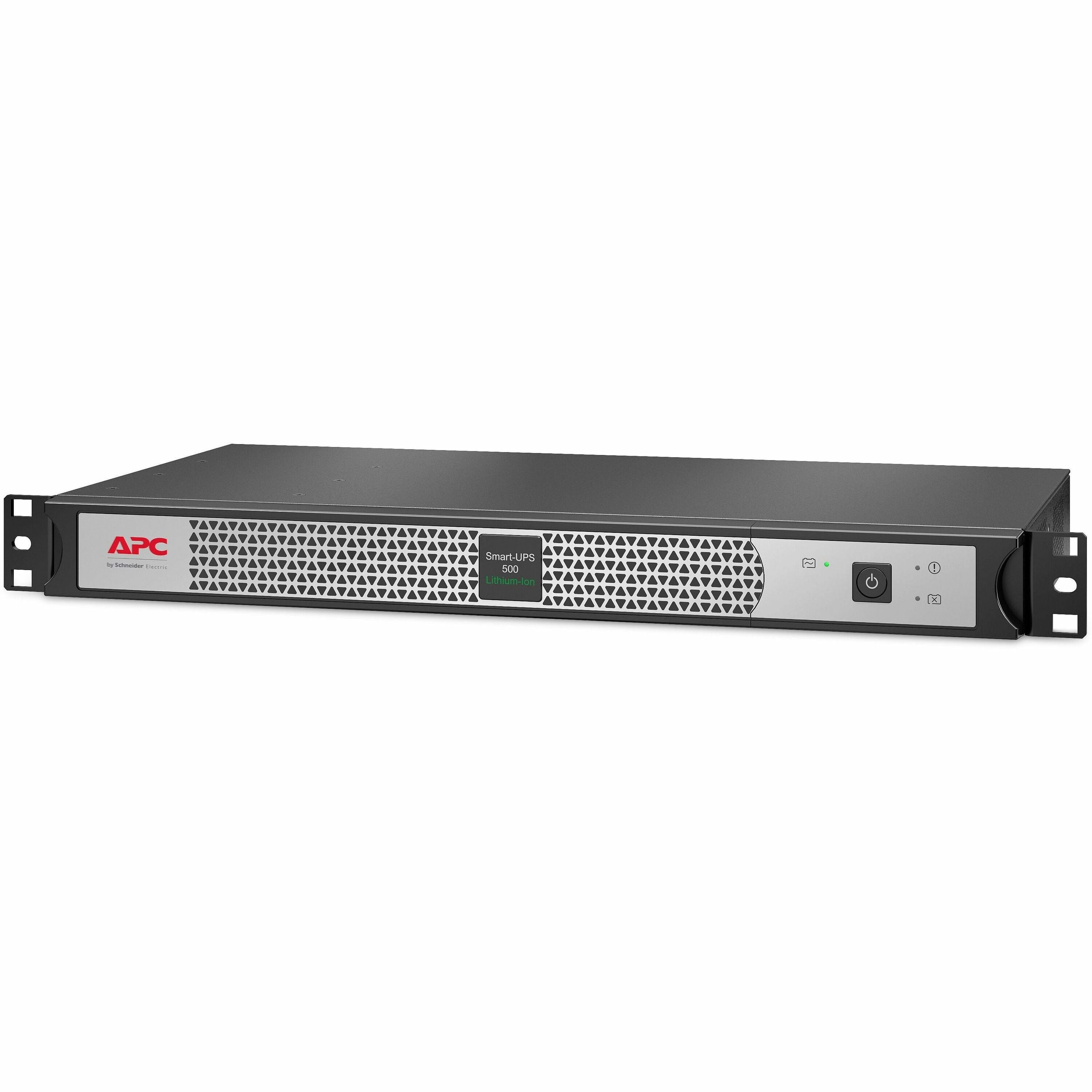

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, Short Depth - SCL500RM1U
APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, Short Depth - SCL500RM1U

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Schneider Electric SA

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, Short Depth - SCL500RM1U

11 in stock
SKU: 7210102
$1,010.16
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Additional pdf4
Click here for Additional pdf5
Click here for Additional pdf6
Click here for Additional pdf7
Click here for Manufacturer Brochure
Click here for User Manual

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, Short Depth

  • UPC : N/A
    • General Information
    • Manufacturer: Schneider Electric SA
    • Manufacturer Part Number: SCL500RM1U
    • Manufacturer Website Address: http://www.schneider-electric.com
    • Brand Name: APC by Schneider Electric
    • Product Line: Smart-UPS
    • Product Name: Smart-UPS 500VA Rack-mountable UPS
    • Packaged Quantity: 1
    • Product Type: Line-interactive UPS
    Technical Information
    • Plug/Connector Type: NEMA 5-15P
    • Receptacle Type: NEMA 5-15P
    • Receptacle Detail: 4 x NEMA 5-15R
    • Cord Length: 6 ft
    • Transfer Time: 10 ms
    • Application/Usage:
      • Server
      • POS
      • Router
      • Switch
      • Hub
      • Network Device
      • IT
      • Business
      • Critical System
    Power Description
    • Load Capacity (VA): 500 VA
    • Load Capacity (Watt): 400 W
    • Input Voltage: 120 V
    • Input Voltage Range: 92 V AC - 139 V AC
    • Output Voltage: 120 V AC
    • Input Frequency: 63 Hz
    • Output Frequency: 60 Hz
    • Waveform Type: Sine Wave
    • Surge Energy Rating: 680 J
    Display & Graphics
    • Display: LED
    Management
    • Alarm:
      • On Battery
      • Low Battery
      • Configurable Delay
    Controls/Indicators
    • Status Indicators:

      LED Indicators:

      • On Line
      • On Battery
      • Replace Battery
      • Building Wiring Fault
    Interfaces/Ports
    • USB: Yes
    Battery Information
    • Battery Chemistry: Lithium Ion (Li-Ion)
    • Battery Energy: 108 kJ
    • Backup/Run Time (Full Load): 2.68 Minute
    • Backup/Run Time (Half Load): 6.33 Minute
    • Battery Life: 10 Year
    • Typical Battery Recharge Time: 3 Hour
    Environmental Conditions
    • Maximum Operating Elevation: 6561 ft
    • Maximum Storage Elevation: 49212 ft
    • Storage Temperature: 5°F (-15°C) - 113°F (45°C)
    • Storage Relative Humidity: 10% - 90%
    • Maximum Operating Temperature: 104°F (40°C)
    • Sound Emission (A-Weighted): 45 dB(A)
    Physical Characteristics
    • Product Color:
      • Black
      • Silver
    • Height: 1.7"
    • Width: 17"
    • Depth: 9.1"
    • Rack Height: 1U
    • Form Factor: Rack-mountable
    • Weight (Approximate): 9.22 lb
    Miscellaneous
    • Package Contents:
      • Smart-UPS 500VA Rack-mountable UPS
      • CD with Software
      • Documentation CD
      • Installation Guide
      • Rack Mounting Support Rails
      • USB Cable
    • Software Included: Powerchute Serial Edition
    • Environmentally Friendly: Yes
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 5 Year
    • Additional Warranty Information: 5 year repair or replace
