Home » TP-Link Omada SG3428XPP-M2 - Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ - SG3428XPP-M2

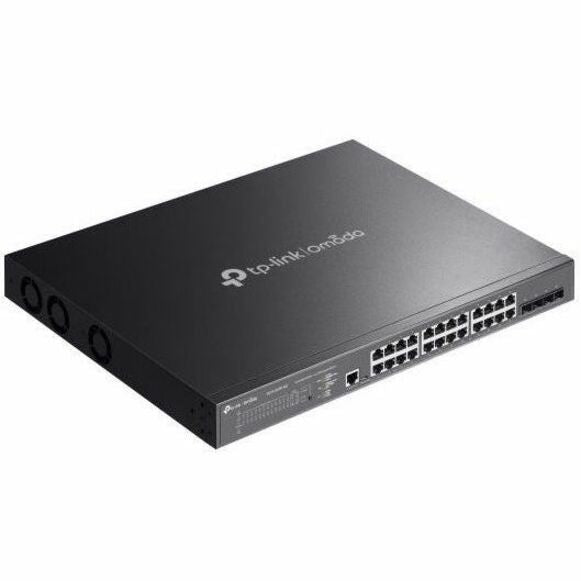

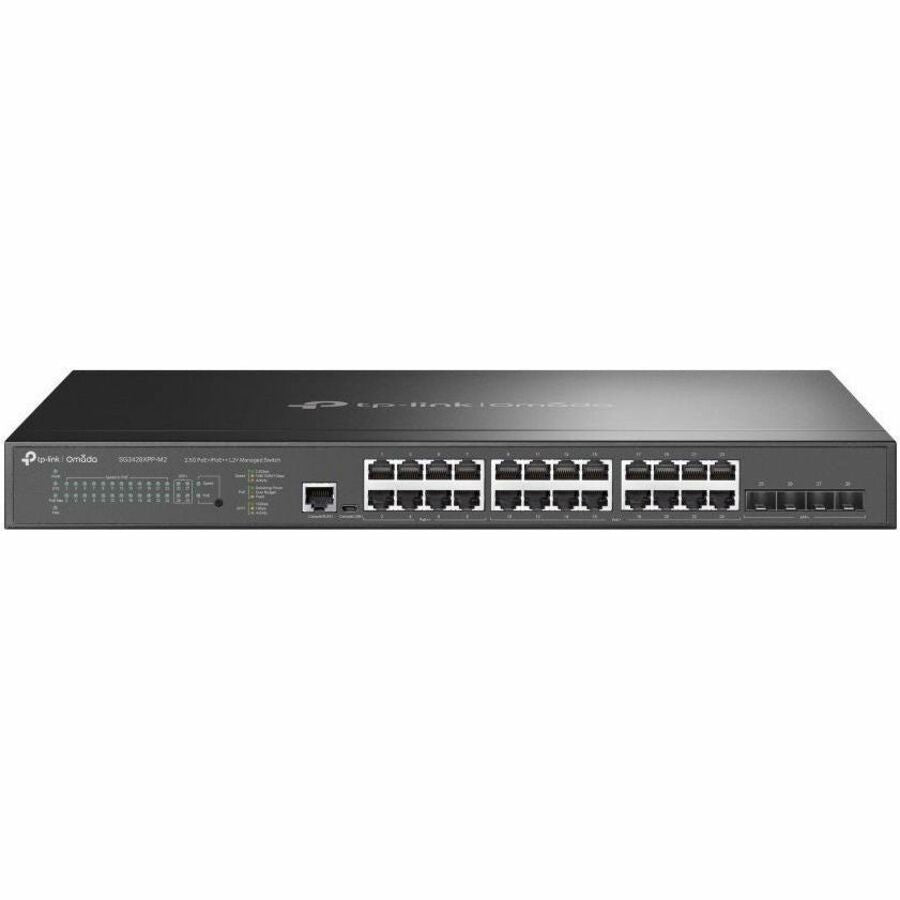

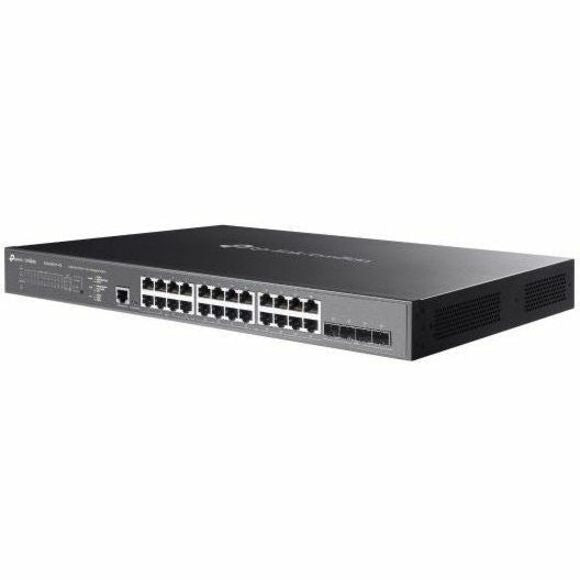

TP-Link Omada SG3428XPP-M2 - Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ - SG3428XPP-M2
TP-Link Omada SG3428XPP-M2 - Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ - SG3428XPP-M2

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

TP-LINK Technologies Co., Ltd

TP-Link Omada SG3428XPP-M2 - Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ - SG3428XPP-M2

9 in stock
SKU: 9173604
$808.74
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Additional pdf4
Click here for Additional pdf5

TP-Link Omada SG3428XPP-M2 - Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

  • UPC: 840030709739
    • General Information
    • Manufacturer: TP-LINK Technologies Co., Ltd
    • Manufacturer Part Number: SG3428XPPM2
    • Manufacturer Website Address: http://www.tp-link.com/us
    • Brand Name: Omada
    • Product Model: TL-SG3428XPP-M2
    • Product Name: Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
    • Product Type: Ethernet Switch
    Interfaces/Ports
    • Total Number of Network Ports: 24
    • Network (RJ-45): Yes
    • Uplink Port: Yes
    • Port/Expansion Slot Details:
      • 24 x 10/100/1000Mbps 2.5Gbps RJ-45 Network Port
      • 4 x 10Gigabit Ethernet SFP+ Expansion Slots
      • 1 × RJ-45 Console Port
      • 1 × Micro-USB Console Port
    Media & Performance
    • Media Type Supported:
      • Twisted Pair
      • Optical Fiber
    • Ethernet Technology:
      • Gigabit Ethernet
      • 2.5 Gigabit Ethernet
      • 10 Gigabit Ethernet
    • Network Technology:
      • 10/100/1000Base-T
      • 2.5GBase-T
      • 10GBase-X
    • Maximum Data Transfer Rate: 1.25 GB/s
    I/O Expansions
    • Total Number of Expansion Slots: 4
    • Expansion Slot Type: SFP+
    • Number of SFP+ Slots: 4
    Network & Communication
    • Layer Supported: 2
    • Networking Standards:
      • IEEE 802.3i
      • IEEE 802.3u
      • IEEE 802.3ab
      • IEEE 802.3bz
      • IEEE 802.3z
      • IEEE 802.3ae
      • IEEE 802.3af
      • IEEE 802.3bt
      • IEEE 802.1x
      • IEEE 802.1Q
      • IEEE 802.3ah
      • IEEE 802.1p
      • IEEE 802.3ad
      • IEEE 802.1D
      • IEEE 802.1w
      • IEEE 802.1s
      • IEEE 802.3x
    Management & Protocols
    • Manageable: Yes
    Power Description
    • PoE (RJ-45) Port: Yes
    • PoE Budget: 500 W
    • Input Voltage:
      • 120 V AC
      • 230 V AC
    • Power Source: Power Supply
    • Power Consumption: 629.10 W
    Physical Characteristics
    • Compatible Rack Unit: 1U
    • Form Factor: Rack-mountable
    • Height: 1.7"
    • Width: 17.3"
    • Depth: 13"
    Miscellaneous
    • Package Contents:
      • Omada 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+
      • Quick Installation Guide
      • Rackmount Kit
      • Rubber Feet
