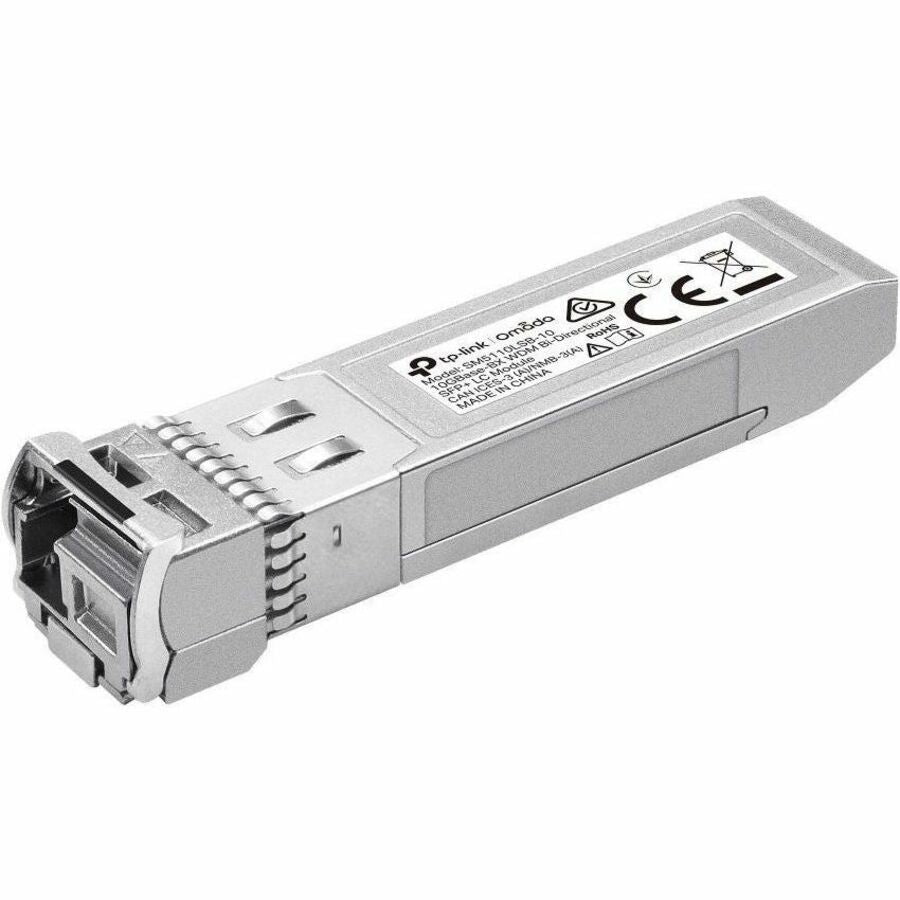

Omada Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module - SM5110LSB-10
Regular price
$120.92
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Additional pdf1
Click here for Additional pdf2
UPC: 810142821674
General Information
Click here for Additional pdf2
Omada Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: SM5110LSB-10
- Manufacturer Website Address: http://www.tp-link.com/us
- Brand Name: Omada
- Product Model: SM5110LSB-10
- Product Name: Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
- Product Type: SFP+
- Application/Usage:
- Data Networking
- Optical Network
- Features: Digital Diagnostics Monitoring Interface (DDMI)
- Total Number of Ports: 1
- Connector Type: LC/UPC
- Interfaces/Ports Details: 1 x LC/UPC 10GBase-BX BiDi Simplex Network
- Media Type Supported: Optical Fiber
- Fiber Optic Cable Core/Cladding Specification: 9/125 µm
- Fiber Optic Cable Wavelength:
- 1270 nm
- 1370 nm
- Fiber Mode Supported: Single-mode
- Ethernet Technology: 10 Gigabit Ethernet
- Network Technology: 10GBase-BX BiDi
- Maximum Distance Supported: 10 km
- Maximum Data Transfer Rate: 10.31 Gbit/s
- Form Factor:
- Hot-swappable
- Hot-pluggable
- Height: 0.5"
- Width: 2.2"
- Depth: 0.6"
- Compatibility:
MSA Compliant
TP-LINK Switches:
- SG3428X
- SG3452X
- Country of Origin: China
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
