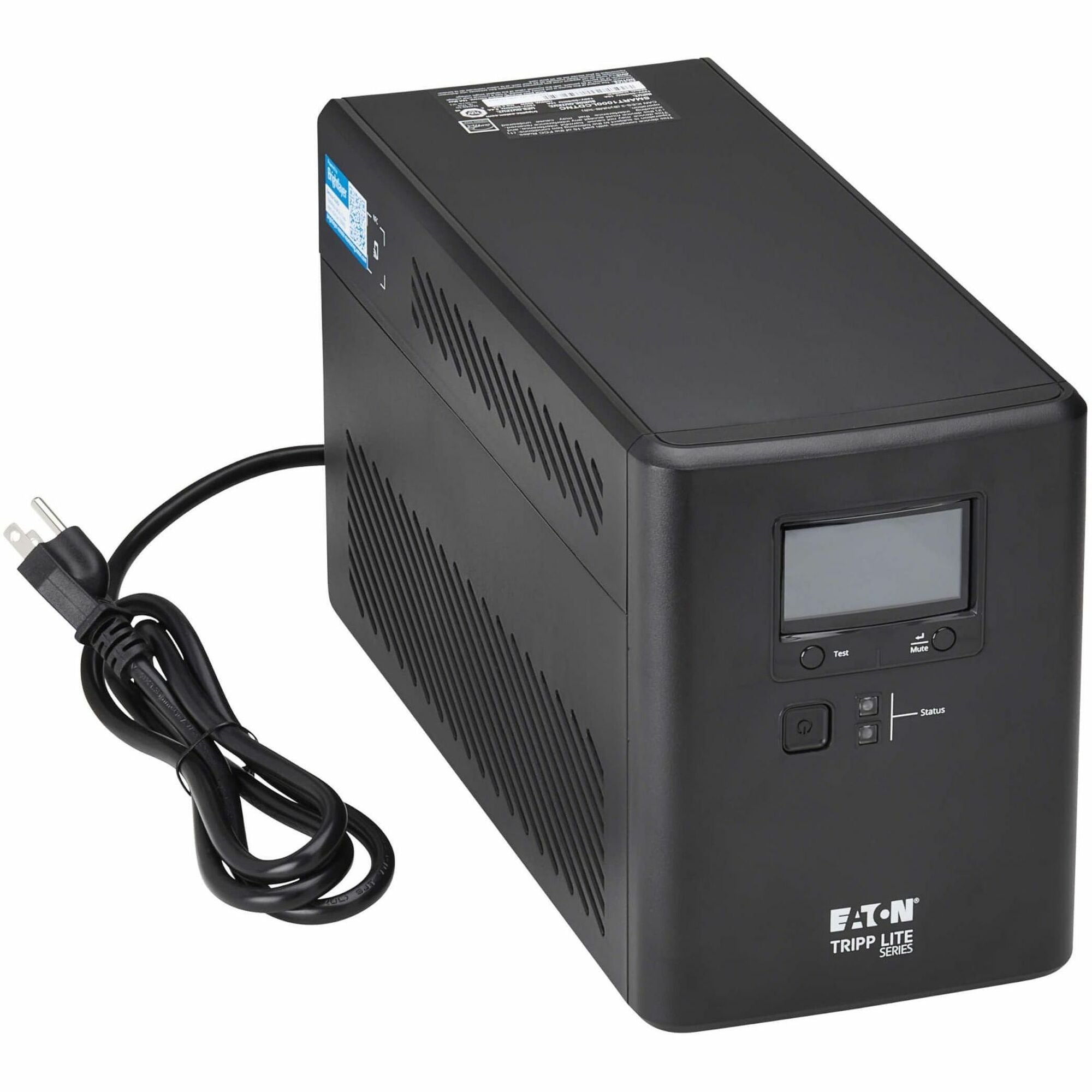

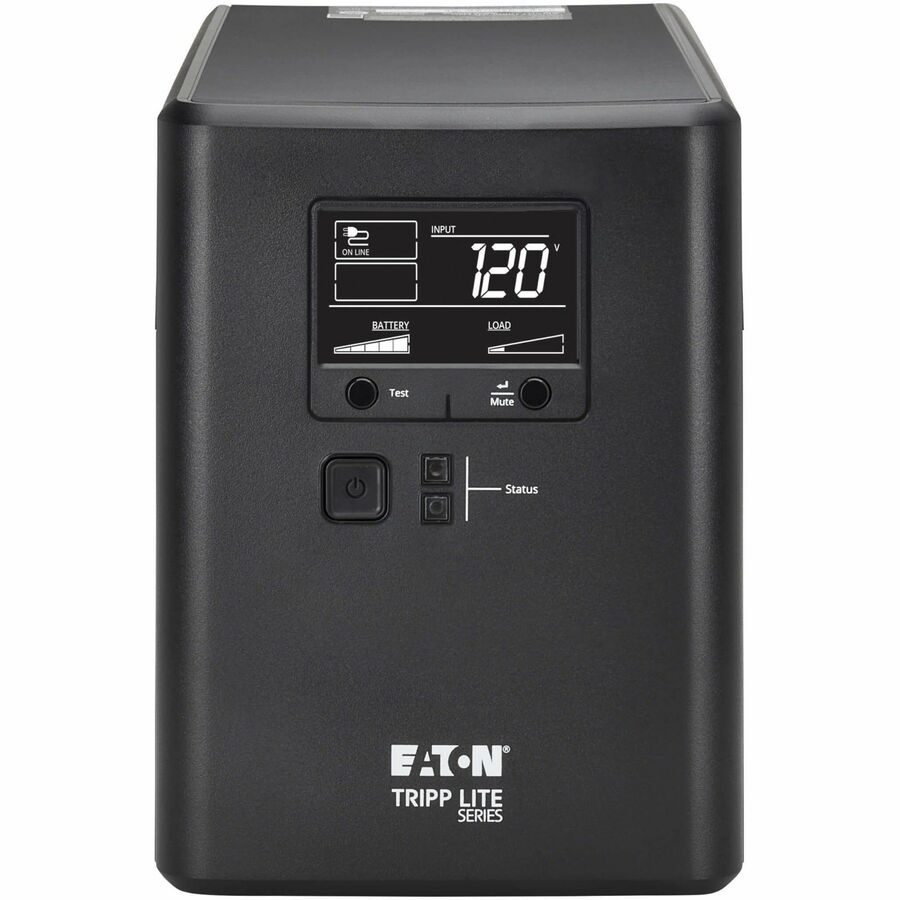

Eaton Tripp Lite Series 1000VA 600W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (5 Surge + 5 Surge and Battery Backup), LCD, 5-15P Plug, Tower - SMART1000LCDTNC
Eaton Tripp Lite Series 1000VA 600W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (5 Surge + 5 Surge and Battery Backup), LCD, 5-15P Plug, Tower - SMART1000LCDTNC
Regular price
$447.12
Regular price
-32%
$654.16
Sale price
$447.12
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Additional pdf1
Click here for Manufacturer Brochure
Click here for User Manual
UPC: 037332281333
General Information
Click here for Manufacturer Brochure
Click here for User Manual
Eaton Tripp Lite Series 1000VA 600W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (5 Surge + 5 Surge and Battery Backup), LCD, 5-15P Plug, Tower
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SMART1000LCDTNC
- Manufacturer Website Address: http://www.eaton.com
- Brand Name: Tripp Lite series
- Product Model: SMART1000LCDTNC
- Product Name: SMART1000LCDTNC 1000VA Compact tower UPS
- Product Type: Line-interactive UPS
- AVR: Yes

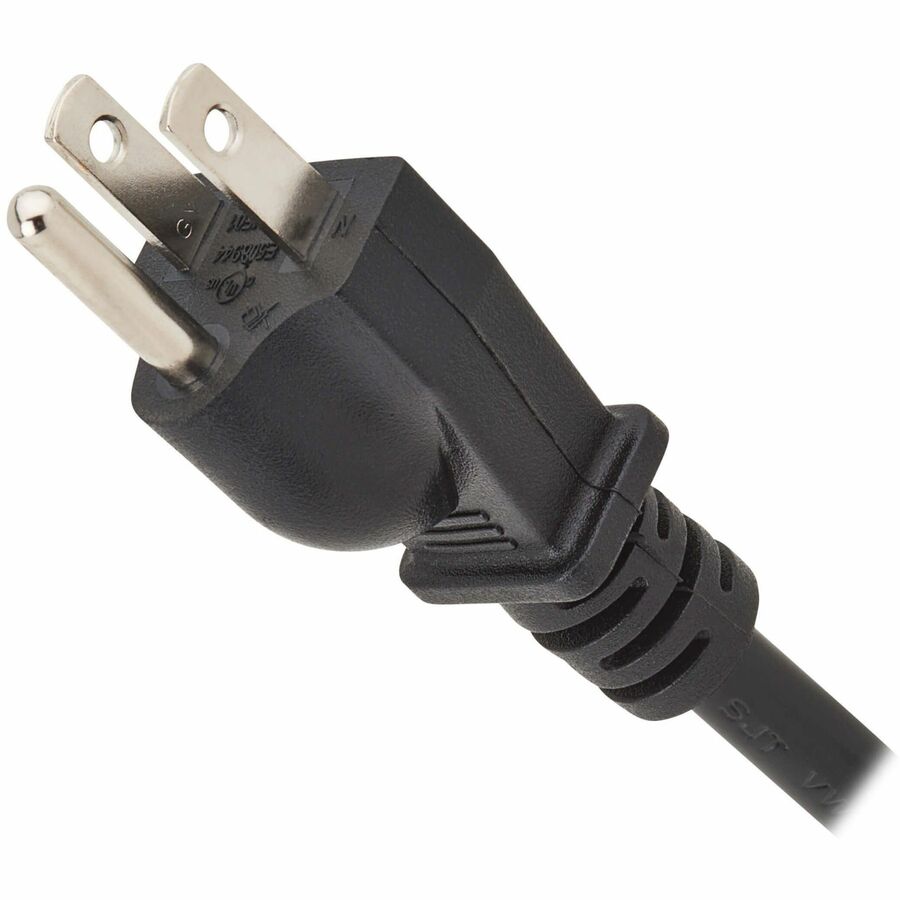

- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

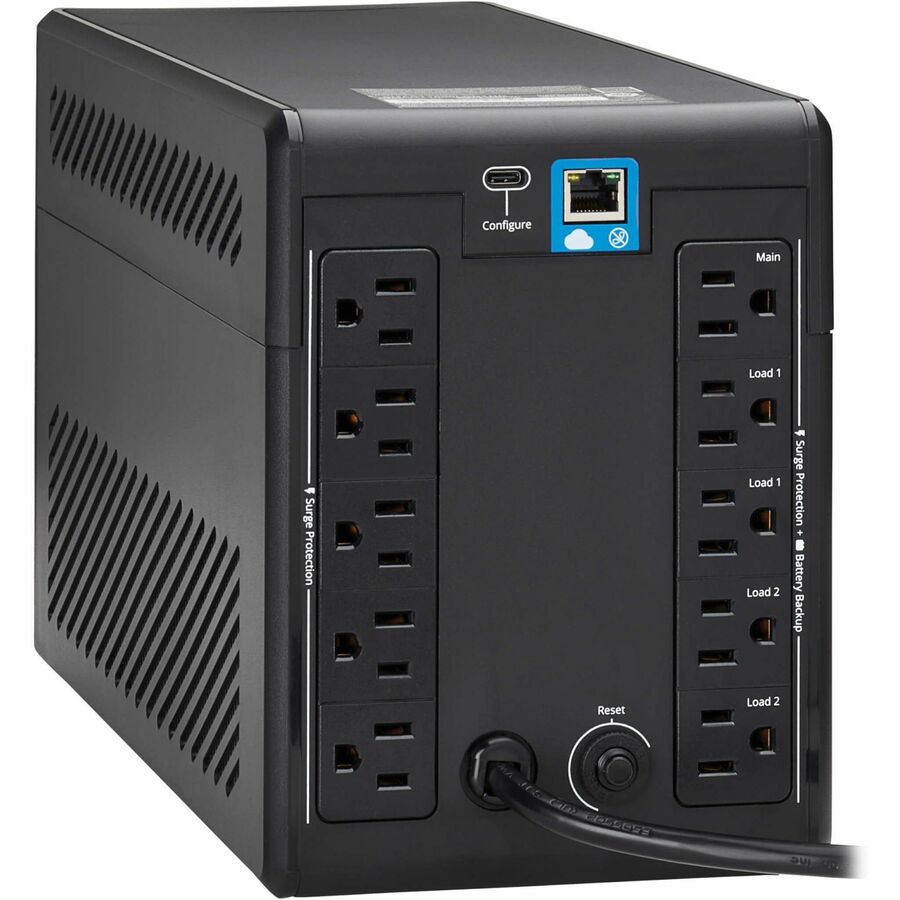

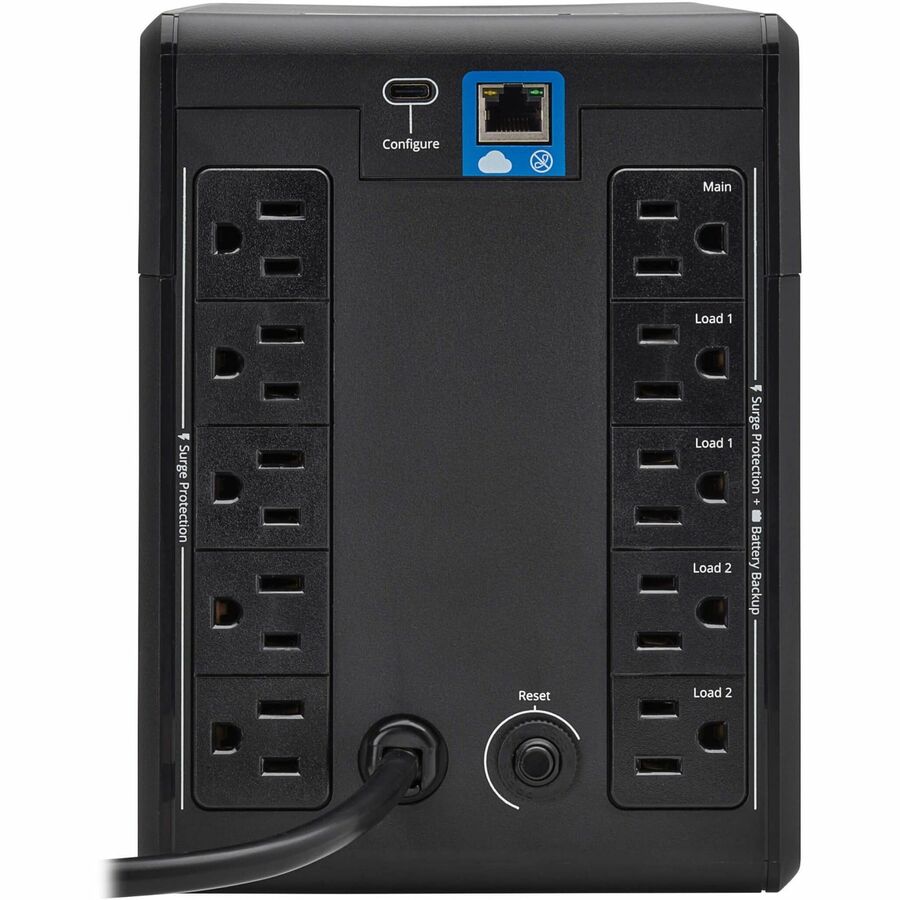

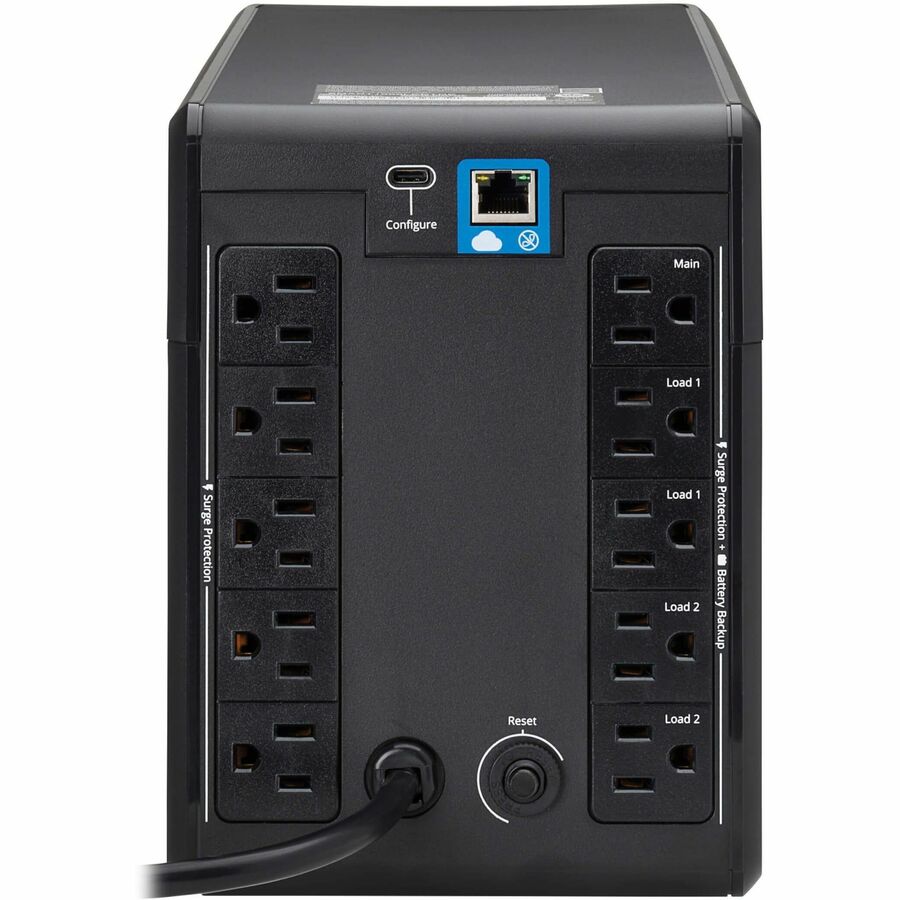

- Receptacle Detail: 10 x NEMA 5-15R
- Number of Battery & Surge Outlets: 5
- Number of Surge-only Outlets: 5
- Overload Protection: Yes
- Cord Length: 5 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Phase: Single Phase
- Energy Saving: Greater than 95% efficiency - GREEN UPS
- Application/Usage:
- Network
- Retail
- POS
- Home
- Office
- Workstation
- Digital Signage
- Equipment
- Computer
- Monitor
- Security
- Camera
- Desk Lamp
- Speaker
- Desktop
- Audio/Video Equipment
- Hospital
- Surge Suppression: Yes
- Features:
- Audible Alarm
- Cold Start Function
- Auto Restart
- Self Test
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 600 W
- Input Voltage: 120 V AC
- Input Voltage Range: 92 V AC - 145 V AC
- Input Current: 10 A
- Output Voltage: 120 V AC
- Input Frequency:
- 50 Hz
- 60 Hz
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type: Pulse-width Modulated Sine Wave
- Surge Energy Rating: 380 J
- Circuit Breaker: Yes
- Output Power Factor: 0.6

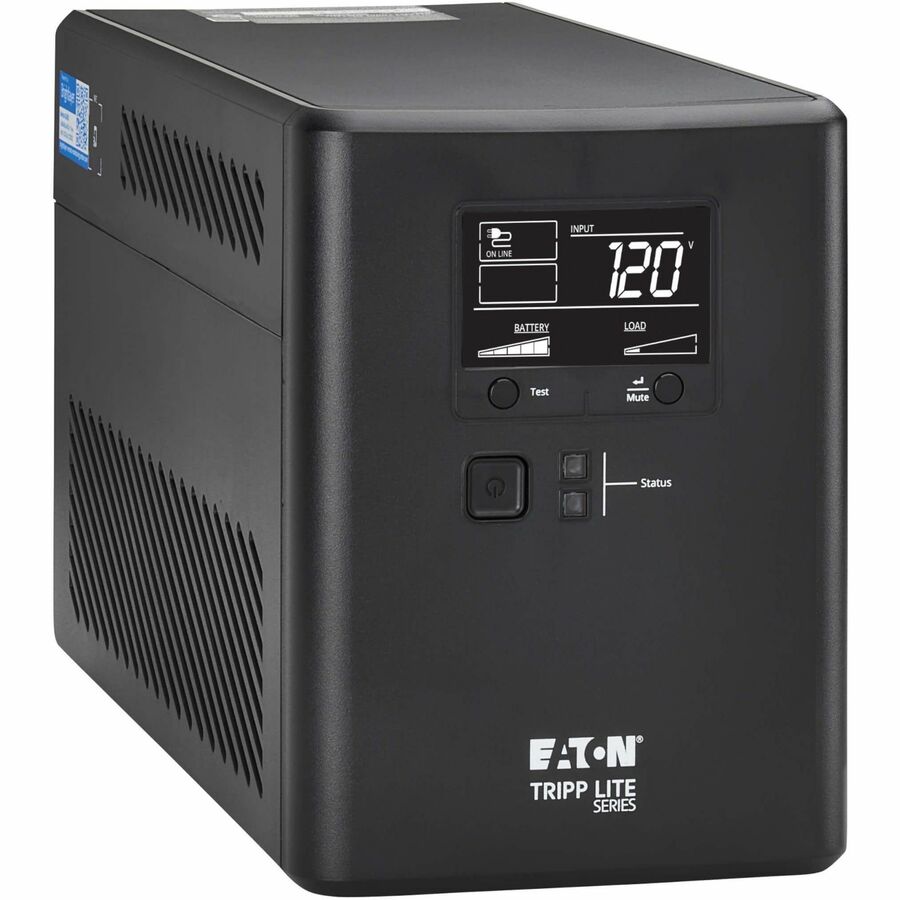

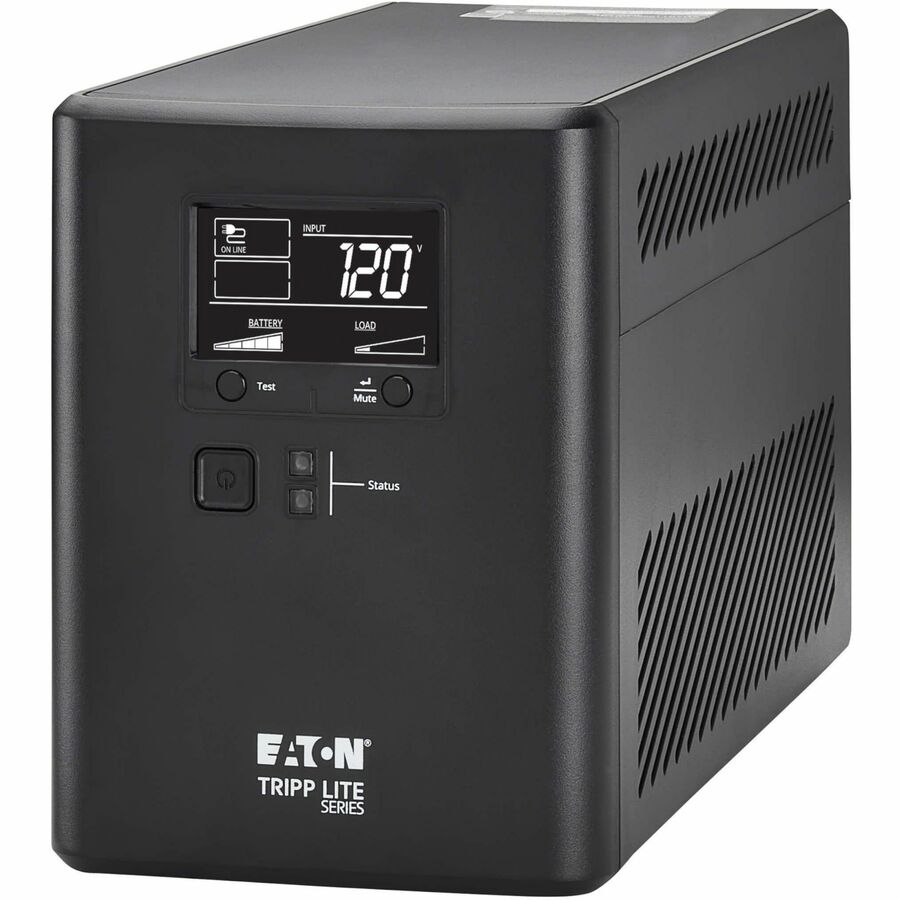

- Display: LCD
- Alarm:
- Low Battery
- Fault
- Status Indicators:
LCD Display:
- Input Voltage
- Output Voltage
- Frequency (Hz)
- AVR Boost / Cut Status
- Output Load in Watts
- Output Load Percentage
- Battery Voltage
- Estimated Runtime
LEDs Indictors:
- AC Power
- Battery Fully Charged
- Running on AC power
- Battery Charging
- Fault
- USB: Yes
- Network (RJ-45): Yes
- DC System Voltage: 24 V DC
- Battery Characteristics: Valve-regulated
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 4 Minute
- Backup/Run Time (Half Load): 14.30 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
- Storage Temperature: 5°F (-15°C) - 122°F (50°C)
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Thermal Dissipation: 9.09 W
- Height: 7.9"
- Width: 5.7"
- Depth: 14.6"
- Rack Height: 0U
- Form Factor: Compact Tower
- Weight (Approximate): 22.92 lb
- Package Contents:
- SMART1000LCDTNC 1000VA Compact tower UPS
- Quick Start Guide
- Energy Star: Yes
- Country of Origin: Vietnam
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Limited Warranty: 3 Year
