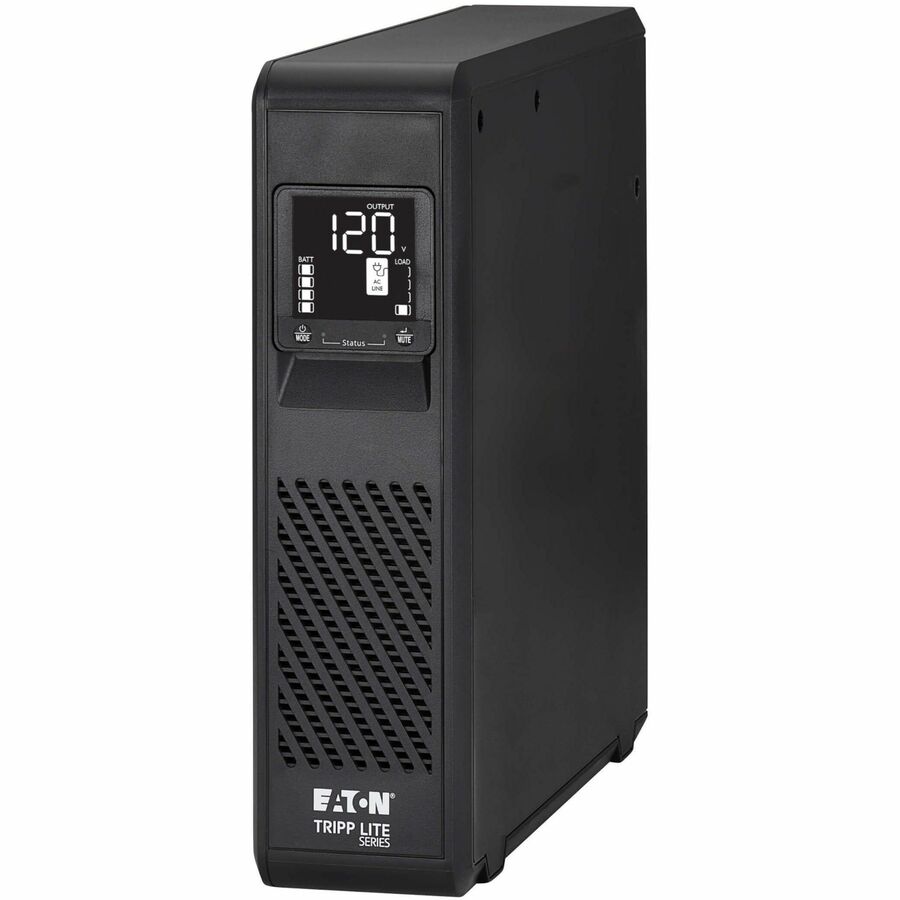

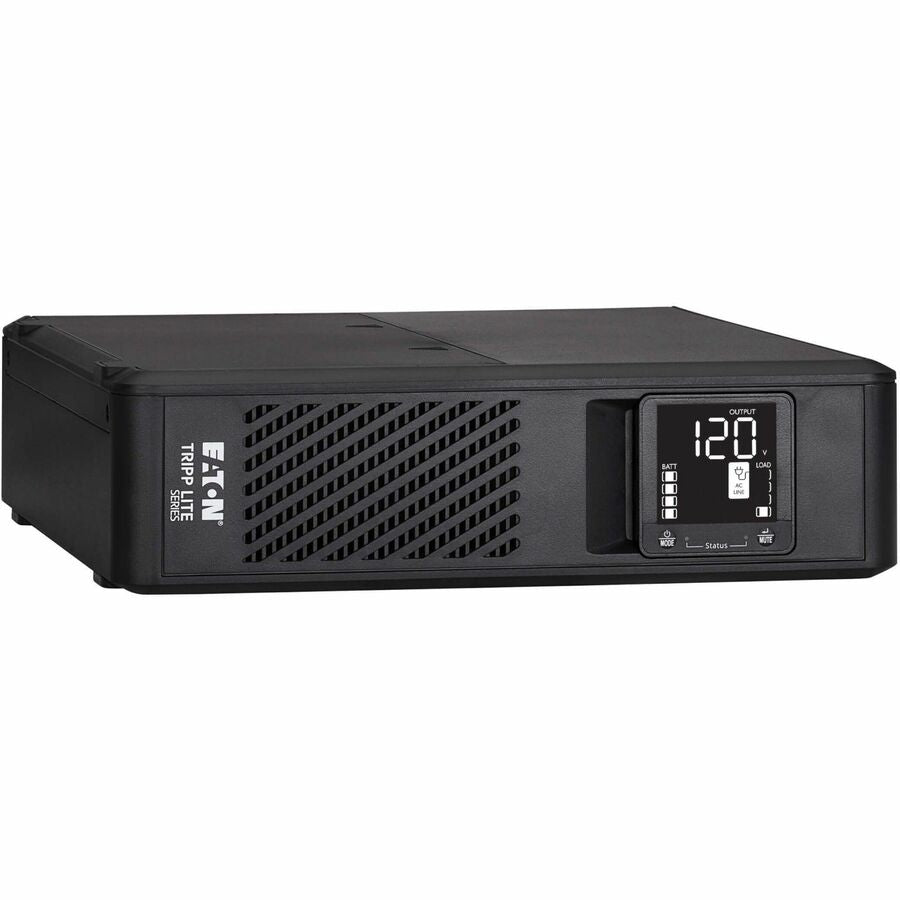

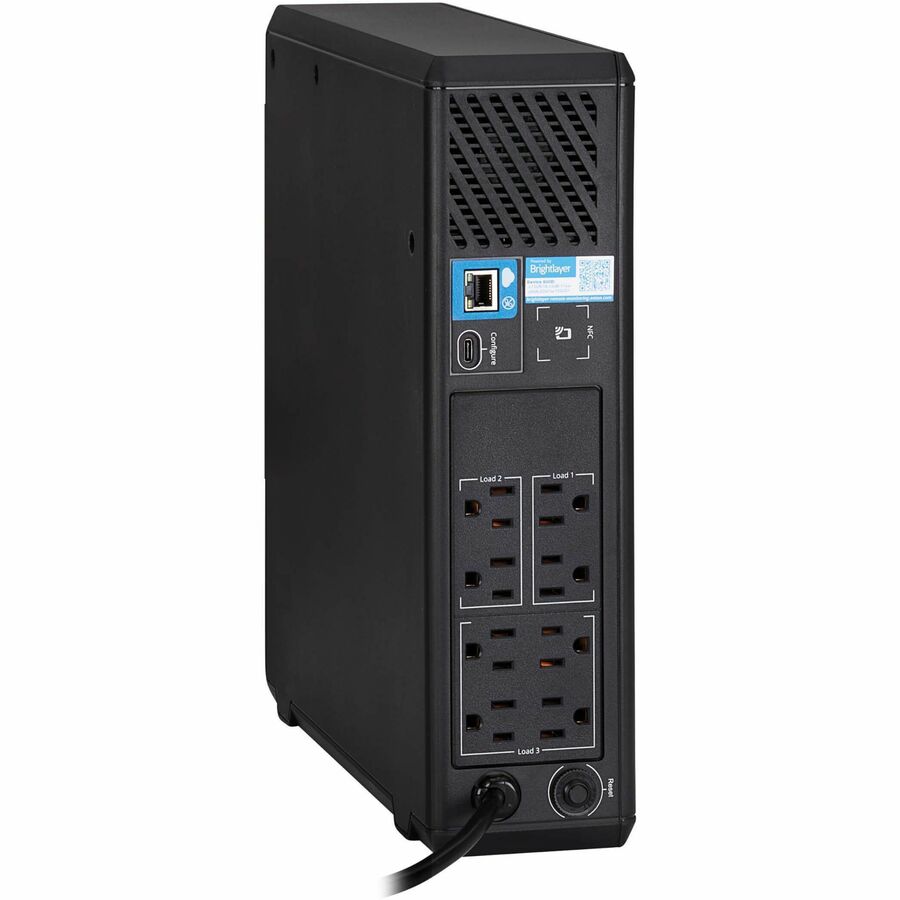

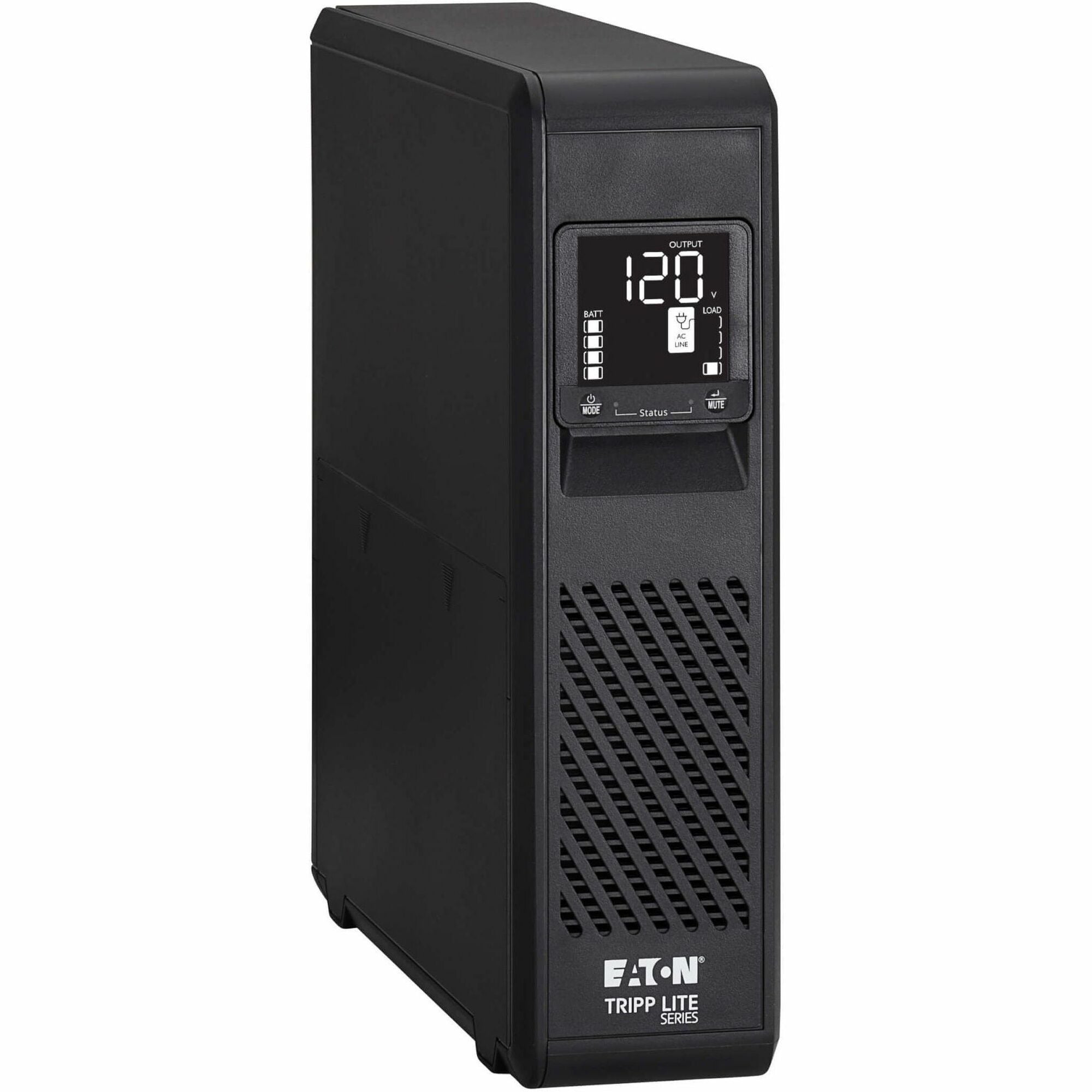

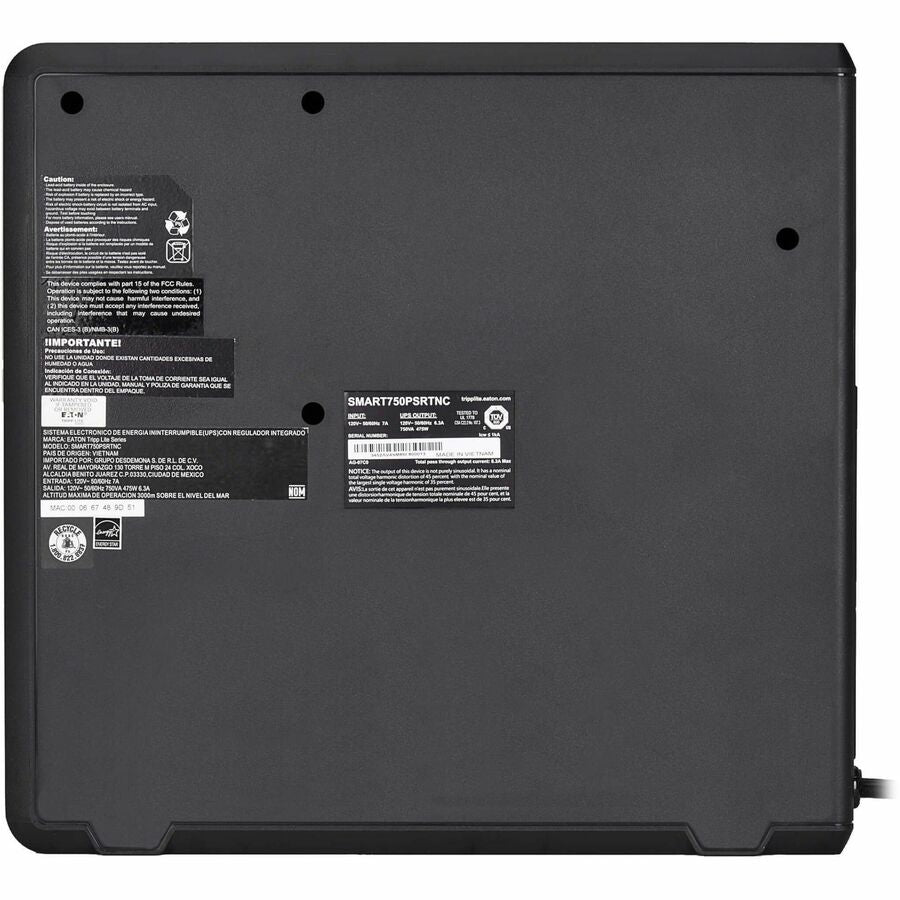

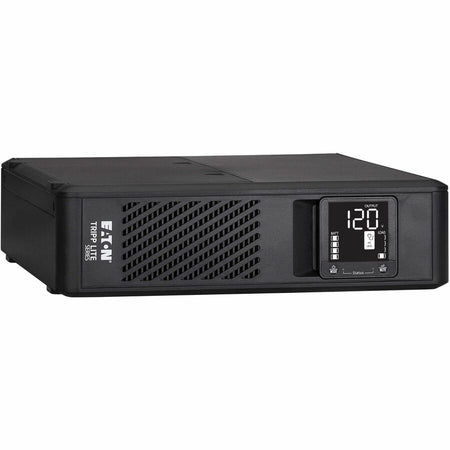

Eaton Tripp Lite Series 750VA 475W 120V Line-Interactive Pure Sine Wave Cloud-Connected UPS with Remote Monitoring - 8 NEMA 5-15R Outlets (Surge and Battery Backup), LCD, 5-15P Plug, Tower - SMART750PSRTNC
Eaton Tripp Lite Series 750VA 475W 120V Line-Interactive Pure Sine Wave Cloud-Connected UPS with Remote Monitoring - 8 NEMA 5-15R Outlets (Surge and Battery Backup), LCD, 5-15P Plug, Tower - SMART750PSRTNC
Regular price
$501.09
Regular price
-36%
$781.20
Sale price
$501.09
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Couldn't load pickup availability
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Manufacturer Brochure
Click here for User Manual
UPC: 037332283740
General Information
Click here for Additional pdf2
Click here for Manufacturer Brochure
Click here for User Manual

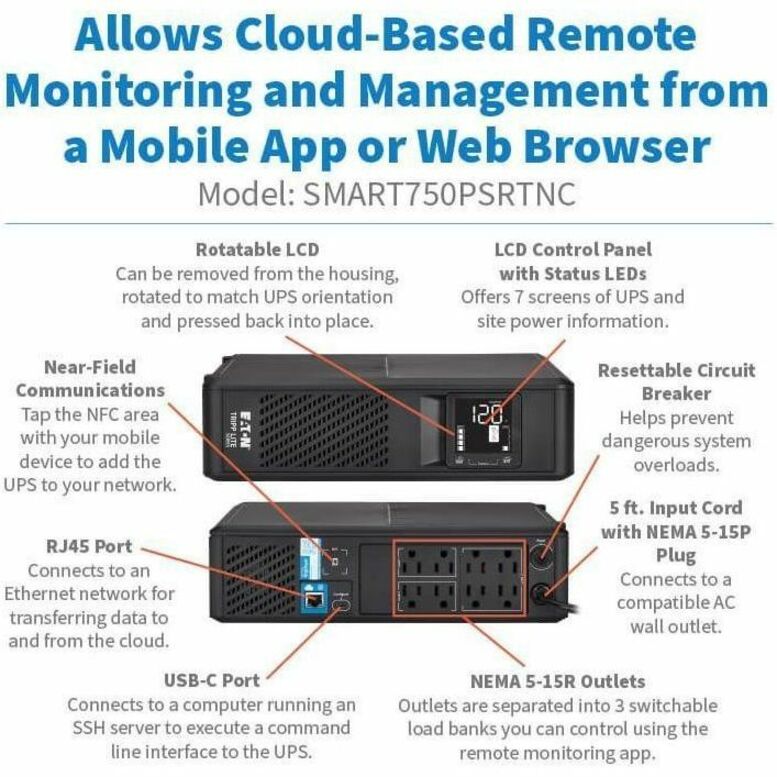

Eaton Tripp Lite Series 750VA 475W 120V Line-Interactive Pure Sine Wave Cloud-Connected UPS with Remote Monitoring - 8 NEMA 5-15R Outlets (Surge and Battery Backup), LCD, 5-15P Plug, Tower
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SMART750PSRTNC
- Manufacturer Website Address: http://www.eaton.com
- Brand Name: Tripp Lite series
- Product Model: SMART1000PSRTNC
- Product Name: SMART750PSRTNC 750VA Tower UPS
- Product Type: Line-interactive UPS
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

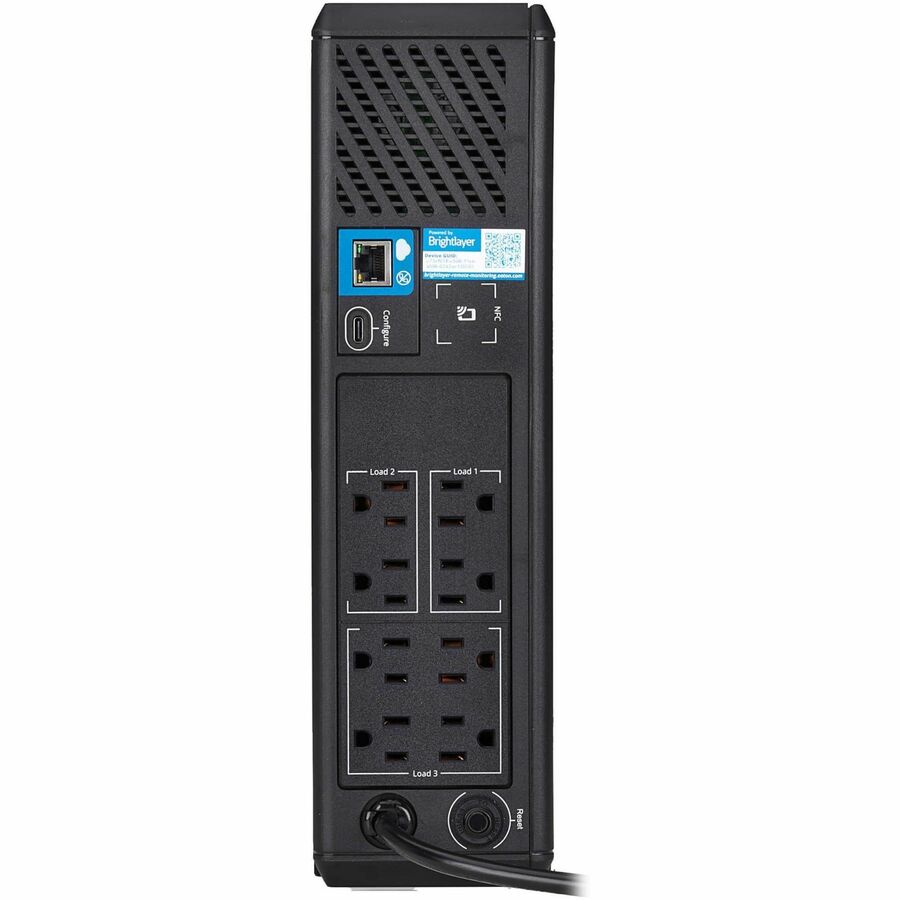

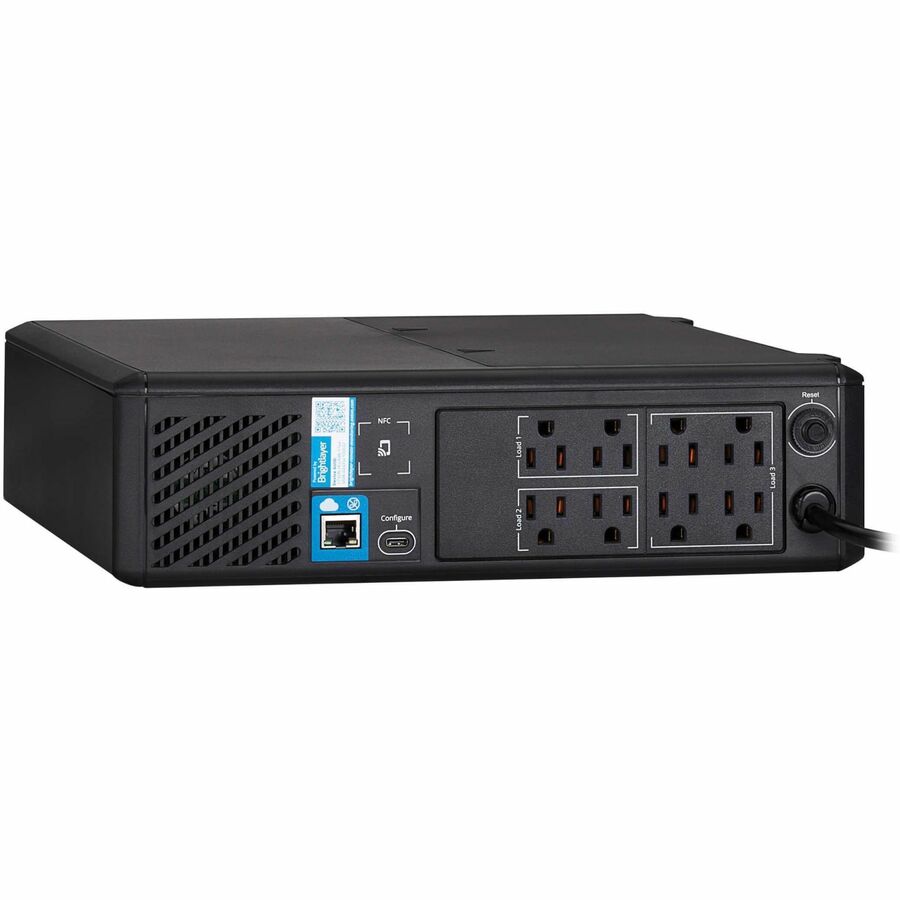

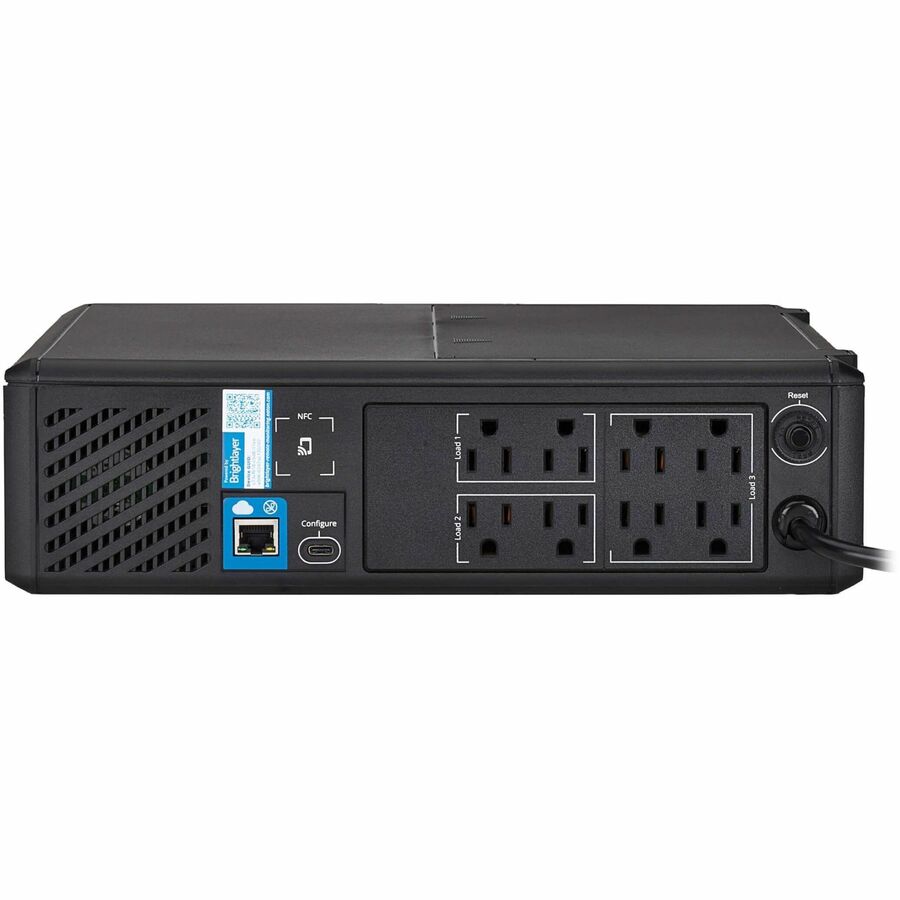

- Receptacle Detail: 8 x NEMA 5-15R
- Number of Load Management Outlets: 3
- Number of Battery & Surge Outlets: 8
- Overload Protection: Yes
- Cord Length: 5 ft
- Transfer Time: 10 ms
- Phase: Single Phase
- Energy Saving: Green Energy-Saving
- Efficiency Detail: 95% (AC Mode)
- Application/Usage:
- Retail
- POS
- Hospital
- Desktop
- Network
- IT Rack
- Home
- Office
- CCTV Camera
- Router
- Network Switch
- Server
- Electronic Device
- Surge Suppression: Yes
- Features:
- Audible Alarm
- Cold Start Function
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 475 W
- Input Voltage: 120 V AC
- Input Voltage Range: 97 V AC - 145 V AC
- Input Current: 7 A
- Output Voltage: 120 V AC
- Input Frequency:
- 50 Hz
- 60 Hz
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type:
- Pure Sine Wave
- Sine Wave
- Surge Energy Rating: 158 J
- Circuit Breaker: Yes
- Output Power Factor: 0.633
- Display: LCD
- Network Management: Network Management Card
- Alarm:
- UPS StartUp
- Power Failure
- Low Battery
- Overload
- UPS Fault
- Remote Shutdown
- Status Indicators:
Front Panel LCD Display:
- Input Voltage
- Output Voltage
- Estimated Runtime (minutes)
- Output Load Percentage
- Output Load Wattage
- Battery Voltage
- Graphical 4-Bar Battery Charge level
- 4 bar load Level
- UPS Status AC Powered or Battery Operation
- Alarm muted (icon flashing)
- Alarm disabled (icon steady on)
LED Indicators:
- AC Operation
- AC Operation and Battery Charging
- UPS Fault
- USB: Yes
- Network (RJ-45): Yes
- DC System Voltage: 24 V DC
- Battery Characteristics: Valve-regulated
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 2 Minute
- Backup/Run Time (Half Load): 8 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
- Storage Temperature: 5°F (-15°C) - 122°F (50°C)
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission: 40 dB
- Thermal Dissipation: 12.10 W
- Height: 13"
- Width: 3.4"
- Depth: 12.4"
- Rack Height: 2U
- Form Factor: Tower
- Weight (Approximate): 15.40 lb
- Package Contents:
- SMART750PSRTNC 750VA Tower UPS
- Quick Start Guide
- Energy Star: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Limited Warranty: 3 Year
